Engine Head Gasket Leak Detector using a CO2 Analyzer

Detecting head gasket failures through carbon dioxide (CO2) analysis is very effective. This non-invasive technique measures CO2 concentrations in the engine's cooling system, providing a reliable indication of combustion gas leakage. Technicians can quickly and accurately diagnose head gasket integrity without engine disassembly by utilizing affordable analyzers that detect elevated CO2 levels in the coolant.

Pros	Cons
✅ Non-invasive Testing: Enables diagnosis without engine disassembly, saving time and labor costs. ✅ Quick: Provides rapid detection of head gasket leaks through real-time CO2 monitoring. ✅ High Accuracy: Delivers precise measurements of combustion gas presence in the cooling system. ✅ Early Detection: Identifies developing problems before catastrophic engine failure occurs.	⛔ Equipment Cost: Significant initial investment required for quality analysis equipment. ⛔ Technical Expertise: Requires trained technicians for proper testing procedures and result interpretation. ⛔ Calibration Needs: Regular calibration necessary to maintain accuracy and reliability. ⛔ Environmental Sensitivity: Test results can be affected by ambient conditions and temperature variations.



What Is The Best CO2 Analyzer for Head Gasket Leak Detection?

CO2 analyzers and chemical CO2 analysis kits are the two primary ways of detecting an engine head gasket leak. A list of the best options are here:

• Forensics Detectors CO2 Leak Detector (Analyzer)
• Bullseye Leak CO2 Monitor by ATS (Analyzer)
• Maddox Combustion Leak Detector (Chemical)
• Laser CO2 Head Gasket Leak Detector (Chemical)

How Does Engine Head Gasket Leak Detector Work?

Two CO2 head leak detector technologies are used today.

CO2 Analyzer Method: This method uses an electronic CO2 gas analyzer to detect exhaust gases in the cooling system. The analyzer measures CO2 levels in the air above the radiator fluid while the engine is running. If CO2 levels spike, it indicates exhaust gases are leaking through a blown head gasket into the cooling system. This method provides precise, real-time measurements and can detect even small leaks.



Chemical Solution Method: This method uses a liquid chemical solution that changes color when exposed to CO2. A sampling device draws air from above the radiator fluid through the solution. If exhaust gases are present due to a head gasket leak, the solution changes color (typically from blue to yellow), providing a visual indication of the leak.

Why is CO2 Analysis Important for Engine Diagnostics?

CO2 analysis serves as a critical diagnostic tool for identifying combustion gas leaks in engine cooling systems, particularly for head gasket failures. By detecting elevated carbon dioxide levels in the coolant, technicians can accurately diagnose internal engine problems before they cause catastrophic damage, enabling timely repairs and preventing extensive engine damage. This non-invasive method significantly reduces diagnostic time and costs.

What are the Core Components of a CO2 Analyzer?

A CO2 analyzer consists of several essential components: an NDIR (Non-Dispersive Infrared) sensor for precise gas detection, an integrated sampling pump for active air collection, an infrared light source operating at 4.2-4.4 micrometers wavelength, a detector element for measuring absorption, and a digital display interface for real-time concentration readings. These components work together to ensure accurate head gasket leak detection.

How Does a Head Gasket Leak Produce CO2 in Coolant?

When a head gasket fails, combustion gases from the engine cylinders escape into the cooling system during the combustion process. As these gases contain high concentrations of carbon dioxide from fuel combustion, they mix with the coolant, elevating CO2 levels significantly above normal atmospheric concentrations. This increased CO2 presence in the coolant serves as a reliable indicator of head gasket failure.

What are the Detection Ranges for CO2 Analyzers?

Modern CO2 analyzers for automotive applications typically measure concentrations ranging from 0 to 50,000 parts per million (ppm). Professional-grade analyzers offer detection thresholds as low as 20 ppm, allowing for early identification of minor leaks. The most sensitive instruments can differentiate between normal atmospheric CO2 levels (approximately 400 ppm) and elevated levels indicating a leak.

What Types of CO2 Analyzers are Available?

Automotive CO2 analyzers come in three primary variants: handheld portable units for mobile diagnostics, bench-mounted systems for workshop settings, and integrated diagnostic systems that combine multiple testing capabilities. Each type utilizes either infrared spectroscopy or chemical detection methods, with varying levels of sensitivity, accuracy, and price points to suit different diagnostic needs.

What are the Power Requirements for CO2 Analyzers?

Most professional CO2 analyzers operate on standard 110/220V AC power for bench-mounted units or rechargeable lithium-ion batteries for portable devices. Battery-powered units typically provide 6-8 hours of continuous operation. Some advanced models feature dual-power capabilities, allowing for both plug-in operation and battery backup to ensure uninterrupted testing procedures.

How Often Should CO2 Analyzers be Calibrated?

Professional CO2 analyzers require calibration at least every three months under normal usage conditions, with more frequent calibration needed for heavy-duty applications. Daily zero calibration checks are recommended before testing, while full calibration using certified gas standards should follow manufacturer specifications. Regular calibration ensures accurate readings and reliable diagnostic results.

What is the Proper Testing Procedure for CO2 Analysis?

The testing procedure begins with warming the engine to operating temperature and verifying proper coolant levels. After connecting the analyzer to the coolant reservoir or radiator neck, establish a baseline reading. Monitor CO2 levels while varying engine RPM to detect any fluctuations. The entire process should follow manufacturer guidelines and typically takes 10-15 minutes.

When Should You Perform a CO2 Test?

CO2 testing should be performed when symptoms suggest possible head gasket failure, including coolant loss, excessive white exhaust smoke, or engine overheating. It's also recommended during pre-purchase inspections of used vehicles, after major engine repairs, or when diagnostic trouble codes indicate cooling system issues. Regular testing can help identify problems before they become severe.

Customer Success Story: Automotive Diagnostic Excellence with Forensics Detectors

Client Profile: Dexter, Professional Automotive Inspector Application: Head Gasket Leak Detection and Shop Air Quality Monitoring

Challenge: As an automotive inspector, Dexter needed reliable methods to accurately diagnose head gasket failures and assess workplace air quality. Traditional diagnostic methods often left room for uncertainty, potentially leading to misdiagnosis and unnecessary repairs.

Solution Implementation: Dexter integrated both Forensics Detectors CO2 and CO analyzers into his diagnostic toolkit, enabling dual-purpose functionality for both engine diagnostics and workplace safety assessment.

Results and Impact:

• Successfully diagnosed head gasket issues in 22 out of 25 suspected vehicles
• Identified elevated CO2 levels up to 1650 ppm in repair shop environments
• Expanded service offerings to include shop air quality assessments
• Established new business relationships with repair facilities

Key Performance Metrics:

• 88% success rate in confirming head gasket failure diagnoses
• Detection capability proven across multiple vehicle types
• Additional revenue stream created through air quality consulting

Client Testimonial: "Overall, I am loving both meters. The CO2 meter has detected issues on three cars that had symptoms similar to head gasket failure. I've also discovered opportunities to assist repair shops with their air quality management, expanding my service offerings beyond traditional vehicle diagnostics."

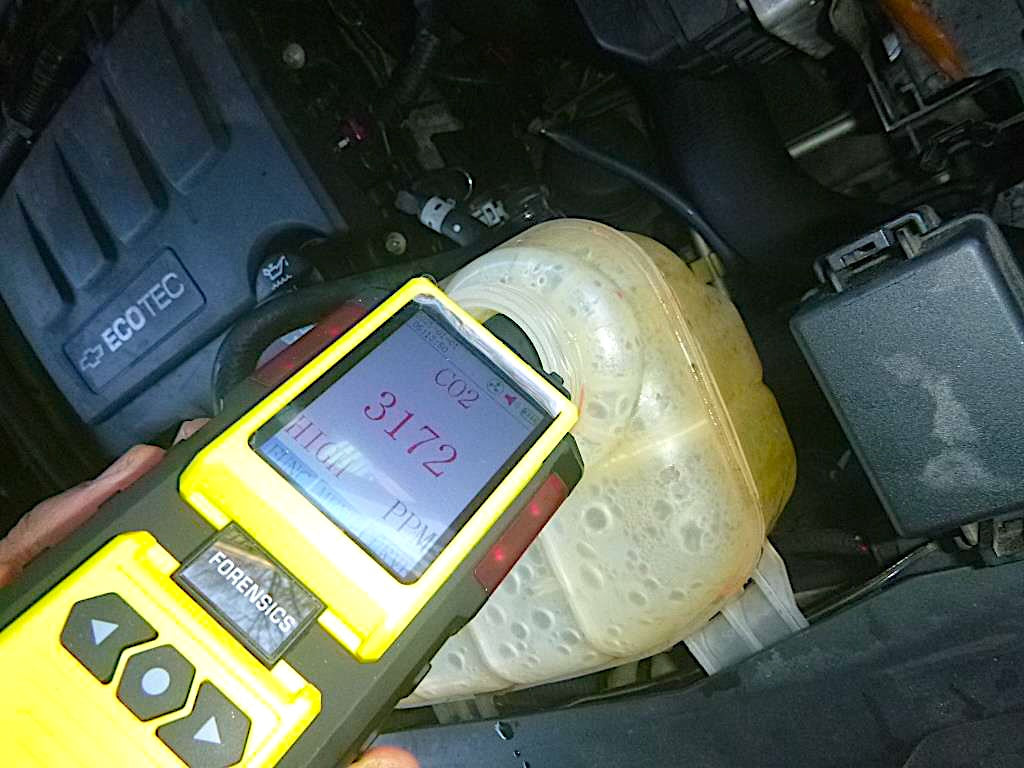

Below are images from Dexter's field work, demonstrating the practical application of our CO2 analyzer in real-world diagnostic scenarios. These photos showcase the versatility and ease of use of our equipment in professional automotive settings.

How Do You Maintain a CO2 Analyzer?

CO2 analysis offers superior accuracy and efficiency compared to traditional head gasket diagnostic methods. Unlike pressure testing or dye detection, CO2 analysis provides quantifiable results and can detect problems at earlier stages. The non-invasive nature eliminates the need for engine disassembly, significantly reducing diagnostic time and labor costs. This method also minimizes the risk of misdiagnosis that can occur with visual inspection or compression testing.

What are Common Testing Mistakes to Avoid?

Several critical errors can compromise CO2 analyzer test results. Testing on a cold engine or failing to establish proper baseline readings leads to inaccurate measurements. Improper positioning of the sampling tube, rushing the testing procedure, or failing to verify calibration before testing are frequent mistakes. Technicians should also avoid testing immediately after adding coolant, as this can introduce air bubbles that affect readings.

Some Facts About Carbon Dioxide (CO2) Analyzer for Engine Head Gasket Leak Detection:

✅ CO2 analyzers can detect head gasket leaks with concentrations as low as 20 parts per million, enabling technicians to identify problems before they lead to catastrophic engine failure. This exceptional sensitivity makes them one of the most reliable diagnostic tools available.

✅ Professional-grade CO2 analyzers utilize infrared spectroscopy technology to measure carbon dioxide levels, the same proven technology used in environmental monitoring and industrial applications. This ensures highly accurate and consistent readings across different testing conditions.

✅ These analyzers are completely non-invasive, requiring only access to the cooling system without any engine disassembly. This characteristic significantly reduces diagnostic time from hours to typically less than 15 minutes while maintaining exceptional accuracy.

✅ Modern CO2 analyzers feature automatic temperature compensation and ambient pressure adjustments, ensuring accurate readings regardless of environmental conditions. This technology eliminates false readings that can occur with simpler testing methods.

✅ The return on investment for a quality CO2 analyzer is typically achieved within the first few months of use, considering the time saved in diagnostics and the prevention of unnecessary repairs. This makes them an essential tool for professional automotive technicians.

How Does CO2 Analysis Compare to Other Diagnostic Methods?

CO2 analysis offers superior accuracy and efficiency compared to traditional head gasket diagnostic methods. Unlike pressure testing or dye detection, CO2 analysis provides quantifiable results and can detect problems at earlier stages. The non-invasive nature eliminates the need for engine disassembly, significantly reducing diagnostic time and labor costs. This method also minimizes the risk of misdiagnosis that can occur with visual inspection or compression testing.

What Features Should You Look for When Purchasing a CO2 Analyzer?

When selecting a CO2 analyzer, prioritize instruments with rapid response times and high measurement accuracy, typically within ±2% of full scale. Essential features include automatic temperature compensation, digital display with clear readability, and robust calibration capabilities. Look for units offering data logging functionality, multiple sampling modes, and durable construction suitable for workshop environments. Consider also the availability of technical support and warranty coverage from the manufacturer.

How Do You Calculate the Cost-Benefit of CO2 Analysis Equipment?

Calculating the cost-benefit of CO2 analysis equipment involves evaluating key financial metrics over time. A professional analyzer investment of $500-2,500 typically delivers returns through reduced diagnostic time, averaging 2 hours saved per test at standard labor rates. With 10 monthly diagnoses, equipment costs are recovered within 3-6 months. Additional value comes from improved accuracy, reduced warranty claims, and enhanced customer satisfaction, making it a sound long-term investment.

Final Word

A CO2 electronic handheld gas analyzer is the quickest and easiest way to diagnose combustion gas leaks by head gaskets, cylinder heads, and engine block leaks. The evolution of CO2 analyzers has revolutionized head gasket leak detection in the automotive industry. Detecting head gasket failures through carbon dioxide (CO2) analysis is very effective. This non-invasive technique measures CO2 concentrations in the engine's cooling system, providing a reliable indication of combustion gas leakage. Technicians can quickly and accurately diagnose head gasket integrity without engine disassembly by utilizing affordable analyzers that detect elevated CO2 levels in the coolant.
