3Brand: FORENSICS DETECTORS
Model: FD-311-Ar
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide

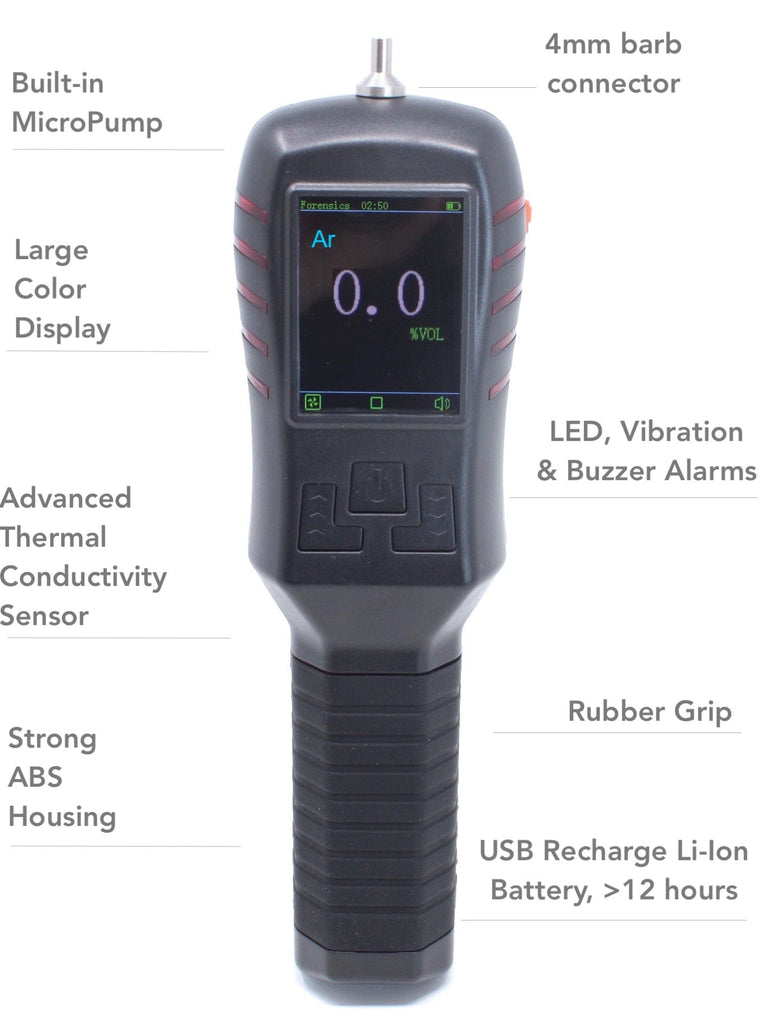

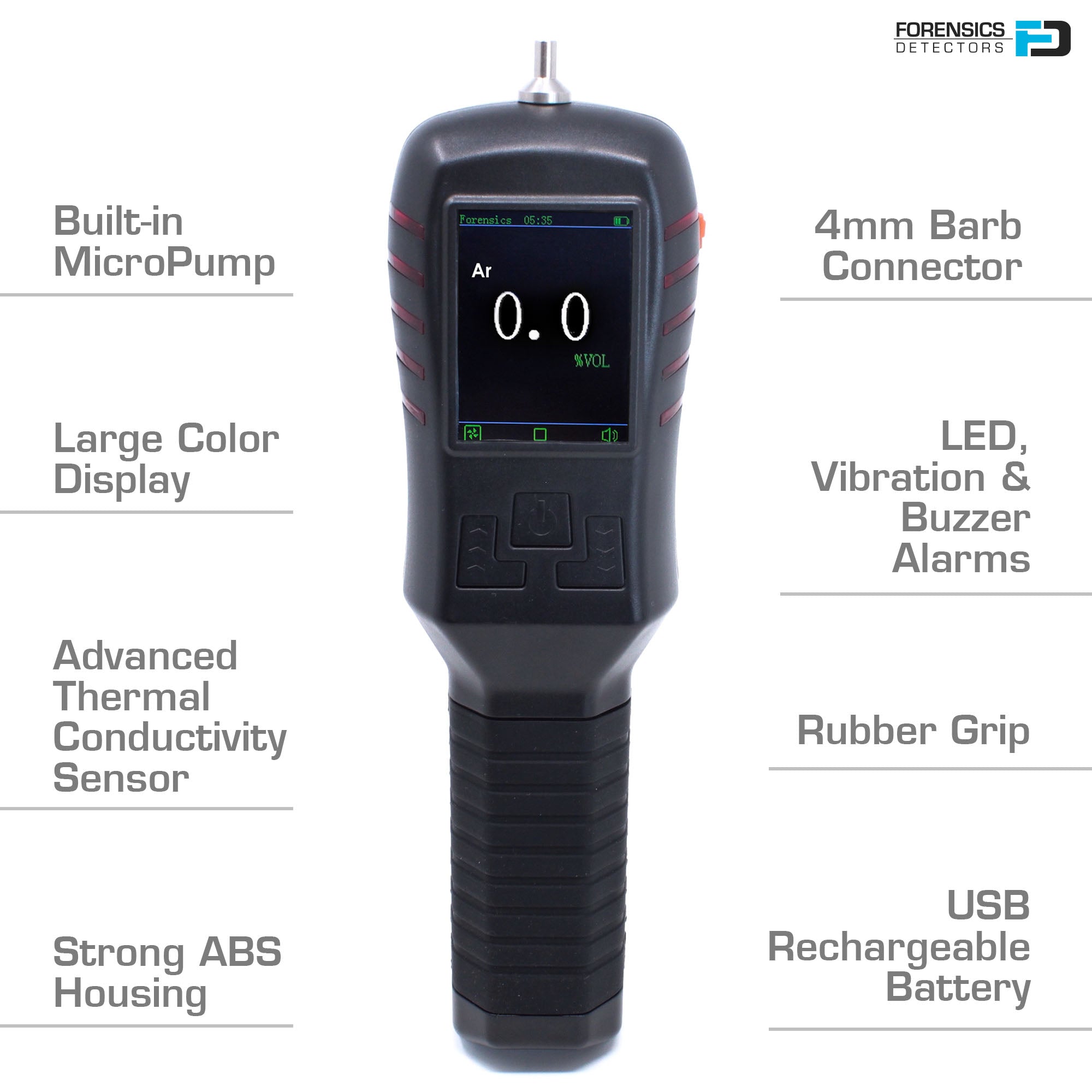

Features:
- ⚛️ ACCURATE: Argon (Ar) gas analyzer with a range of 0 - 100% and 0.1% resolution with a built-in pump.
- 🏕️ QUALITY: Thermal Conductivity Sensor technology with zero and span calibration options.
- 🔔 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached.
- 💪 STRONG: Shockproof, water-resistant, dust-proof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

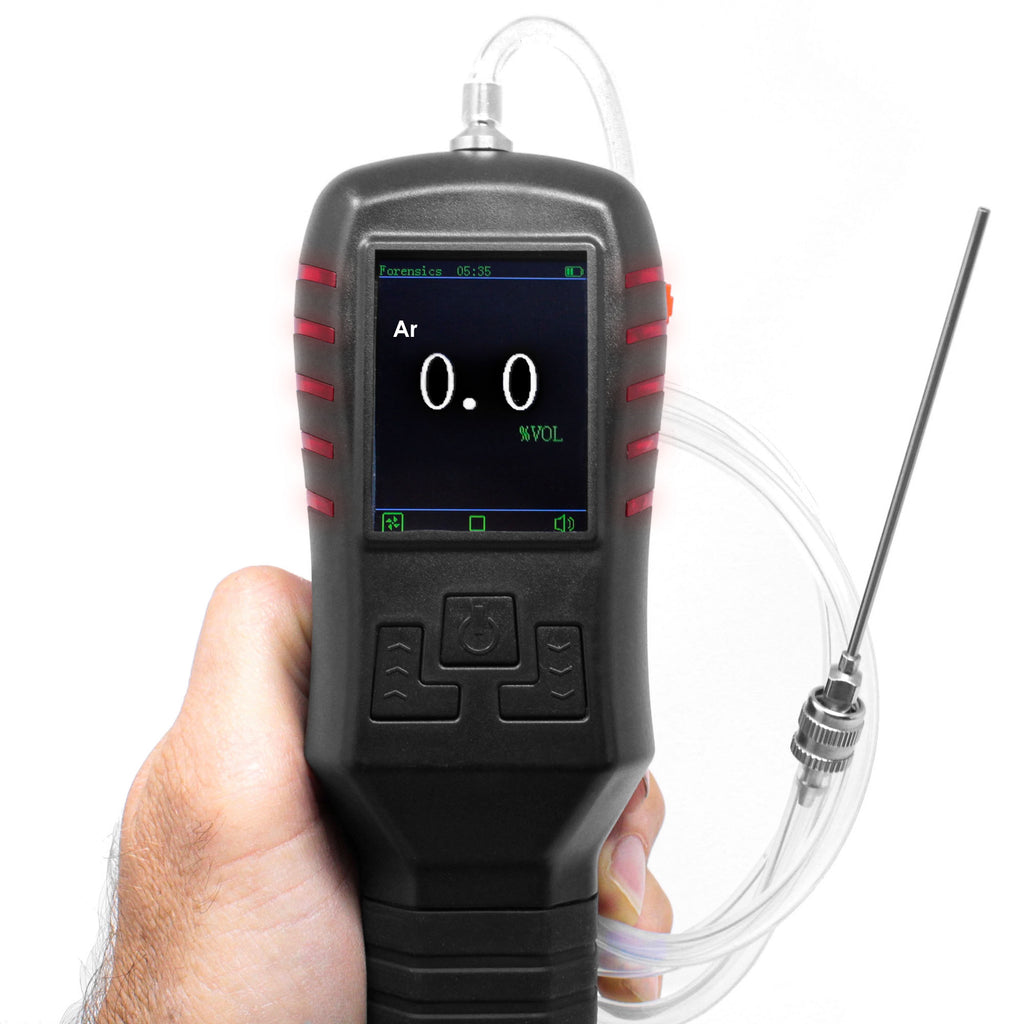

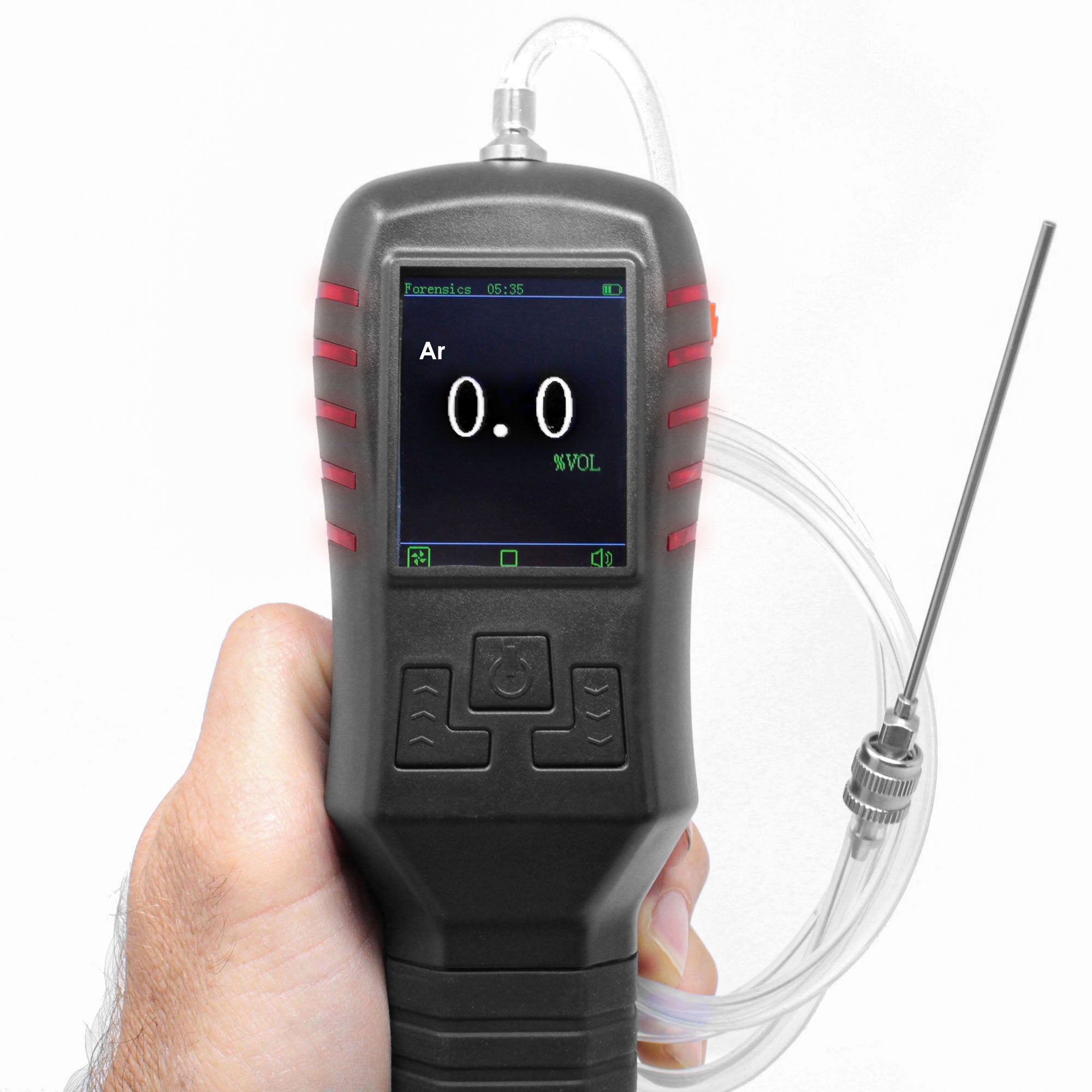

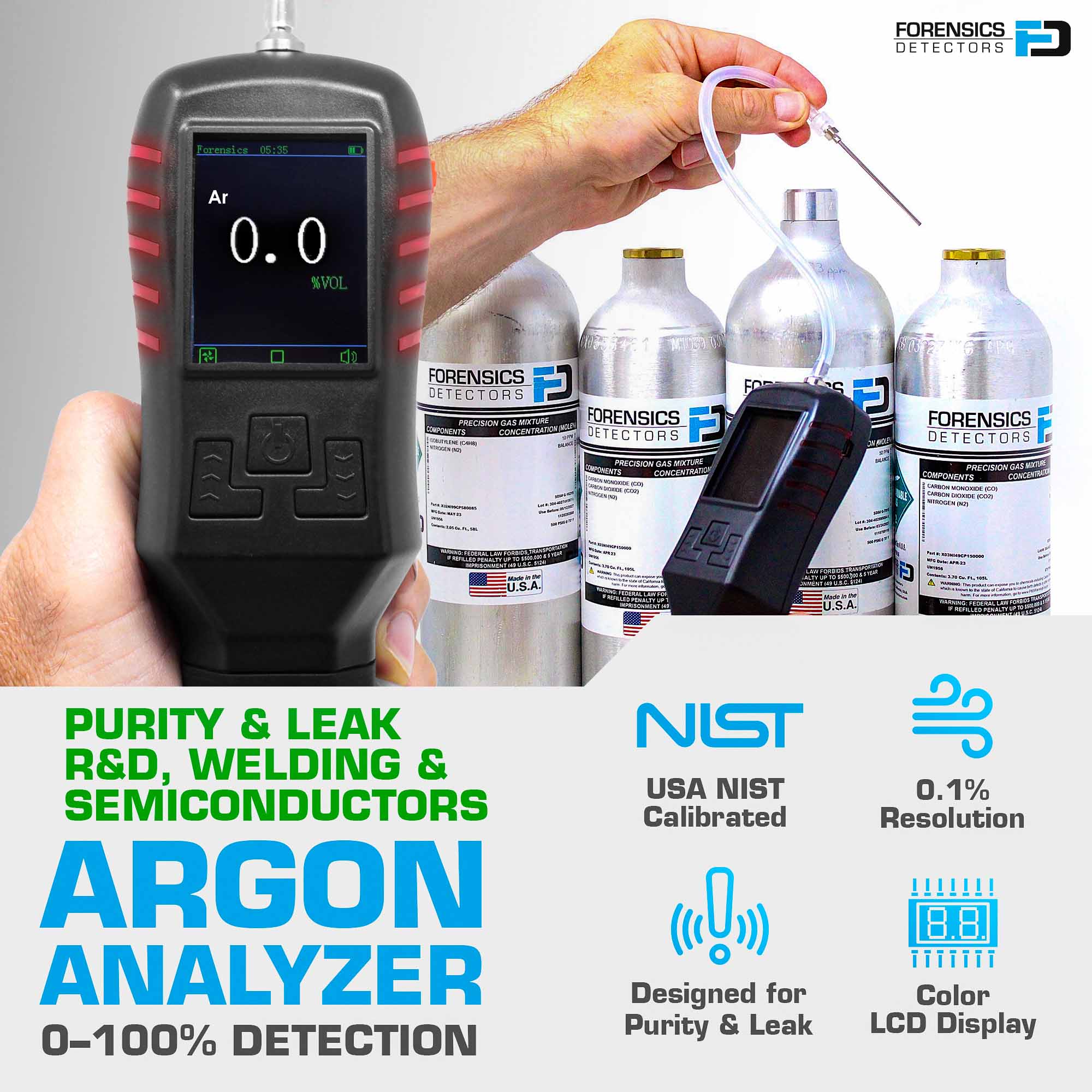

Details: This is a professional Argon gas analyzer by Forensics Detectors. Equipped with an advanced thermal conductivity sensor and a built-in pump. The detection range of Ar gas is 0 - 100% within 30 seconds at an accuracy of +/- 5% full-scale. Comes factory NIST-calibrated from Los Angeles, CA. The detector has a DC3.7V Li-battery 2000mAh that allows for over 6 hours of continuous use. Includes advanced features such as a high-resolution LCD, backlight, calibration features, and a built-in pump to draw your sample, increase response time, and ensure constant pressure and flow for the most accurate Ar gas concentration readings. Our Argon gas analyzer draws a continuous gas sample to analyze gas mixes for compressed gas, industrial applications, welding, leak detection, and research & development. It also comes with a probe and tubing to be used as an Argon gas point-sampling gas leak analyzer for various equipment, including vacuum equipment, inert environments, heat treatment, welding, 3D Printing, metal processing, and manufacturing. If you need to detect nitrous oxide (N2O) gas leaks in medical, dental, or veterinary facilities, we recommend the Nitrous Oxide Gas Analyzer (FD-311-N2O).

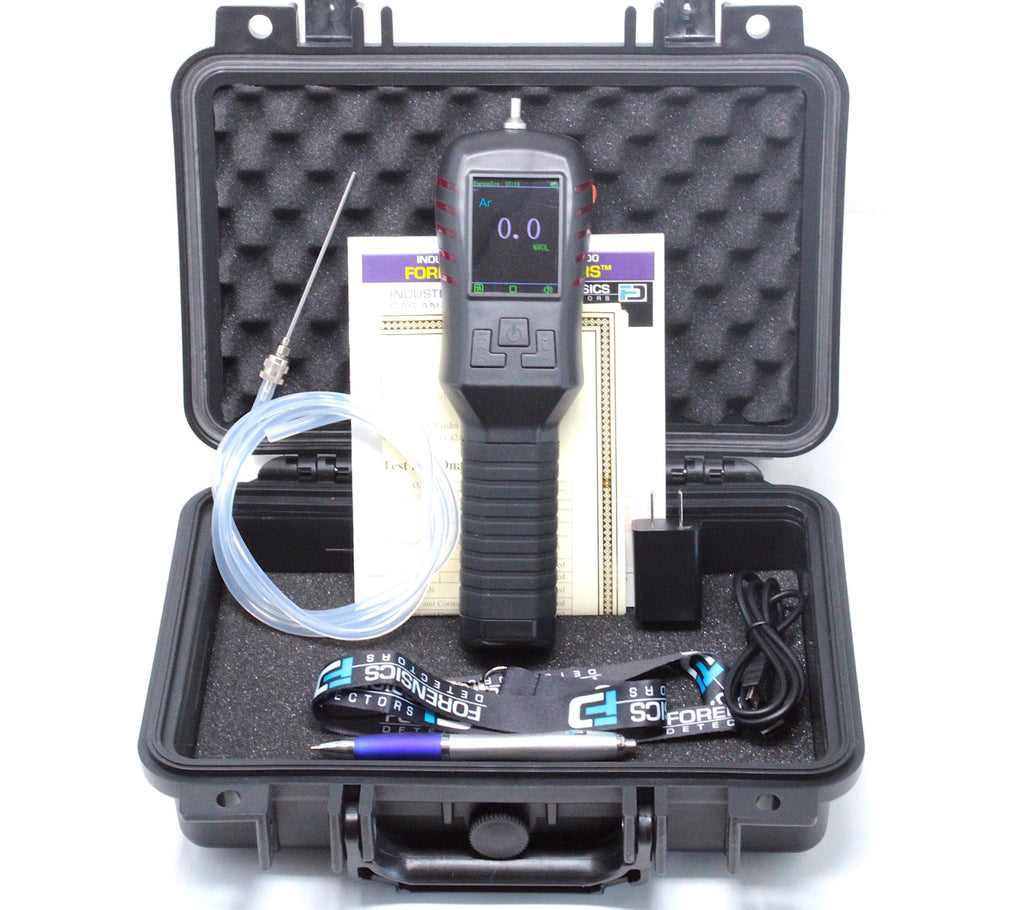

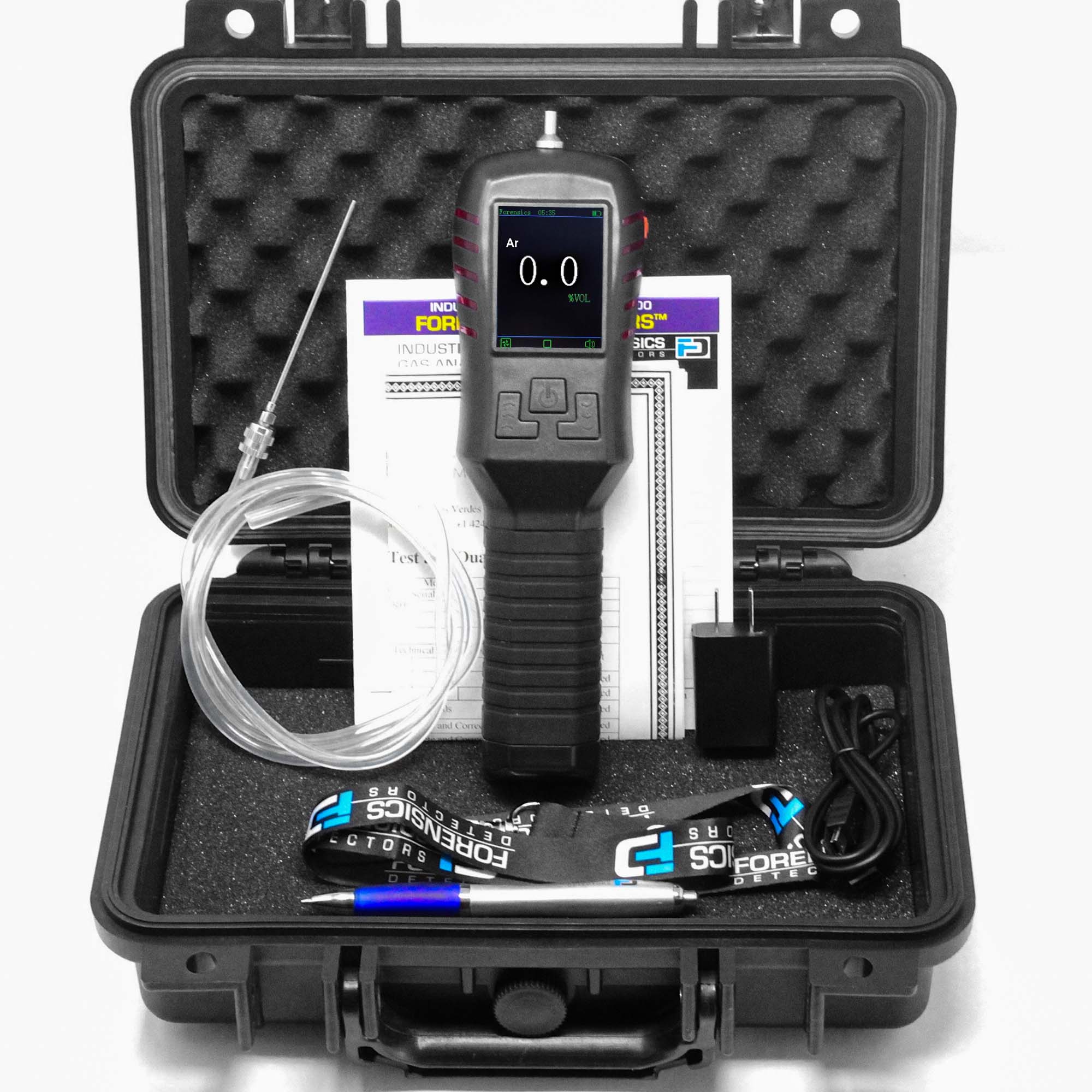

Included: Argon Gas Analyzer, user manual, USB charging cable, 3-inch stainless probe with tubing, Hard Carry Case, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (Ar)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (Argon)
Accessories (sold separately):
Gas Detector Stand
Gas Sensor Replacement (Ar) (email us)
Specifications
Argon Gas (Ar) Detection: 0 - 100% with 0.1% resolution

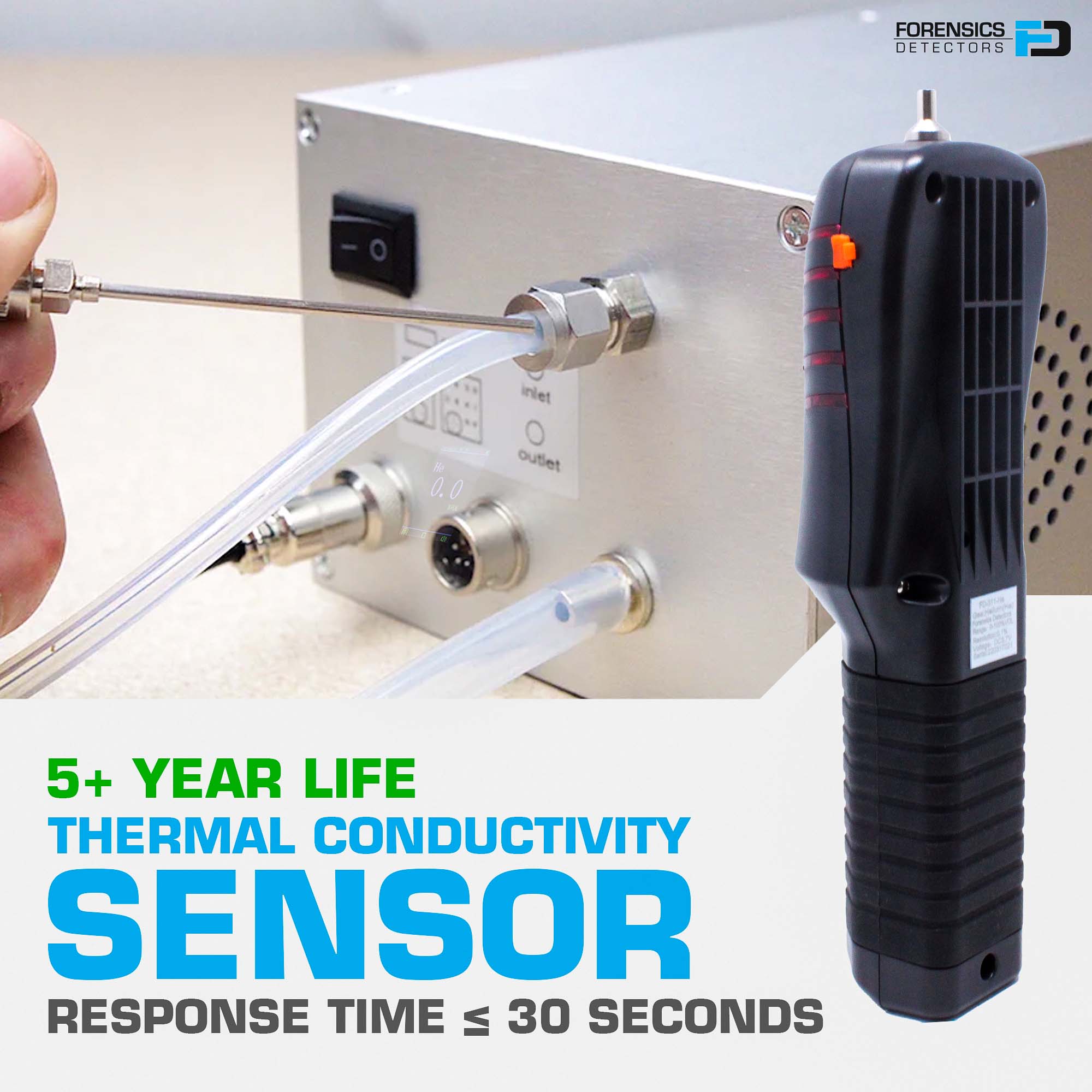

Gas Sensor Type: Thermal Conductivity Sensor
Gas Sensor Life: > 5 years
Pump Noise: < 70 dB
Pump Flow: 0.5 LPM
Inlet Air Barb: 5mm diameter stainless steel barb
Sampling Type: Pumped (built-in sampling pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: <±5% F.S.
Response Time: ≤ 30 sec
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Display: High-Resolution Color LCD
Battery: DC 3.7 V Li battery 2000 mAh
Working Time: > 6 hours
Charging Time: 4 hours
Explosion-Proof Grade: ATEX Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP65
Dimension: 9.5 × 2.5 × 1.7 inches (24.1 × 6.4 × 4.3 cm)
Weight: 15.5 oz (440 g)
Housing Material: ABS Plastic
Alarms: LED, Sound, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
