Brand: FORENSICS DETECTORS
Model: FD-4A-PUMP
User Manual Detector (PDF): EN | DE | FR | ES | IT |
User Manual Pump (PDF): EN | DE | FR | ES | IT |
Quick Start Guide: Click Here
Insights: Read the Expert Guide
Features:
- ⚛️ POINT SAMPLING: Perfect for point probe and continuous sampling in confined or toxic spaces. The pump flow rate is 0.5 LPM with easy USB recharge. Comes FACTORY-CALIBRATED.
- 🌇 DETECTION: Ultra-advanced nano-sensors for high fidelity. Zero and span calibration options.
- 📲 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

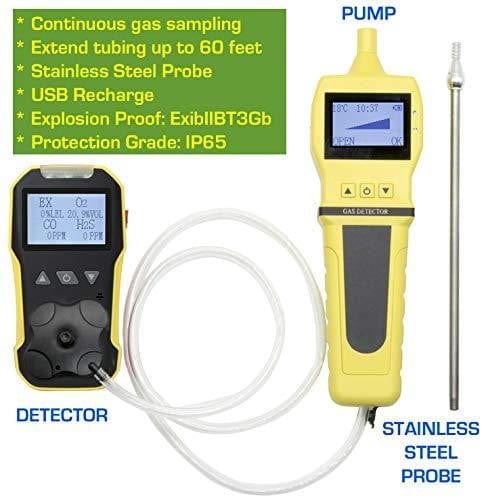

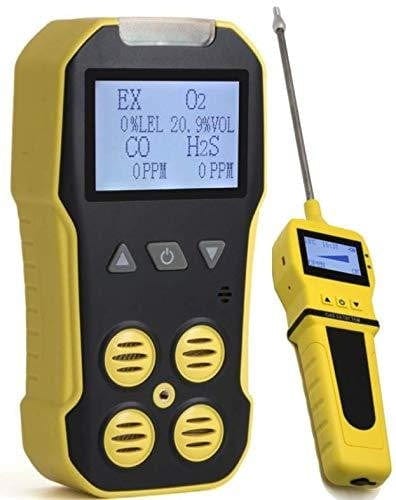

Details: A basic multigas detector + PUMP setup by FORENSICS for easy use in industrial applications. The pump allows for a point probe or continuous sampmulti-gasling to avoid toxic environments. Simple LCD screen, large and with backlight. This instrument is used for confined space situations where a gas sample needs to be taken before entry to check the air quality, toxicity, and health of a confined space. The 4-gas meter and pump setup is a cost-effective alternative to other units that are more expensive with built-in pumps. For those requiring a 4-gas meter with a built-in pump, we recommend our FD-600-4GAS multigas detector. For those that just require a 4-gas meter for personal protection (without the pump probe), we recommend our 4-gas meter FD-4A. If data logging is required our FD-4S multigas detector is an excellent option.

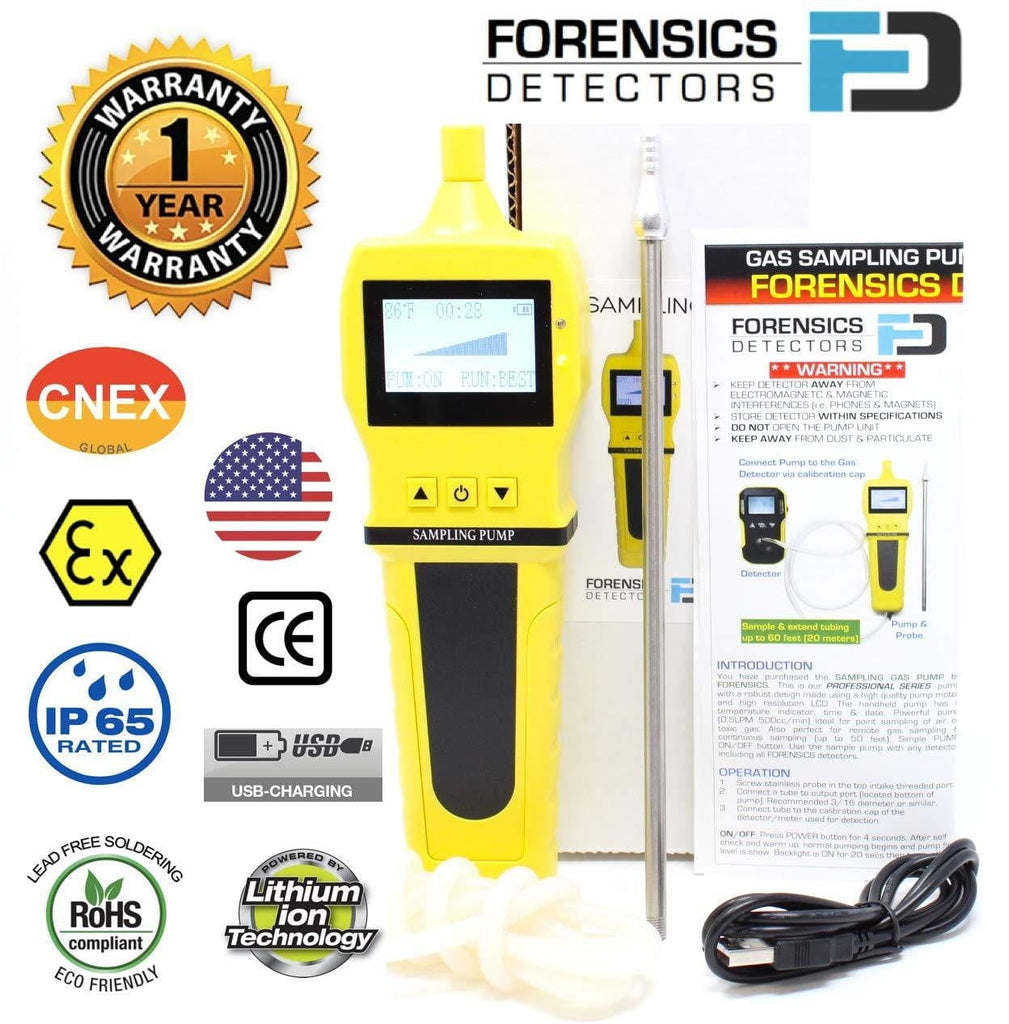

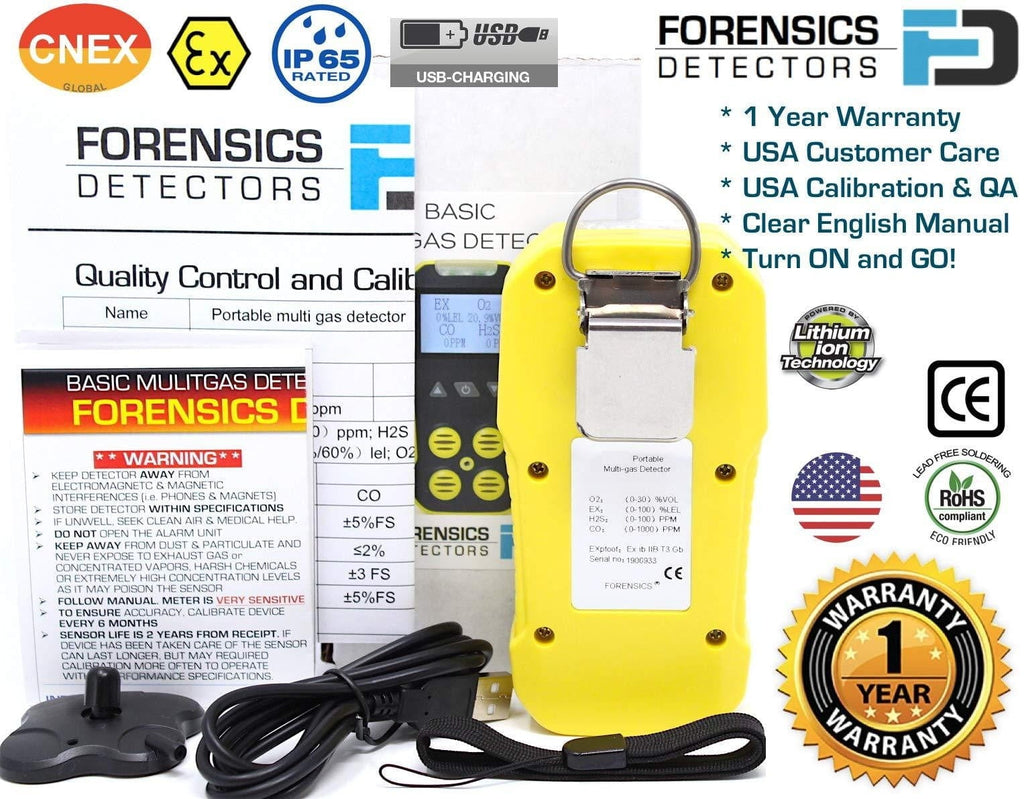

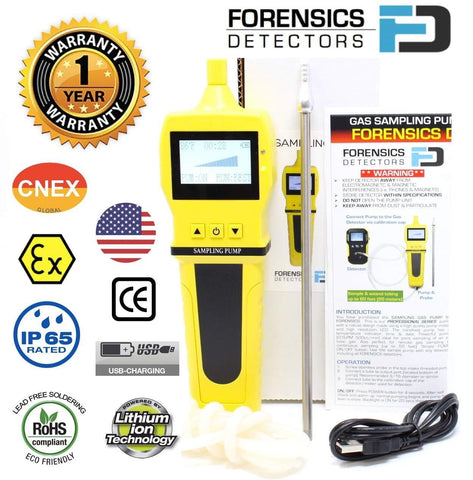

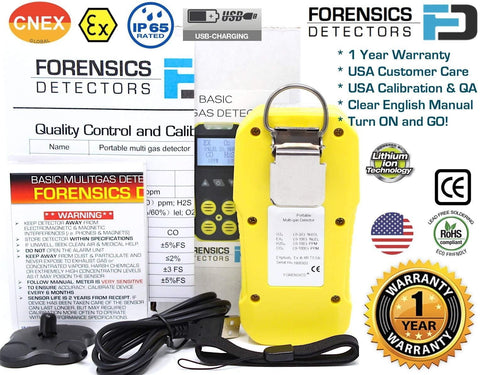

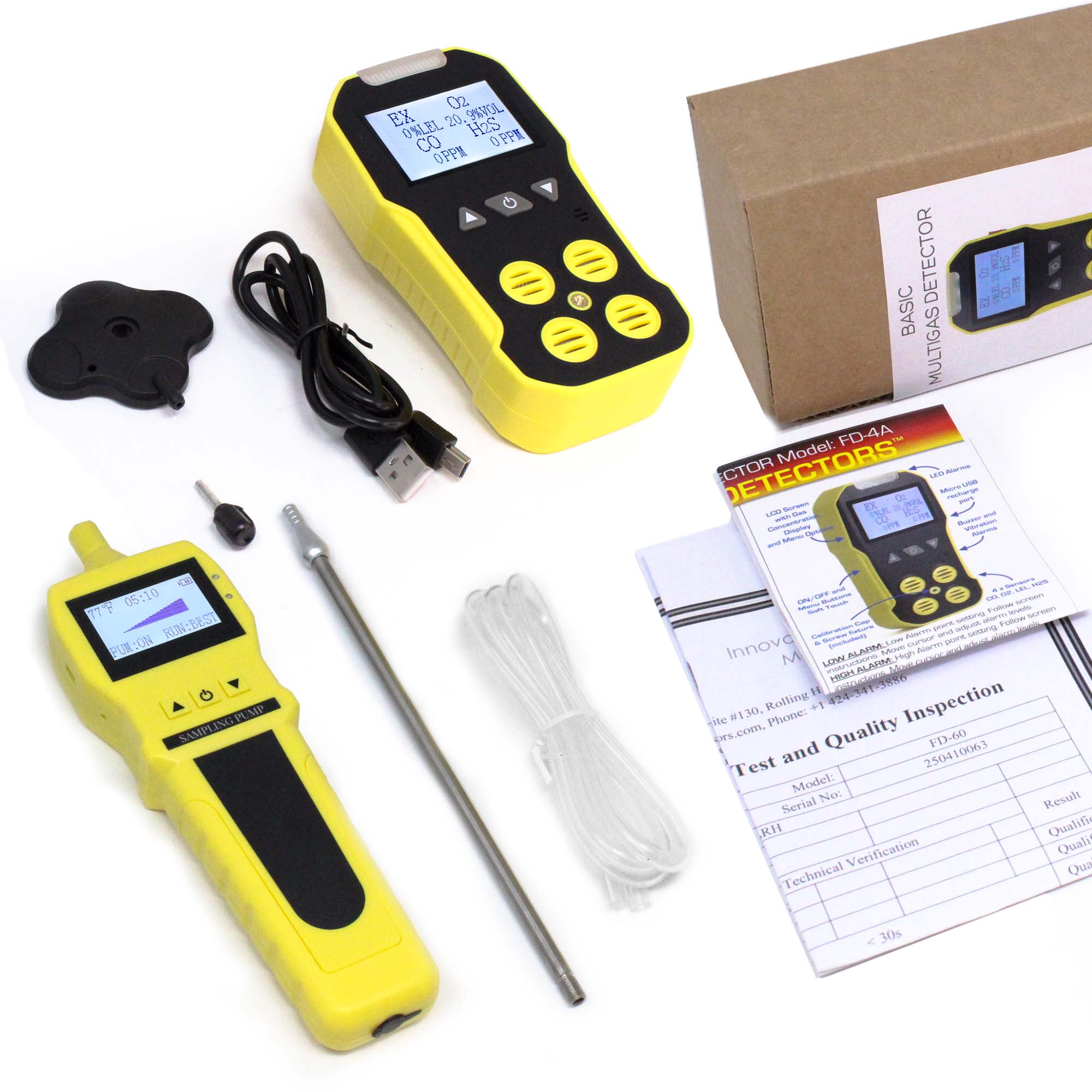

Includes: 4-gas Meter, user manual, computer USB charging cable, calibration cover, and certified calibration certificate. The pump unit comes with the pump, stainless probe, 3 ft silicone tubing, USB charging cable, and user manual.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (Multigas)
Calibration Gas Regulator (C10)
4 Gas Bump Gas
Tubing
Accessories & Parts (sold separately):
Gas Detector Waterproof Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (CO)
Gas Sensor Replacement (H2S)
Gas Sensor Replacement (O2)

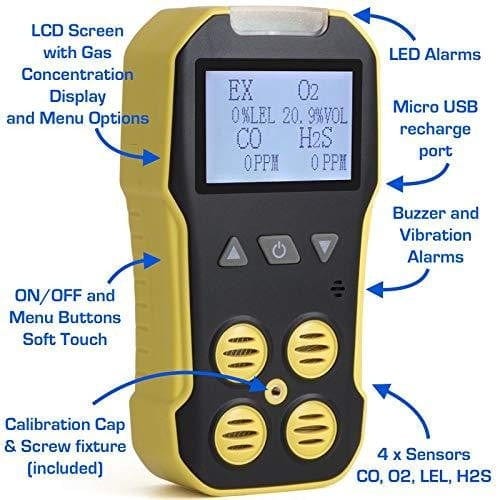

Detector Specifications
Combustible Gas (LEL) Detection: 0 - 100% with 1% resolution
Oxygen (O2) Detection: 0 - 30% with 0.1% resolution
Carbon Monoxide (CO) Detection: 0 - 999 ppm with 1 ppm resolution
Hydrogen Sulfide (H2S) Detection: 0 - 100 ppm with 1 ppm resolution
Gas Sensor Type: Electrochemical (CO, H2S, O2) & Catalytic (EX LEL)
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: ≤ 30 sec
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-ion battery, 2000 mAh
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Explosion-Proof Grade: ATEX certified Ex II 2 G Ex ib IIC T4 Gb (📋 PDF)
Protection Category: IP54
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Charge Time: 4 hours
Operating Time: > 24 hours
Weight: 8.1 oz (230 g)
Dimensions: 5.1 × 2.6 × 1.2 inches (13.0 × 6.7 × 3.0 cm)
Housing Material: ABS Plastic
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
Pump-Probe Specifications
Battery: Rechargeable DC 3.0V Li-battery 1800 mAh charged via USB connector
Temperature: 32 to 140°F (0 to 60°C)
Max Probe Flue Gas Exposure Temperature: 400°F for 3-minute periods
Humidity: < 95% RH non-condensing
Voltage: DC 3.0V Li-battery 1800 mAh
Flow Rate: 0.5 LPM
Noise: <60 dB
Weight: 4.9 oz (140 g)
Dimensions: 2.6 × 1.2 × 8.9 inches (6.6 × 3.0 × 22.6 cm)
