Calibration Cap FD-60

Brand: FORENSICS DETECTORS
Model: FD-60-CAP
Compatible Detectors: FD-60 (all versions)

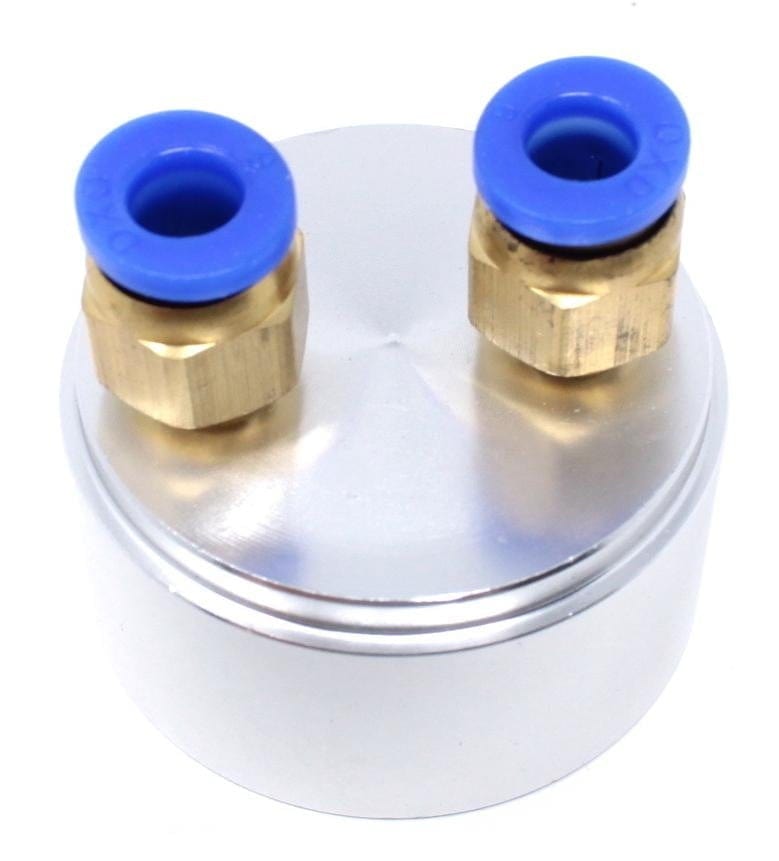

• ⚛️  Description: Machined aluminum calibration cap compatible with our fixed FD-60 gas monitor. The cap is used for FD-60 gas calibration or pumping air directly to the sensor port for in-line gas sampling.
• 📶  How does it work? The cap fits onto the sensor housing of any FD-60 monitor. Comes with a thread to attach to the device. Connected your tubing to the cap.

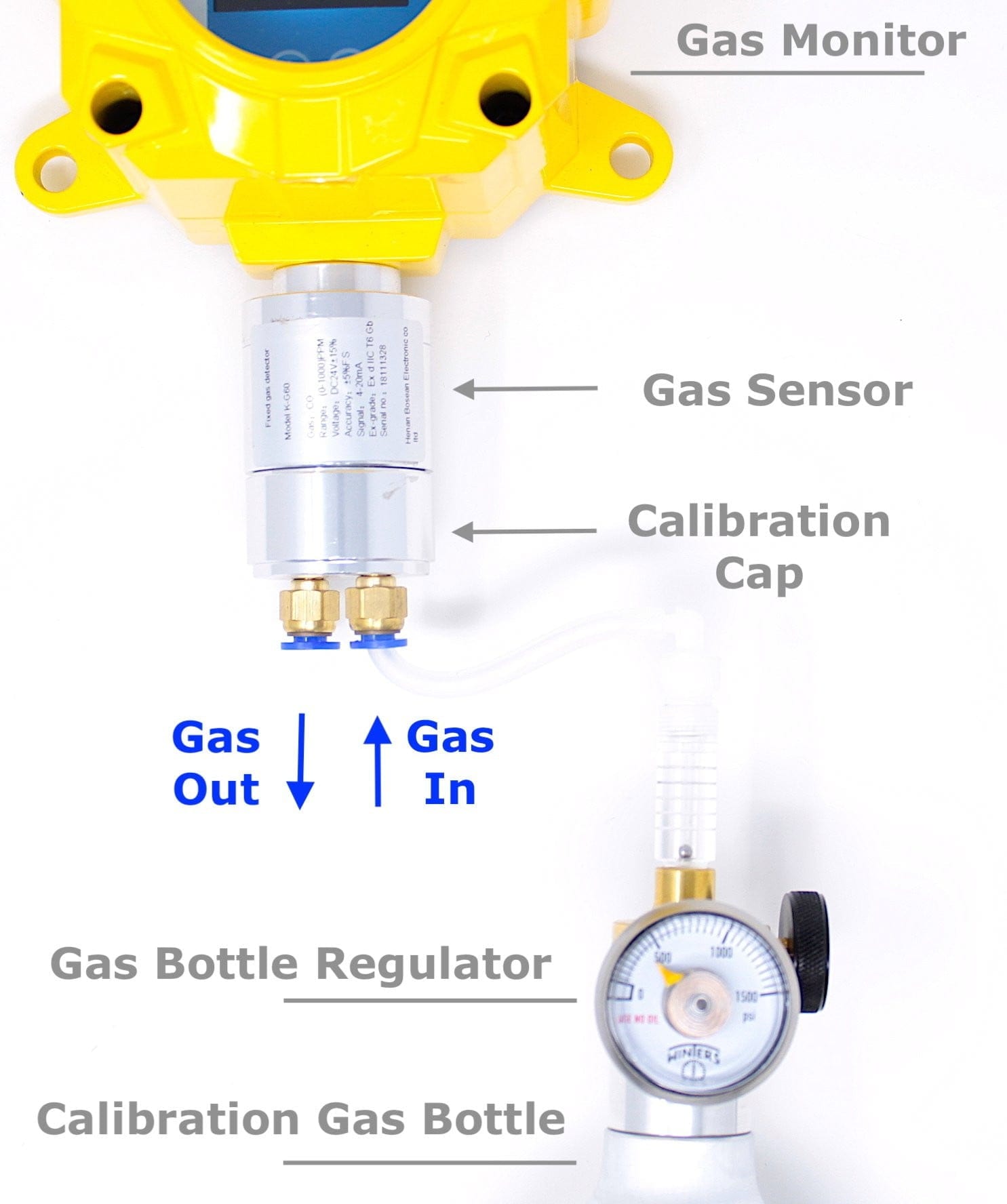

• 👫  Instructions: As shown in the image, screw the cap to the sensor module of your FD-60 monitor. Connect your supply gas line to the cap inlet via the blue "push to connect" fittings. Use 1/4 inch outer diameter tubing. Apply gas flow from 0.3 to 0.5 LPM.
• 🔣  Specifications:
• Dimensions: 1.6 in x 1.6 in x 1.5 in
• Weight: 1.2 oz
• Thread: M37 x 1.5

• Fit: recommended 1/4 OD tubing (see here)
