Carbon Dioxide Analyzer | 0 - 100% | USA NIST Calibration

Save 52%

Price:
Sale price$895.00 Regular price$1,855.00
Stock:
In stock (112 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model:
FD-600-CO2
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide

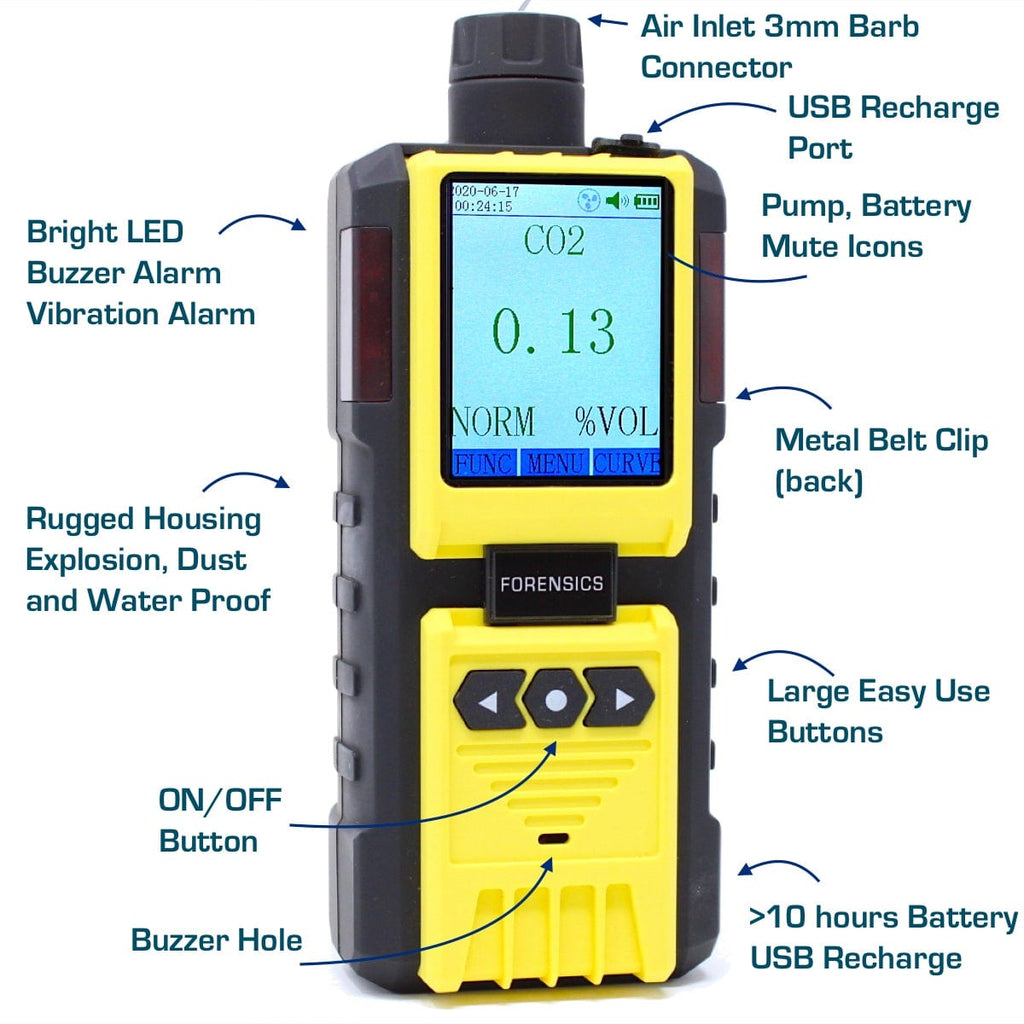

Features:

  • 🎆  INDUSTRIAL: Accurate and precise CO2 analyzer (NDIR sensor) with a built-in pump for super-fast detection.
  • 🌈  COLOR: Color screen and graph functions. Computer data logging.
  • 📲 ALARMS: Adjustable audio, visual, and vibration alarms.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

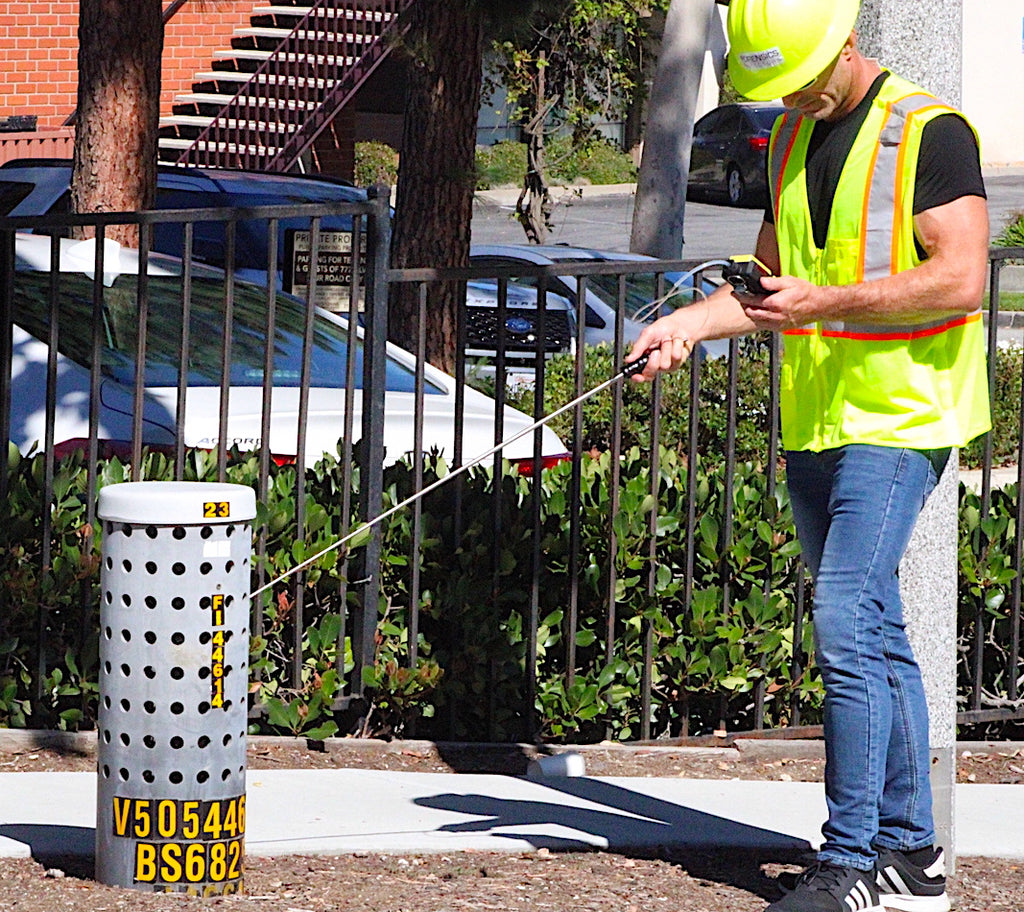

Details: Our CO2 analyzer is a perfect solution for full-range (0 - 100%) measurement with a built-in pump for super-fast detection. The FORENSICS CO2 analyzer is an excellent option that can be easily used by anybody. Great for detecting CO2 leaks, accumulation, laboratory experiments, incubators, research and development, monitoring tanks for brewing, and other niche applications. The detector is based on our industrial analyzer platform and is very light and portable. The easy-to-use built-in pump draws in the sample for analysis and can measure small or large quantities depending on the application. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is built with an advanced NDIR CO2 sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control. For those requiring low-level carbon dioxide detection, we offer a 0-5000ppm Carbon Dioxide Analyzer made for indoor air quality assessment.

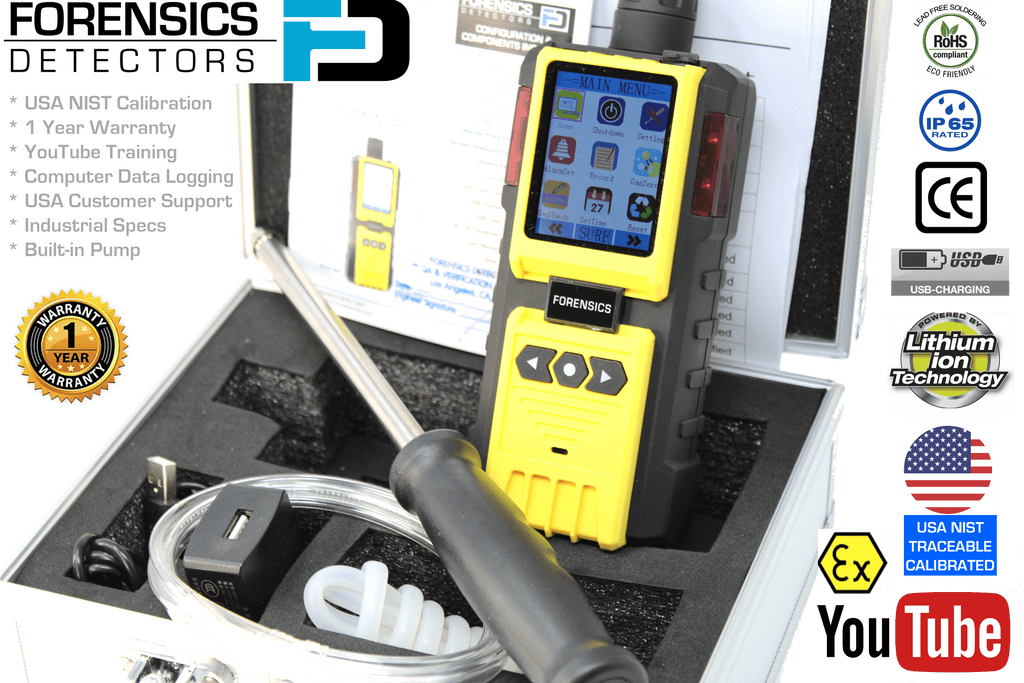

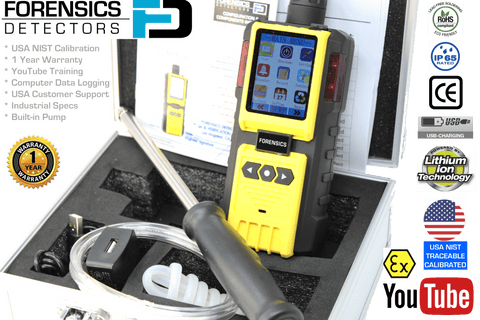

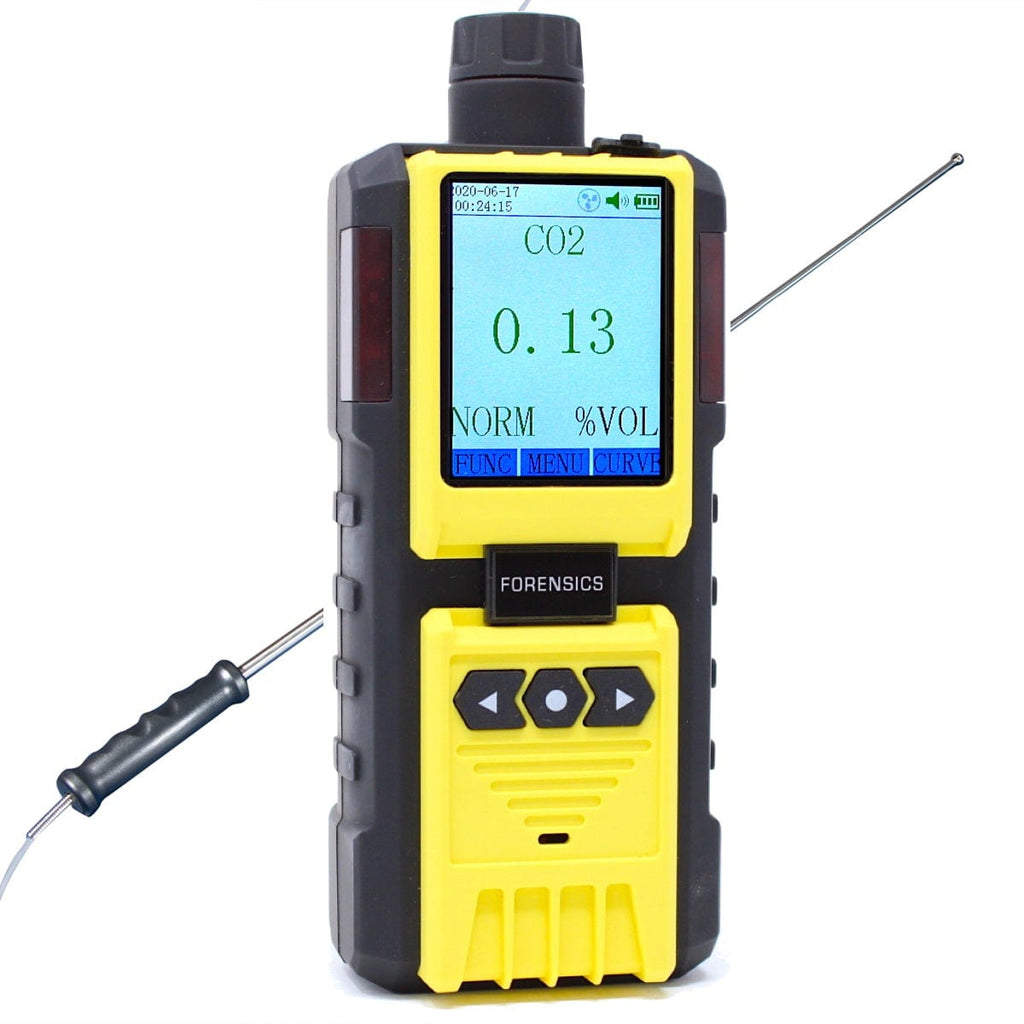

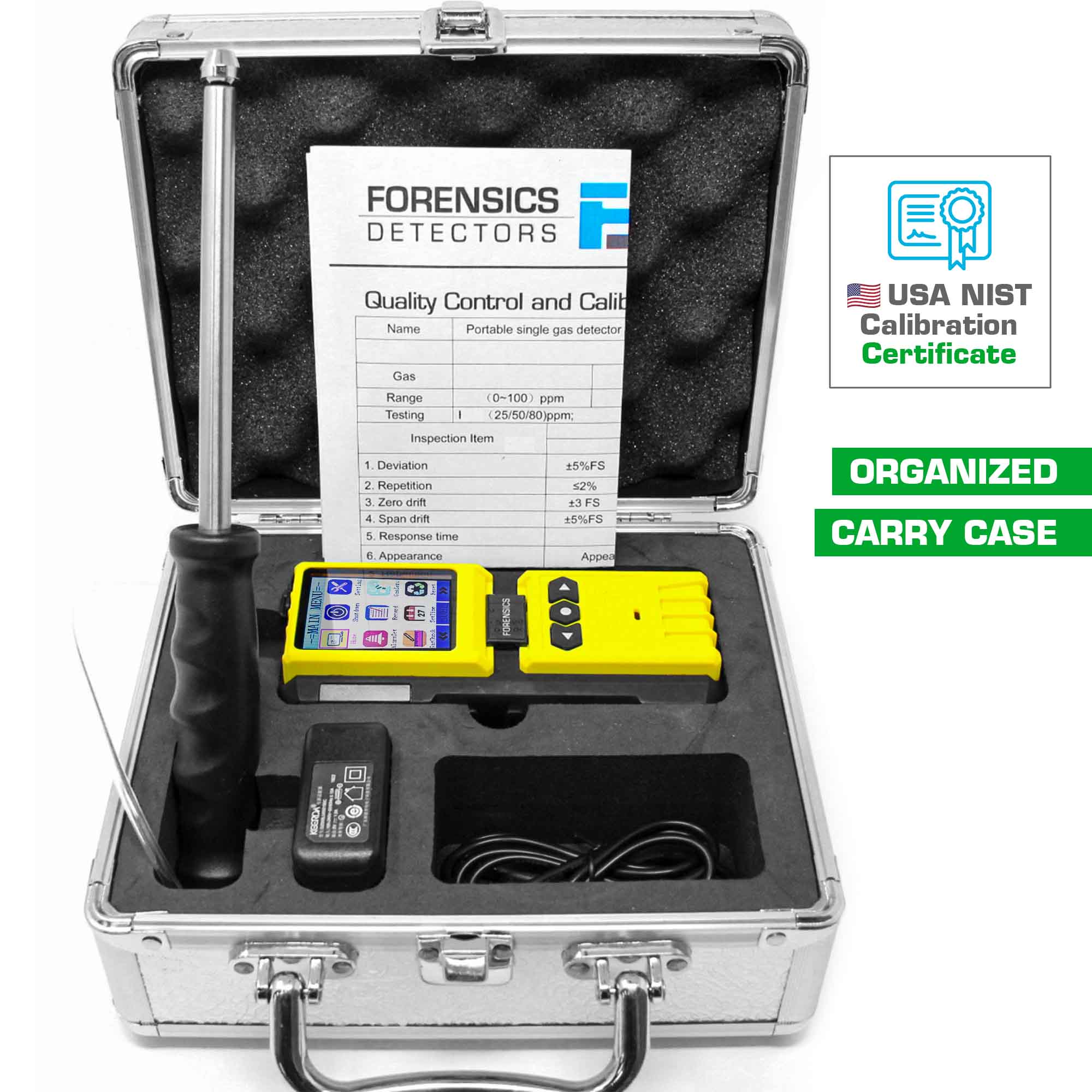

Included: CO2 analyzer, user manual, certified calibration certificate, USB charging cable, charger, and probe.

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (CO2)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (CO2)

Accessories (sold separately):
Gas Detector Waterproof Case

Gas Detector Stand

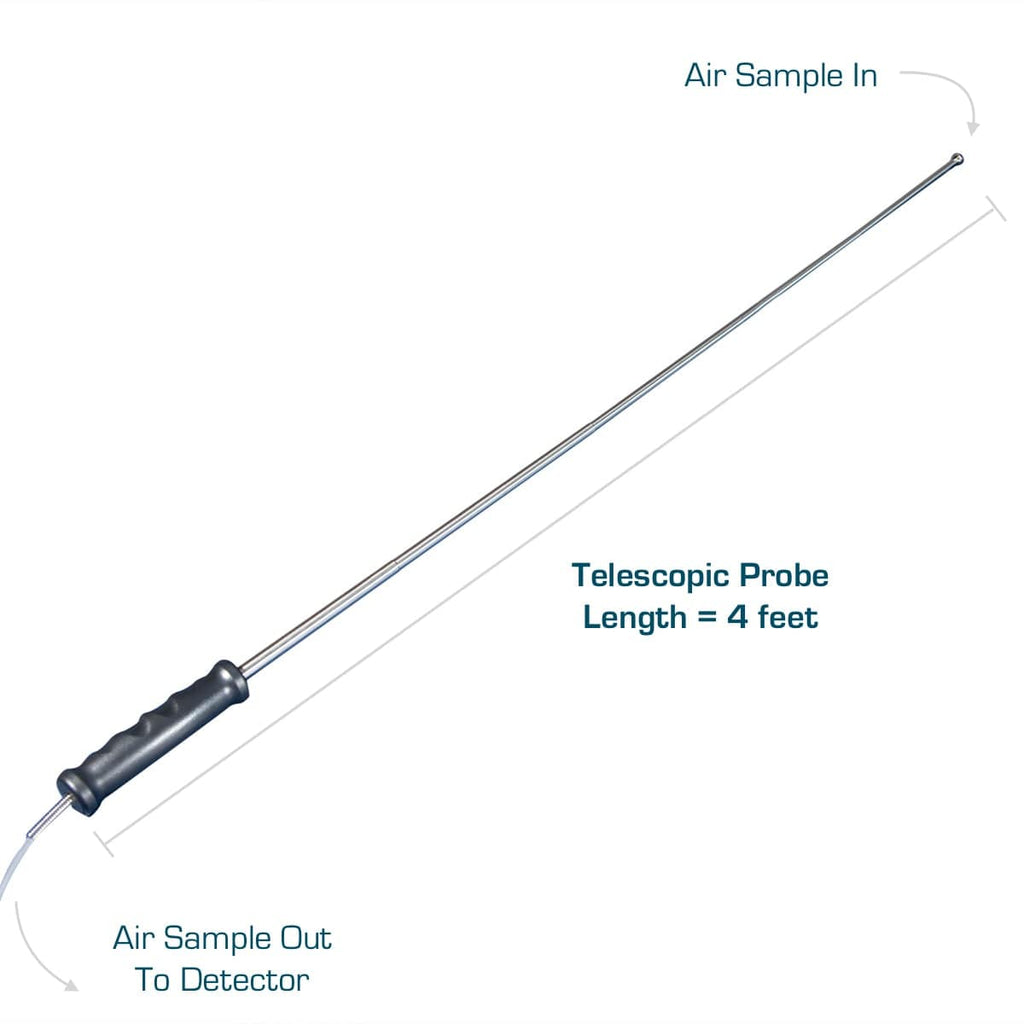

Telescopic Probe
Tubing (3ft)
Gas Sensor Replacement (CO2) (email us)

Specifications

Carbon Dioxide (CO2) Detection: 0 - 100% with 0.01% resolution
Gas Sensor Type: NDIR Gas Sensor
Gas Sensor Life:
> 5 years
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period:
12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error:
≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: High-Definition Color LCD

Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11.0 oz (314 grams)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
