Brand: FORENSICS DETECTORS
Model: FD-600-HA-CO2-O2
User Manual: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
MAP Video Demo: Click Here

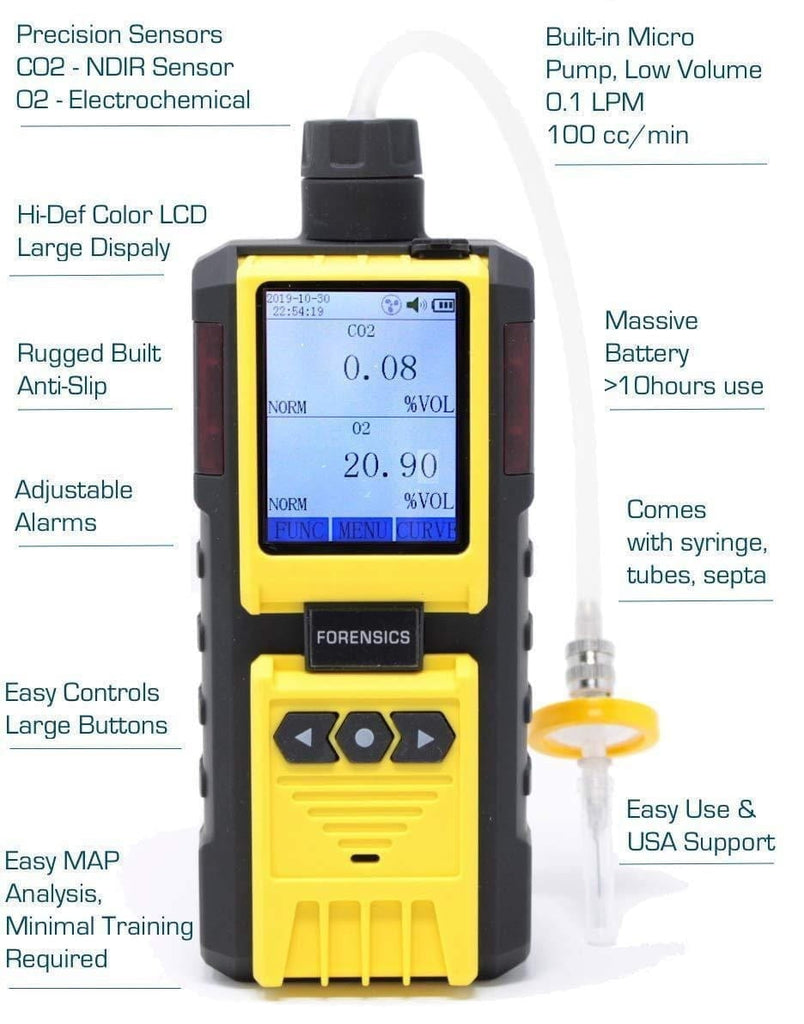

Features:
- 🎆 HEADSPACE: CO2 (NDIR sensor) and O2 (electrochemical sensor) headspace analysis. Comes FACTORY-CALIBRATED.
- 🌈 COLOR: Color screen and graph functions allow for intuitive operation.
- 📲 DATA LOGGING: USB recharging and real-time computer data acquisition. Comes with syringes, filters, Luer-Lock connectors, and 100 septa.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

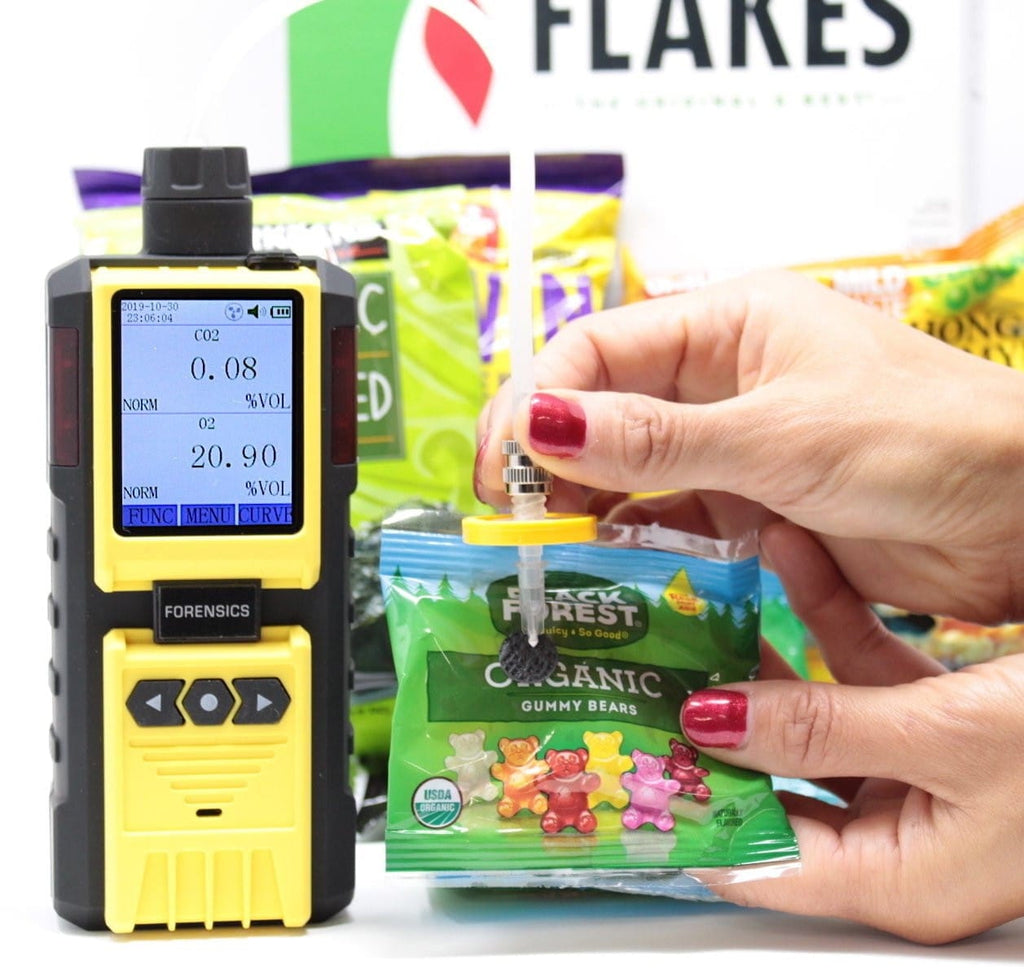

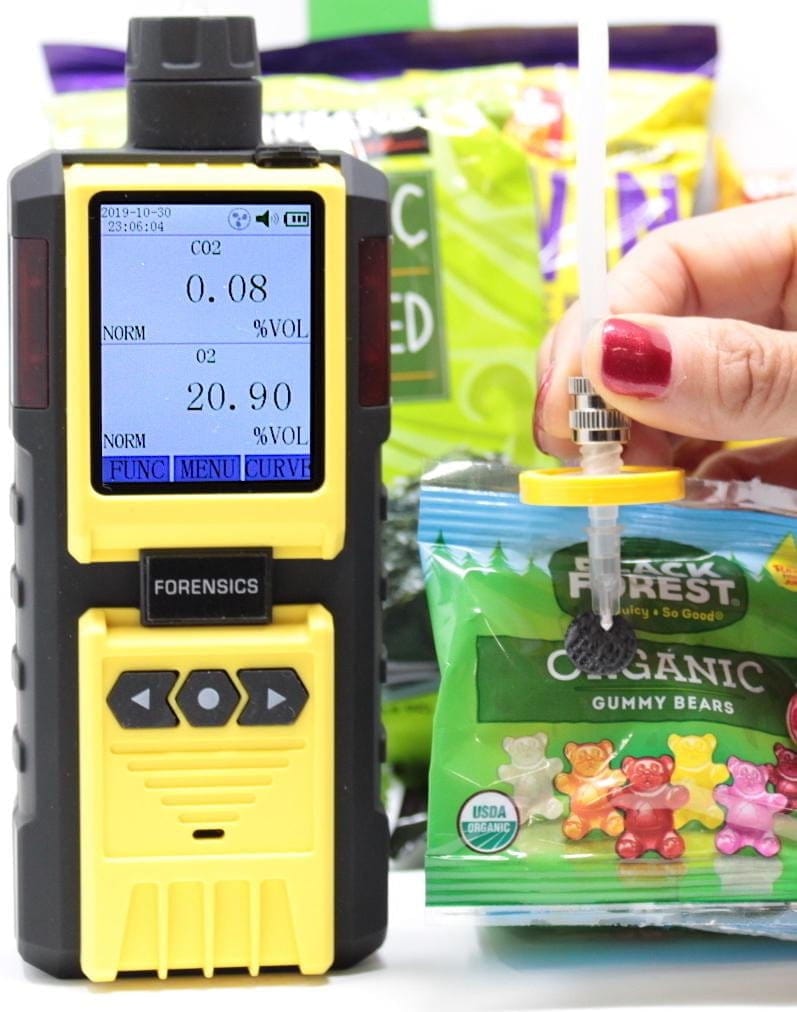

Details: Our CO2 and O2 analyzer is the perfect solution to your packaging analysis problems. The headspace analyzer investigates your modified atmosphere packaged (MAP) products to measure oxygen and/or carbon dioxide-modified levels. The FORENSICS CO2 and O2 analyzer is an excellent option with intuitive usage. Based on our industrial analyzer platform, this analyzer includes a built-in pump that is easy to use and very portable. Simply insert the needle tip of the probe into the food pack through a septa seal pad. The septa device provides a tight seal and prevents air from leaking into the package through the puncture hole. With full user control, the built-in pump draws in the small or large quantity of sample air required for analysis. The pump can be turned off at any time to sample the right amount of air, as packaging headspace varies from product to product. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is constructed with an advanced electrochemical oxygen sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control. Typical testing takes less than 30 seconds.

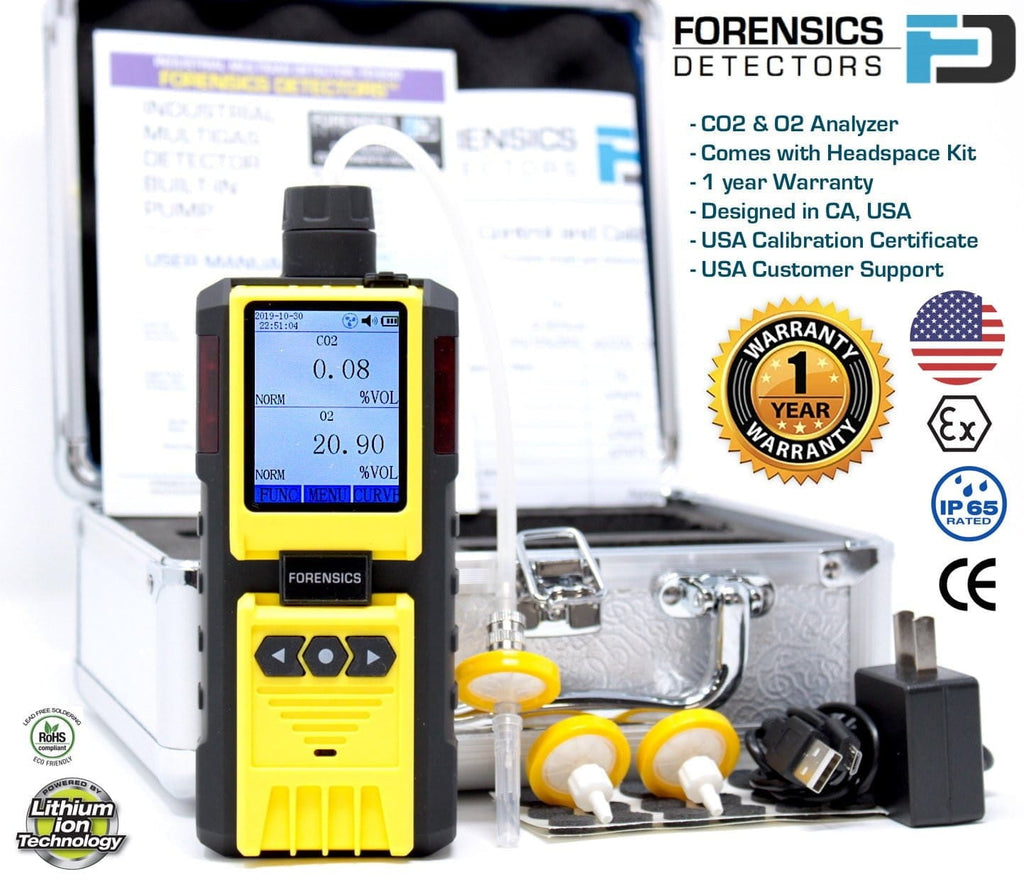

Included: Headspace O2/CO2 analyzer and magnet back, user manual, certified calibration certificate, USB charging cable, charger, 2 x needles, 2 x filters, 100 x adhesive septa, and tubing with Luer lock connectors.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (CO2 balanced in N2)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (CO2 balanced in N2)
Accessories and Parts (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Waterproof Case
Gas Detector Stand
Headspace Kit, Needles, Filters, Tubing, Septa
Specifications
Oxygen (O2) Detection: 0 - 30% with 0.01% resolution
Carbon Dioxide (CO2) Detection: 0 - 100% with 0.01% resolution
Gas Sensor Type: Electrochemical Gas Sensor (O2) and NDIR Gas Sensor (CO2)
Gas Sensor Life: 2 - 3 years (O2), > 5 years (CO2)
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error: ≤ ± 3% F.S.
Response Time: <60 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Display Type: High-Definition Color LCD
Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11 oz (314 g)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Minimum Required Headspace Volume: 200ml
Alarm: LED Alarm
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
