CO2 Meter for Incubators | 0-10% | USA NIST Calibration

Brand: FORENSICS DETECTORS
Model: FD-90A-CO2-10%
User Manual: Click Here
Blog Article: Click Here

Features:

• ⚛️ DETECT: Single-gas detector for carbon dioxide, 0 - 10% with 0.01% resolution. Comes FACTORY-CALIBRATED.

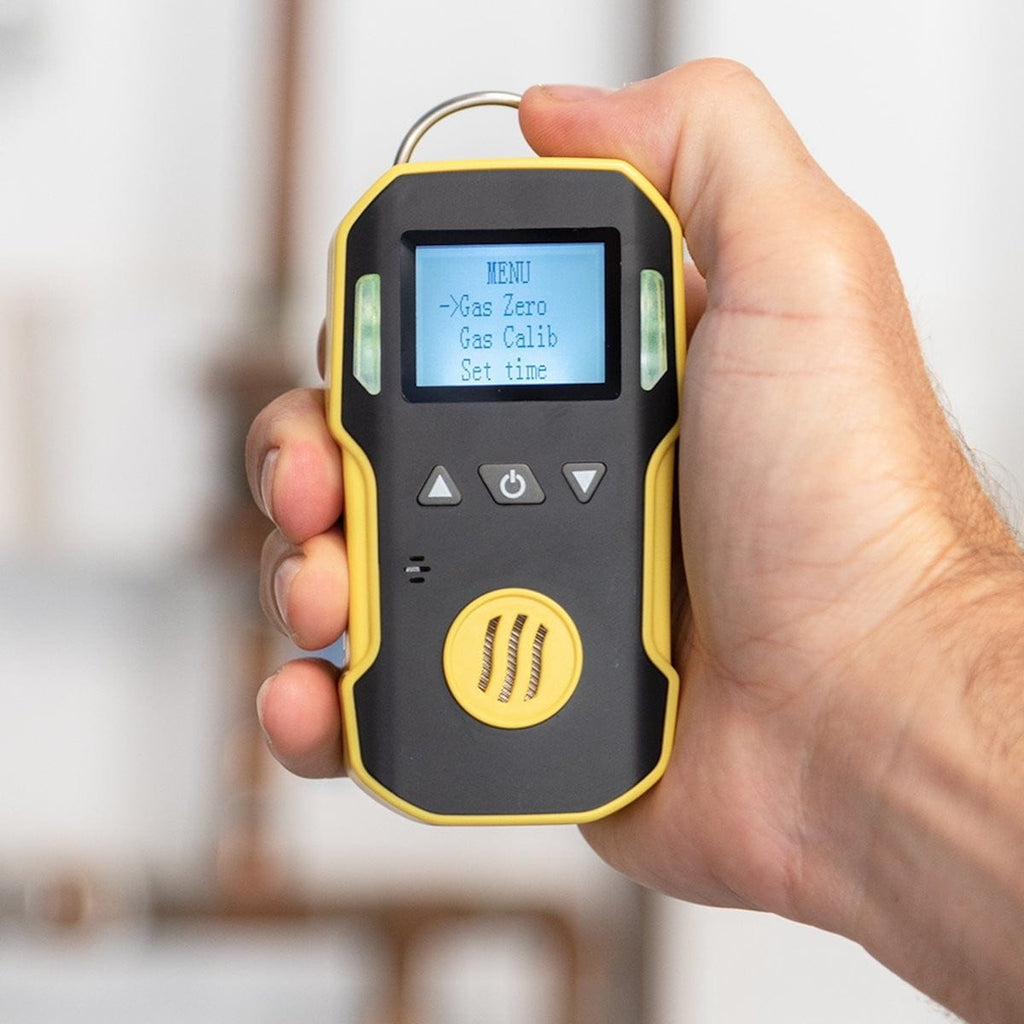

• 🔋ACCURACY: Dual Beam NDIR sensor with Error: ≤ 5% F.S. and response time: < 30 sec. Zero and span calibration options.
• 🎆 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached.
• 💪 STRONG: Shockproof, water-resistant, dust-proof, and explosion-proof.
• 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **

Details: A perfect detector to confirm incubator CO2 levels. Constructed for professional industrial technicians that are looking to detect CO2 beyond basic ambient measurements. Excellent for isolated CO2 measurement in tanks, incubators, storage rooms, fermentation processes, and industrial processes. For those seeking a higher range over 10%, we recommend our 0-100% CO2 Analyzer. For those requiring ppm level for indoor air quality, we have our 0-5000ppm CO2 Analyzer.

Which CO2 Gas Monitor shall I purchase for my incubator?

It all depends on your incubator. For example:

1. If your incubator has a sample air port, this is the best. You must sample the air from the air port (usually a barb port 1/4 or 1/8 inch is provided). Confirm that air is under positive pressure and the air is being expelled by the port. If the incubator is pressurized and air flows out of the port, the FD-90A-CO2 (10%) with work and will be the best. Run a tube from the incubator sample port to the gas calibration cap and attach the cap to the  FD-90A-CO2 (10%). When testing CO2, ensure the incubator humidity is as low as possible (to reduce cross interference with CO2 error) and set the temperature to 70F.
2. If the incubator is not pressurized, and no air is being expelled from the air nipple or barb, then you need the FD-600-CO2 or FD-600-CO2-O2-INC (with oxygen). This analyzer has a built in pump and will draw the air from the incubator to the analyzer. When testing CO2, ensure the incubator humidity is as low as possible (to reduce cross interference with CO2 error) and set the temperature to 70F.
3. Lastly, if your incubator has a glass window door, you can use the FD-90A-CO2 (10%), and place the CO2 monitor in the incubator. When testing CO2, ensure the incubator humidity is as low as possible (to reduce cross interference with CO2 error) and set the temperature to 70F.

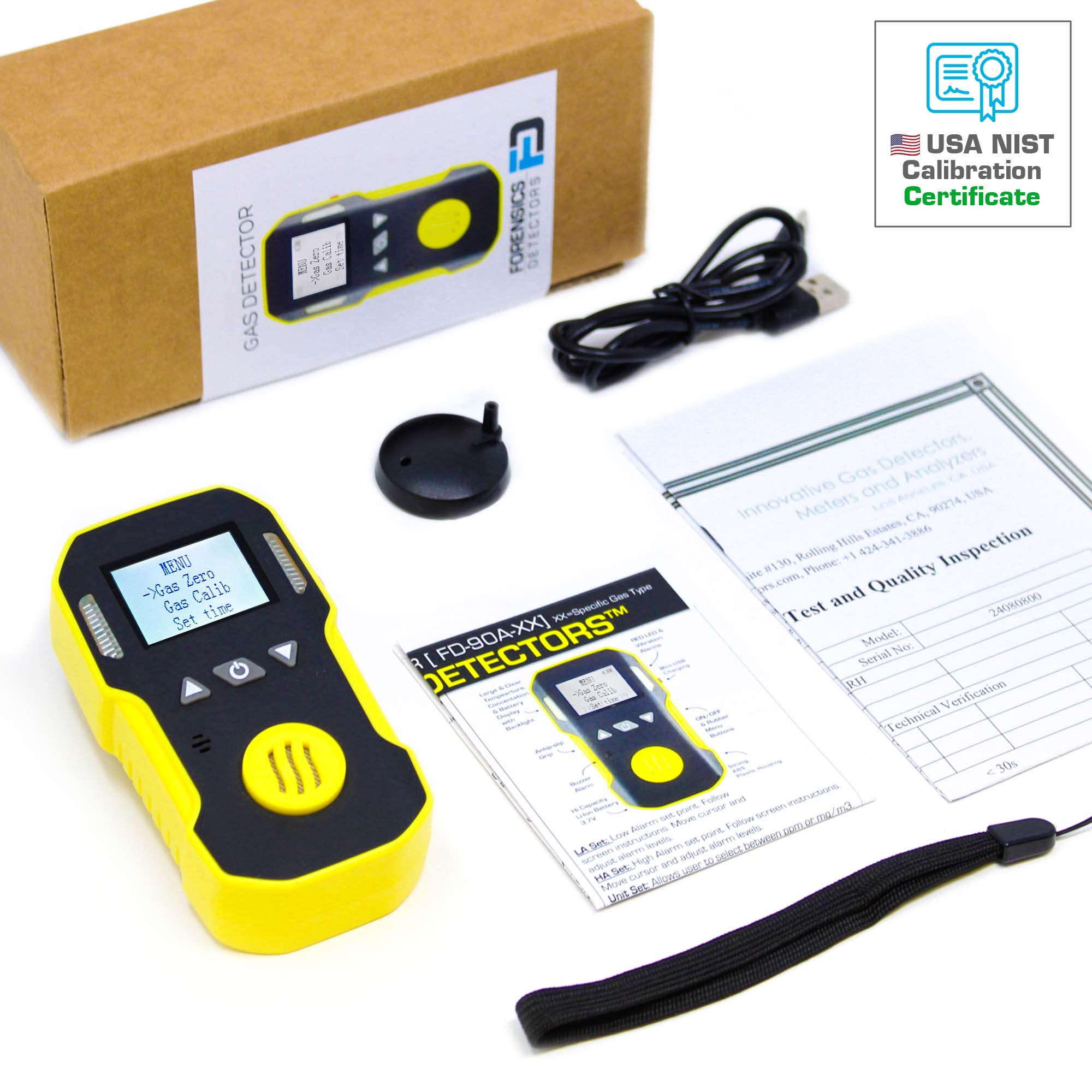

Included: CO2 gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Kit (sold separately):
Calibration Gas (CO2)
Calibration Gas Regulator (C10)
Tubing

Other Accessories (sold separately):
Bump Gas (CO2)
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Coupler for Incubators

Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Carbon Dioxide (CO2) Detection: 0 - 10% with 0.01% resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: NDIR Gas Sensor
Gas Sensor Life: > 5 years
Error: ≤ ± 5% F.S
Response Time: < 30 sec

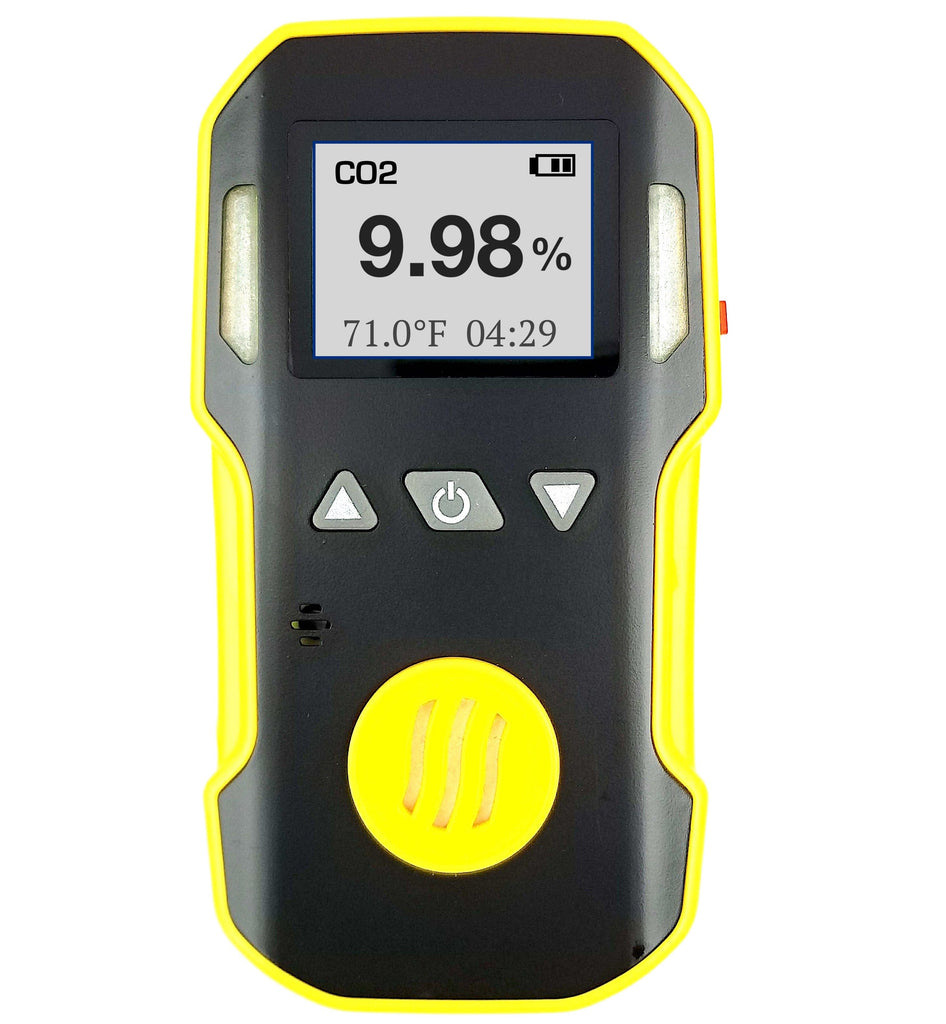

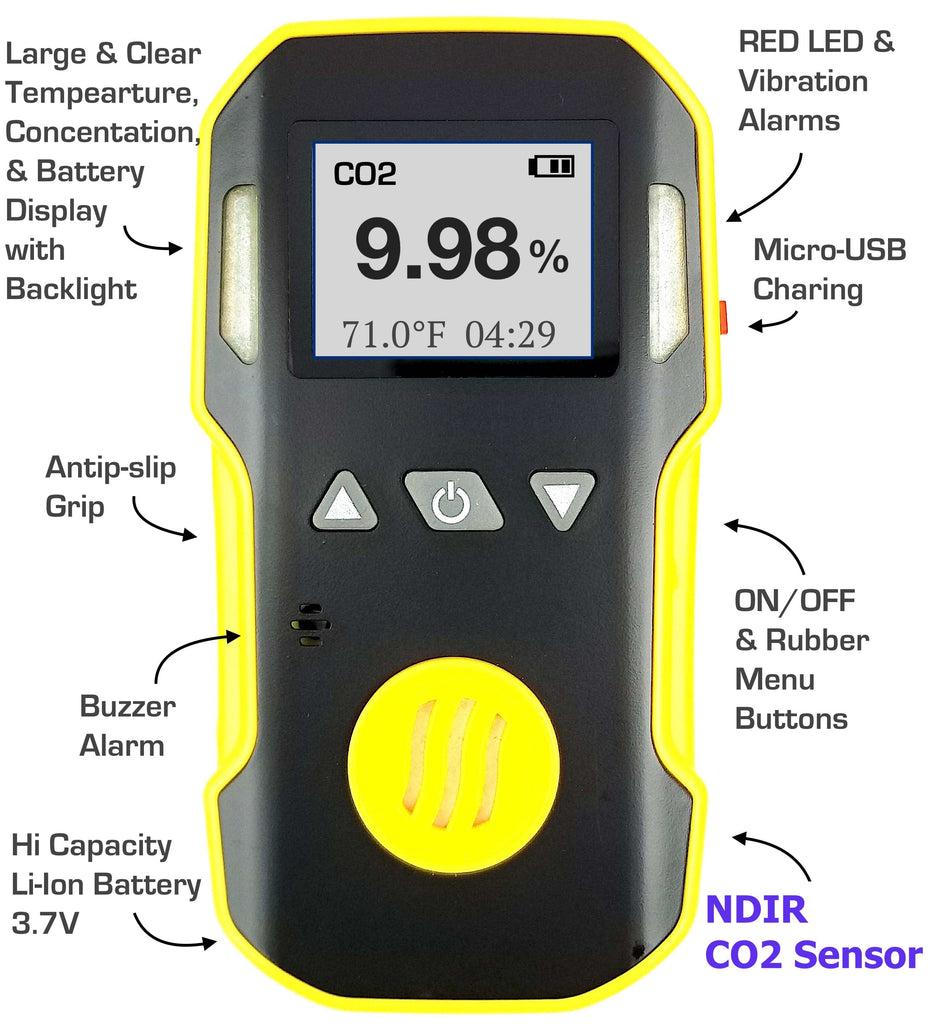

Indicators: LCD indicates the time, concentration, internal temperature, and battery level

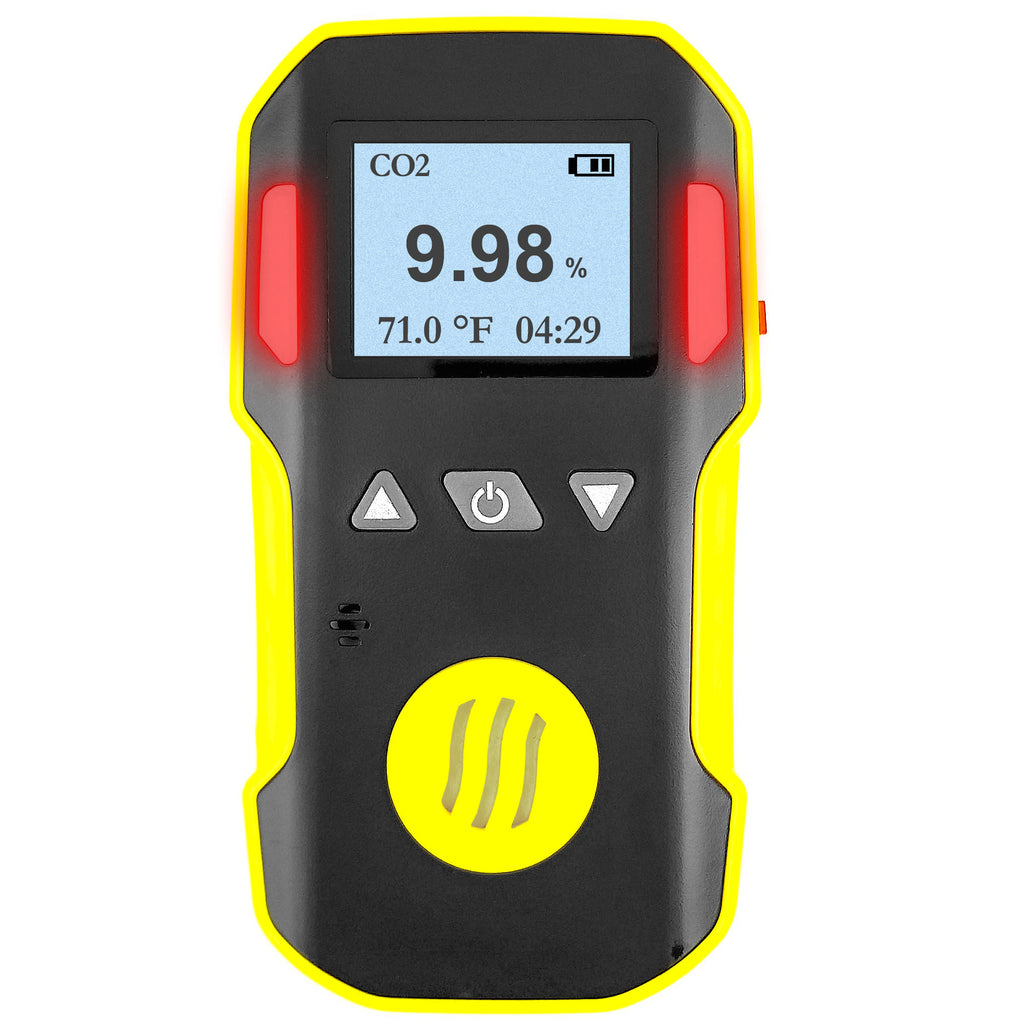

Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Protection Category: IP65
Explosion Rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
