Carbon Disulfide Detector | USA NIST Calibration

Save 46%

Price:
Sale price$995.00 Regular price$1,855.00
Stock:
In stock (141 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model: FD-90A-CS2
User Manual (PDF): EN | DE | FR | ES | IT |
Insights:
Read the Expert Guide

Features:

  • 🔋 ACCURACY: Made to detect carbon disulfide gas (CS2) in air, 0 - 100 ppm with 1 ppm resolution.

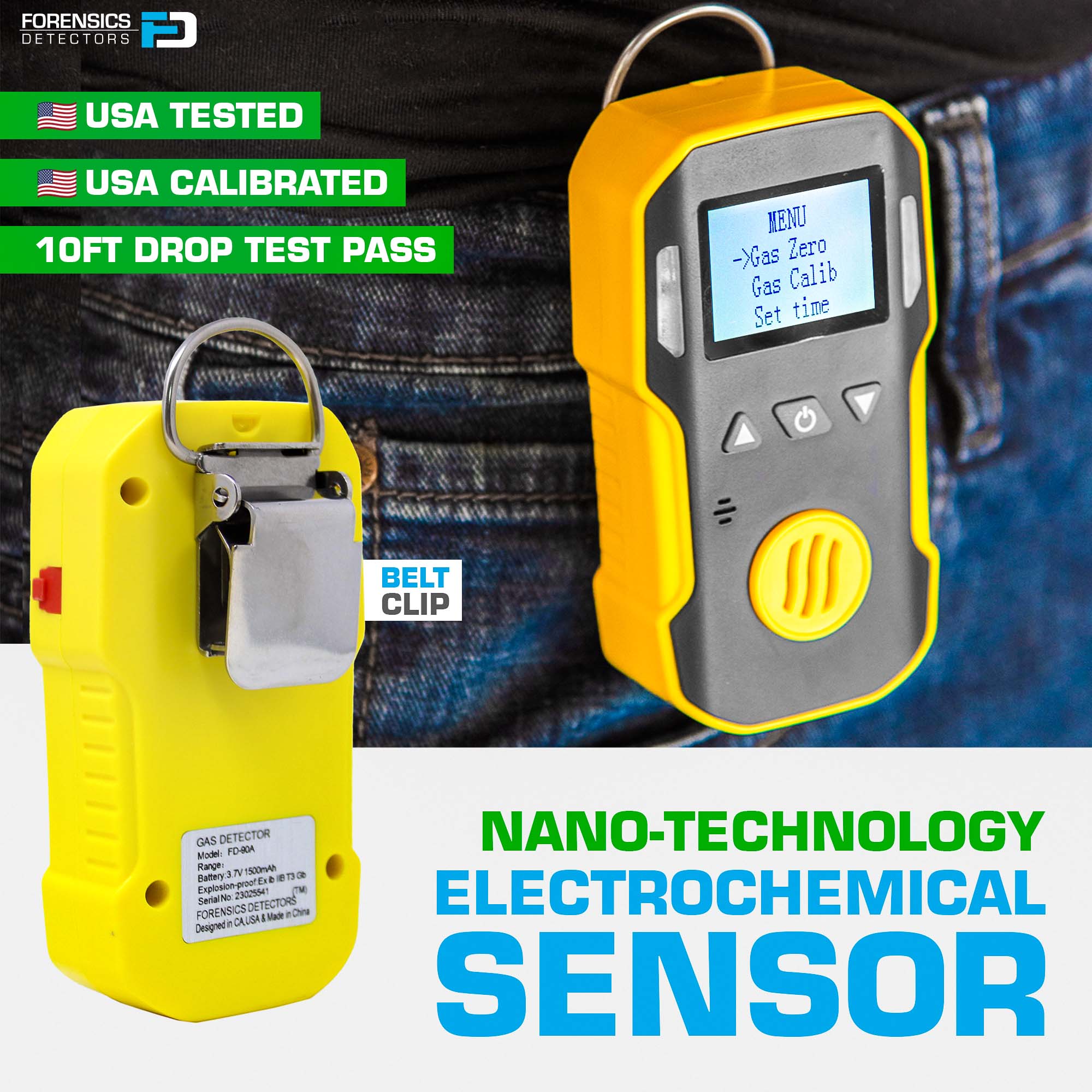

  • ⚛️ DETECT: Electrochemical NANO-GAS sensor.
  • 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: The professional Carbon Disulfide (CS2) gas meter by FORENSICS. Carbon Disulfide gas detectors are typically used in rubber processing facilities, in cellophane production sites, and rayon fabric manufacturing environments. Carbon Disulfide has a rotten egg odor and is toxic when taken in through the respiratory system or the skin. The human nose alone cannot reliably detect Carbon Disulfide, so a Carbon Disulfide monitor is helpful to prevent excessive harmful exposure. Exposure limits for CS2 include the OSHA Permissible Exposure Limit (8 hours) of 20 ppm. 30ppm is ceiling and 100ppm is peak. NIOSH recommended airborne exposure limit (REL) is 1 ppm and 10 ppm, not to be exceeded during any 15-minute work period.

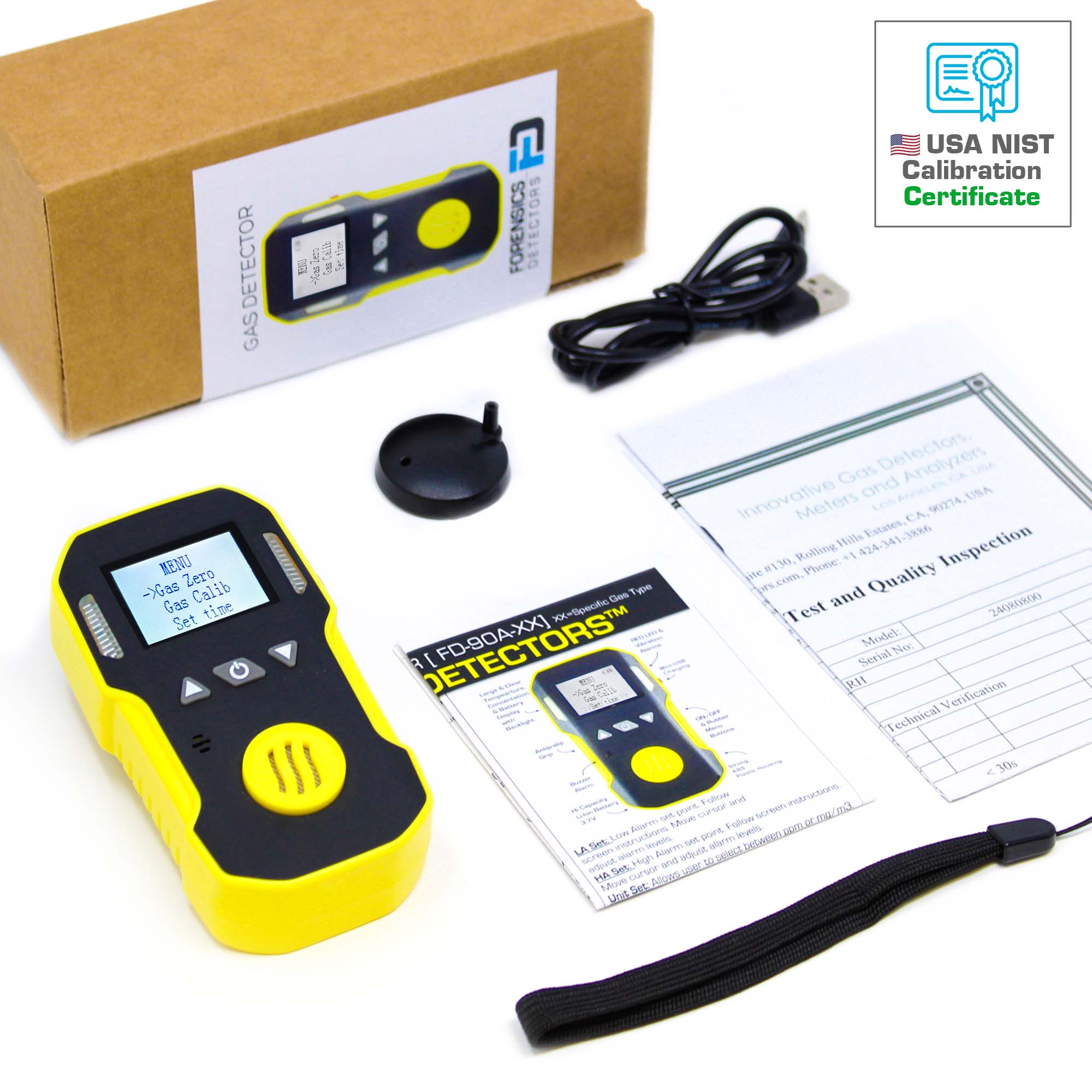

Included: Carbon disulfide gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit Items (DIY sold separately):
Calibration Gas (CO) (Surrogate Gas 200ppm CO: 100ppm CS2 is used for calibration.)
Calibration Gas Regulator (C10)
Tubing

Accessories (sold separately):

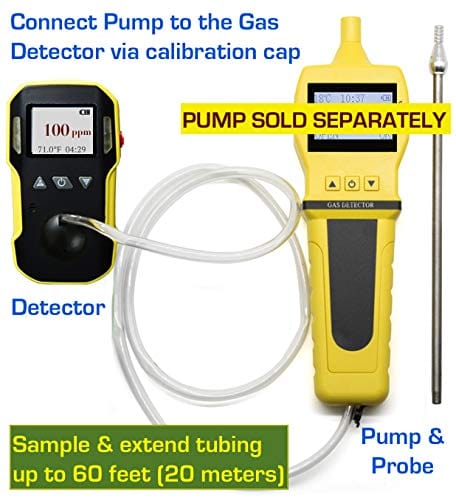

Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (CS2) (email us)

Specifications

Carbon Disulfide Gas (CS2) Detection: 0 - 100 ppm with 1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No

Error: ≤ ± 5% F.S.
Response Time: < 30 sec

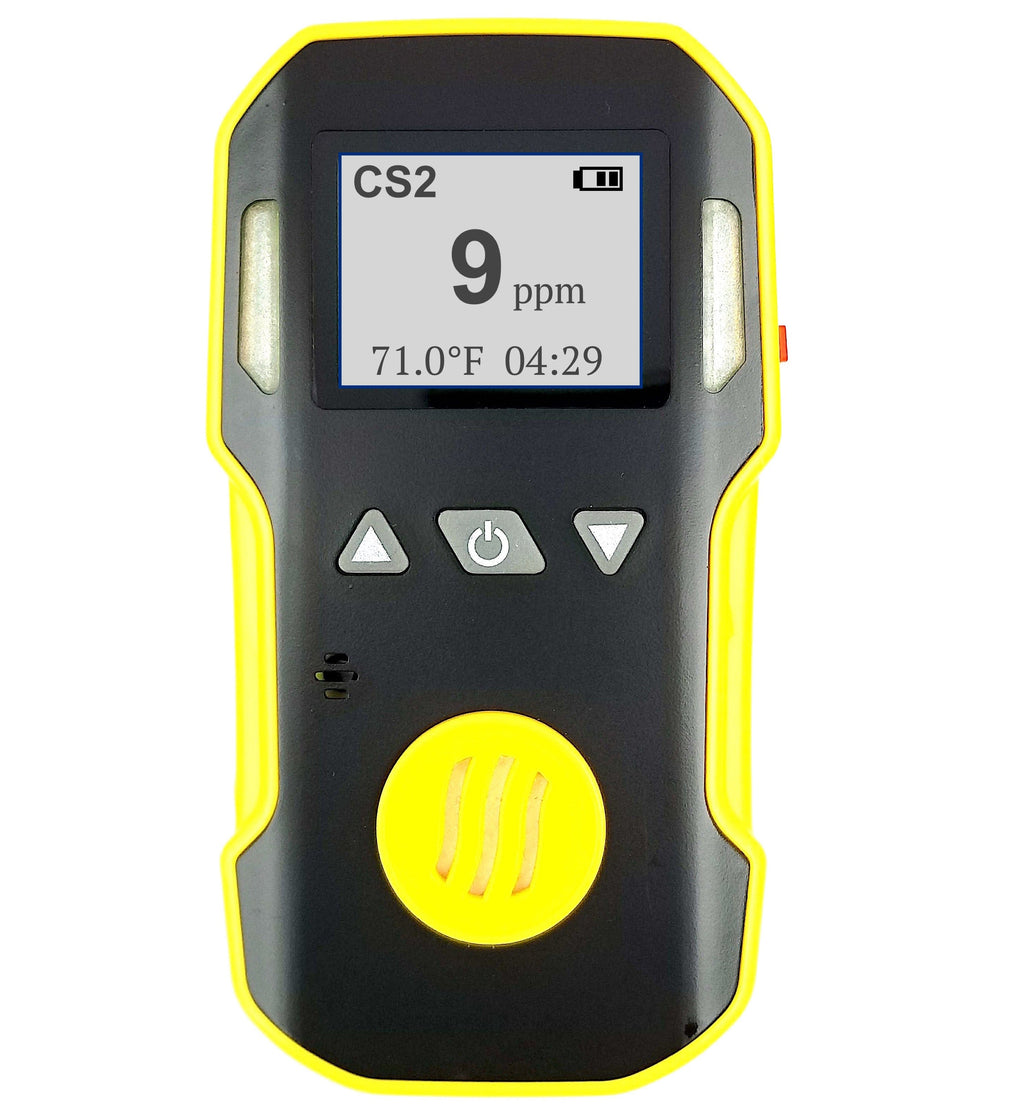

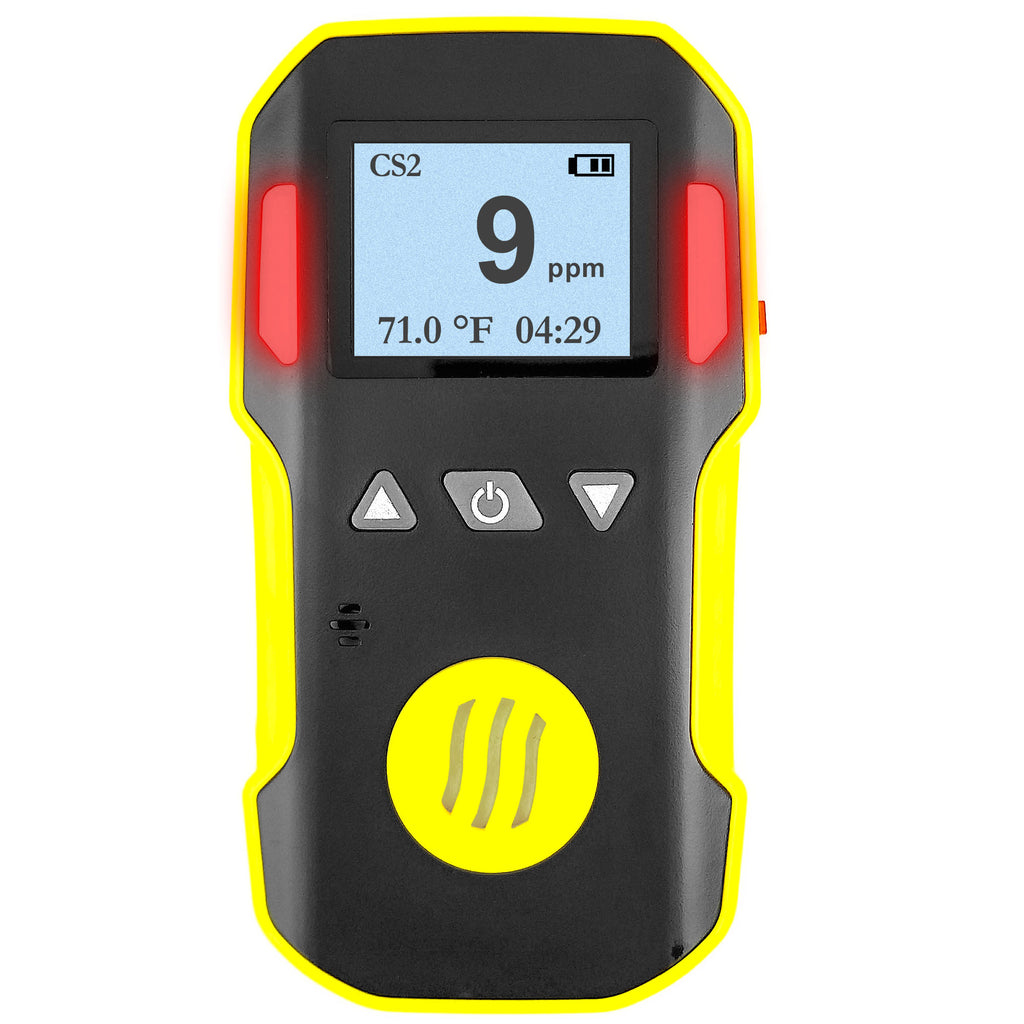

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours

Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
