Carbon Monoxide Wall Monitor | USA NIST Calibration

Brand: FORENSICS DETECTORS
Model: FD-60-CO
User Manual: Click Here
Blog Article: Click Here

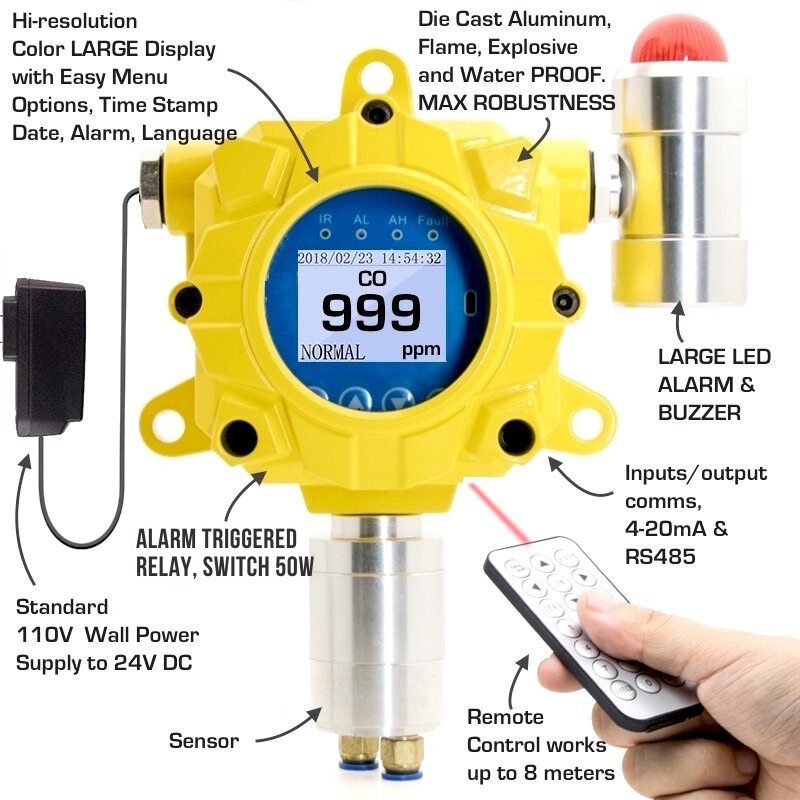

• 🚀 INDUSTRIAL: Heavy-duty fixed CO detector, range 0 - 1000ppm. Electrochemical sensors. Comes FACTORY-CALIBRATED.
• 🌎 USE: Remote control up to 8 meters. 2 x relay alarm triggered switches (50W each relay) to control fans, pumps, electrical items, garage doors, or additional alarms.
• 🎆 FEATURES: Large LED alarm and buzzer. Adjustable audio and visual.  Remote control. RS485 MODBUS Output and Analog Output (4-20 mA) for remote sensing and data logging.
• 💪 STRONG: Explosion, dust, water, and flameproof. Explosion-proof grade: Exd ⅡC T6 Gb with IP65 housing protection.
• 🕵️ TRUST: ** 1-year limited warranty ** Arrives with gas calibration and  certificate ** Product tested and verified in the USA ** 100% quality guaranteed **

Details: This is our fixed carbon monoxide wall-mount gas monitor for occupational spaces, laboratories, garages, process rooms, combustion control rooms, refineries, gas stations, boiler rooms, and many others. Excellent for continuous monitoring and alarming. A robust unit that you mount on the wall and will alarm with LED and buzzer alarm format for immediate action to take place. This unit is an industrial version. We have carbon monoxide low level home and business alarms also.

This unit is a great choice for Texas Boiler Code. For compliance to Texas Boiler Code, a latching relay is required. When the CO Wall Mount unit does switch (alarm mode), the in-series latching relay will ensure the boiler remains OFF until a human has reset it. This unit alone does not have a "memory relay", only an ordinary relay. So please plan to have your installer or electrician also install a latching relay with the FD-60-CO unit.

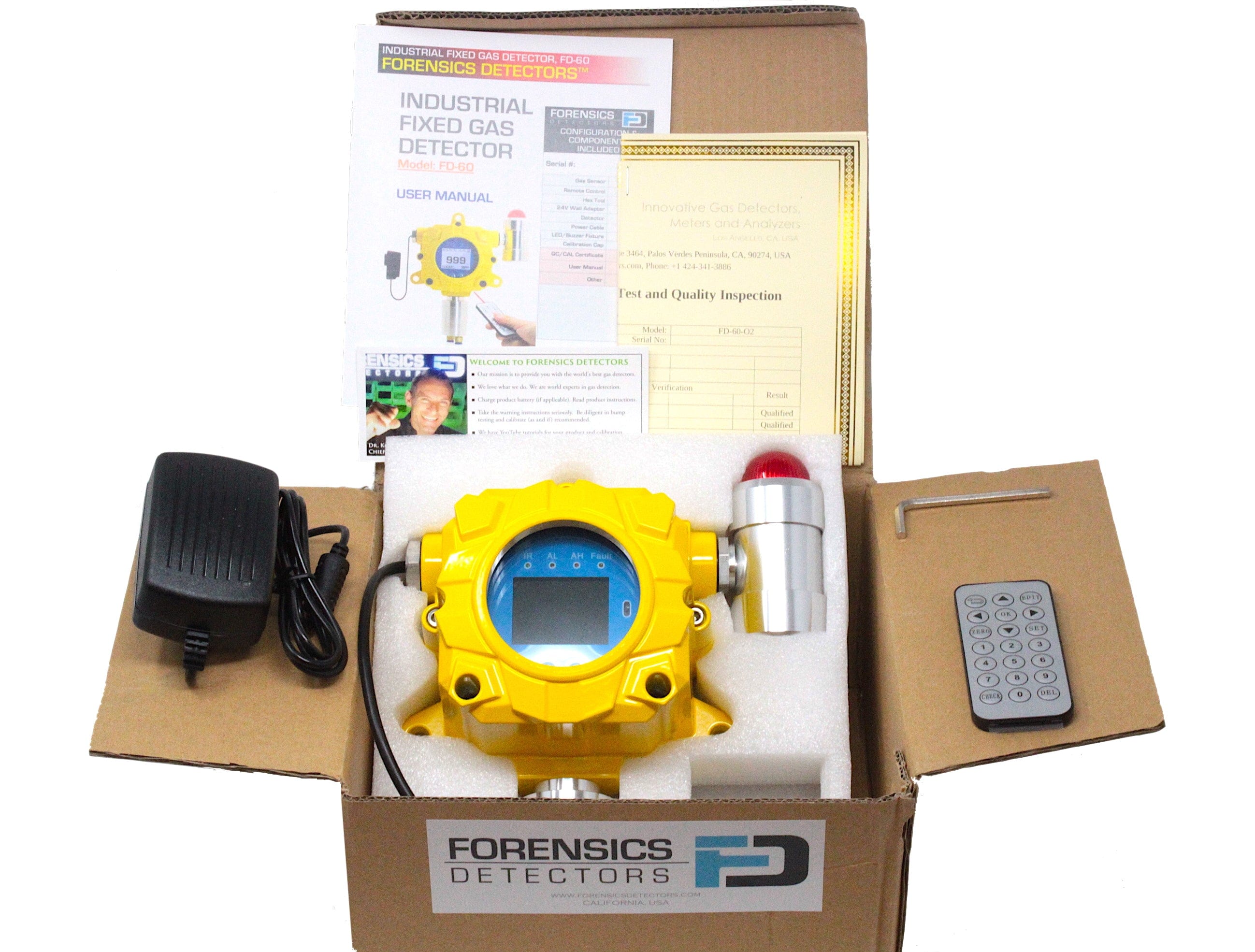

Included: Fixed gas detector, English manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug to 110V outlet, and wiring. Arrives with USA NIST calibration certificate.

Calibration Kit (sold separately):
Calibration Gas (CO)
Calibration Gas Regulator (C10)
Calibration Cap
Tubing

Other Accessories (sold separately):
Gas Sensor Replacement (CO)
Gas Detector Waterproof Case
Air Sampling Pump Kit
Alarm Extension Fixture

Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Carbon Monoxide (CO) Detection: 0 - 1000 ppm with 1 ppm resolution
Error: < +/- 5% F.S.
Gas Sensor Type: Electrochemical Gas Sensor
Sensor Lifetime: 2 - 3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb
Protection Category: IP65
Response Time: < 20 sec
Power Supply: DC 24V ± 15%
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Electrical Output: 2 x relay contact output, max power 50W each relay
Communication: 4 - 20 mA and RS485
Dimensions: 200 mm x 180 mm x 90 mm
Weight: 3 lbs
Threads: G1/2 male proof hose pipe thread size M20 x 1.5 mm
