Brand: FORENSICS DETECTORS
Model: FD-60-Cl2
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation

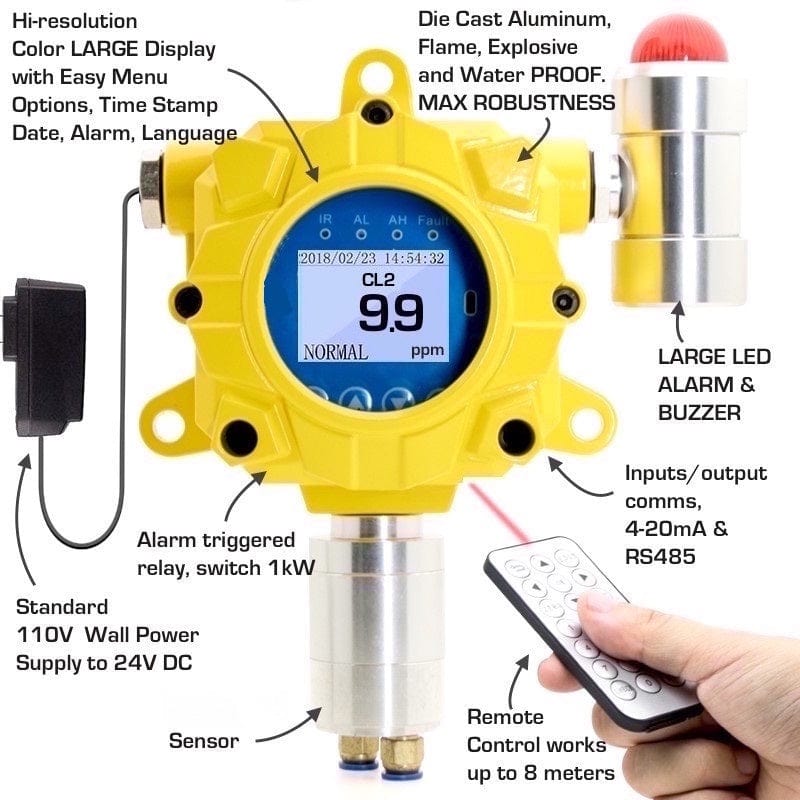

- 🚀 INDUSTRIAL: Heavy-duty fixed CO detector Cl2 range 0 - 50 ppm. Electrochemical sensors. Comes FACTORY-CALIBRATED.
- 🌎 USE: Alarm output to 2 x relay alarm-triggered switches to control fans or ventilation units.
- 🎆 FEATURES: Large LED alarm and buzzer.
- 💪 ROBUST: Dust-proof, water-resistant, and flameproof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

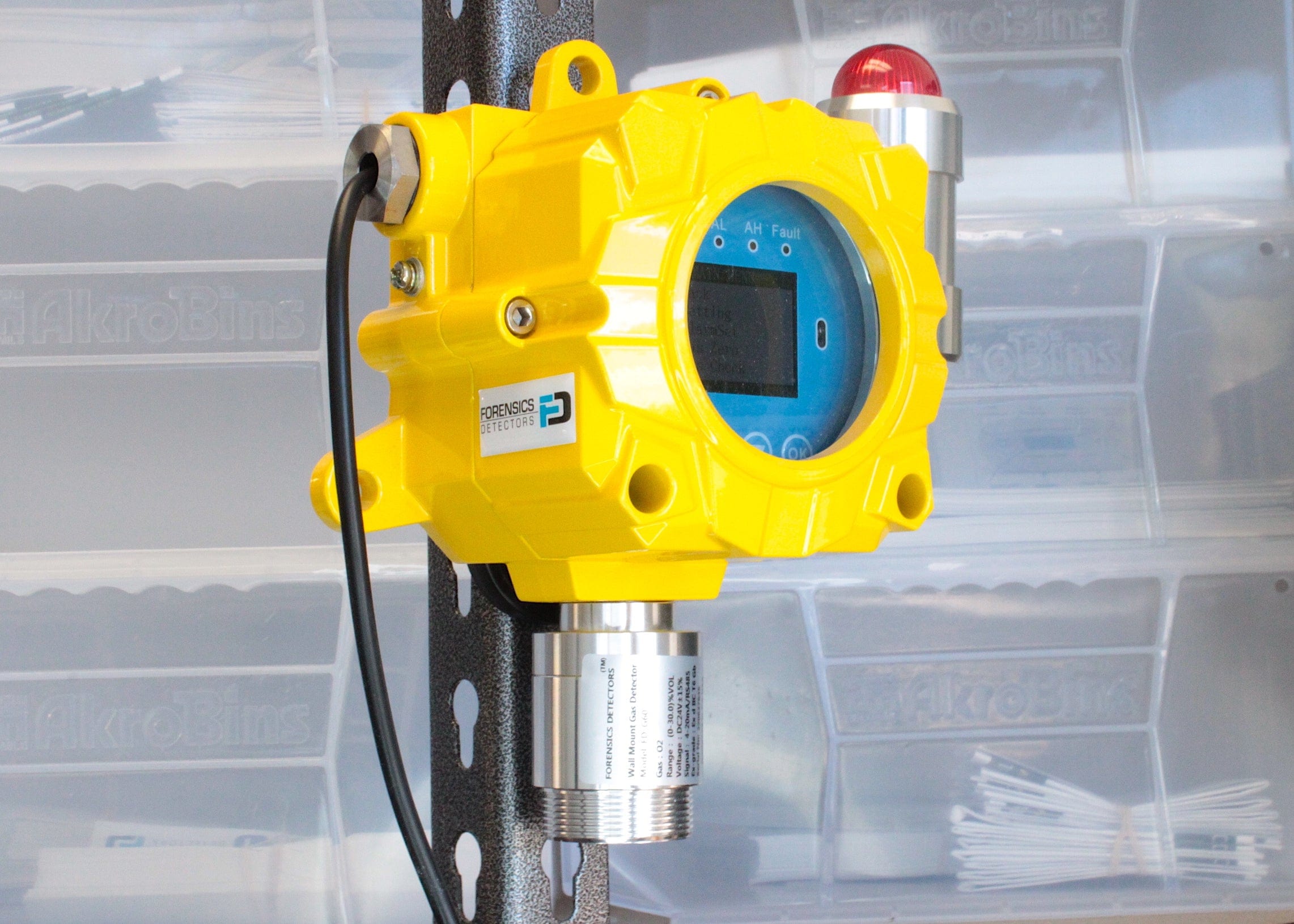

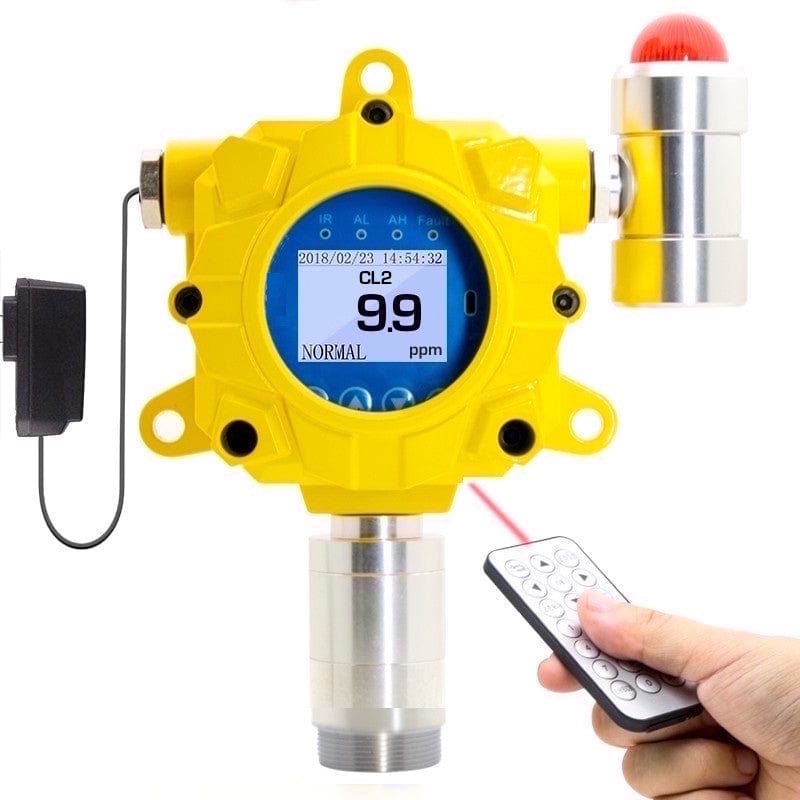

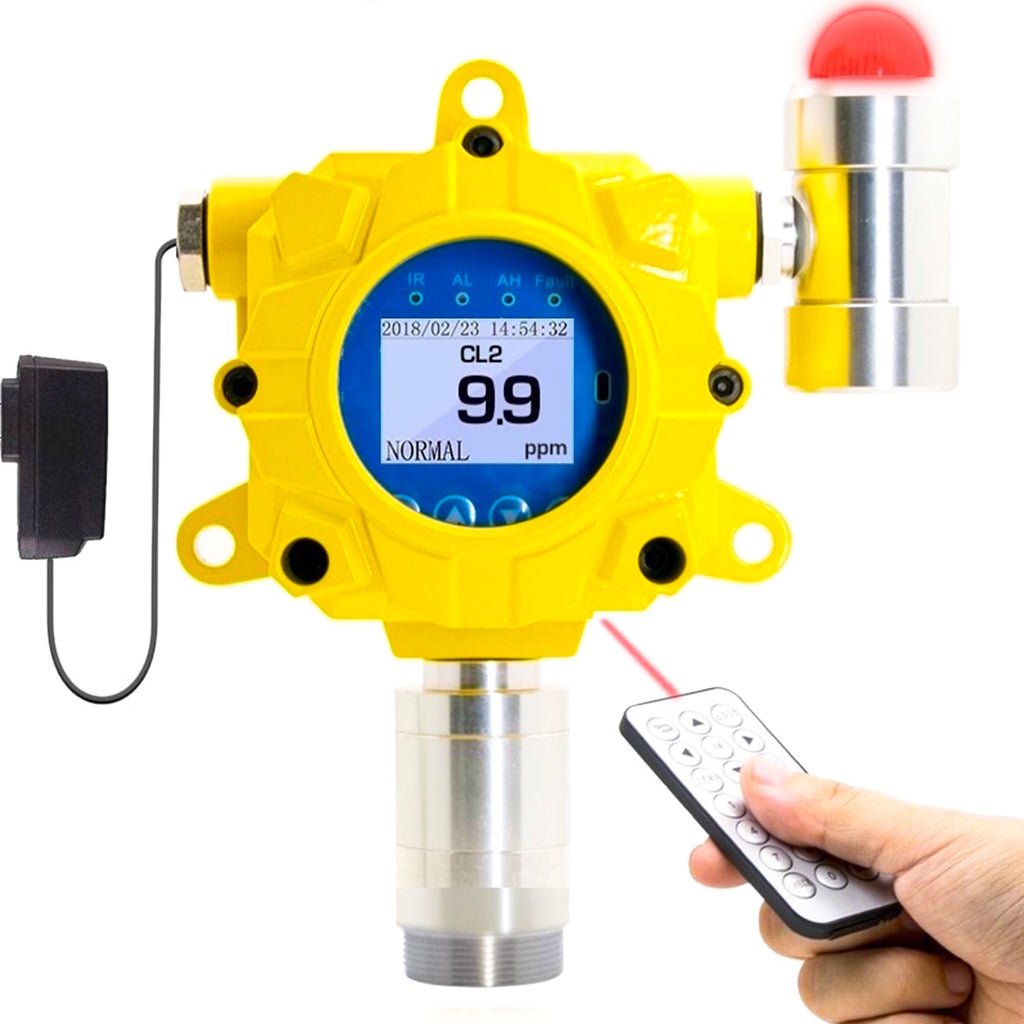

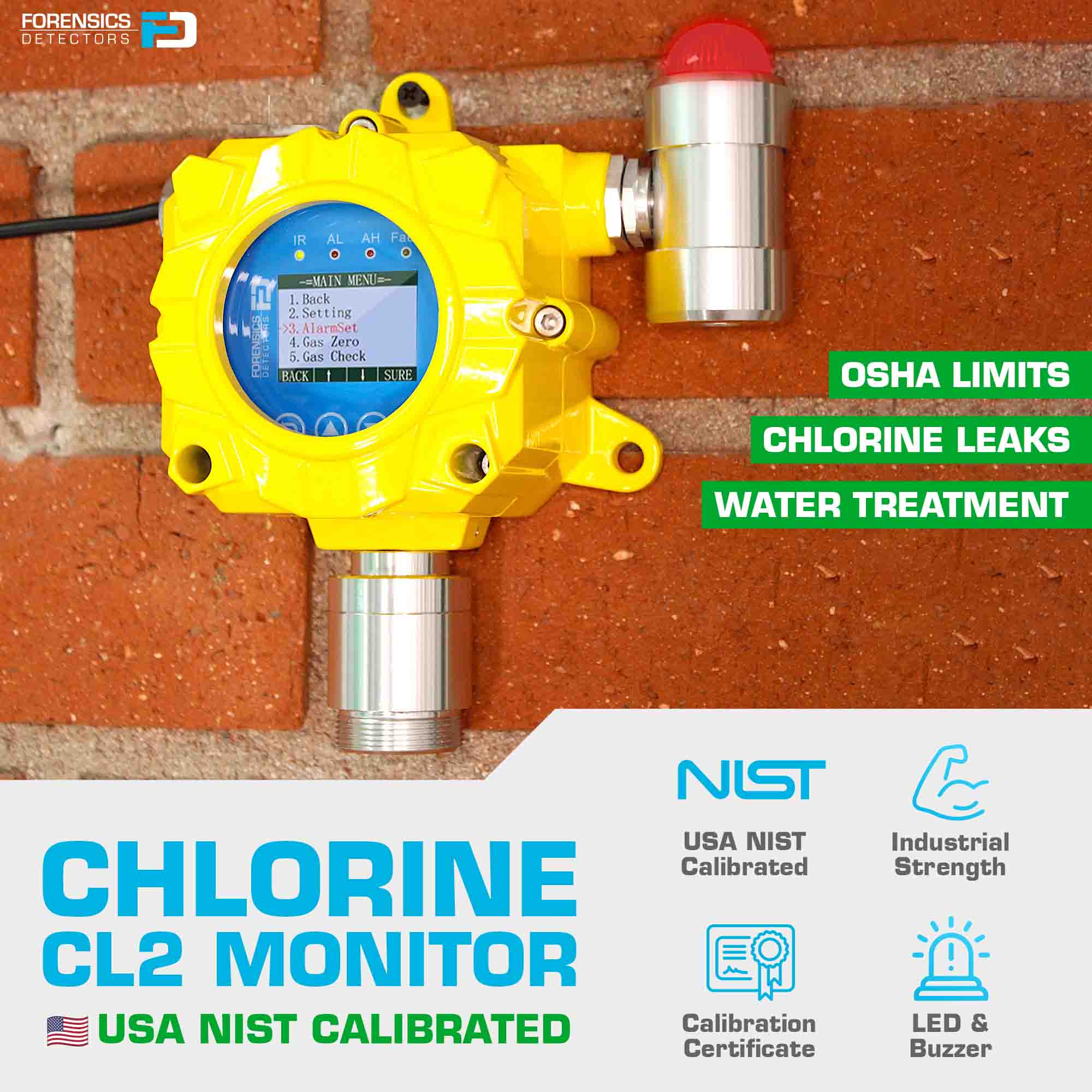

Details: This product is a heavy-duty, industrial, wall-mounted chlorine (Cl2) gas detector for continuous detection. It is used in areas with high chlorine exposure to protect employees, such as water treatment facilities, pools, and chemical processes. OSHA permissible exposure limit is set at 1 ppm. In addition to alarms, the detector can be used to switch ON/OFF electrical equipment up to 50W each relay of power. The user can set low and high alarms to trigger 2 x 50W each relay relays, perfect for strobe lights, FAN CONTROL, VENTILATION CONTROL, and other devices. For bump testing, chlorine bump test gas is not available. In this case, we simply recommend using the calibration gas and regulator setup to serve as the bump test gas, or our bump test generator. For those that just require a more basic chlorine meter without the advanced multigas detector function, we recommend our FD-90A-Cl2. For those requiring a handheld chlorine meter with a built-in pump, we recommend our FD-600-Cl2.

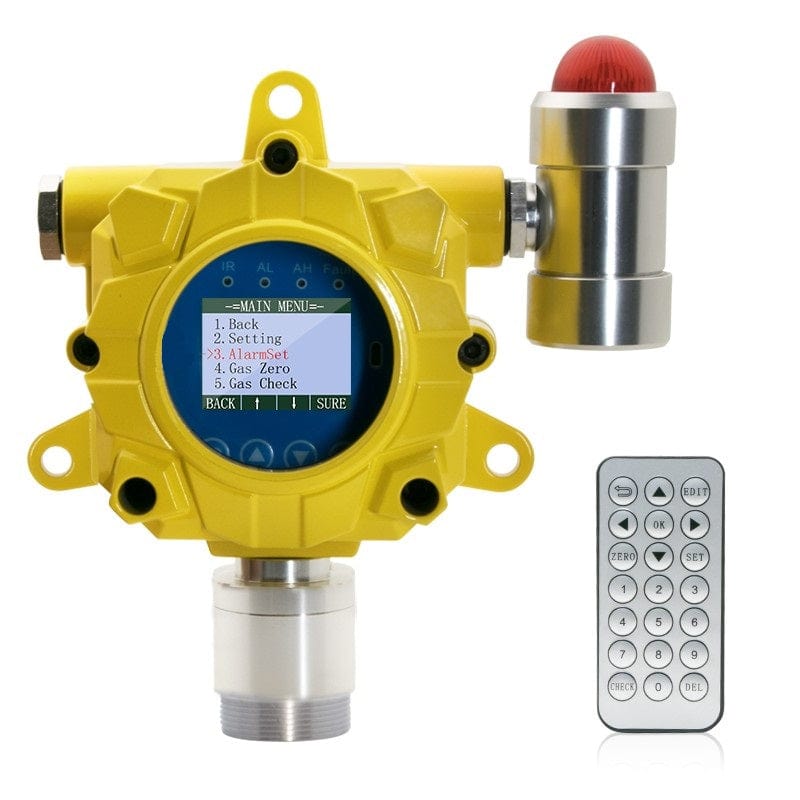

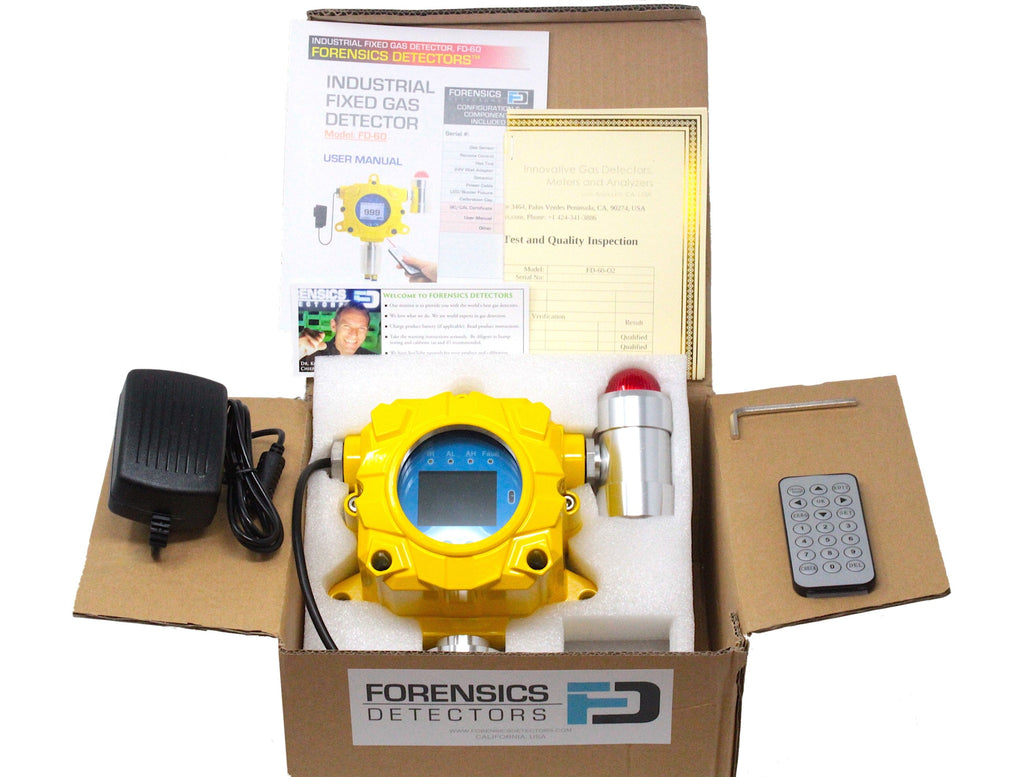

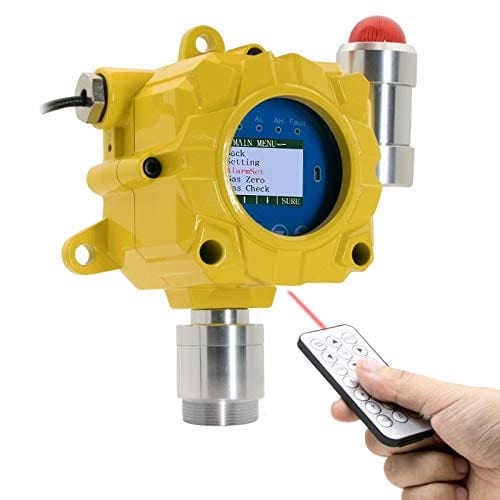

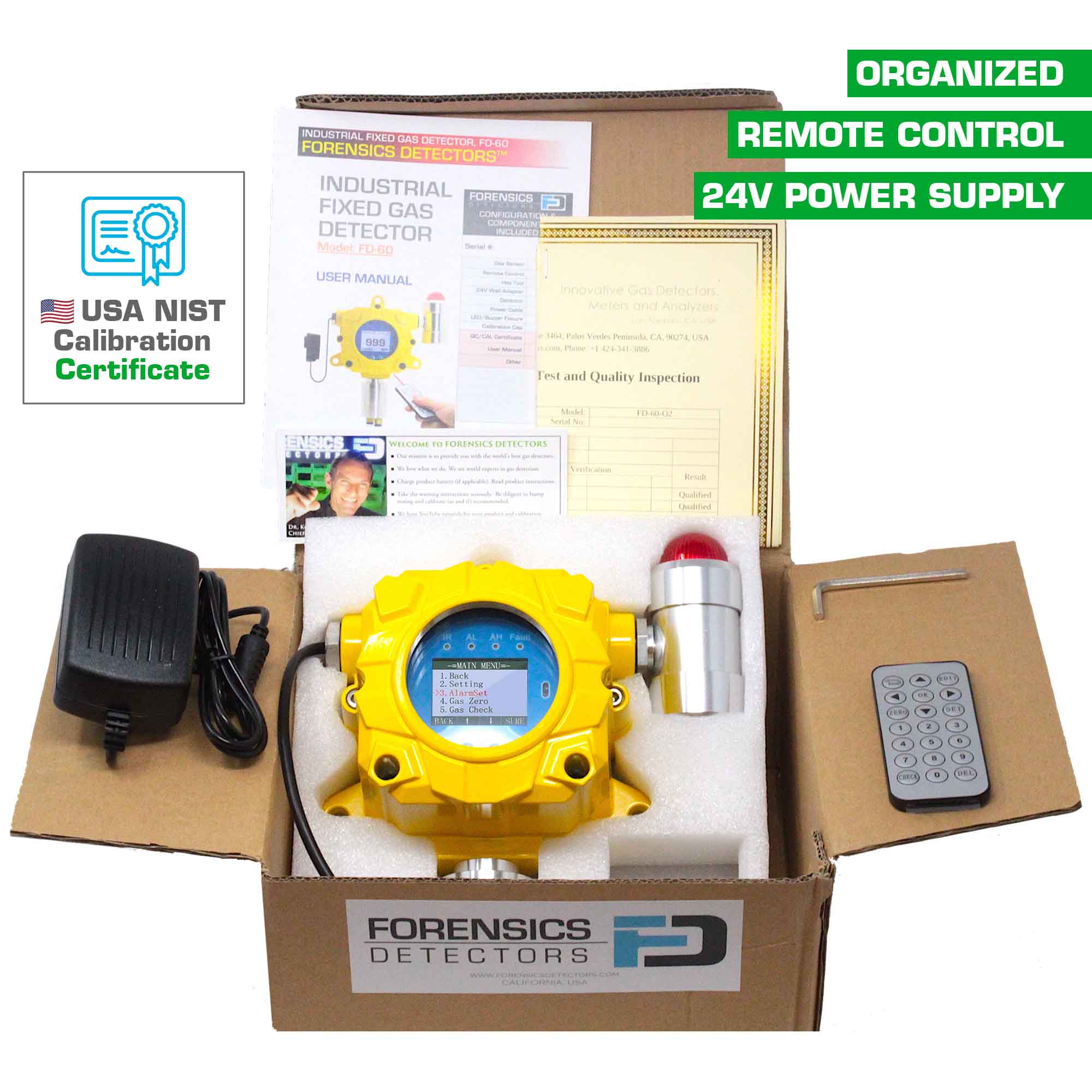

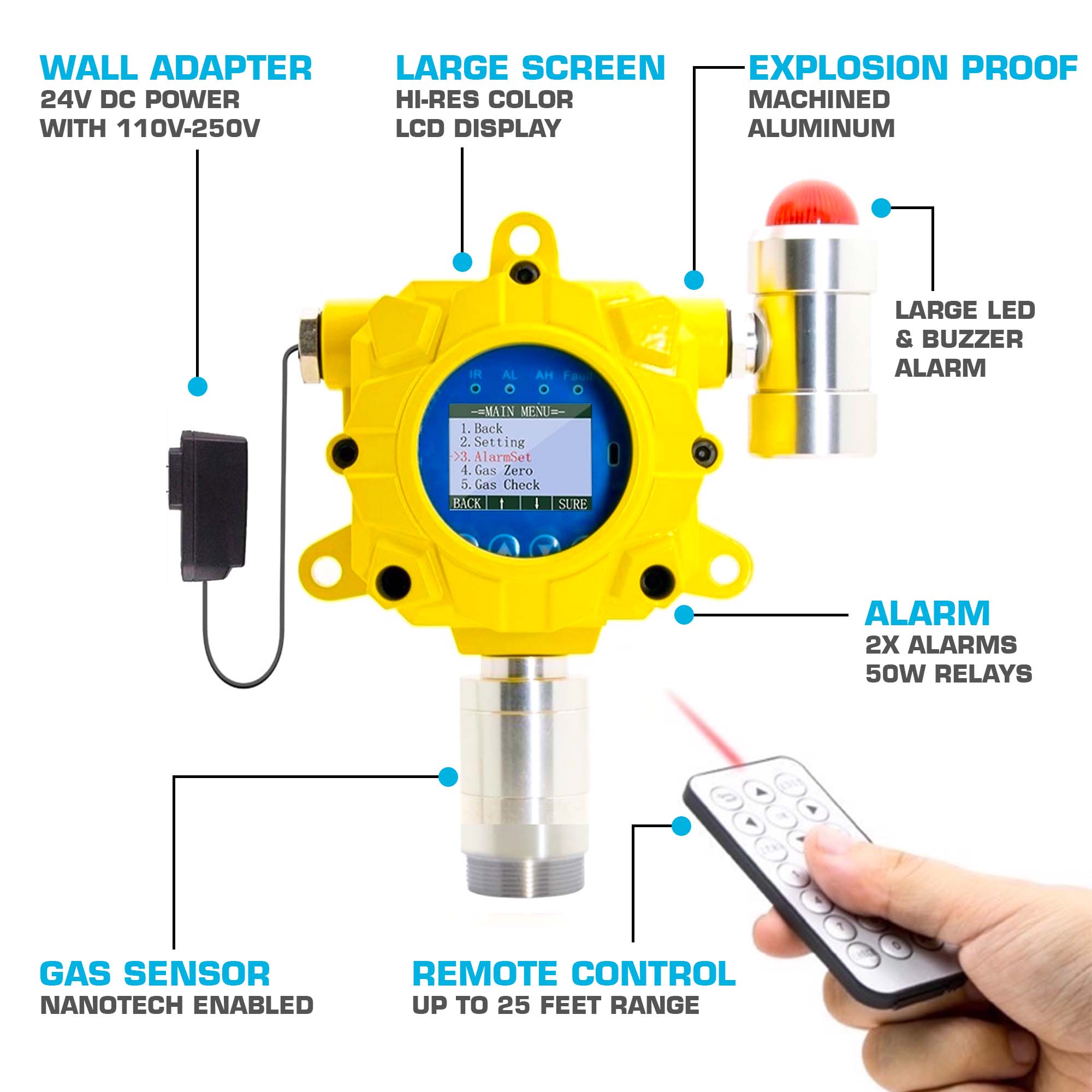

Included: Fixed gas detector, user manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug into a 110V outlet, and wiring. Arrives with a certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (Cl2)
Calibration Gas Regulator (C10)
Calibration Cap
Bump Tester
Tubing
Accessories (sold separately):
Gas Sensor Replacement (Cl2)
Air Sampling Pump Kit
Alarm Extension Fixture
Specifications
Chlorine (Cl2) Detection: 0 - 50 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Lifetime: 2 - 3 years
Sampling Method: Natural diffusion (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Digital Output Datalogging: RS485 MODBUS (🛠️ Setup Guide)
Analog Signal Output: 4 - 20 mA (▶️ Demo Video)
Error: ≤ ± 5% F.S.
Response Time: <60 seconds
Alarm: LED & Buzzer
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb (📋 PDF)
Protection Category: IP65
Power Supply: DC 24V ±15% (100–240V AC, 50/60 Hz)
Max Power Consumption: 20 W (LED ON and Buzzer ON)
Electrical Output: 2 x relay contacts, max power 50 W per relay

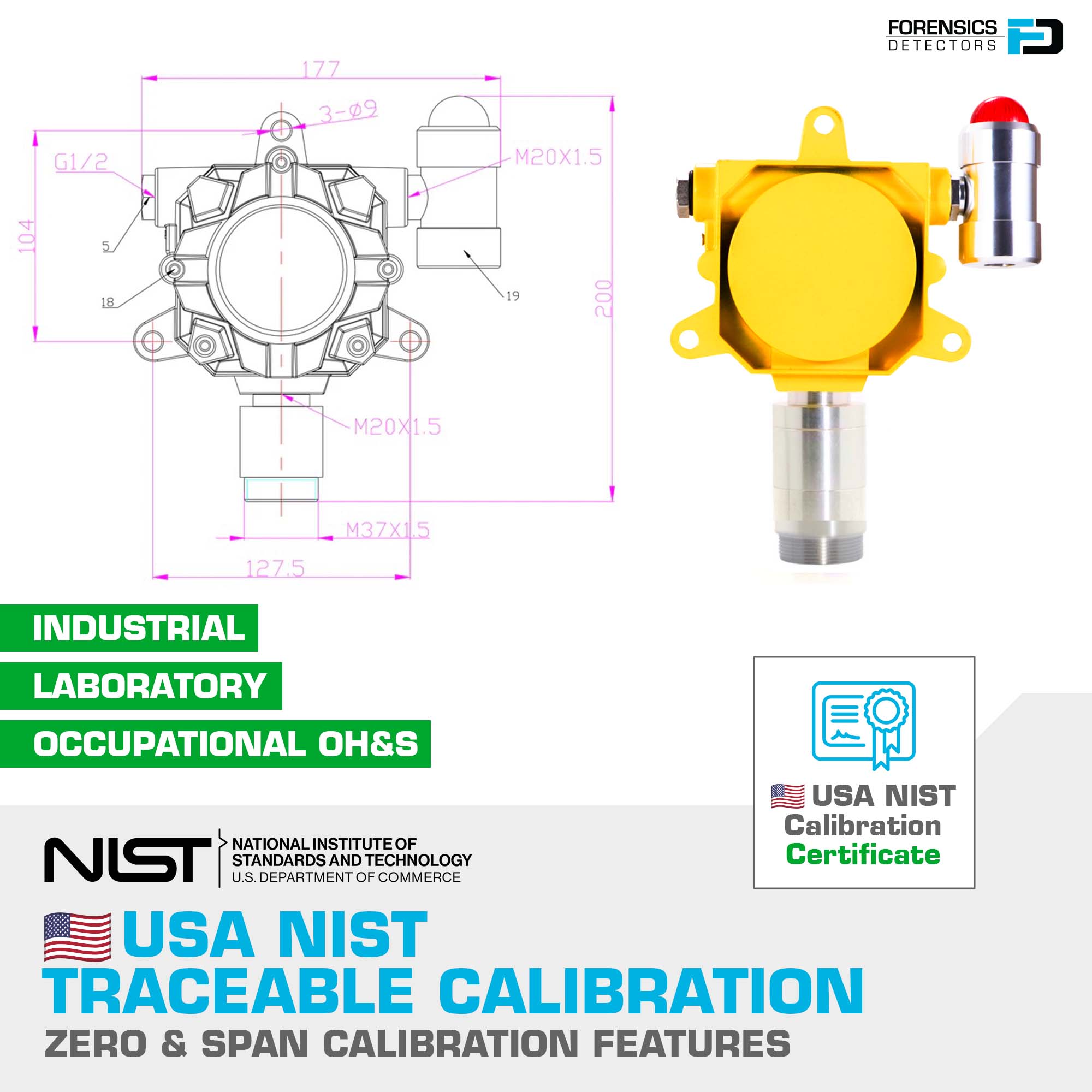

Dimensions: 7.9 × 7.1 × 3.5 inches (20 × 18 × 9 cm)
Weight: 3 lbs (1.4 kg)
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
Housing Material: Die-cast aluminum alloy
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
