Chlorine Gas Analyzer | Data Logging | NIST Calibration

Save 37%

Price:
Sale price$695.00 Regular price$1,095.00
Stock:
In stock (120 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model:
FD-600-Cl2
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights:
Read the Expert Guide

Features:

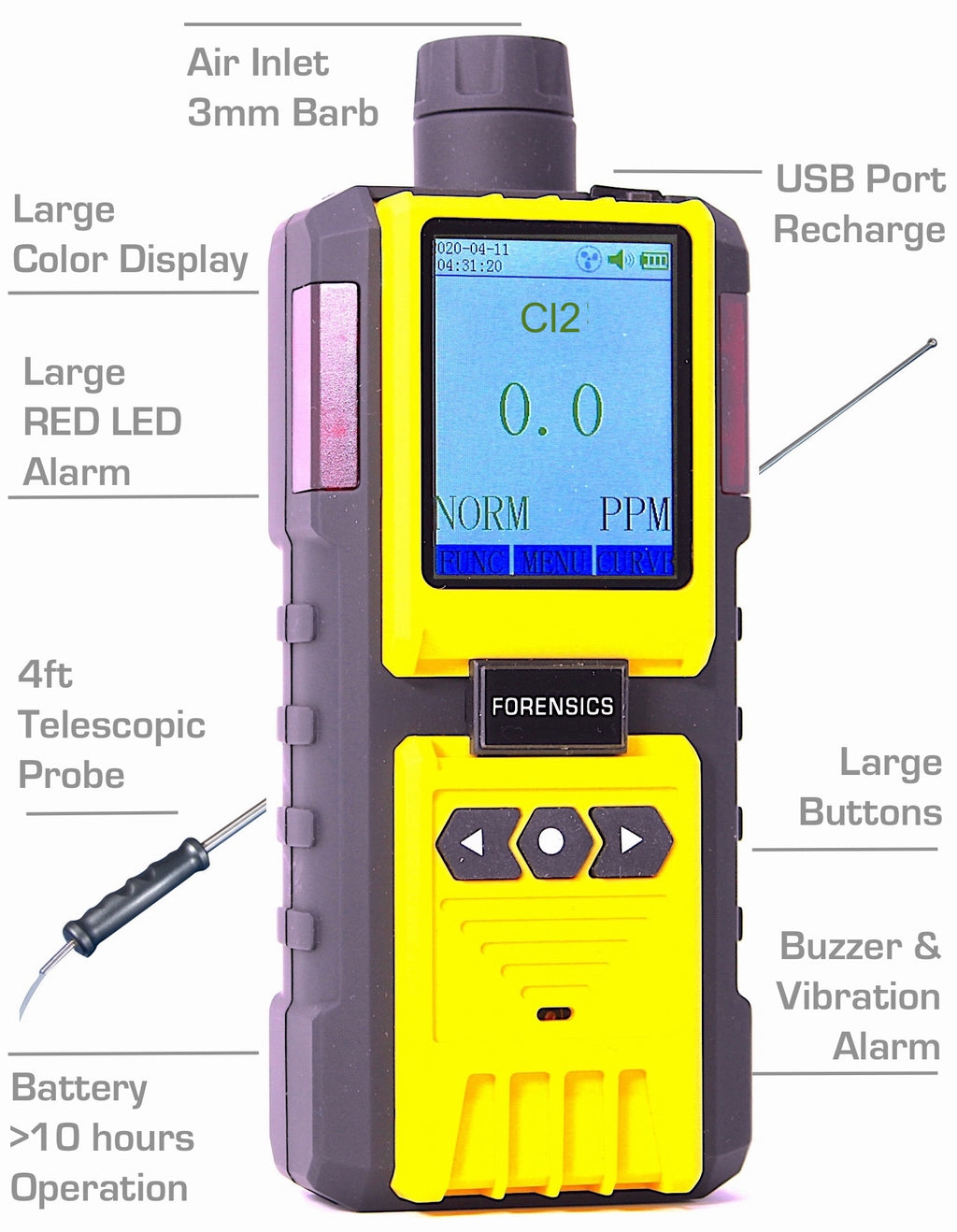

  • 🎆 DETECT: Chlorine Gas Detector with a built-in pump to detect chlorine gas levels. Cl2 electrochemical sensor 0 - 50 ppm with 0.1 ppm resolution and a built-in pump for super-fast detection. Comes FACTORY-CALIBRATED.
  • 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
  • 📲 DATA LOGGING: USB recharging and real-time data acquisition.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

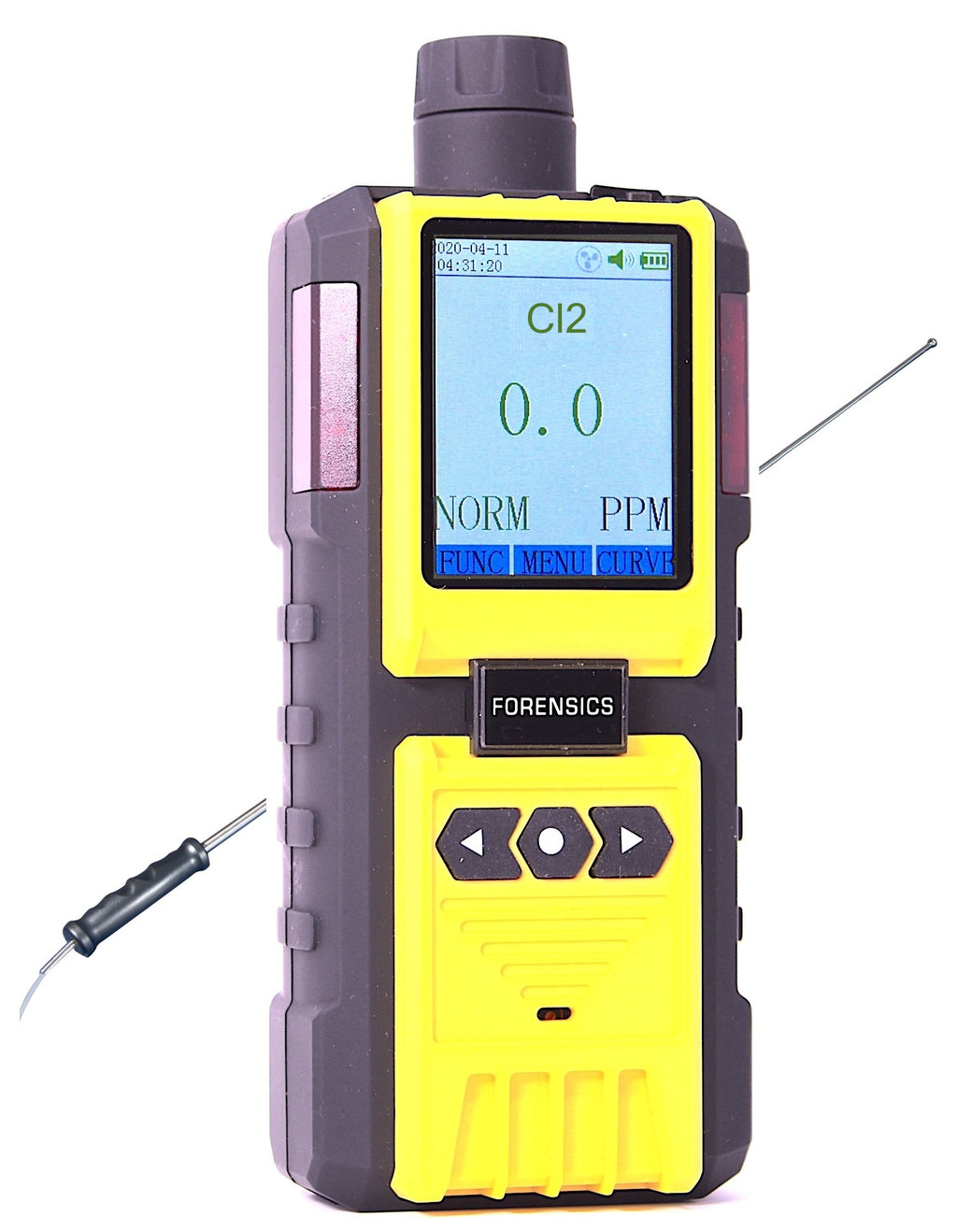

Details: This is FORENSICS DETECTORS' best Chlorine Gas Detector with a built-in pump allowing for faster response and point probe or continuous sampling, and ideal for detecting Cl2 gas. The Cl2 analyzer has a 32-bit microprocessor with a color LCD and graphing capability, and a built-in pump that draws the air into the analyzer for fast response. This Cl2 analyzer is perfect for water works, sterilization, air quality testing, OSHA exposure limit testing, safety, R&D, engineering, and scientific applications. Chlorine is a commonly used household cleaner and disinfectant. It is also widely used as an oxidizing agent in water treatment facilities, pools, bleaching processes, and industrial chemical workflows. It is important to detect Cl2 in the air to protect employees, the public, and others from inhaling high levels. NIOSH exposure limits are set with a maximum ceiling (15-minute exposure) of 0.5 ppm. OSHA permissible exposure level is set at 1 ppm. If you require a more basic Cl2 detector, we recommend our handheld Chlorine meter.

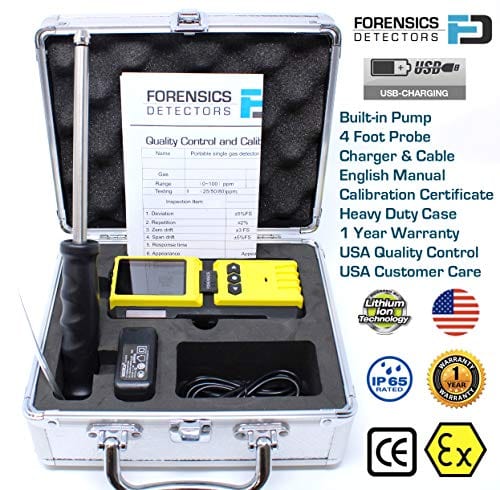

Included: Cl2 Gas Analyzer, User manual, USB charging cable, charger, analyzer case, stainless probe with tubing, and certified calibration certificate.

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (Cl2)
Calibration Gas Regulator (C10)
Bump Tester
Tubing

Accessories (sold separately):
Gas Detector Hard Case
Gas Detector Stand
Gas Sensor Replacement (Cl2)

Specifications

Chlorine Gas (Cl2) Detection: 0 - 50 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period:
12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error:
≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: High-Definition Color LCD

Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11.0 oz (314 grams)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
