Brand: FORENSICS DETECTORS
Model: FD-103-CO-LOW
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- 💪 TOUGH: Passes 20 ft drop test. Waterproof up to 3 ft. Rubberized housing for a "soft-touch" feeling.
- 🔋 LONG LIFE: Massive 2-year battery life. 9V LITHIUM battery.
- ⚛️ DETECT: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms. Instantaneous, TWA, and STEL display options.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: This unit is our most sensitive CO meter with a 0.1 ppm resolution, allowing you to detect the smallest amount of carbon monoxide, making it an excellent choice for testing CO in a scuba cylinder or investigating general air quality. Designed to handle a beating - waterproof, shockproof, and perfect for any outdoor application such as scuba cylinder checks, boats, RVs, emergency services, oil and gas, EMS, backpacking, camping, and many others. This CO meter can detect low levels of carbon monoxide in compressed gas or ambient air. It can be used to test gas quality in scuba cylinders or to monitor exposure to CO in the ambient air. Ideally, the CO concentration in your breathing gas should be 0 ppm. Divers Alert Network (DAN) recommends less than 5 ppm for safe diving. The Compressed Gas Association (CGA) limit is 10 ppm. For critical applications, calibrate every 6 months and bump test daily, or before use, to verify detector operation.

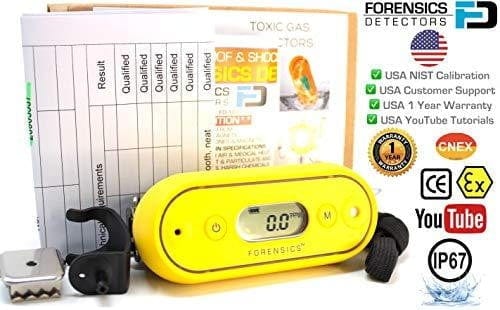

Included: Carbon monoxide gas meter, user manual, calibration cap, rubber dome, and a metal alligator belt clip. Arrives with a certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (CO)
Calibration Gas Regulator (C10)
Bump Gas (CO)
Tubing
Accessories (sold separately):
Gas Detector Waterproof Case
Gas Detector Pouch
Gas Sensor Replacement (Email Us)
Specifications
Carbon Monoxide (CO) Detection: 0 - 100 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2-3 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Response Time (natural diffusion): < 60 seconds
Response Time (forced air): < 30 seconds
Error: better than +/- 2% full scale (when reading is between 0 - 20 ppm and worst case at temperature and RH% extremities)
Error: better than +/- 5% full scale (when reading is between 21 - 100 ppm and worst case at temperature and RH% extremities)
Store / Operating Temp: 32 to 122°F (0 to 50°C)
Store / Operating Humidity: < 95% RH non-condensing

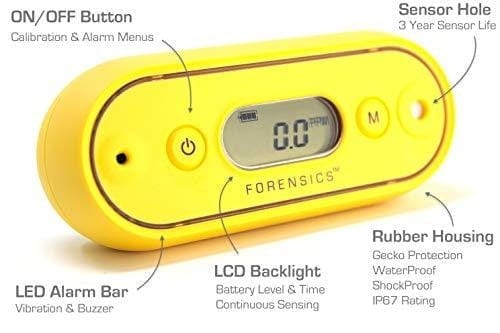

Display: Bright backlight with high-contrast LCD
Battery: 9V disposable lithium battery
Expected Battery Life: > 1 year
Protection Category: IP67 (📋 PDF)
Weight: 5.3 oz (150 g)
Dimensions: 4.3 × 1.8 × 1.2 inches (11.0 × 4.5 × 3.1 cm)
Housing Material: ABS and rubber
Alarm Indicators: RED LED, 90dB buzzer, and vibration
Alarm Setpoints: User-adjustable
Advanced Features: Alarm adjustments and display options (Instant, TWA, STEL, and Time).
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
