CO2 Meter for Safety | 0-5000 ppm | USA NIST Calibration

Save 59%

Price:
Sale price$495.00 Regular price$1,195.00
Stock:
In stock (110 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model: FD-90A-CO2-PPM
User Manual (PDF): EN | DE | FR | ES | IT |
Insights:
Read the Expert Guide

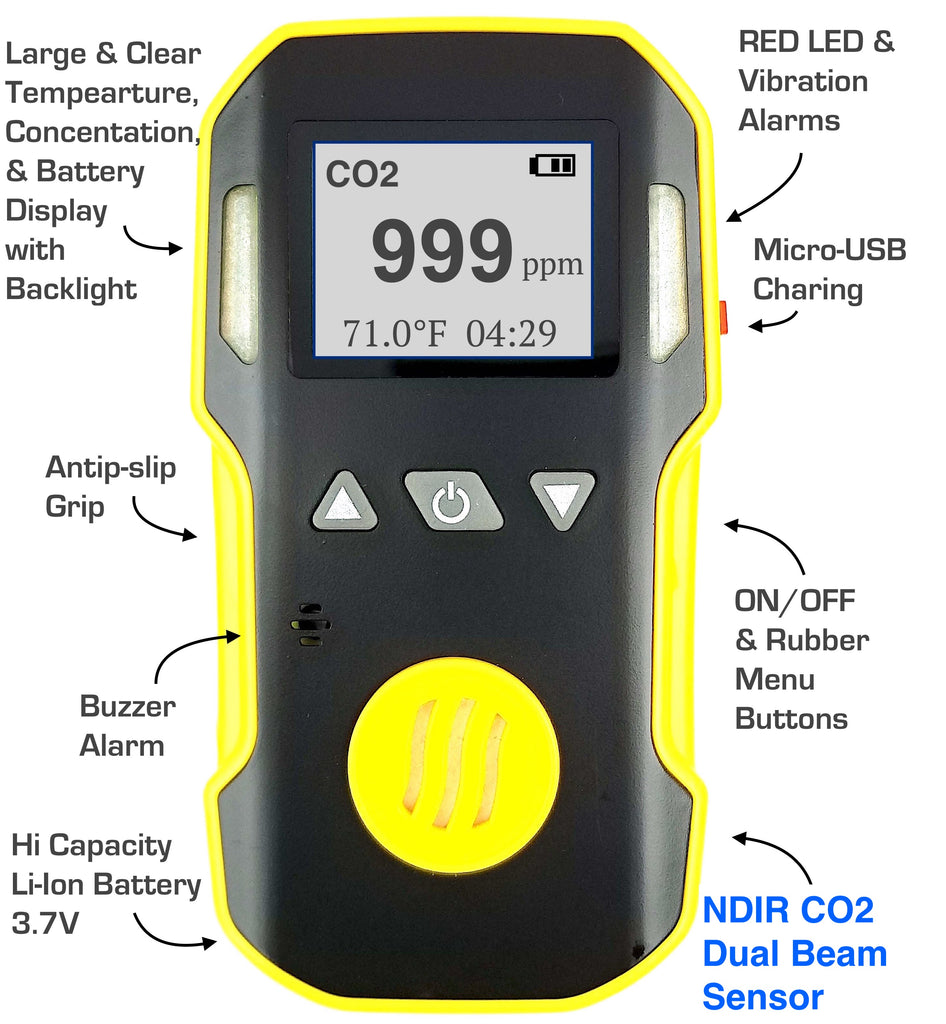

Features:

  • ⚛️ DETECT: Single-gas detector for carbon dioxide 0 - 5000ppm with 1ppm resolution.
  • 🔋ACCURACY: Dual-beam NDIR sensor.
  • 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: A perfect carbon dioxide meter to track your CO2 indoor air quality while providing personal protection. Constructed for professional industrial technicians, inspectors, employees, and engineers who are looking to detect CO2 with a robust personal CO2 meter they can clip on their pants and shirt, or hold and take precise CO2 air quality measurements. This unit also comes with a CO2 0-10% version and a CO2 0-100% version.

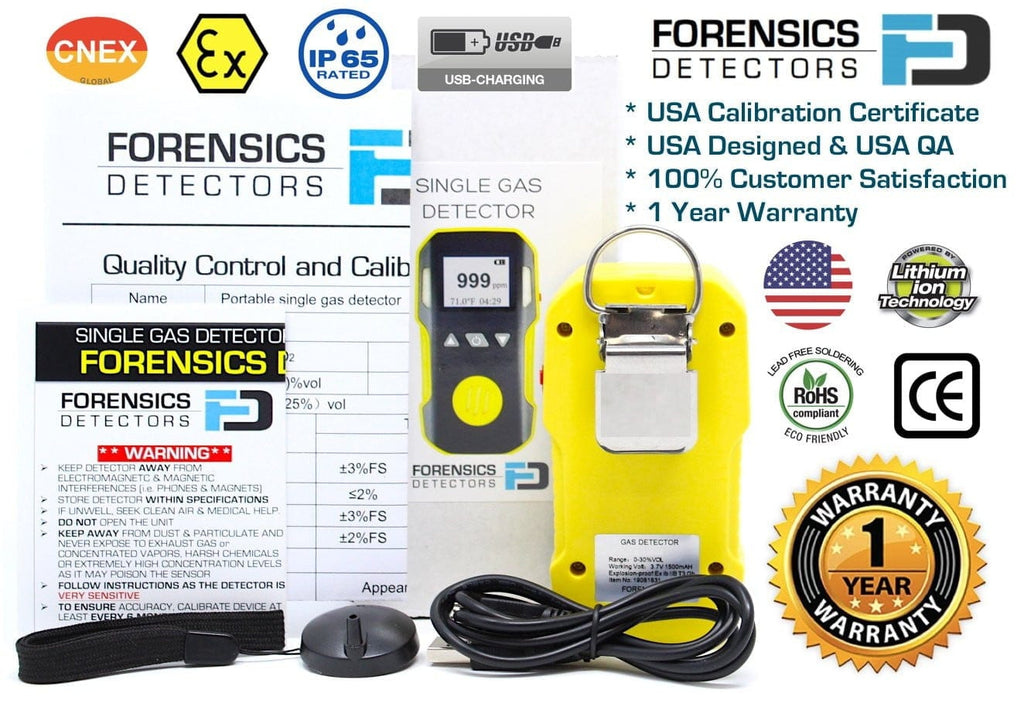

Included: CO2 gas meter, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (CO2)
Calibration Gas Regulator (C10)
Bump Gas (CO2)
Tubing

Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand

Specifications

Carbon Dioxide (CO2) Detection: 0 - 5000 with 1ppm resolution
Gas Sensor Type: NDIR Gas Sensor
Gas Sensor Life:
> 5 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No

Error: ≤ ± 5% F.S.
Response Time: < 30 sec
Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours

Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
