Brand: FORENSICS DETECTORS
Model: FD-90A-EX
User Manual (PDF): EN | DE | FR | ES | IT |
Correcting %LEL Factors for other Gases/Vapors: Click Here
Insights: Read the Expert Guide
Features:
- 🗽 ACCURATE: Professional and accurate EX LEL gas detector.
- 🚄 DETECT: Catalytic Bead Type Gas Sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.

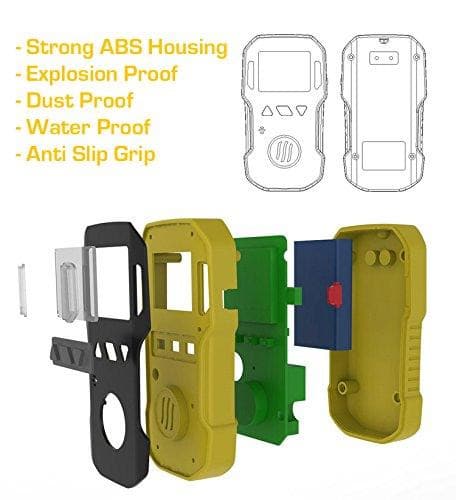

- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

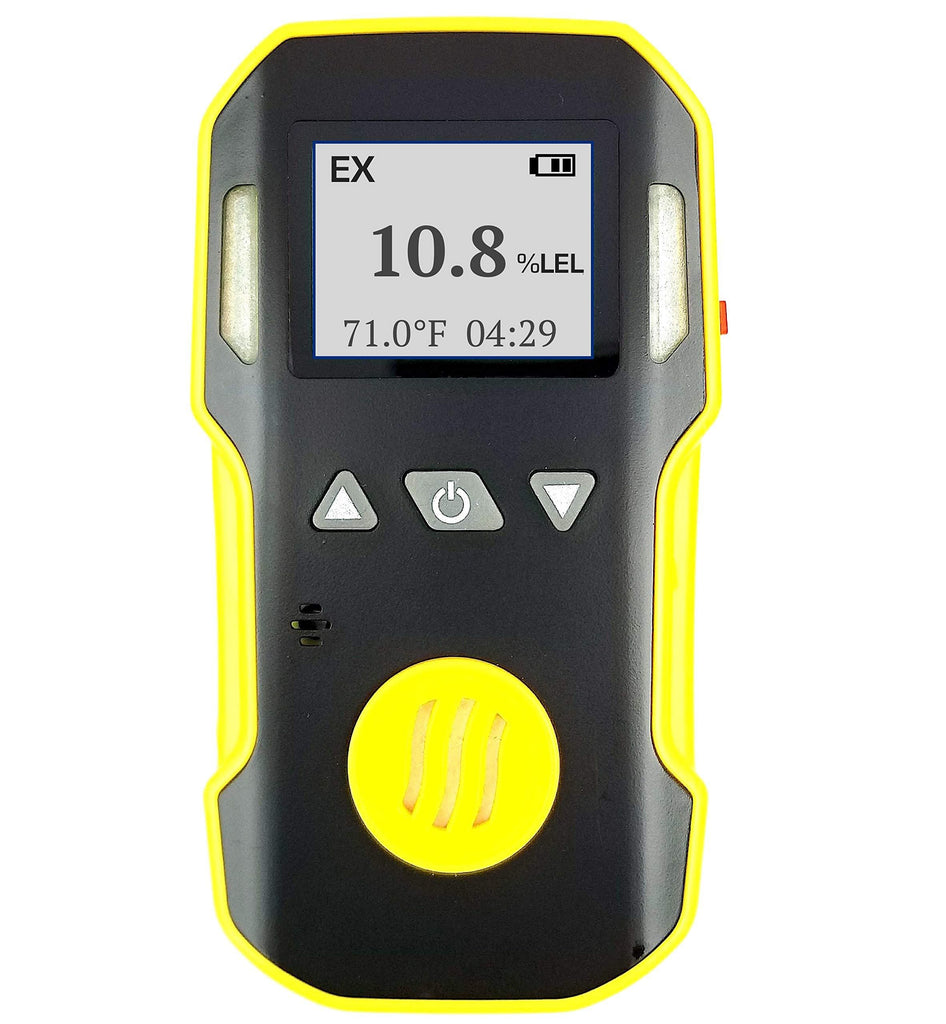

Details: A professional combustible gas detector by FORENSICS with advanced features for personal protection. This detector is calibrated to methane and is sensitive to all combustibles. If you want to target a specific hydrocarbon, be sure to see the correcting factors for %LEL conversion. An alternative is the FD-600-EX, which does have a built-in pump, making it the best candidate for point sampling and leak detection.
Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, diesel vapors, ethanol, ethylene, oxide, gasoline vapors, hexane, isopropanol, methane, naphtha, natural gas, paint thinners, propane, flammable solvents, and hundreds of other combustible gases.

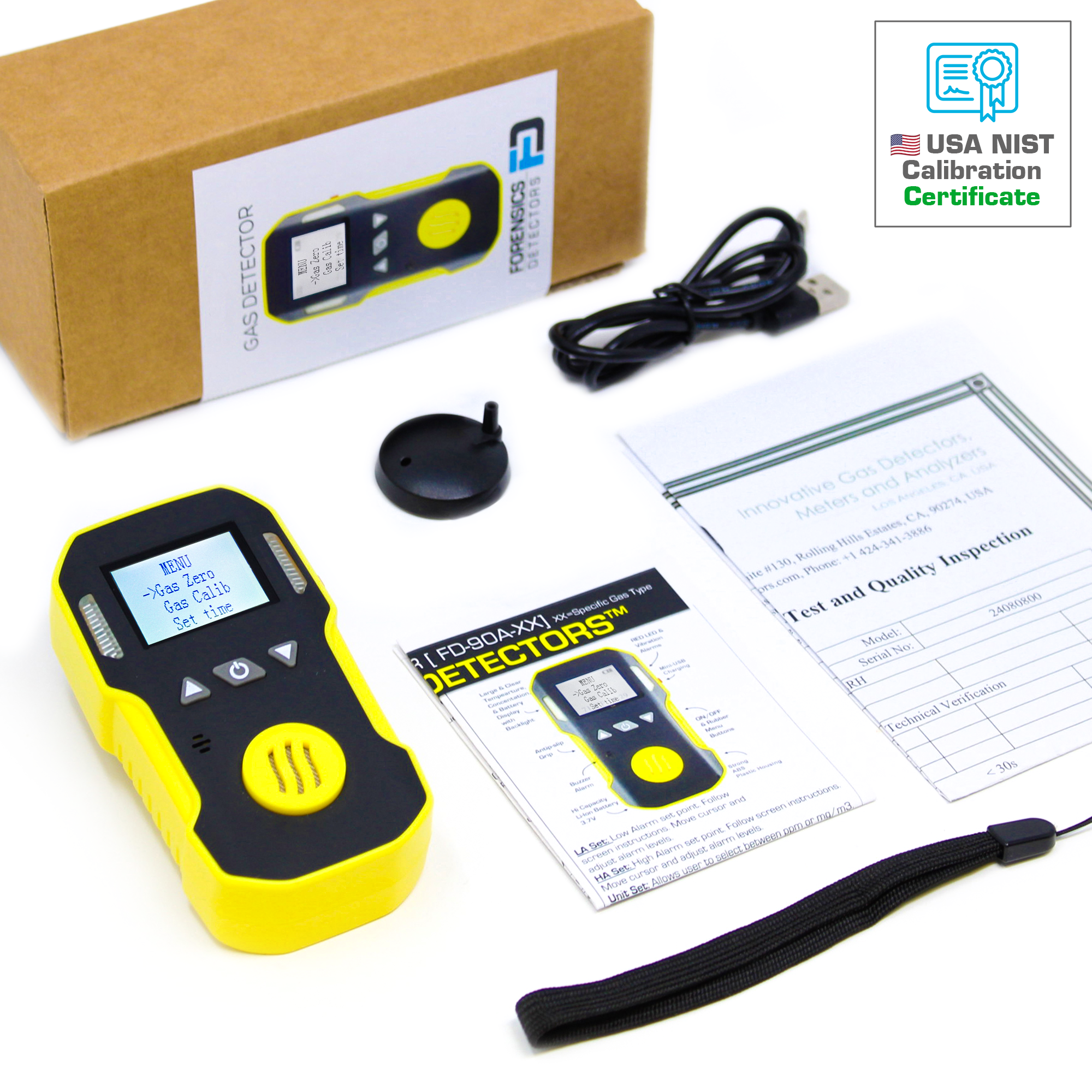

Included: Combustible gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (DIY sold separately):
Calibration Gas (EX)
Calibration Gas Regulator (C10)
Bump Gas (EX)
Tubing
Accessories (sold separately):

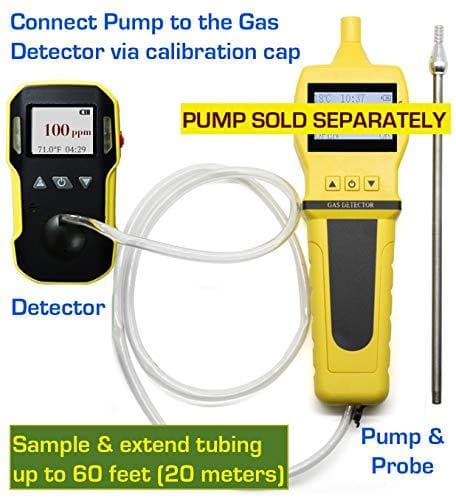

Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (EX) (email us)
Specifications
EX LEL Combustible Detection: 0 - 100% LEL with 1% resolution
Gas Sensor Type: Catalytic Bead Type Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 sec

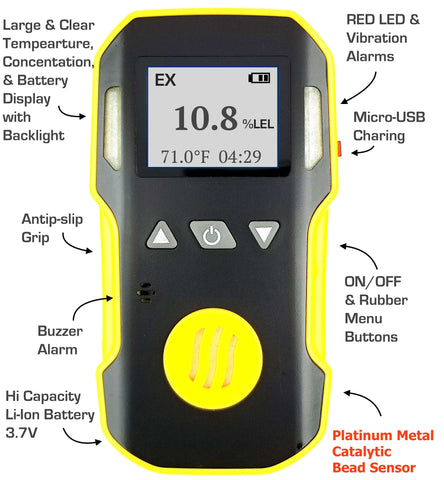

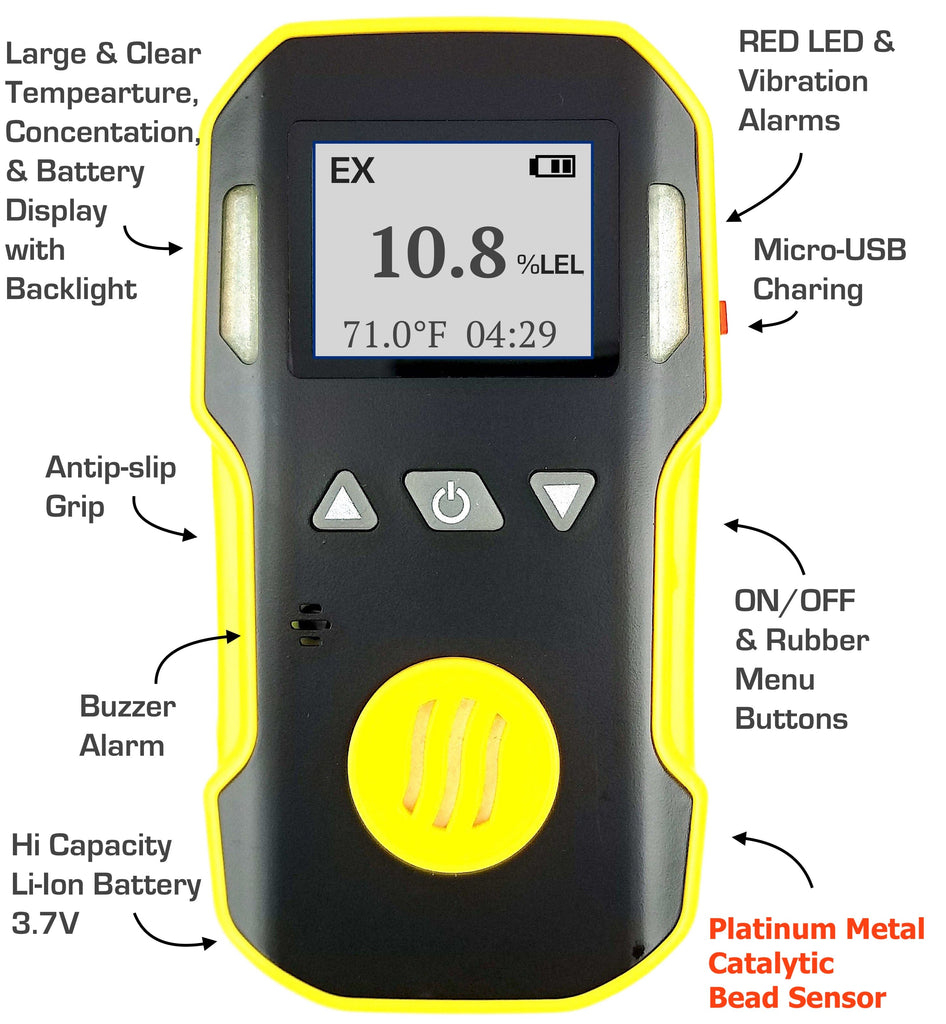

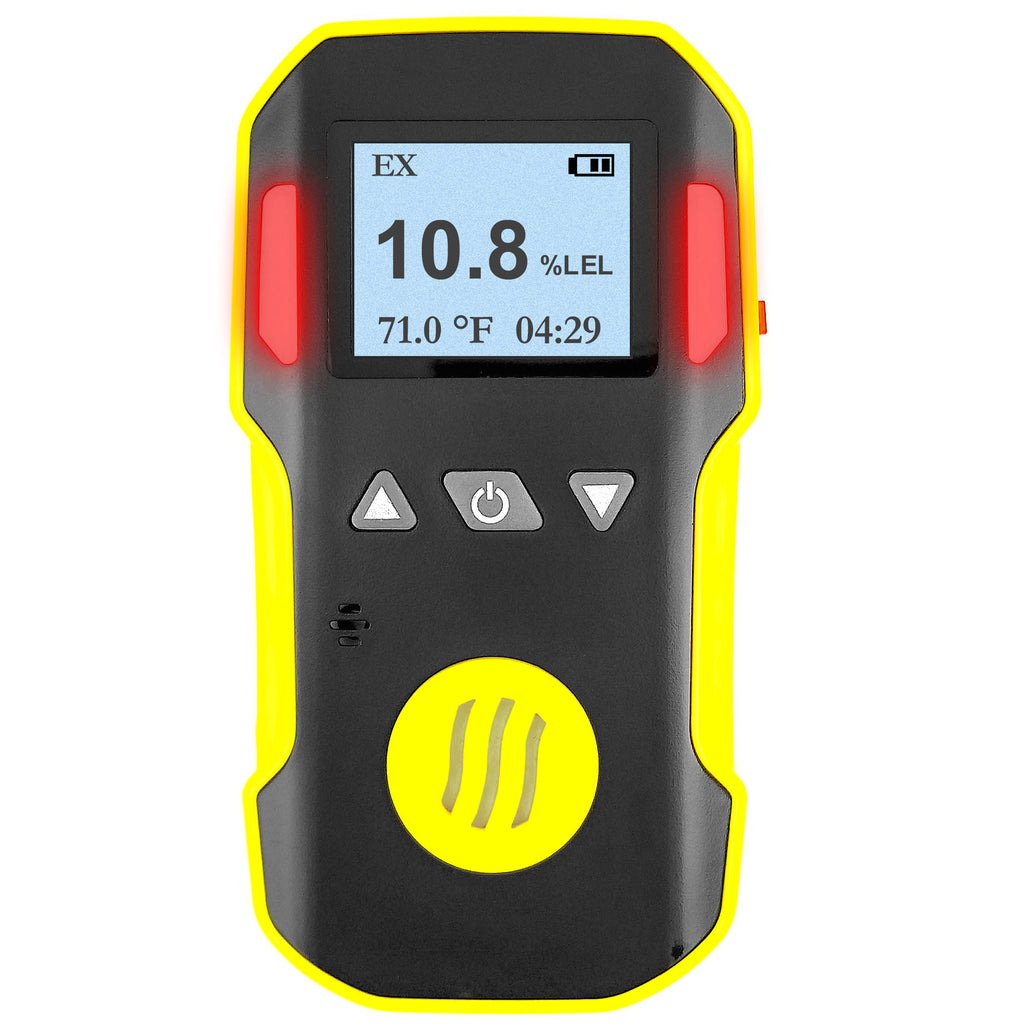

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours
Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
