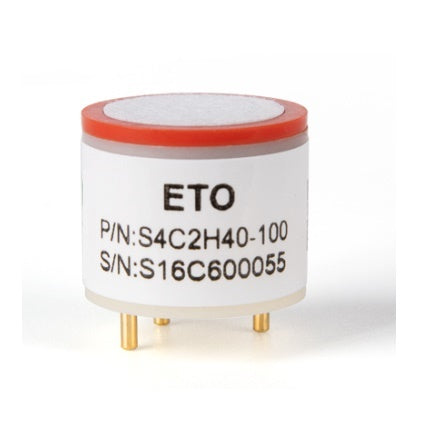

Ethylene Oxide Sensor (ETO) | 0 - 100 ppm |

Model: FD-ETO-SENSOR
Datasheet: Click Here PDF
Availability: Usually in stock
Compatible: FD-90A-ETO

Features

• ⚛️ High precision and long life (2 years)
• 🚄 Fast response speed, fast return to zero
• 🔋 Low power consumption, high sensitivity
• 🔬Wide linear range, strong anti-interference ability
• 💪 Excellent repeatability and stability

Description

These are generic ETO sensors used as the pin-to-pin replacement of the standard 4-series electrochemical sensors. It is used throughout many gas detector brands and is an excellent ETO gas sensor replacement element.

Our ETO sensor utilizes an advanced electrolytic mechanism where oxirane and oxygen interact through precise redox reactions on specialized electrodes. By generating an electrical current directly proportional to the gas concentration, this sophisticated sensor enables accurate measurement of oxirane levels. The current's magnitude provides a quantitative assessment of ETO presence in various industrial and environmental monitoring applications.

Ethylene oxide detection technologies play a critical role across diverse industrial and medical domains. From manufacturing facilities and medical sterilization to municipal infrastructure and atmospheric research, ETO detectors provide comprehensive gas concentration insights. These advanced sensing systems enable precise measurement, early warning mechanisms, and critical monitoring, supporting safety, public health, and environmental protection in multiple application sectors.

Instructions

• Once replaced and installed in your gas detector or analyzer, please let it sit for 24 hours so the sensor can stabilize to your environment. This step is very important.
• Then undertake the appropriate zero and calibration for your specific gas detector. See your gas detector manufacturer's specific instructions.
• Once calibrated, your gas analyzer will be ready for use.

Specifications

Detection Principle	Electrochemical Three Electrodes
Detection Gas	ETO
Detection Range	0-100 PPM
Maximum Load Concentration	200 PPM
Output Signal	250±100 nA/PPM
Zero Drift	0~10 PPM
Resolution	1 PPM

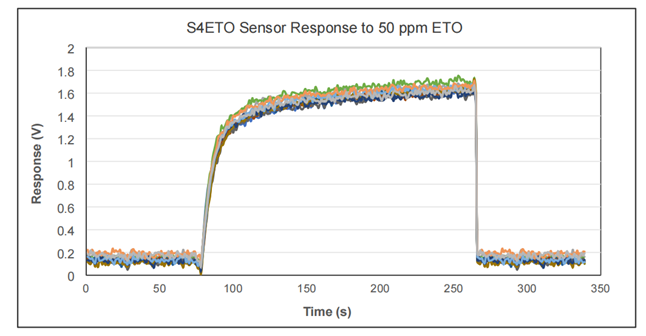

Response Time	≤120s

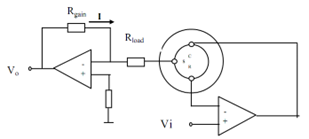

Bias Voltage	+300 mV
Load Resistance	5~30Ω

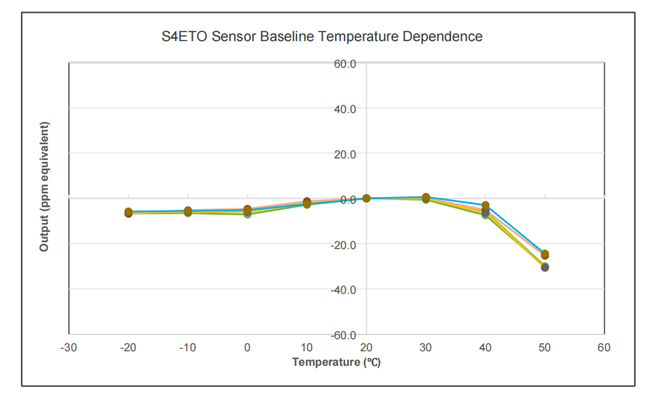

Working Temperature	-30℃-50℃
Working Humidity	15%RH to 90%RH (no condensation)
Repeatability	<±2% output signal
Long-term Stability	<2% signal/month
Linearity	Linearity 200 PPM
Work Pressure	90 to 110 kPa
Shelf Life	12 months after delivery
Service Life	2 years

Cross-Sensitivity Data

Gas	Formula	CF Coefficient
Ethylene oxide	CH2CH2O(ETO)	1
Carbon Monoxide	CO	1.6
Vinyl chloride	C2H3CL	2.5
Methanol	CH3OH	0.3
Isobutylene	(CH3)2C=CH2	0.9
Ethanol	CH3CH2OH	0.8
Formic acid	HCOOH	1.4
Formaldehyde	CH2O	0.4
