Combustibles Analyzer | EX LEL | USA NIST Calibration

Save 60%

Price:
Sale price$395.00 Regular price$995.00
Stock:
In stock (118 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model: FD-600-EX
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Correcting %LEL Factors for Gases/Vapors: Click Here
Insights: Read the Expert Guide

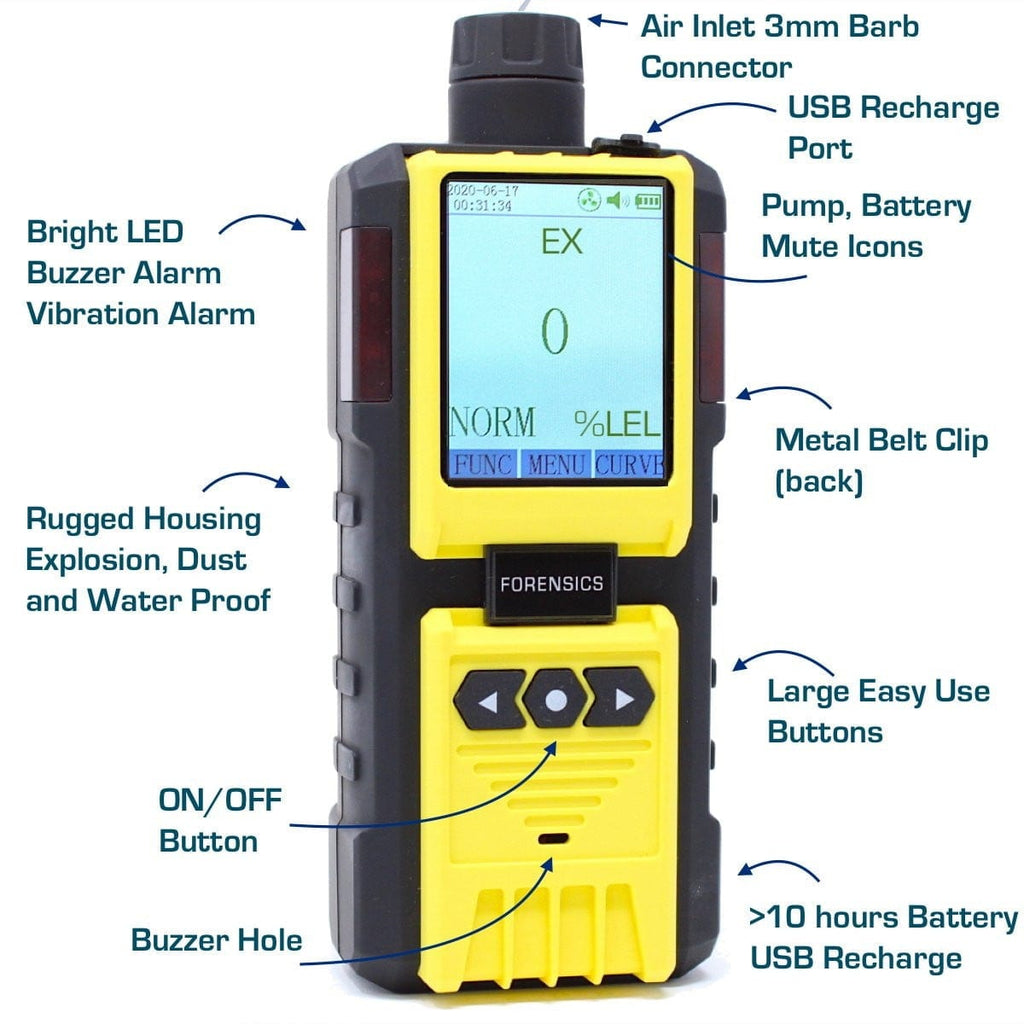

Features:

  • 🎆 DETECT: Combustible EX LEL detector, 0 - 100% with 1% resolution,  with a built-in pump for super-fast detection.
  • 🌈 COLOR: Color screen and graph functions allow for easy and intuitive operation.
  • 📲 ALARMS: Adjustable audio, visual, and vibration alarms.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

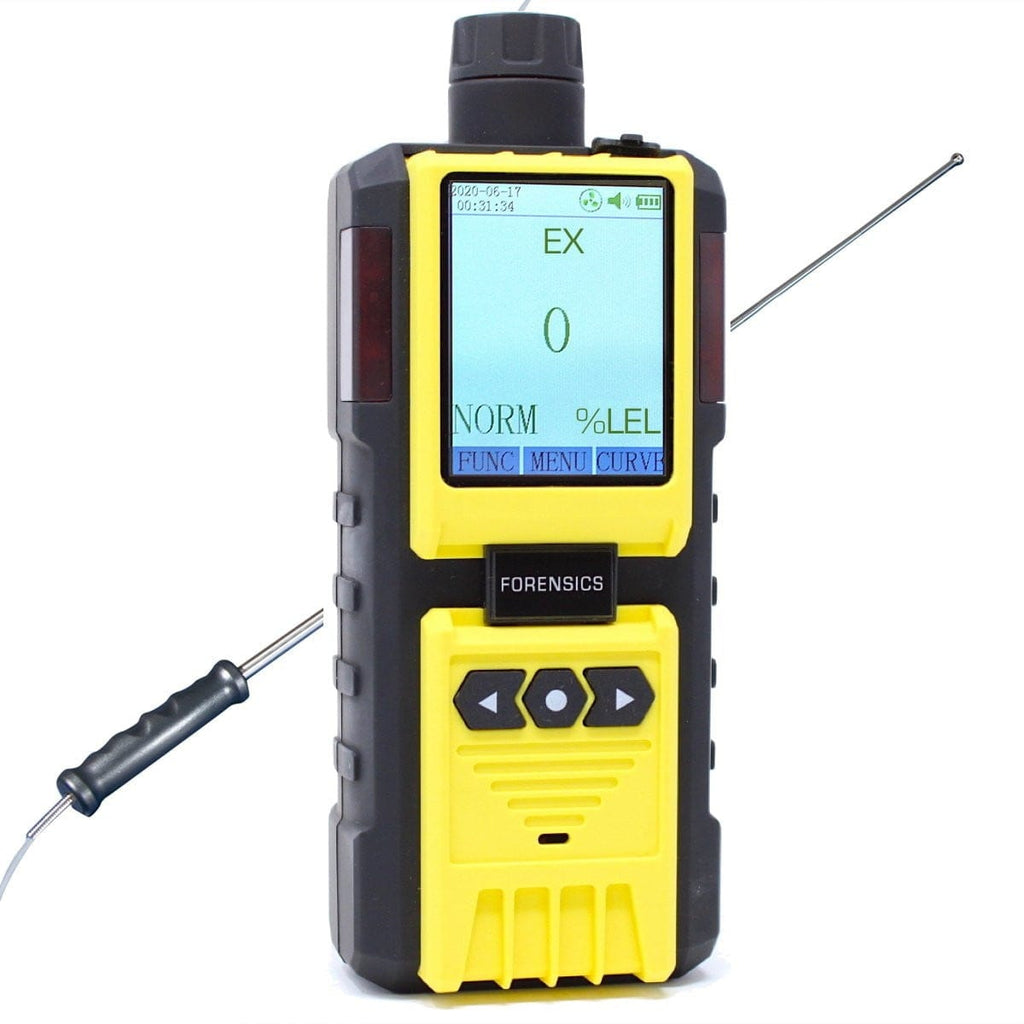

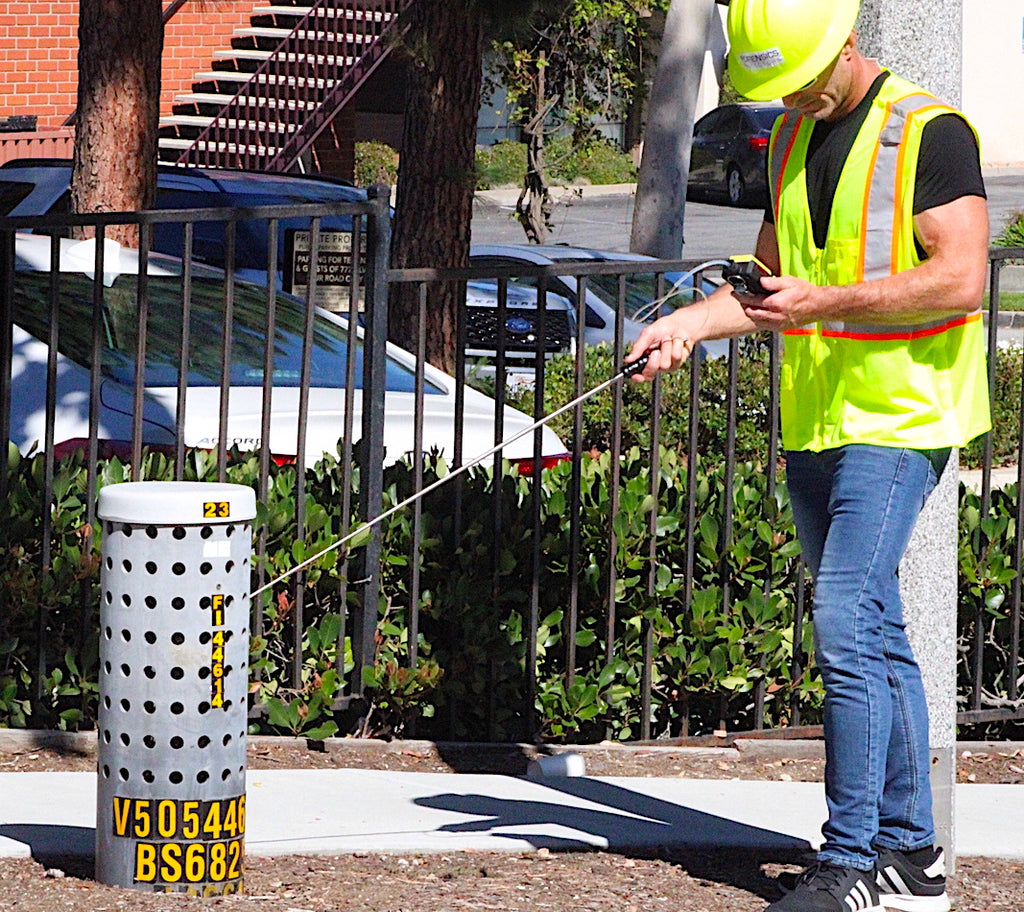

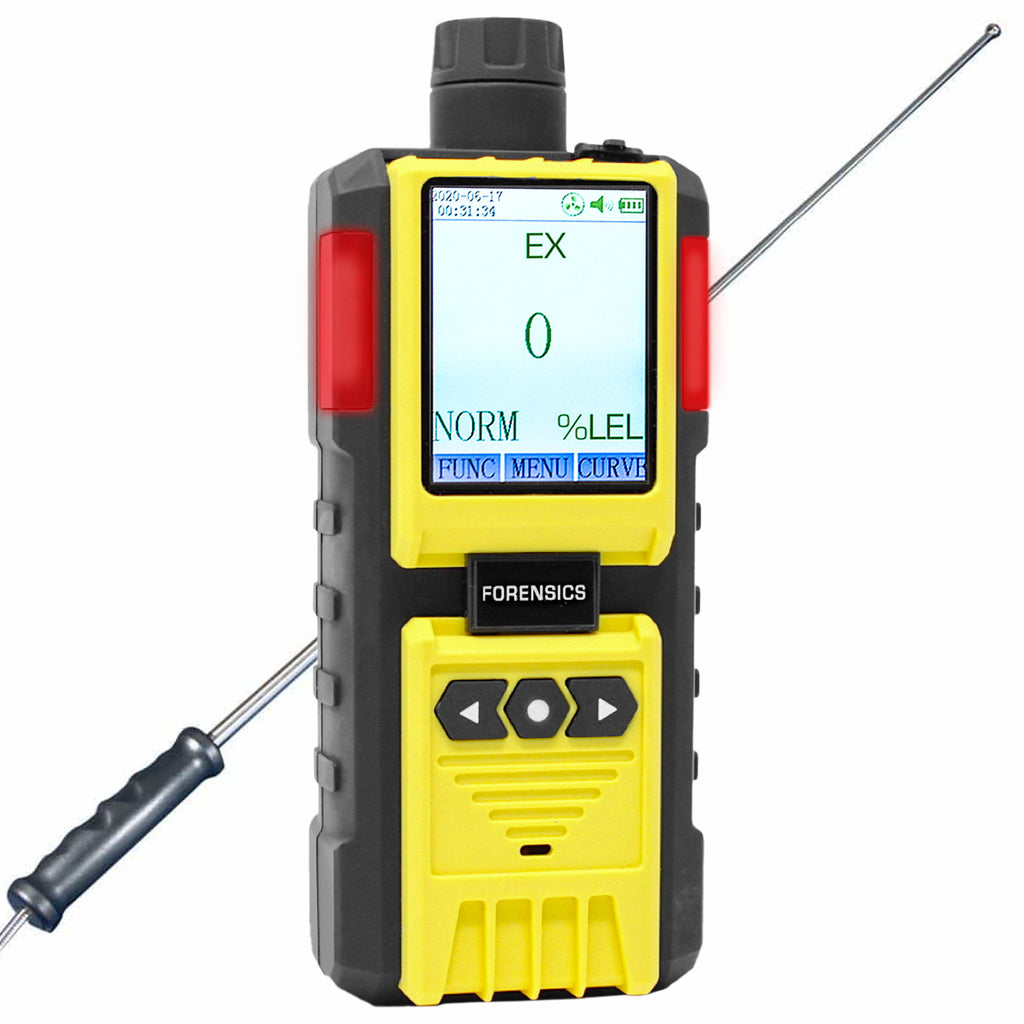

Details: Our superior EX-LEL DETECTOR with a built-in pump allows for faster response, point probe sampling, and continuous monitoring. This device is perfect for tracking any build-up of combustibles in indoor environments, tanks, or enclosed areas. This EX-LEL analyzer has a 32-bit microprocessor, color LCD, and graphing capability. If you require a more basic EX-LEL detector, we recommend our handheld Combustibles meter.

Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, diesel vapors, ethanol, ethylene oxide, gasoline vapors, hexane, isopropanol, methane, naphtha, natural gas, paint thinners, propane, flammable solvents, and hundreds of other combustible gases.

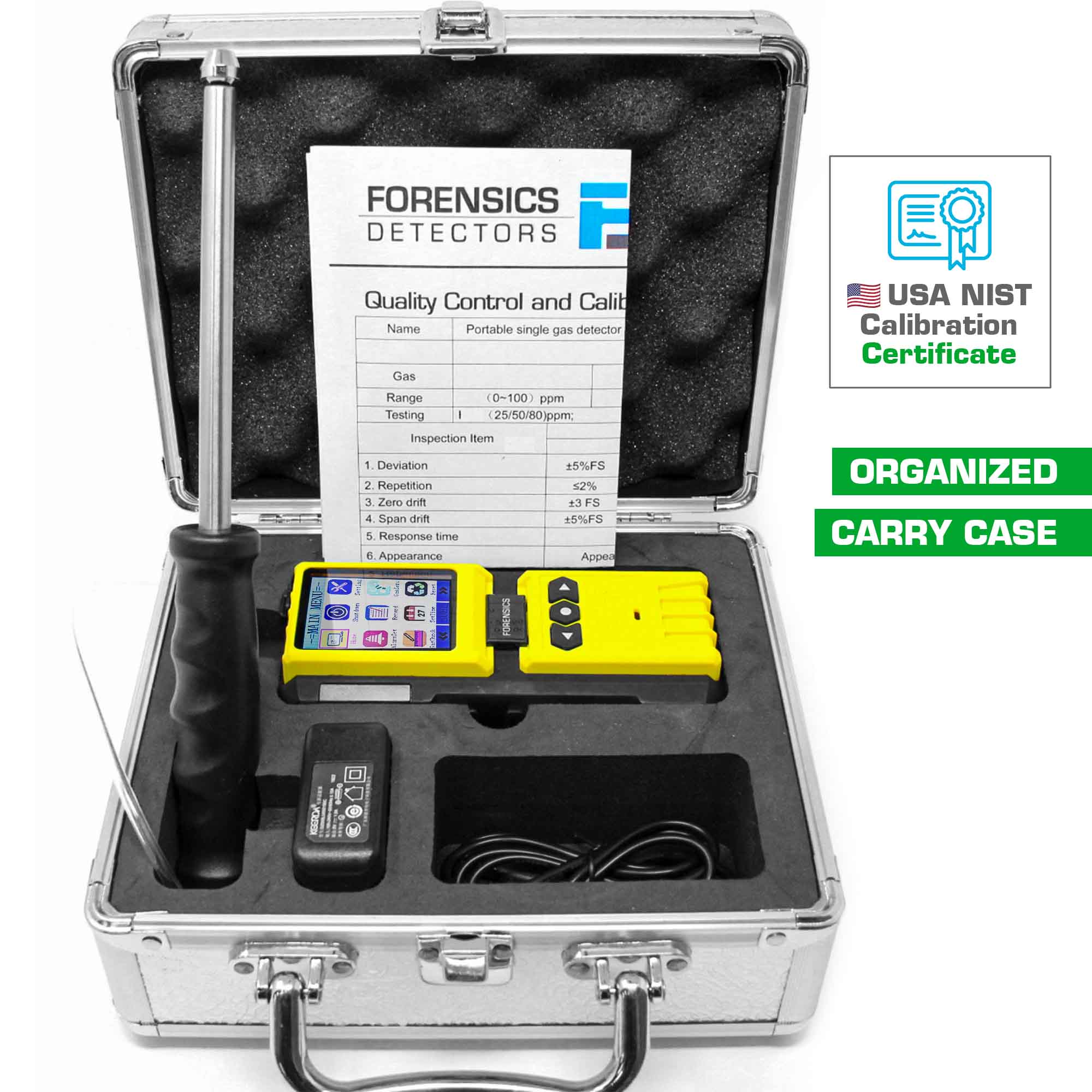

Included: EX LEL analyzer, user manual, certified calibration certificate, USB charging cable, charger, 3ft silicone tubing, and telescopic probe.

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (EX)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (EX)

Accessories (sold separately):
Gas Detector Waterproof Case
Gas Detector Stand

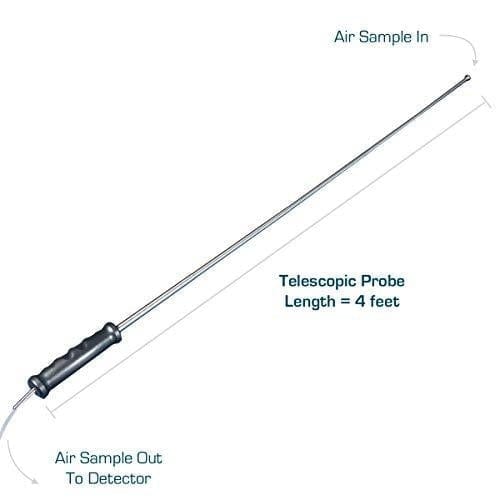

Telescopic Probe
Tubing (3ft)
Gas Sensor Replacement (EX) (email us)

Specifications

EX LEL Combustible Detection: 0 - 100% LEL with 1% resolution
Combustible Gas Detection:
Calibrated to methane (CH4)

Gas Sensor Type: Catalytic Bead Type Gas Sensor
Gas Sensor Life:
2 - 3 years
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period:
12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error:
≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: High-Definition Color LCD

Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11.0 oz (314 grams)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
