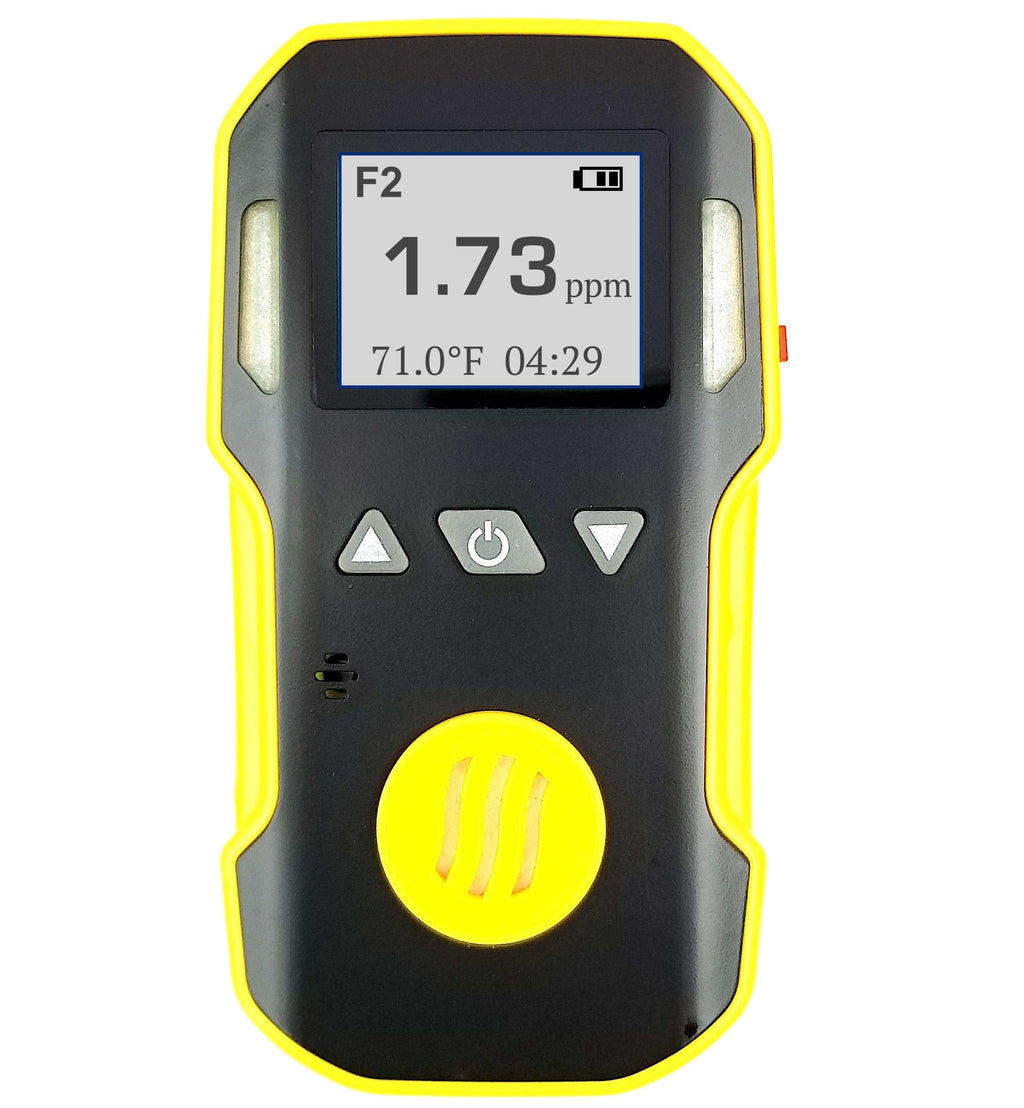

Brand: FORENSICS DETECTORS
Model: FD-90A-F2
User Manual: Click Here
Blog Article: Click Here
Features:
- ⚛️ DETECT: Ultrasensitive, Fluorine (F2) gas detector, 0 - 5 ppm with 0.01 ppm resolution. Comes FACTORY-CALIBRATED.

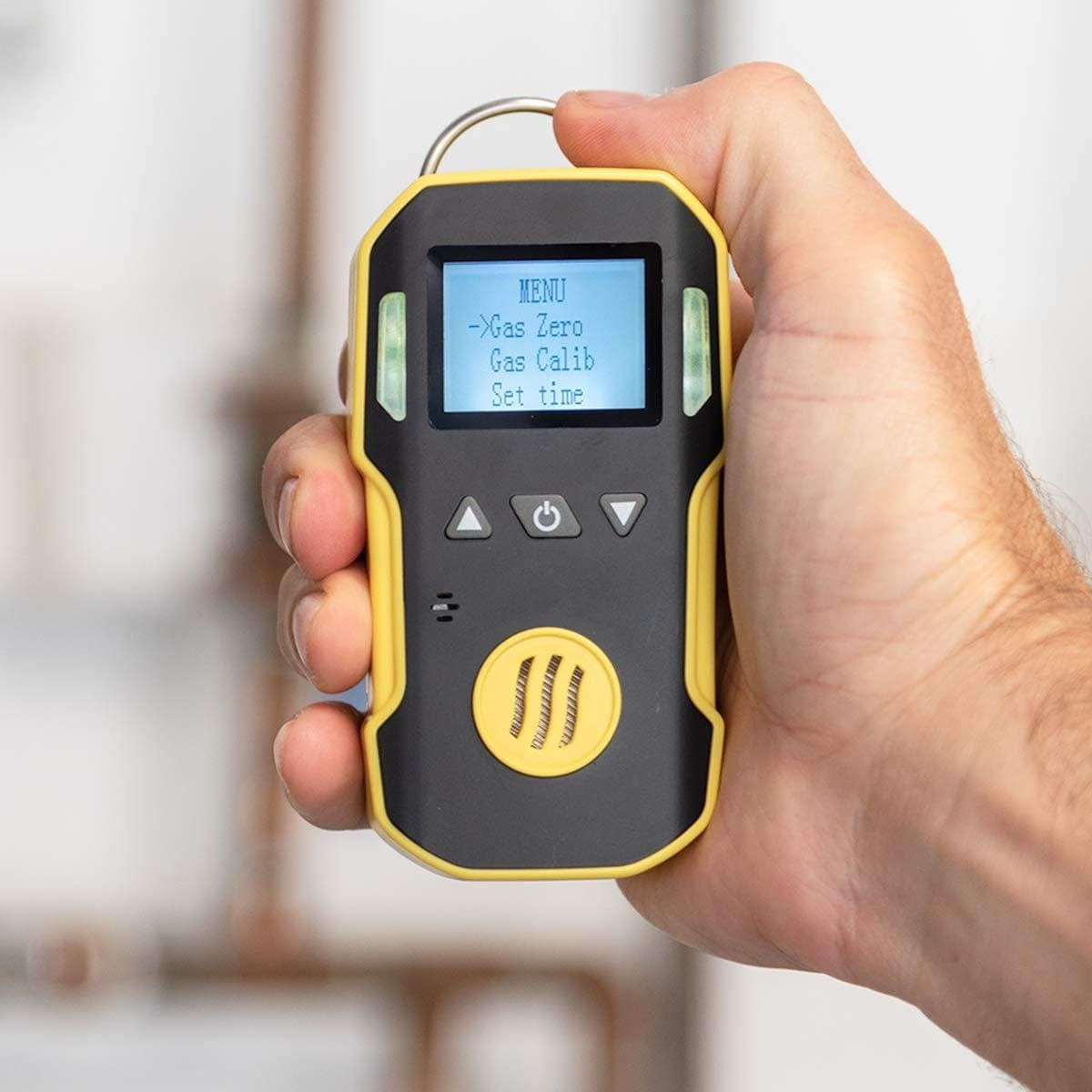

- 🌷 ACCURATE: Electrochemical cell sensor with accuracy ≤ ± 10% F.S. and response time T < 30 sec. Zero and span calibration options.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms. Temperature, battery, and time tracking.

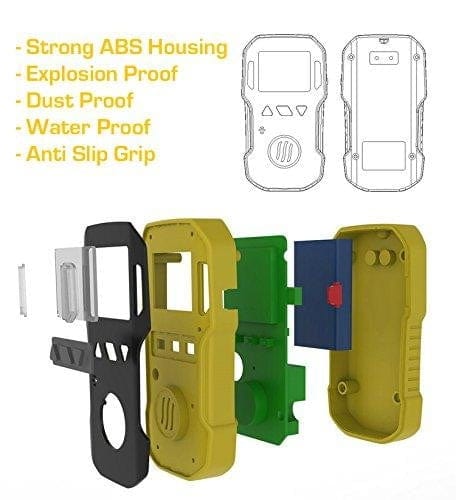

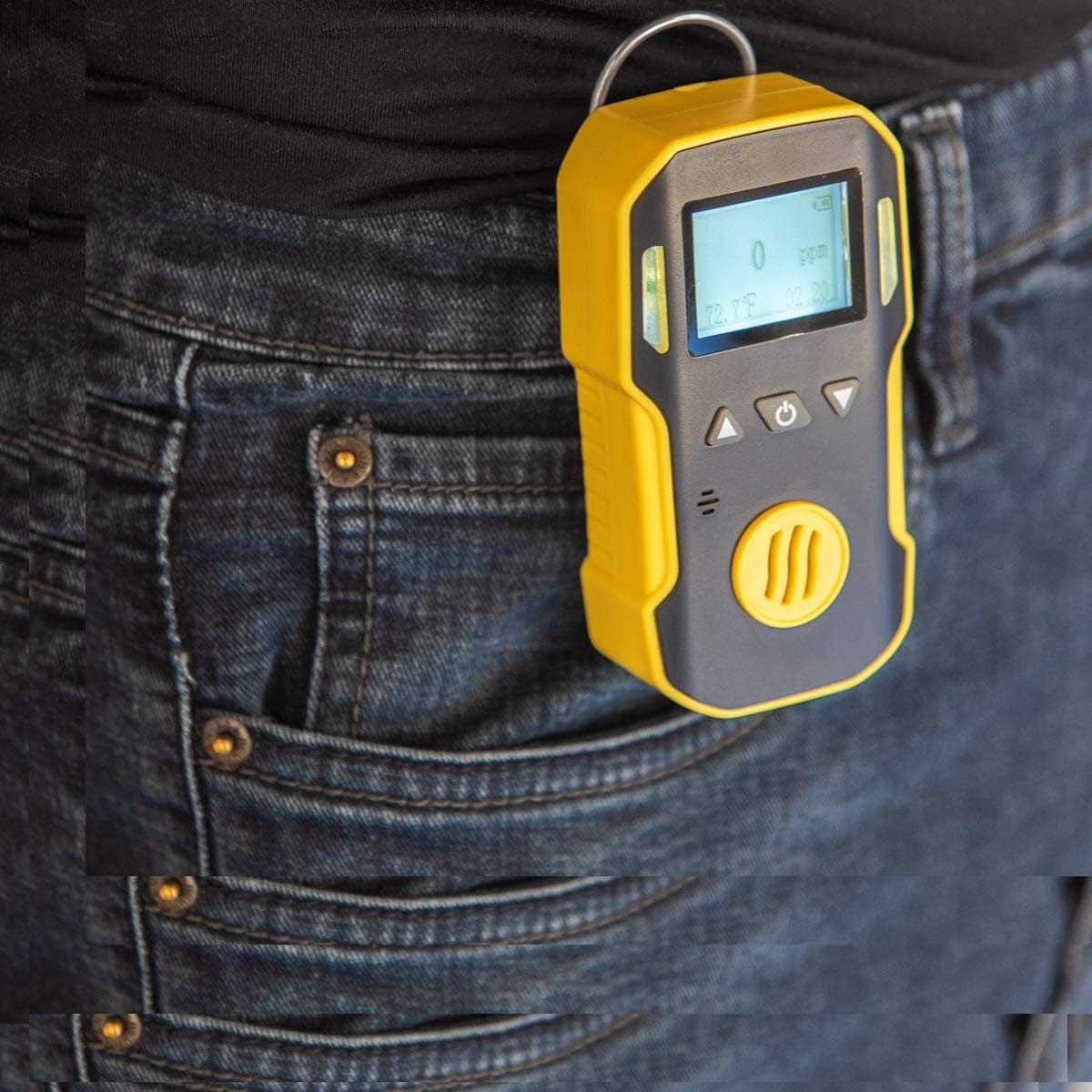

- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof. Belt clip, charger, cable, and case included.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **
Details: This is our professional Fluorine (F2) gas detector by FORENSICS with advanced functions that comes factory-calibrated. Fluorine gas is a toxic and corrosive gas that requires gas detection to protect workers directly working with it. If breathing F2 gas, it can irritate the nose and throat. OSHA PEL is recommended at 0.1 ppm over 8 hours and ACGIH recommended exposure is 1 ppm over 8 hours. Fluorine is a very reactive gas that is used for rocket fuel and used to make derivate compounds such as acids, fluorides, and fluorocarbons.
Included: Gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.
Calibration Kit (sold separately):
No calibration gas kits exist for fluorine since fluorine gas (NIST traceable calibrated) must be calibrated to an ozone or chlorine equivalent. We recommend using our calibration service to calibrate your fluorine detector and our ozone bump tester to validate operation via bump testing.
Other Accessories (sold separately):
Bump Tester

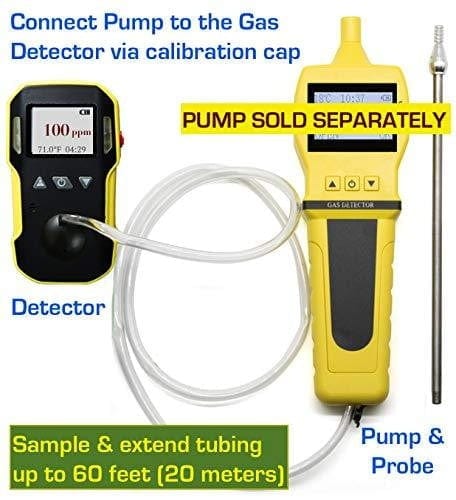

Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (email us)
Calibration Service (sold separately):
Gas Detector Calibration Service
Tubing
Specifications
Fluorine (F2) Detection: 0 - 5 ppm with 0.01 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Accuracy: ≤ ± 5% F.S
Response Time: T < 30 sec

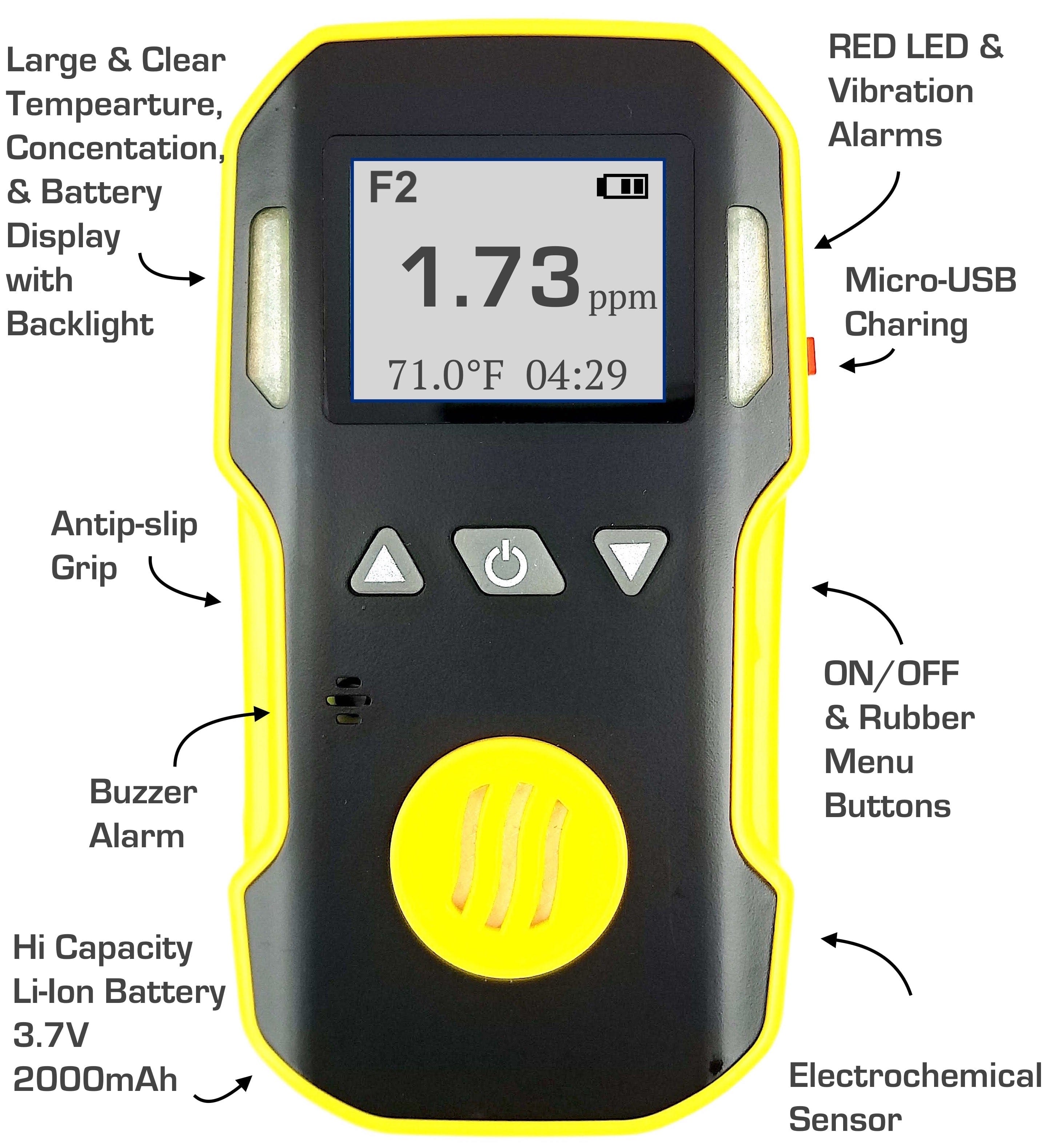

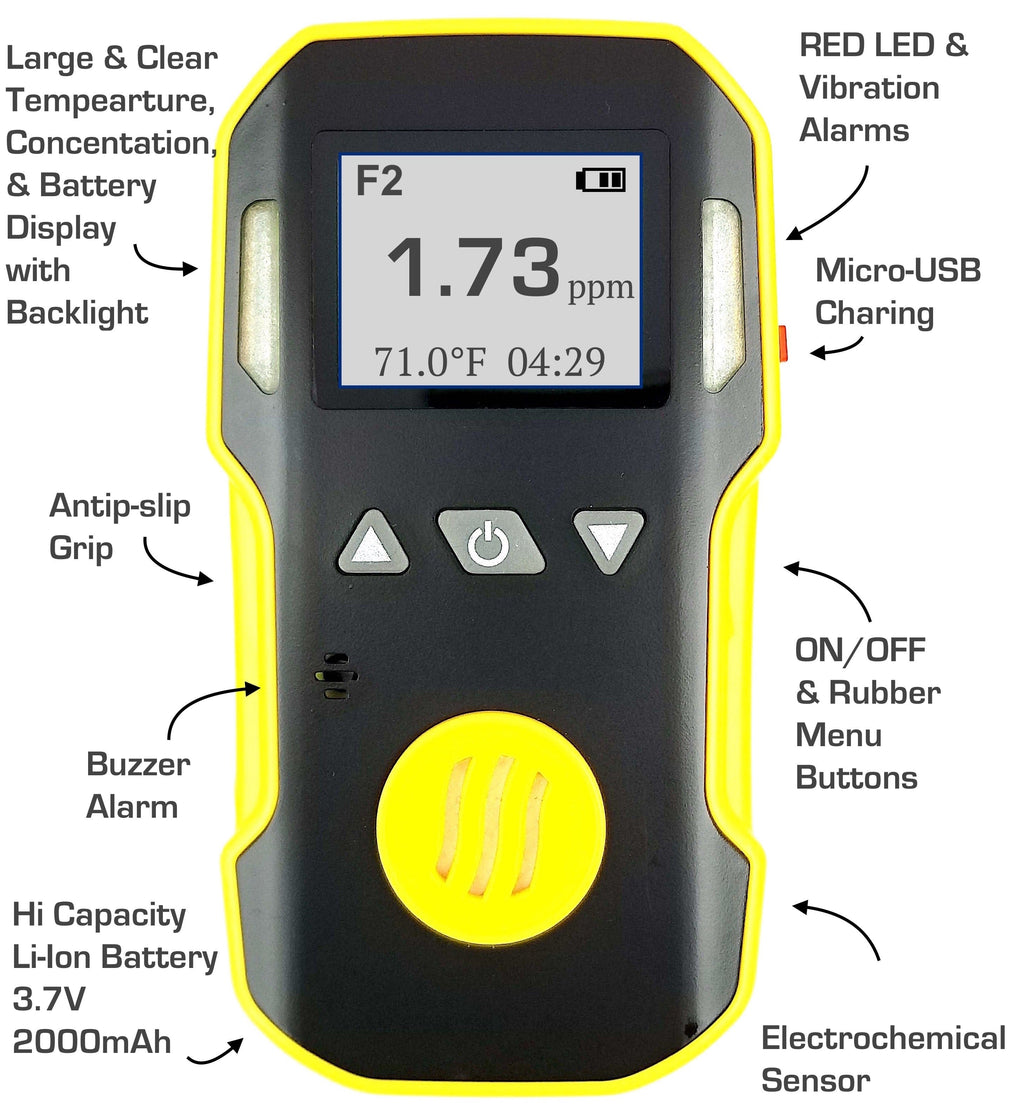

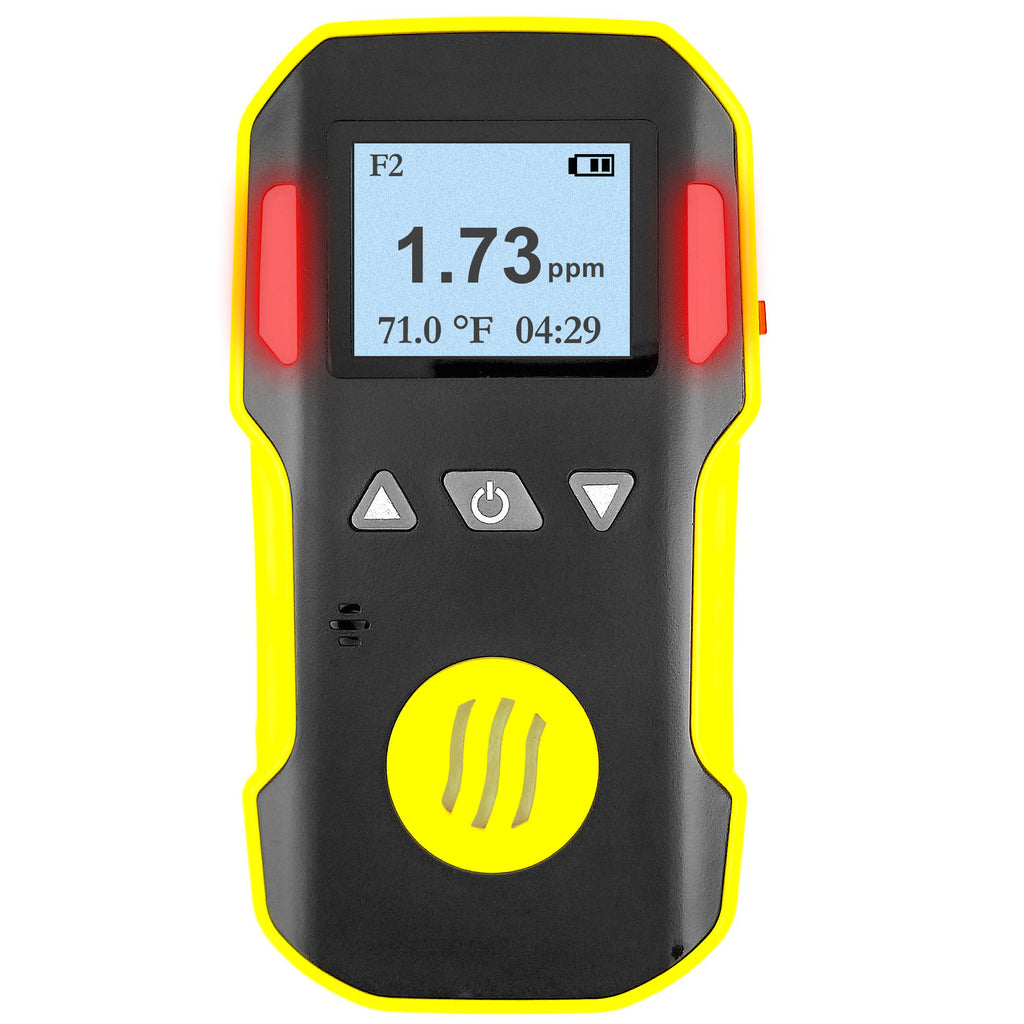

Indicators: LCD indicates the time, concentration, internal temperature, and battery level
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Protection Category: IP65
Explosion Rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
