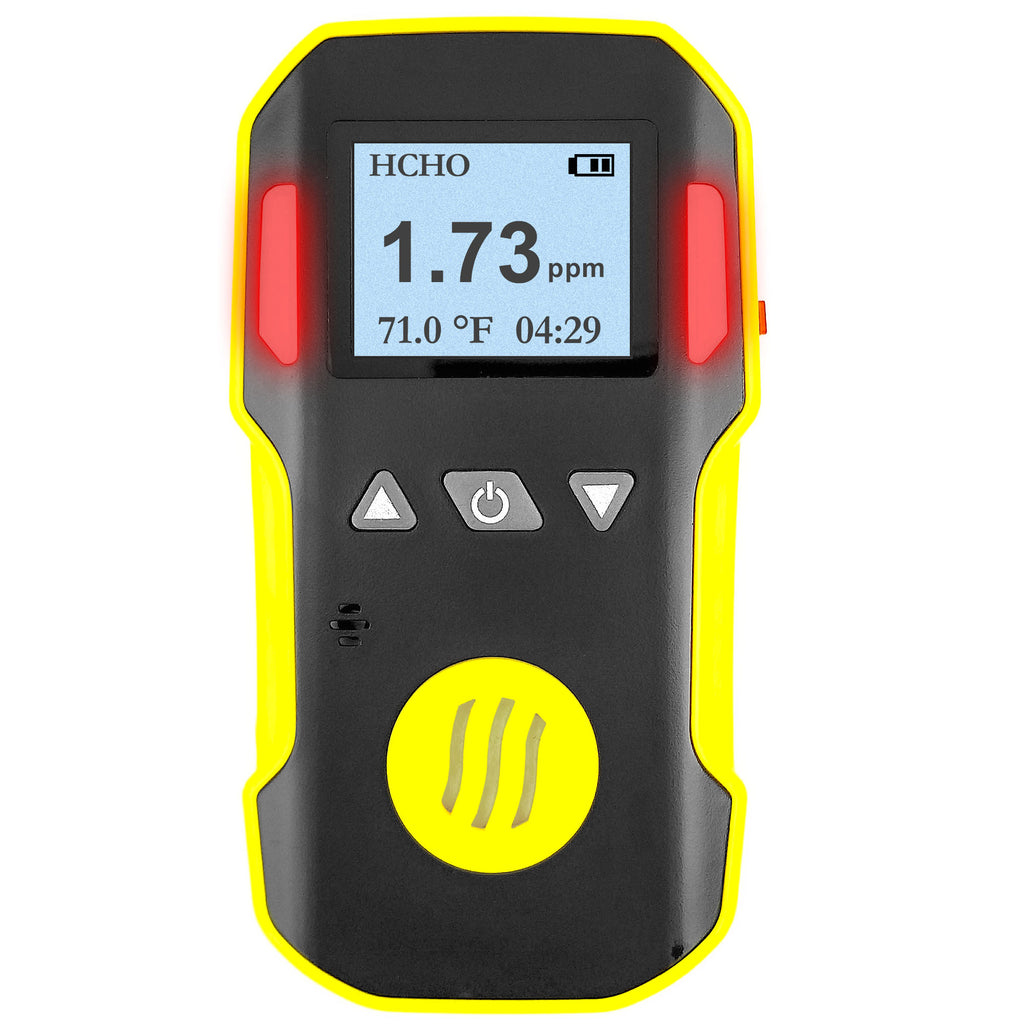

Formaldehyde Detector | USA NIST Calibration

Save 60%

Price:
Sale price$395.00 Regular price$995.00
Stock:
In stock (198 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model: FD-90A-HCHO
User Manual (PDF): EN | DE | FR | ES | IT |
Insights:
Read the Expert Guide

Features:

  • 🗽 ACCURATE: Formaldehyde (HCHO) gas detector, 0 - 10 ppm with 0.01 ppm resolution.
  • ⚛️ DETECT: Electrochemical NANO-GAS sensor.
  • 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: A professional formaldehyde (HCHO) gas detector by FORENSICS with advanced features, comes factory-calibrated to detect formaldehyde gas. Formaldehyde is a colorless, strong-smelling gas often found in aqueous (water-based) solutions. It is also used to manufacture many products such as chemicals, particleboard, household products, glues, permanent press fabrics, paper product coatings, fiberboard, and plywood. The OSHA permissible exposure limit (PEL) for formaldehyde in the workplace is 0.75 ppm measured as an 8-hour time-weighted average (TWA). OSHA also defines a short-term exposure limit (STEL) of 2 ppm, the maximum exposure allowed during a 15-minute period.

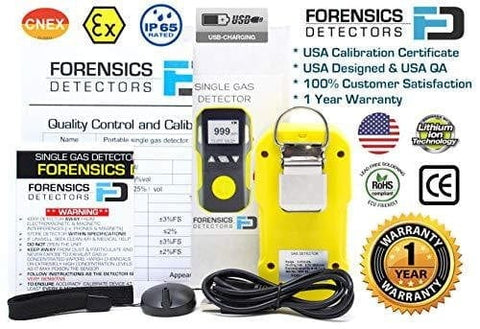

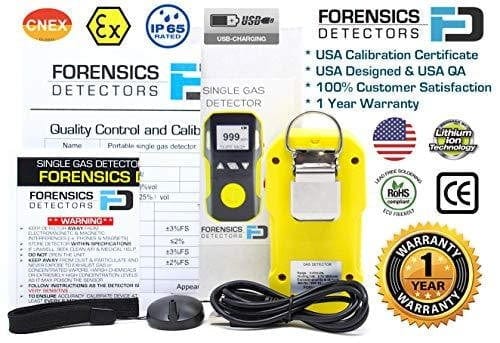

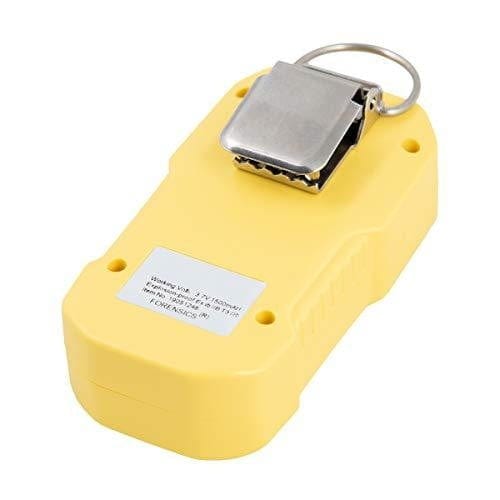

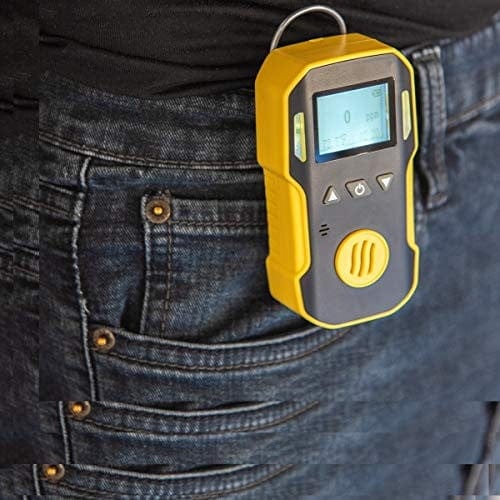

Included: Formaldehyde gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (Surrogate Gas 10 ppm SO2: 8 ppm HCHO is used for calibration)
Calibration Gas Regulator (C10)
Sulfur Dioxide | Bump Gas |
Tubing

Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (CH2O)

Specifications

Formaldehyde (HCHO) Detection: 0 - 10 ppm with 0.01 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 sec

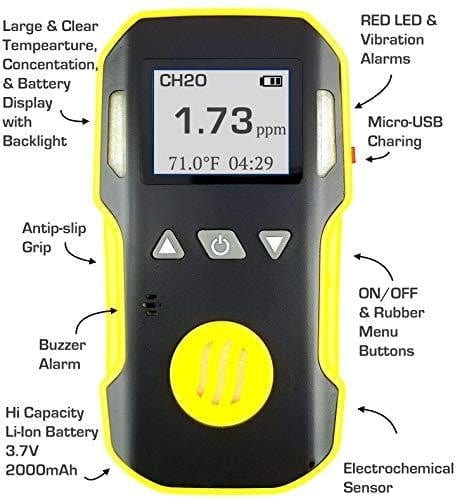

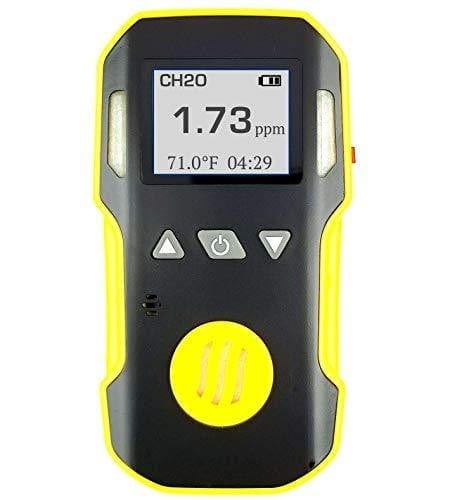

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours
Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
