H2S Monitor Analyzer | USA NIST Calibration

Save 34%

Price:
Sale price$325.00 Regular price$495.00
Stock:
In stock (117 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model: FD-600-H2S
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide

Features:

  • 🎆 DETECT: Hydrogen Sulfide Analyzer measuring 0 -100 ppm with 0.1 ppm resolution,  with a built-in pump for super-fast detection.
  • 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
  • 📲 ALARMS: Adjustable audio, visual, and vibration alarms.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

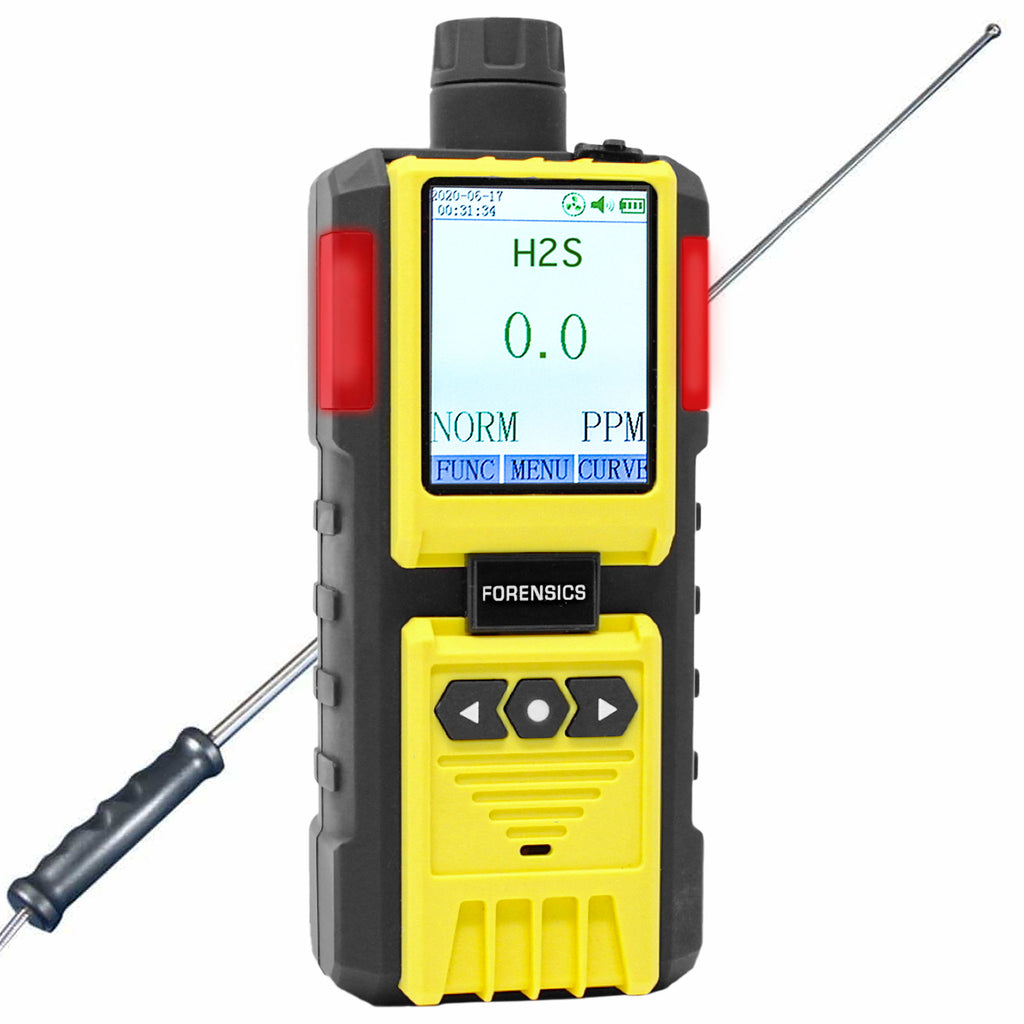

Details: This is a top-quality FORENSICS DETECTORS hydrogen sulfide analyzer with a built-in pump allowing for super-fast detection & response, point probe sampling, and continuous monitoring. Perfect for tracking the build-up of hydrogen sulfide gas, rotten egg smell gas, sewer gas, and undertaking an environmental indoor or outdoor (H2S manure pit) measurement. H2S monitoring is popular in refining, mining, tanning, manufacturing, paper processing, and farming. This H2S monitor has a 32-bit microprocessor, color LCD, and graphing capability. For personal protection, we recommend our FD-90A-H2S version.

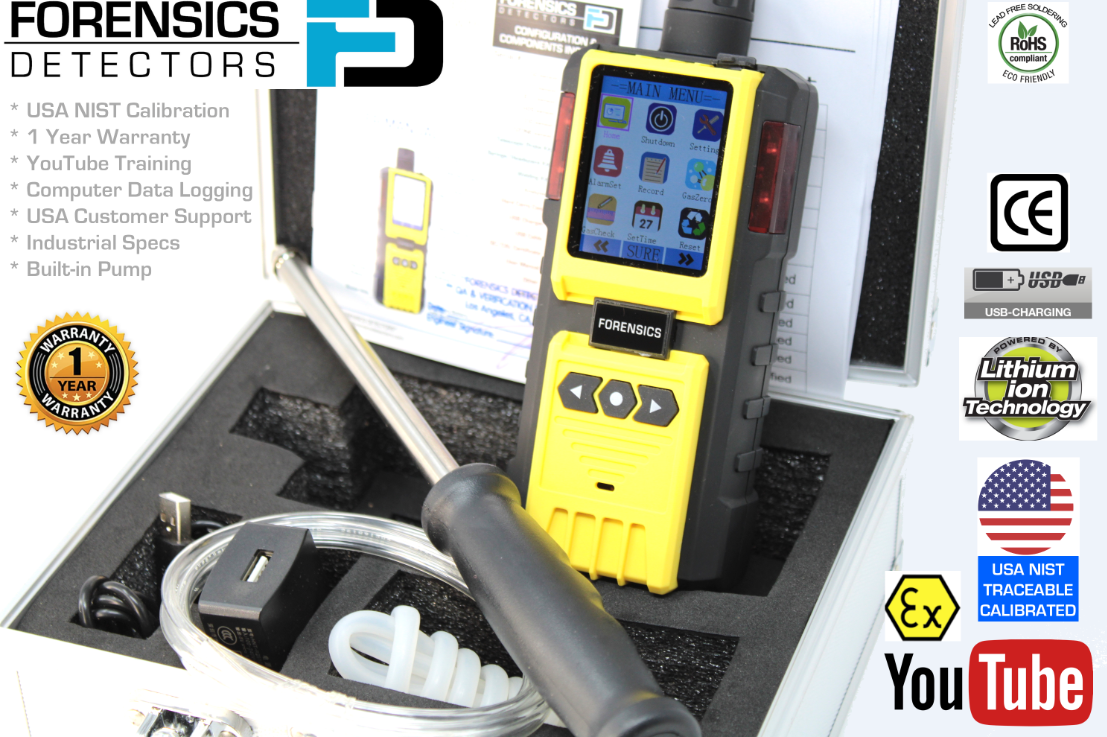

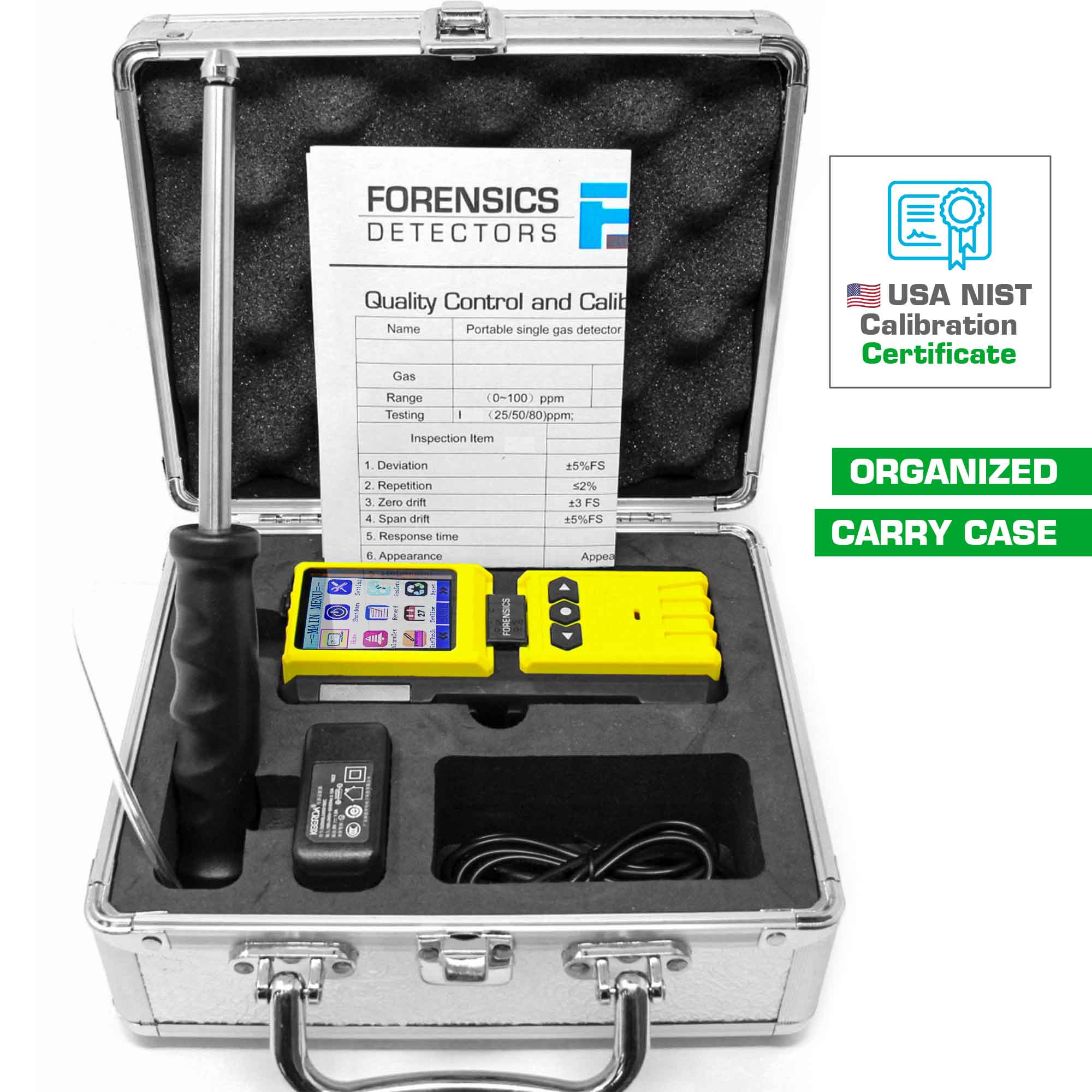

Included: H2S monitor analyzer, user manual, USB charging cable, charger, analyzer case, stainless probe, tubing, and certified calibration certificate.

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (H2S)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (H2S)

Accessories (sold separately):
Gas Detector Hard Case
Gas Detector Stand
Gas Sensor Replacement (H2S)
Telescopic Probe
Tubing (3ft)

Specifications

Hydrogen Sulfide Gas (H2S) Detection: 0 - 100 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period:
12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error:
≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: High-Definition Color LCD

Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11.0 oz (314 grams)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
