Brand: FORENSICS DETECTORS
Model: FD-VAPE-8100
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- 🏠 USES: A very sensitive data logging vape smoke detector that also works for weed, cigarette and other illicit smoking substances. Made for schools, tenants, landlords, parents, employers and for checking air quality in occupational spaces.
- 🔬 ACCURATE: Made using advanced laser sensor technology.
- 🔋 BATTERY: Li-Ion battery-powered with USB recharging, over 5 hours of operation.
- 👪 SIMPLE: The simplest vape detector datalogger with PDF and CSV file outputs.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** 100% quality guaranteed **
Details: The FD-8100 is an advanced and sensitive vape smoke detector datalogger that also works for weed, cigarettes, and other illicit smoking substances. This has advanced datalogging features to record and store the values for later analysis and graphing, which helps to identify when somebody was vaping or smoking and is excellent for proof and evidence purposes.
The unit is handheld and perfect for indicating vaping and smoking in a closed room or space. This product is a simple and accurate vape particulate and vape smoke detector that indicates air quality for home, work, vehicles, or other occupational spaces. Excellent for immediate point sampling and detection of vape, cigarette smoke, and e-cig smoke.
When detecting a room for vaping and smoking, a comparison measurement needs to take place. For example, one needs to first measure the fresh air in an indoor space, a location where you know vaping has not taken place (i.e., hallway or living area). Then, proceed into the suspected vaping room/location. If the PM2.5 and PM10 detected values rise from when entering the suspected "vaped" room, then you can be confident somebody did, in fact, vape. Please beware, however, false positives could occur and be attributed to an increase in room humidity (i.e. shower steam & humidity), elevated dust levels (i.e. pillow fight), or an abrupt increase in heat (i.e. sauna). All these factors need to be considered.
Also, for those that want something more basic, we recommend our FD-VAPE-HAND unit for spot checking (does not have datalogging features) or our FD-VAPE-WALL unit, which is made to be mounted on the ceiling with phone notifications.

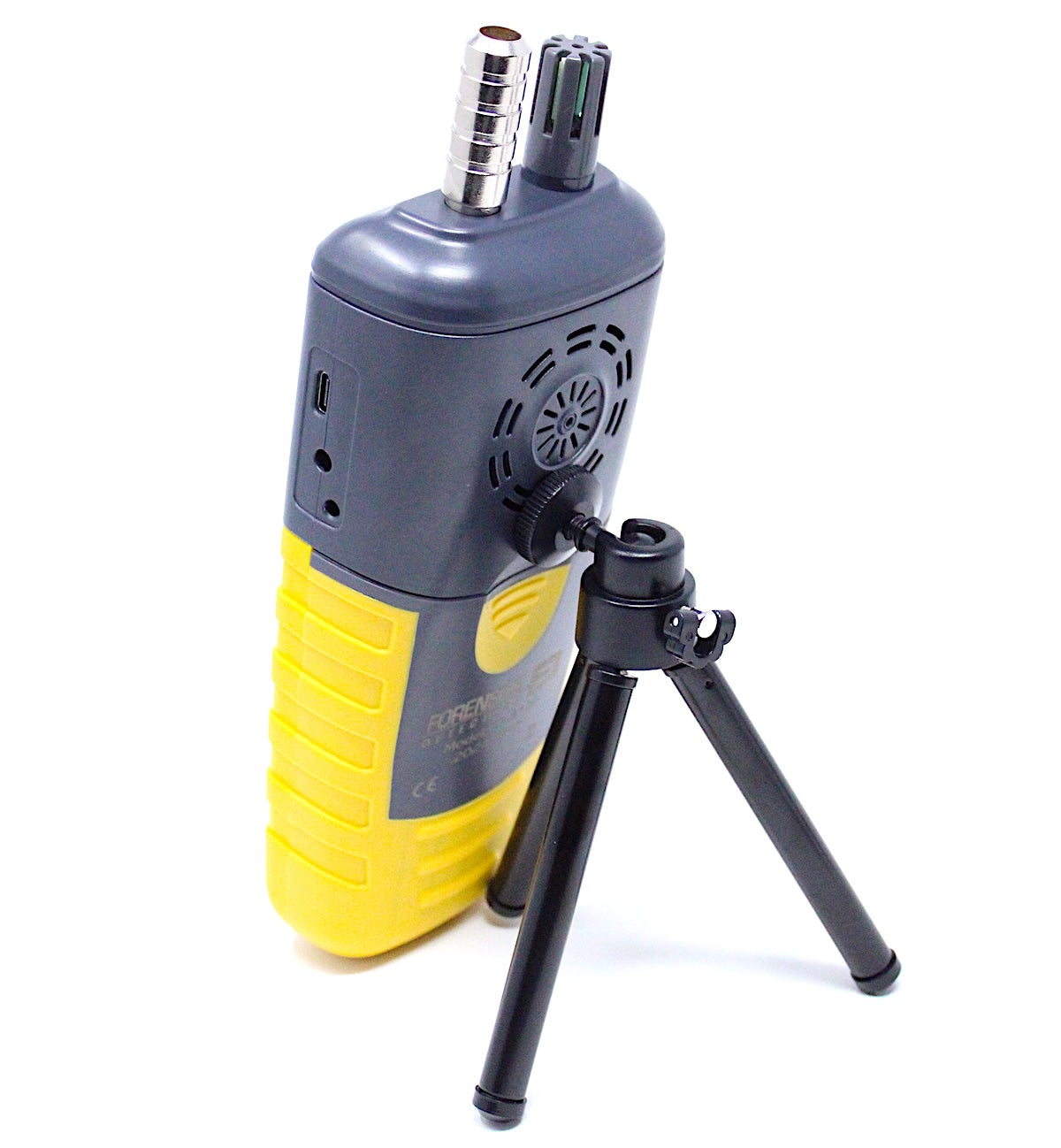

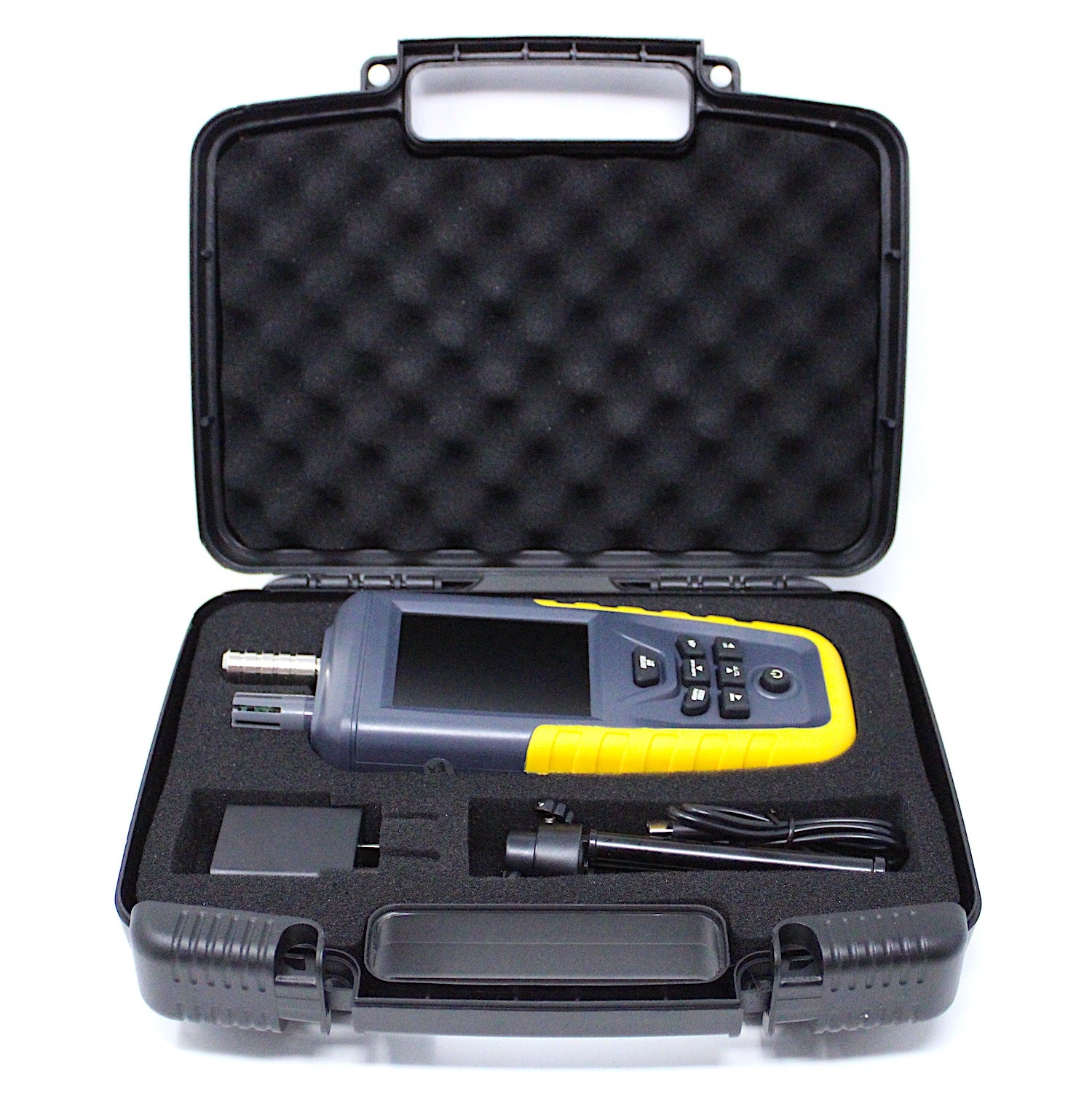

Included: Datalogging Vape and Smoke Detector, User manual, USB Type-C charging cable, charger, Tripod Stand, and Carry Case.
Specifications
Gas Sensor Type: Laser Scattering Particulate Matter Sensor
Particulate Size Detection: 0.3, 2.5, and 10 microns
PM2.5 Detection Range: 0-1000 µg/m3
PM2.5 Error: ±12 µg/m3
Resolution: 1 µg/m3
Temperature Detection Range: 14 to 140°F (−10 to 60°C)
Temperature Error: ±3F
Temperature Resolution: 0.01F
Humidity Detection Range: 0 - 100% RH
Humidity Error: ±3% RH
Humidity Resolution: 0.01% RH
Working Environment: 14 - 140F
Sampling Type: Diffusive (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)

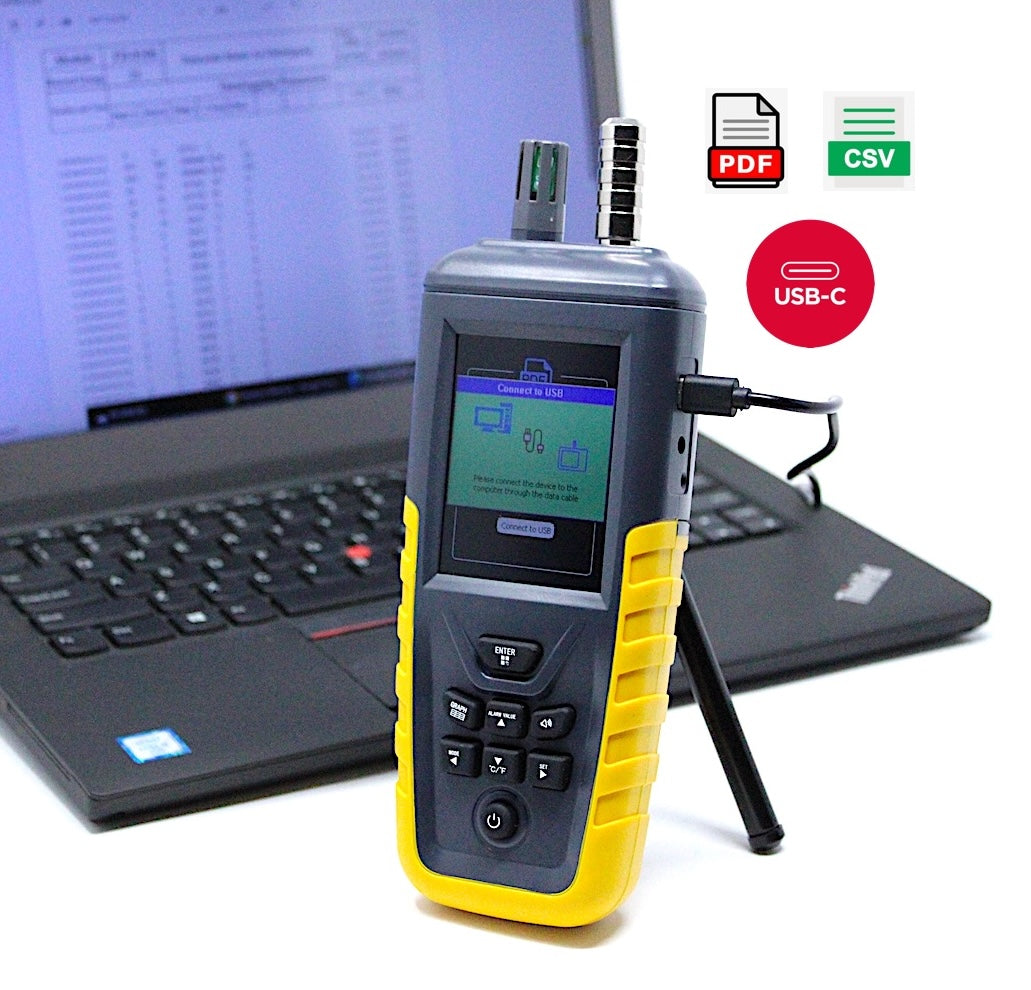

Datalogging: Yes | 🛠️ Setup Guide
Data Output Format: PDF and CSV files
Datalogging Amount: 999 timestamps
Datalogging Sample Rate: 10 secs to 10 mins (adjustable)
Explosion-Proof Grade: None (Ordinary Locations Only)

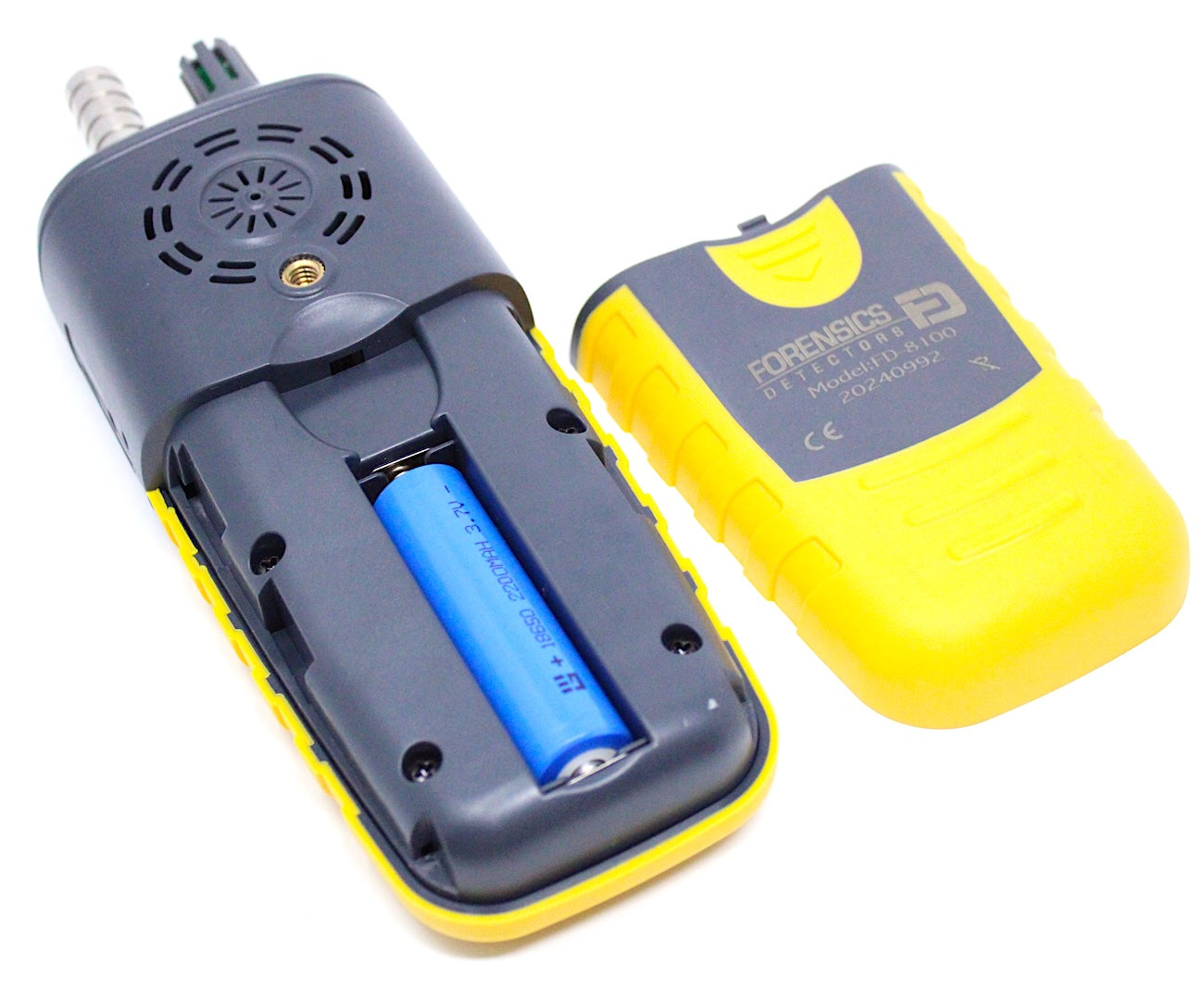

Battery: DC3.7V Li–Ion battery, 2000mAh
Charging Time: 4 hours
Operation Time: > 5 hours
Auto Off: No auto-off (always ON)

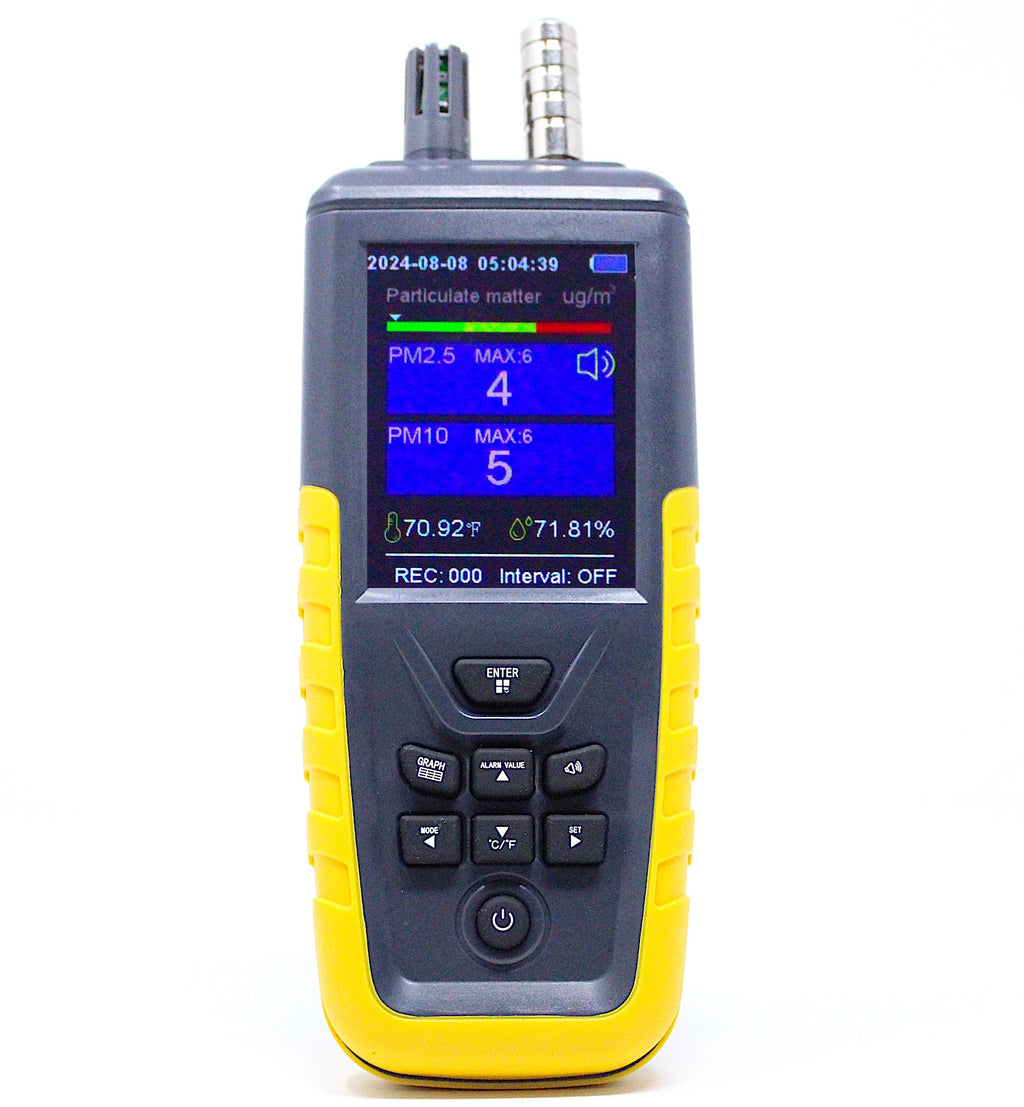

Display Type: 3.5-inch color HD display
Detector Dimensions: 8.7 × 3.2 × 2.1 inches (22.1 × 8.1 × 5.3 cm)
Detector Weight: 11.7 oz / 320 g
Warranty: 1-year limited warranty
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
