Brand: FORENSICS DETECTORS
Model: FD-90A-O3-HIGH
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Details:
- ⚛️ DETECT: High detection range: 0 - 100 ppm OZONE.
- 🌷 ACCURATE: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: This is our high-range (0-100ppm) Ozone (O3) gas meter by FORENSICS. In some cases, high ozone detection is required, mostly for those using ozone for sanitizing. This unit has advanced features, a wide range of functions, and the highest-quality electrochemical sensors. Please note that ozone is a unique gas and cannot be calibrated with a calibration gas bottle setup like most gases. Order your ozone calibration service, which must be performed in our laboratory with special calibrated equipment necessary to perform ozone gas detector calibration. For those who want to detect the output of an ozone generator, this is not the unit you should purchase. For ozone output detection, we recommend a 0-10,000ppm ozone detector (special order product) since ozone generators typically produce ozone much higher than 100 ppm. Please note that detecting ozone is not easy. It is a special gas. It degrades; it is heavy and sticky. Review our best practices guide to ozone measurements.

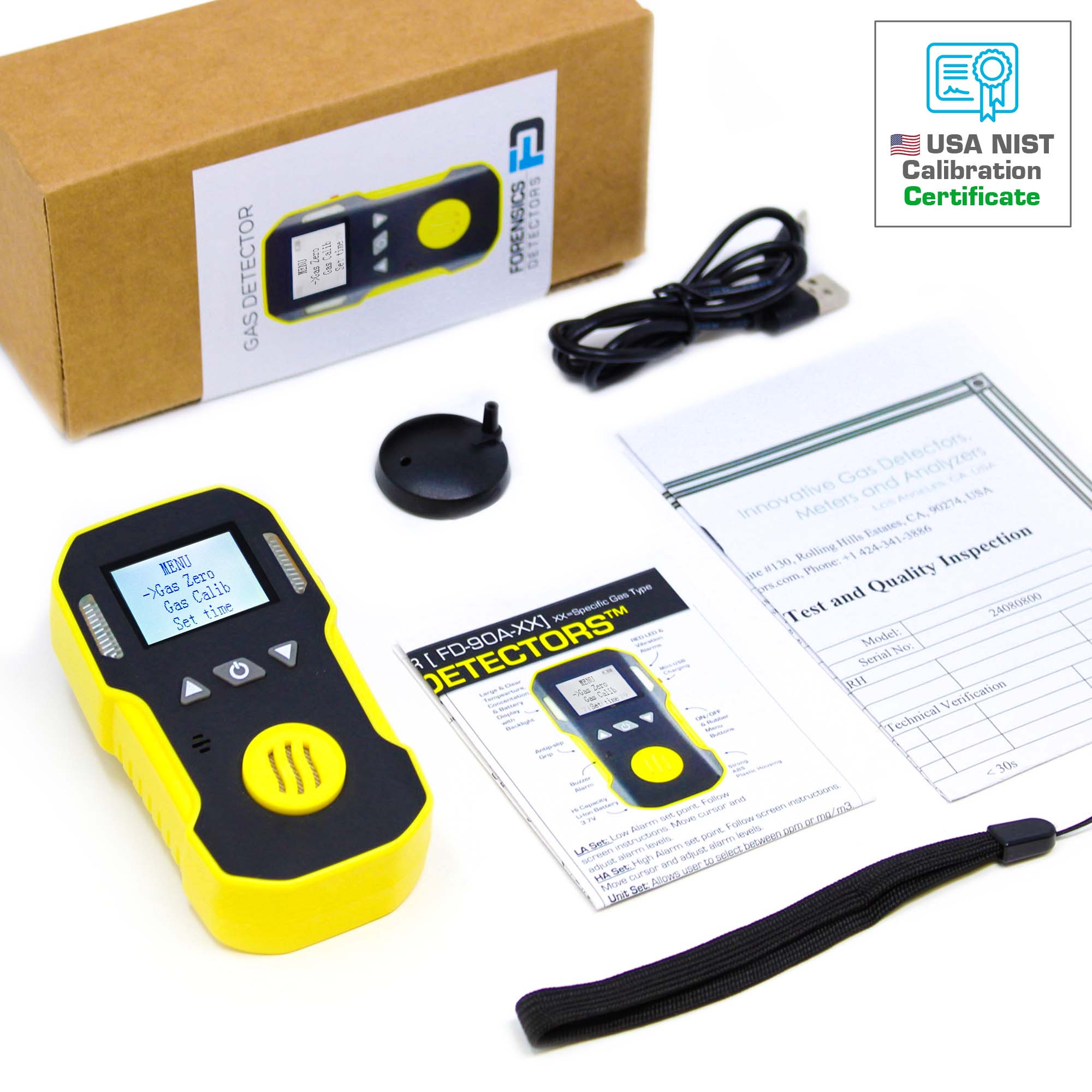

Included: High-range ozone gas detector, belt clip, user manual, USB charging cable, calibration cover, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
Calibration Kit:
No ozone calibration gas kits exist for ozone since ozone gas (NIST-traceable calibrated) must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and our ozone bump tester to validate operation via bump testing.
Accessories (sold separately):
Ozone Bump Tester
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (Email Us)
Specifications
Ozone (O3) Detection Range: 0 - 100 ppm with 1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 sec
Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours
Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
