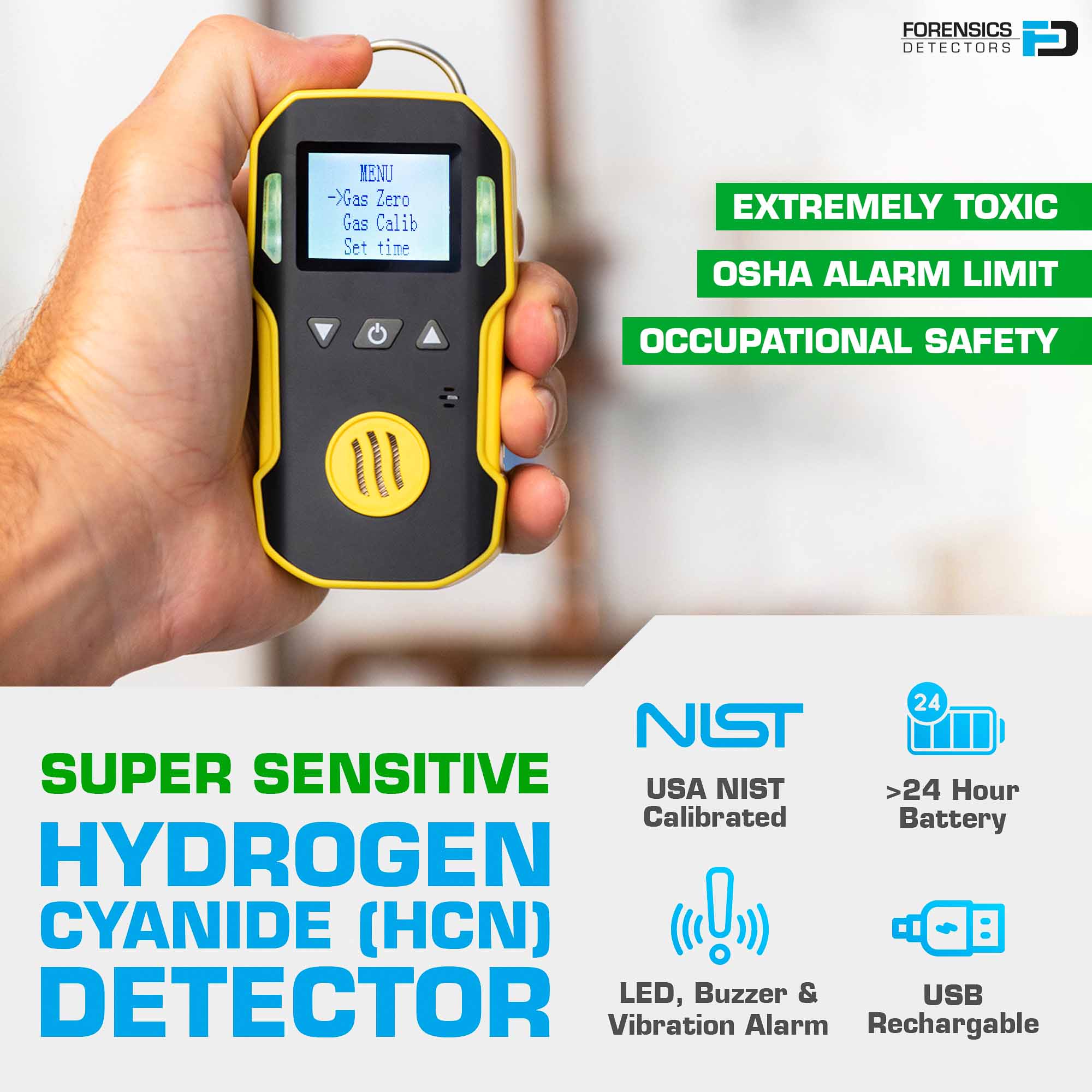

Hydrogen Cyanide Detector | USA NIST Calibration

Save 60%

Price:
Sale price$399.00 Regular price$995.00
Stock:
In stock (118 units), ready to be shipped

Brand: FORENSICS DETECTORS
Model: FD-90A-HCN
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide

Features:

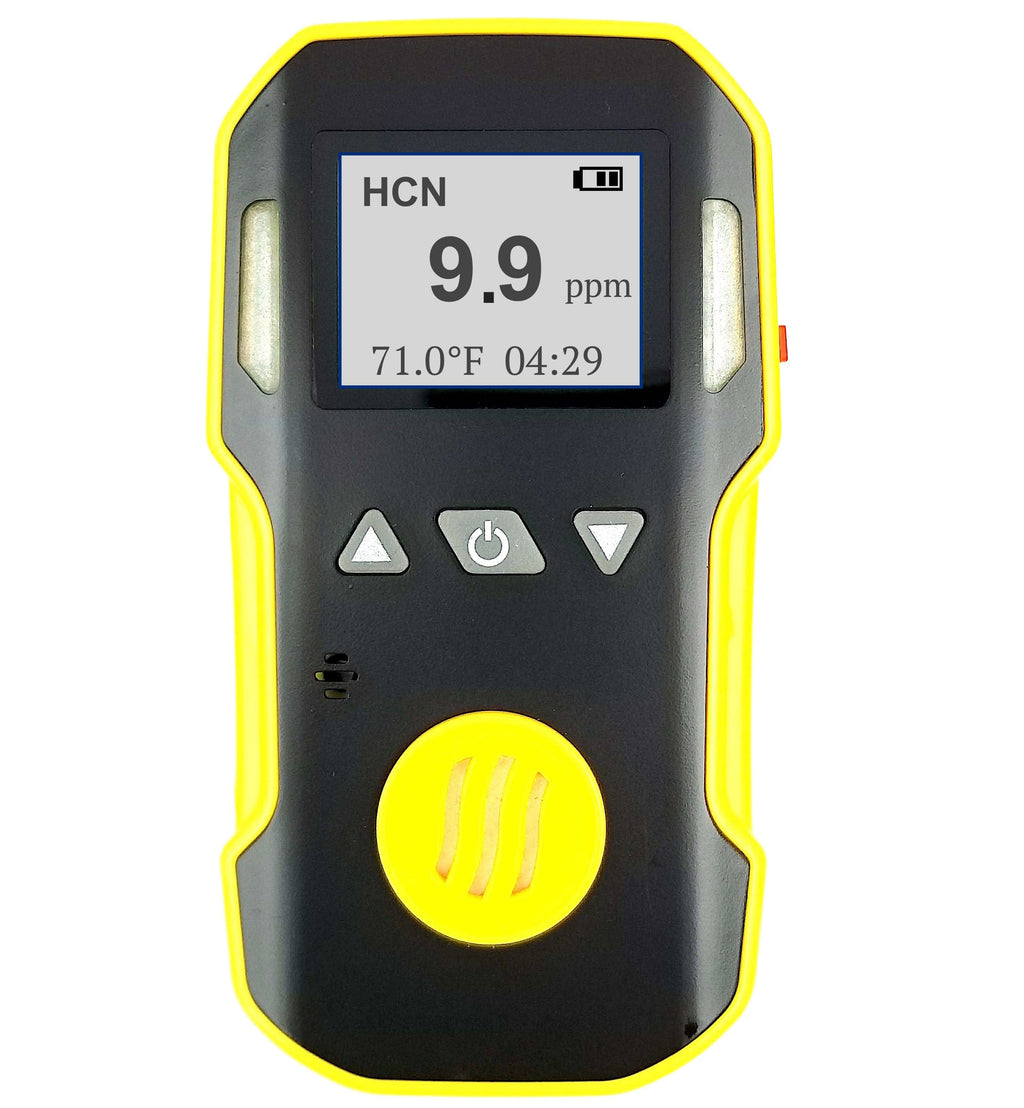

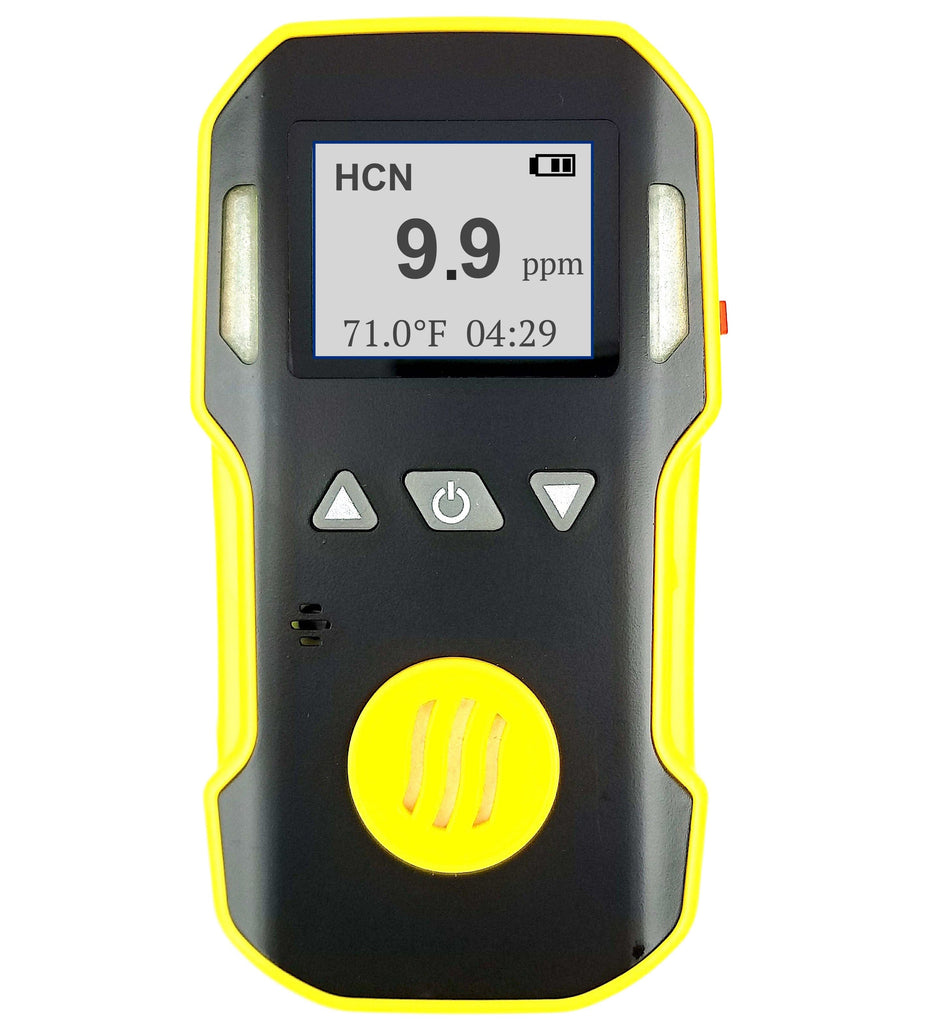

  • 🔬 ACCURATE: Professional and accurate hydrogen cyanide (HCN) detector, 0 - 50 ppm with 0.1 ppm resolution.
  • ⚛️ DETECT: Electrochemical NANO-GAS sensor.

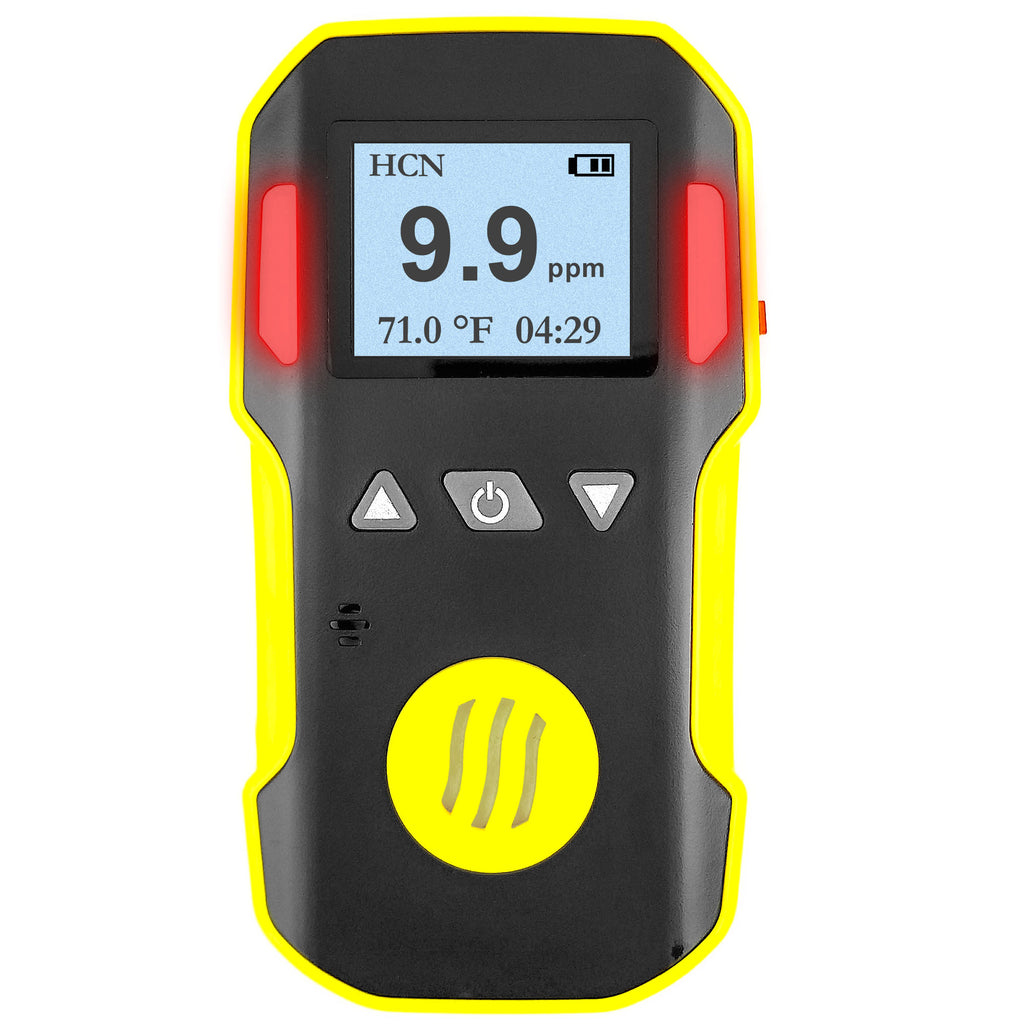

  • 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
  • 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
  • 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

Details: The professional hydrogen cyanide (HCN) gas detector by FORENSICS is the best in its class with many advanced features. Hydrogen cyanide (HCN) is a chemical compound in liquid form below 78°F (25.6°C), or a colorless gas above 78°F (25.6°C), and is extremely toxic. It is used for fumigation, electroplating, mining, chemical synthesis, and the production of synthetic fibers, plastics, dyes, and pesticides. Hydrogen cyanide is also emitted during reactions between cyanide and acid, a nitrile fire, or combustion.

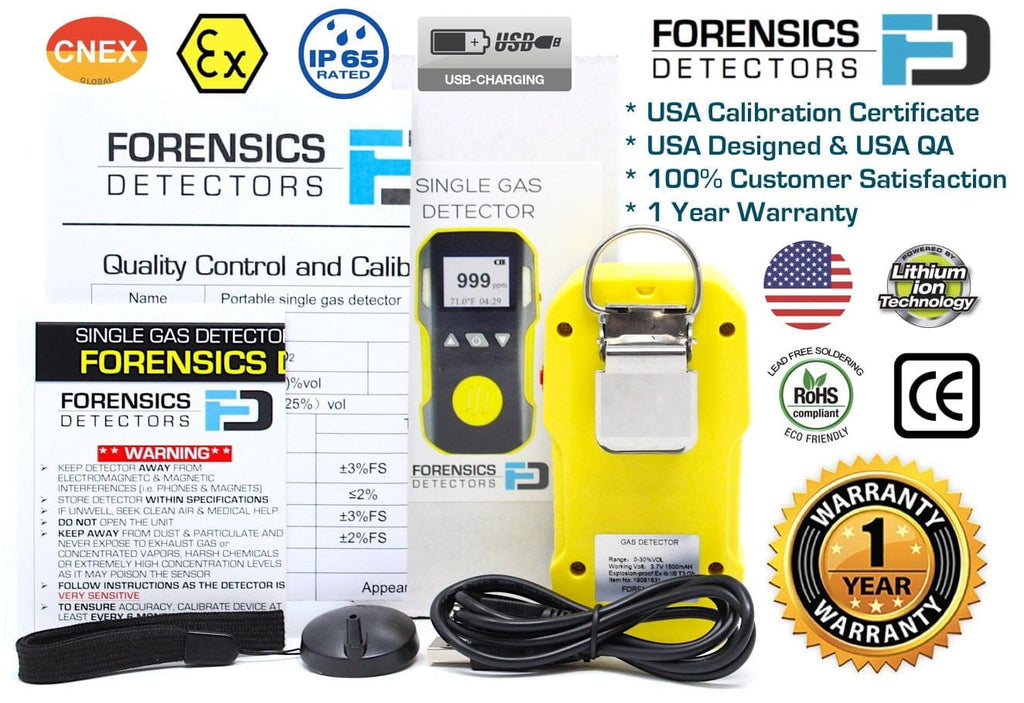

Included: Hydrogen cyanide gas detector, belt clip, sling, user manual, USB charging cable, calibration cover, and certified calibration certificate.

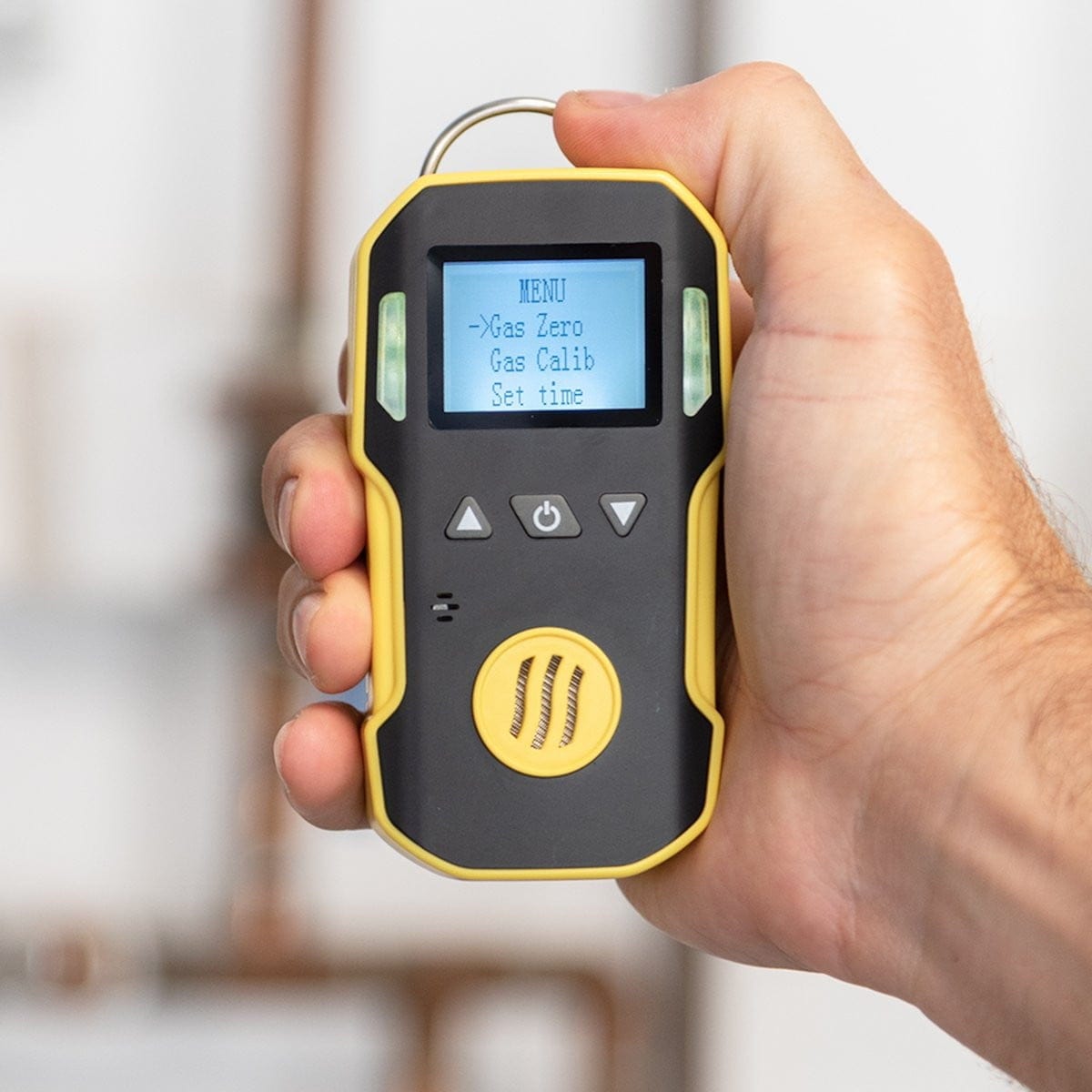

Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself

Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (HCN)
Calibration Gas Regulator (C10)
Tubing

Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (HCN)

Specifications

Hydrogen Cyanide (HCN) Detection: 0 - 50 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump) | Add-on Pump
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No

Error: ≤ ± 5% F.S.
Response Time: < 30 sec

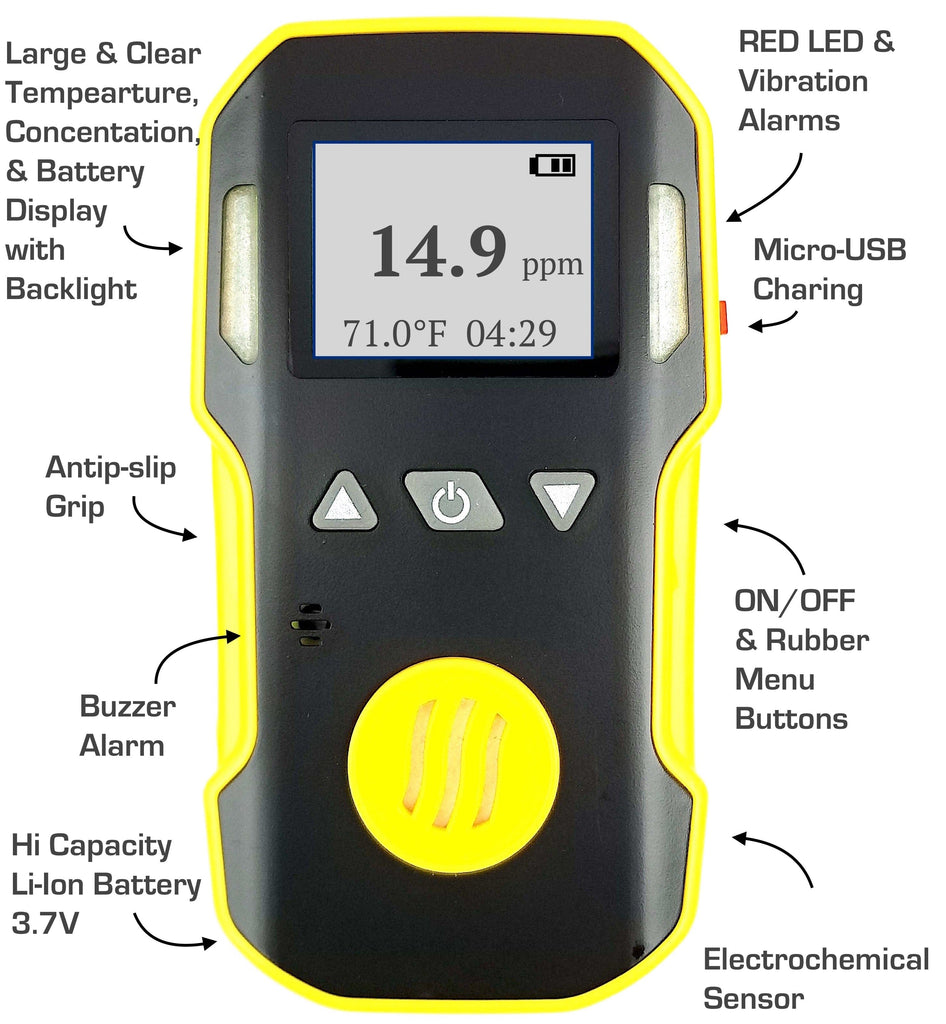

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours

Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
