Brand: FORENSICS DETECTORS
Model: FD-60-H2
User Manual (PDF): EN | DE | FR | ES | IT |
Application Guide: Blog explanation
- 🚀 INDUSTRIAL: Heavy-duty fixed Hydrogen H2 detector, range 0 - 1000ppm. Electrochemical sensor. Comes FACTORY-CALIBRATED.
- 🌎 USE: Alarm output to 2 x relay alarm-triggered switches to control fans or ventilation units.
- 🎆 FEATURES: Large LED alarm and buzzer.
- 💪 ROBUST: Dust-proof, water-resistant, and flameproof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

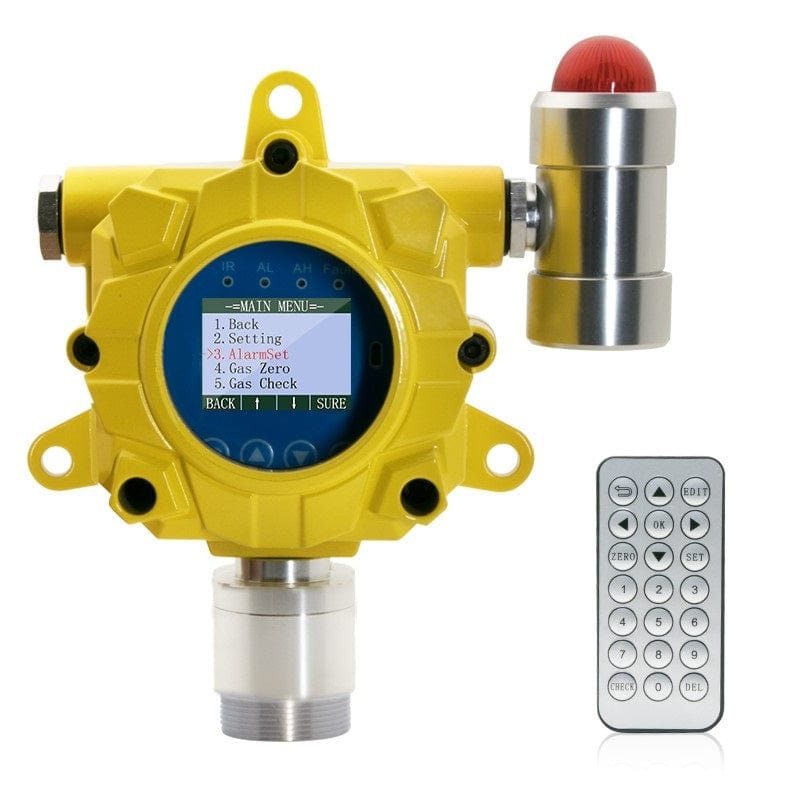

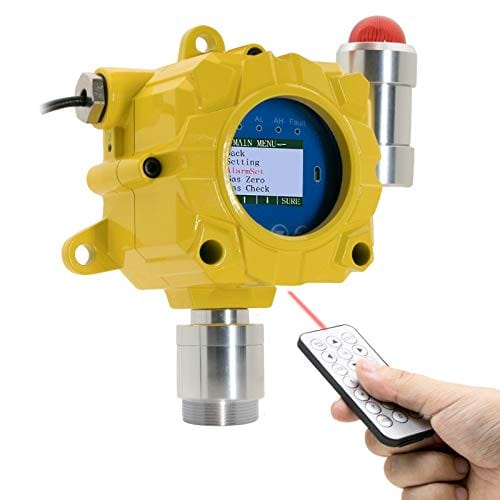

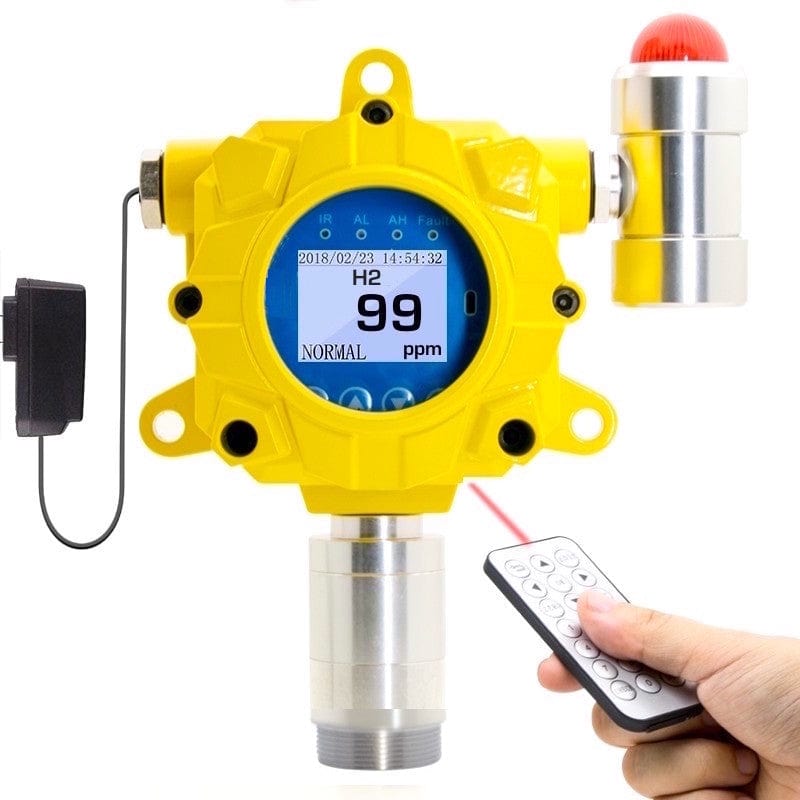

Details: A heavy-duty, wall-mounted HYDROGEN (H2) gas detector for continuous monitoring, particularly in battery rooms. The detector can turn ON/OFF electrical equipment up to 50 W per relay by setting low and high alarms to trigger relays, perfect for FAN CONTROL, VENTILATION CONTROL, and other devices. A hydrogen gas detector senses hydrogen (H2) concentration in the air. These analyzers are used for personal protection in hazardous gas environments. They are also found in industrial settings, battery storage centers, and hydrogen fuel cell facilities. Hydrogen is an important alternative source of energy storage but can become dangerous if a leak occurs and accumulates indoors. We offer hydrogen gas detectors for personal protection and also hydrogen inspection detectors with a built-in pump and probe.

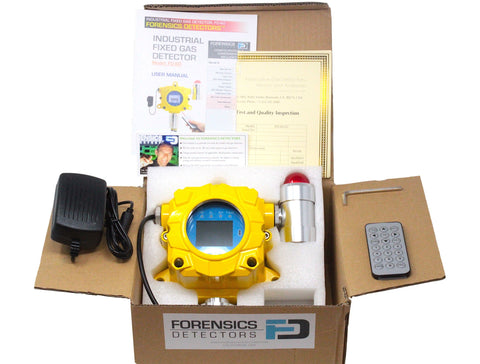

Included: Fixed gas detector, user manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug into a 110V outlet, and wiring. Arrives with a certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit (needed to calibrate yourself - sold separately):
Calibration Gas (H2)
Calibration Gas Regulator (C10)
Calibration Cap
Bump Gas (H2)
Tubing
Accessories (sold separately):
Gas Sensor Replacement (H2)
Air Sampling Pump Kit
Alarm Extension Fixture
Specifications
Hydrogen (H2) Detection: 0 - 1000 ppm with 1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Lifetime: 2 - 3 years
Sampling Method: Natural diffusion (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Digital Output Datalogging: RS485 MODBUS (🛠️ Setup Guide)
Analog Signal Output: 4 - 20 mA (▶️ Demo Video)
Error: ≤ ± 5% F.S.
Response Time: <60 seconds
Alarm: LED & Buzzer
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Explosion-Proof Grade: ATEX certified Ex d ⅡC T6 Gb (📋 PDF)
Protection Category: IP65
Power Supply: DC 24V ±15% (100–240V AC, 50/60 Hz)
Max Power Consumption: 20 W (LED ON and Buzzer ON)
Electrical Output: 2 x relay contacts, max power 50 W per relay
Dimensions: 7.9 × 7.1 × 3.5 inches (20 × 18 × 9 cm)
Weight: 3 lbs (1.4 kg)
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
Housing Material: Die-cast aluminum alloy
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
