Brand: FORENSICS DETECTORS
Model: FD-600-H2-HIGH
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide

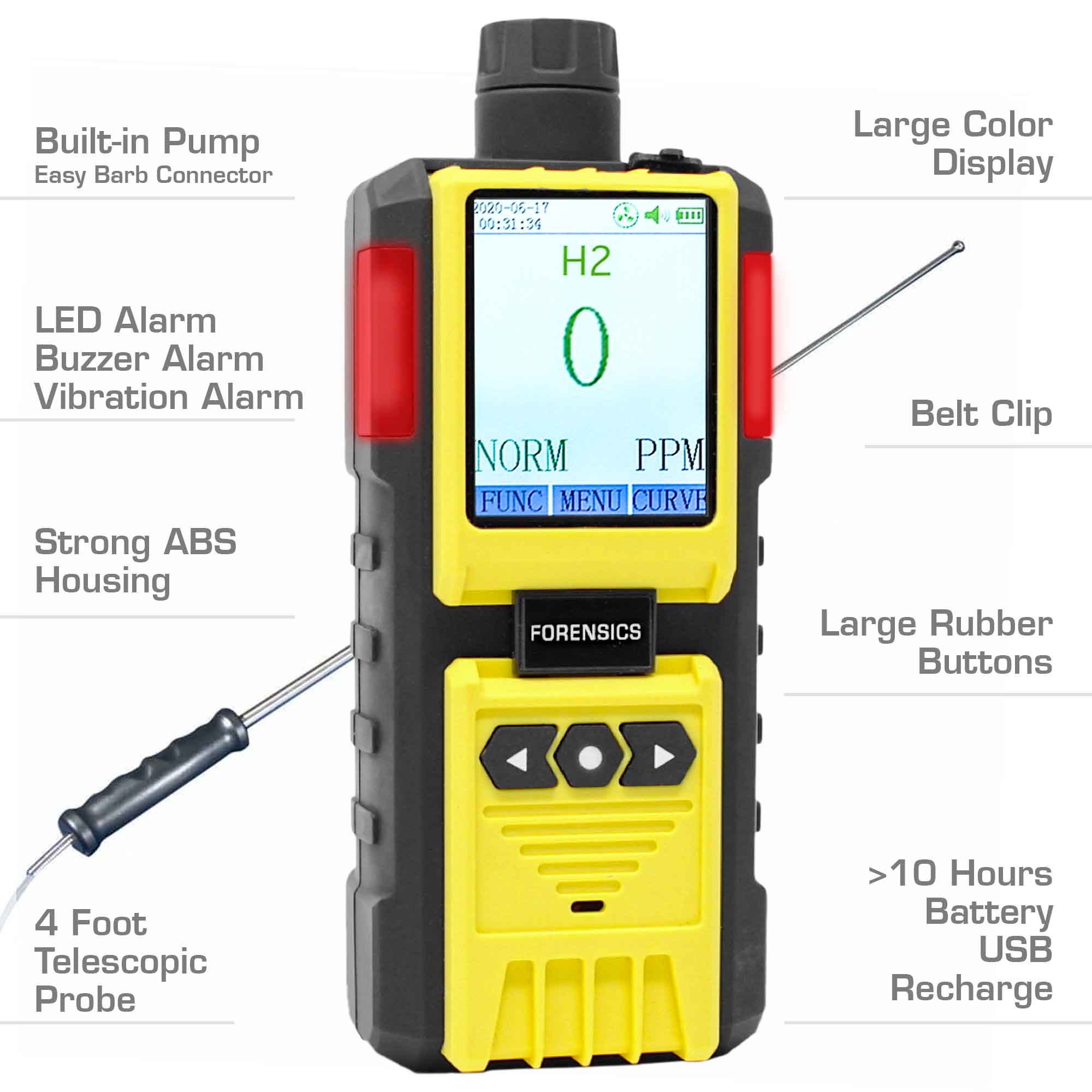

Features:

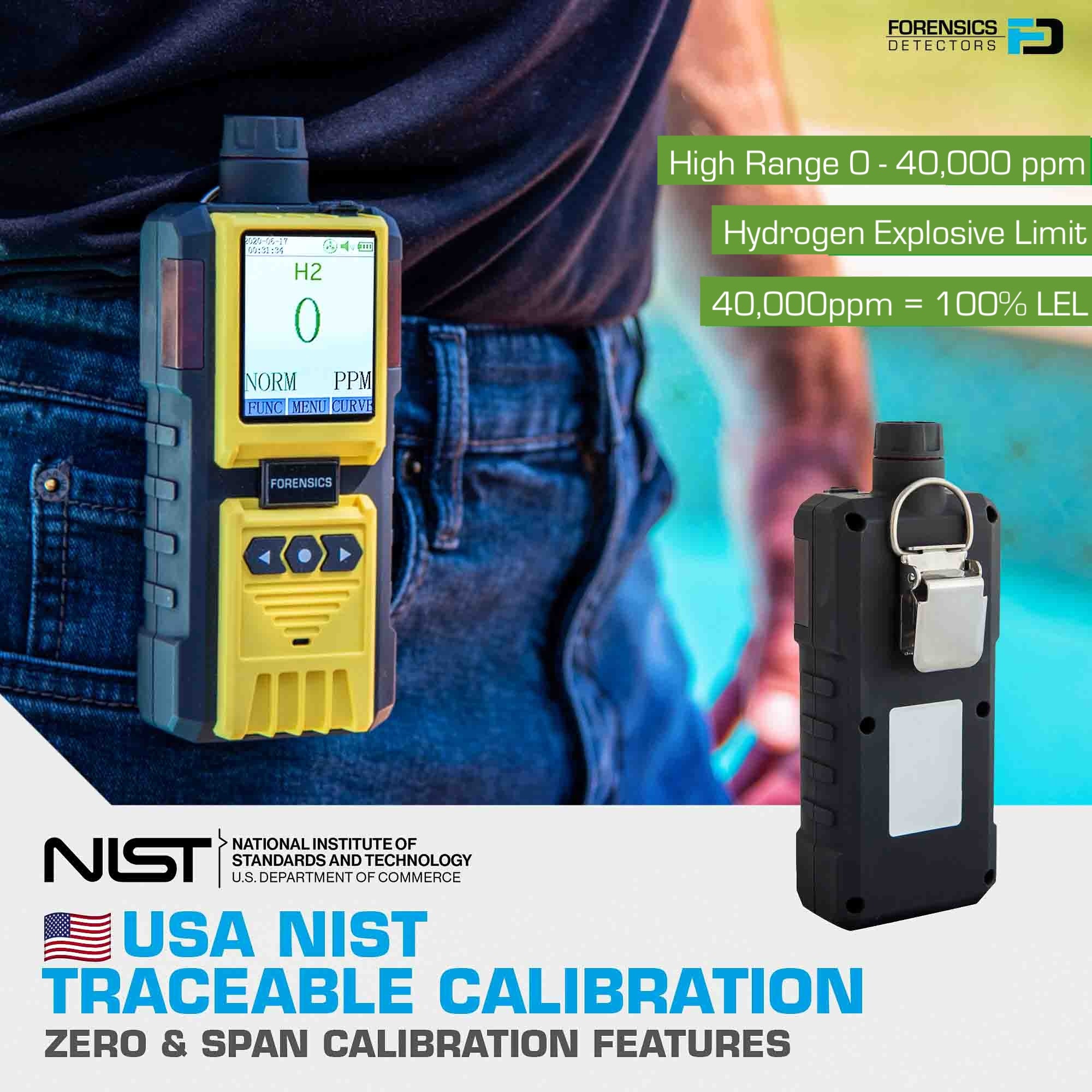

- 🎆 DETECT: Hydrogen Gas Leak Detector measuring 0 - 40,000 ppm with a built-in pump for super fast detection.
- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive super-fastoperation. USB computer data logging included.
- 📲 ALARMS: The detector records alarm events with date and time stamps.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate

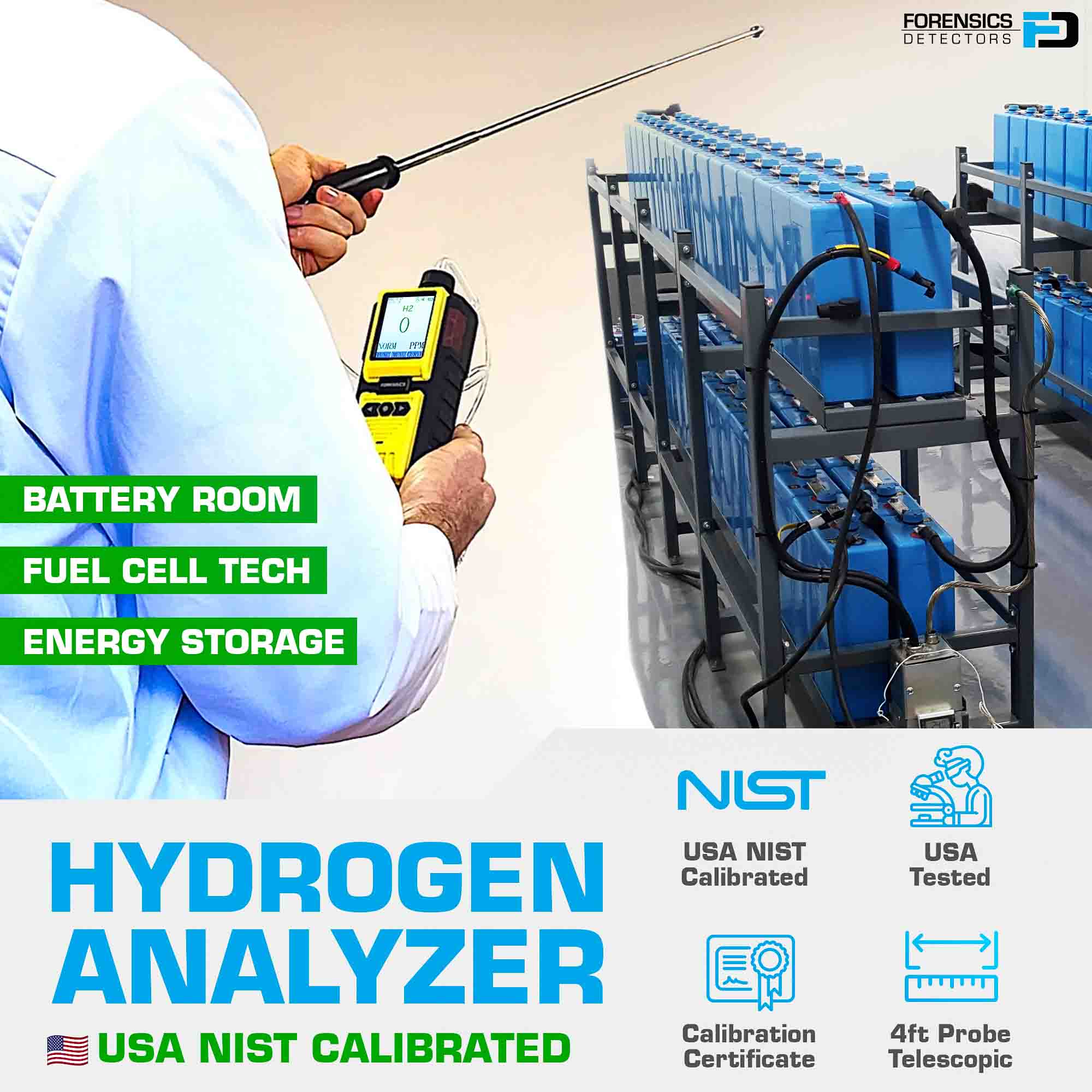

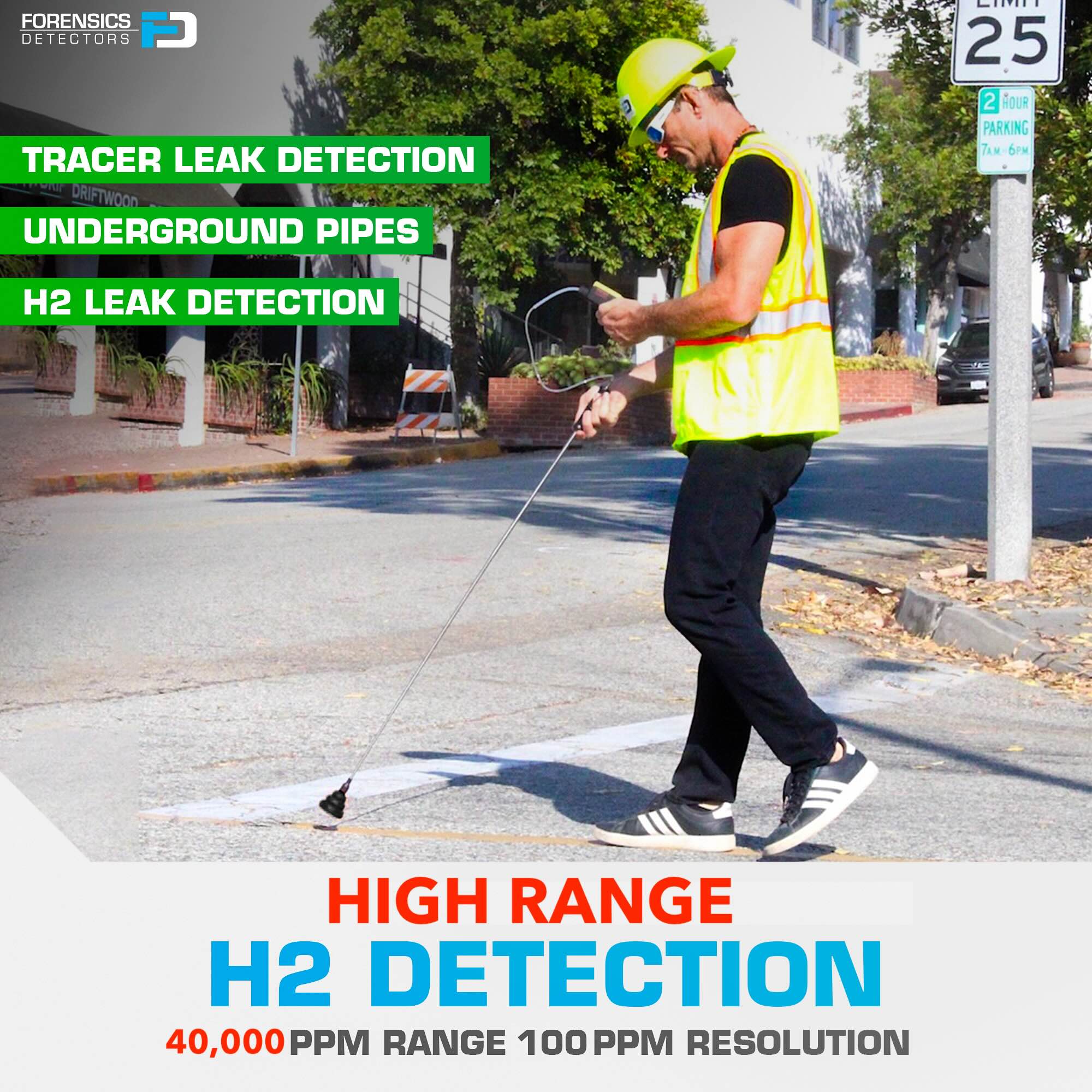

Details: This is a top-quality FORENSICS DETECTORS Hydrogen Gas Leak Detector with a built-in pump allowing faster response, point probe sampling, and continuous monitoring. This is our HIGH RANGE version that provides users with more range to detect hydrogen gas closer to its Lower Explosive Limit (which is 40,000 ppm). So, 40,000ppm = 100% LEL (for hydrogen). Perfect for (a) tracking hydrogen gas leaks in hydrogen storage and distribution facilities, (b) detecting hydrogen tracer gas leaks for plumbing applications such as pipe leaks and system leaks, and (c) testing hydrogen accumulation in battery rooms or a facility that may release hydrogen where it may be accumulating and pose a hazard. This Hydrogen Leak Detector is one of the most advanced on the market, having a 32-bit microprocessor, color LCD, and graphing capability. If you need a more sensitive hydrogen analyzer, the 0 - 1000 ppm version.

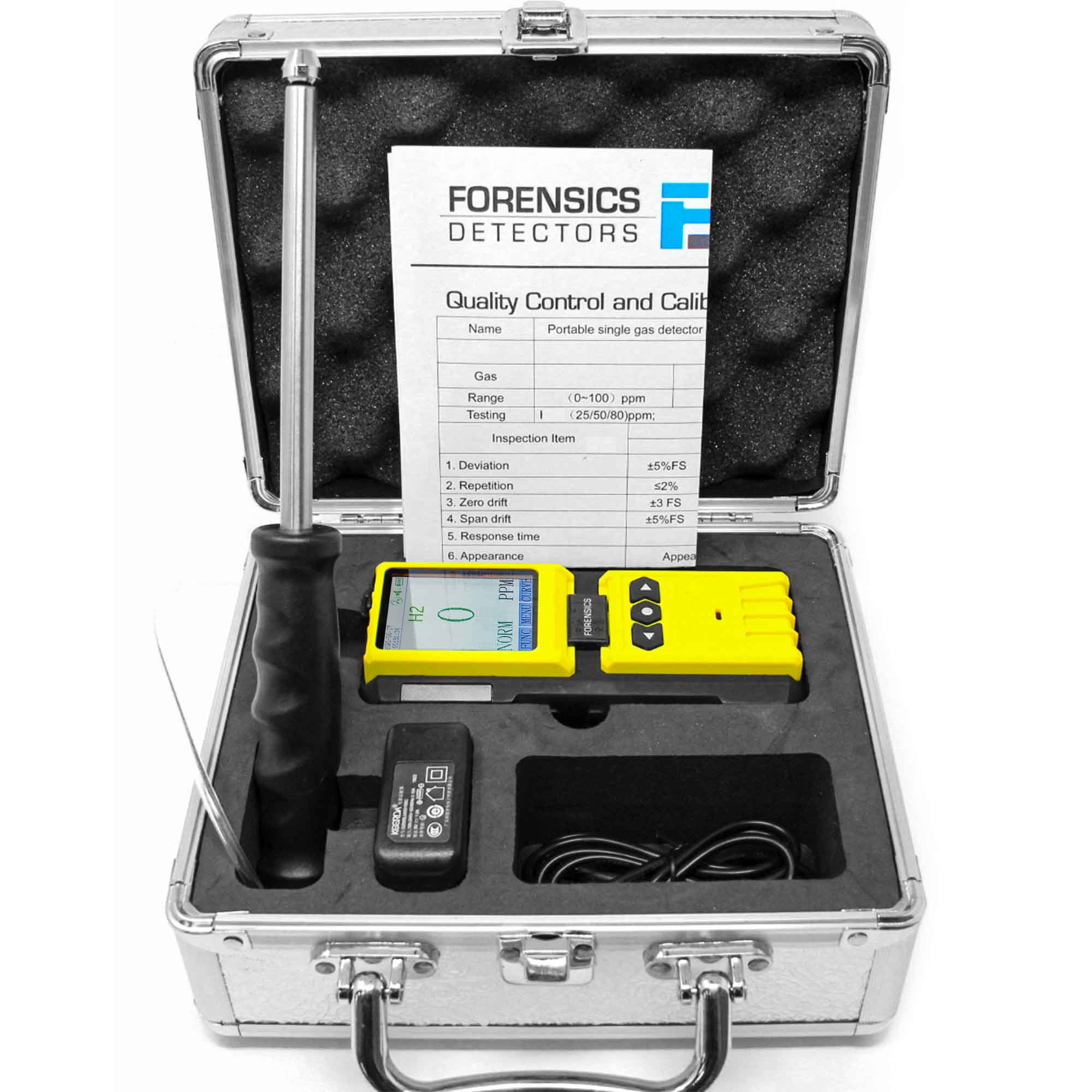

Included: Hydrogen Gas Leak Detector, User manual, USB charging cable, charger, analyzer case, stainless probe (with hood is optional), tubing, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit Items (needed to calibrate yourself - sold separately):
Calibration Gas (H2)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Accessories (sold separately):
Gas Detector Waterproof Case
Gas Detector Stand
Gas Sensor Replacement (H2) (email us)
Specifications
Hydrogen (H2) Gas Detection: 0 - 40,000 ppm with 100 ppm resolution
Gas Sensor Life: 2 - 3 years
Gas Sensor Type: Electrochemical Gas Sensor
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: High-Definition Color LCD
Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11.0 oz (314 grams)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
