Brand: FORENSICS DETECTORS
Model: FD-600M-H2S
Data Logging: Click Here
User Manual: Click Here
Blog Article: Click Here

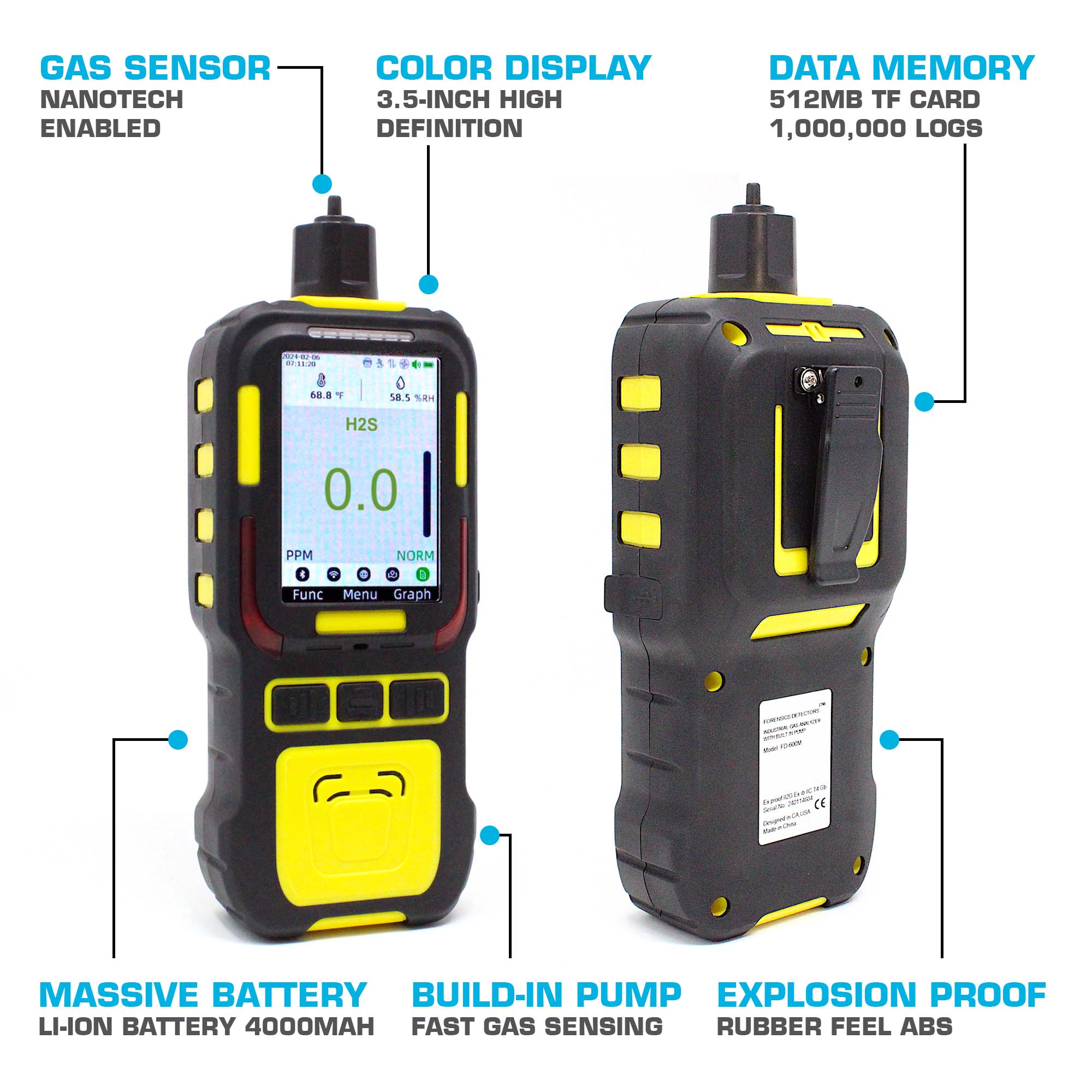

Features:
- 📊 GAS DATA LOGGER: Data logging functions with built-in TF Memory Card (512MB) able to store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec.
- 🎆 DETECT: Hydrogen Sulfide analyzer measuring 0-100 ppm with 0.1 ppm resolution. Comes USA NIST traceable calibrated from Los Angeles, CA.
- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
- 📲 ALARMS: Adjustable low and high alarms.
- 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof exceeding ATEX certified Ex ib IIC T4 Gb. IP65.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **
Details: Looking for a top-quality hydrogen sulfide gas data logger? This is it. It has the advanced features of a high-end H2S monitor with graphing and data-logging functionality. The data logging function is built in which means the unit can run by itself and the data will be captured by its internal Memory Card (512MB) that can store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec. The internally logged data is then retrieved by connecting a Type C USB cable to a computer and viewing the logged *.CSV files, just like you would with an external USB drive. Very easy and simple, with no extra software required. The *.CSV file can then be imported into EXCEL to graph and manipulate as required.
If you want it to data log continuously with a long sample rate, then no problem. Just set the sample rate to a large value and plug the unit into cable power so it is always charging ON, and you are good to go for many days of sampling.

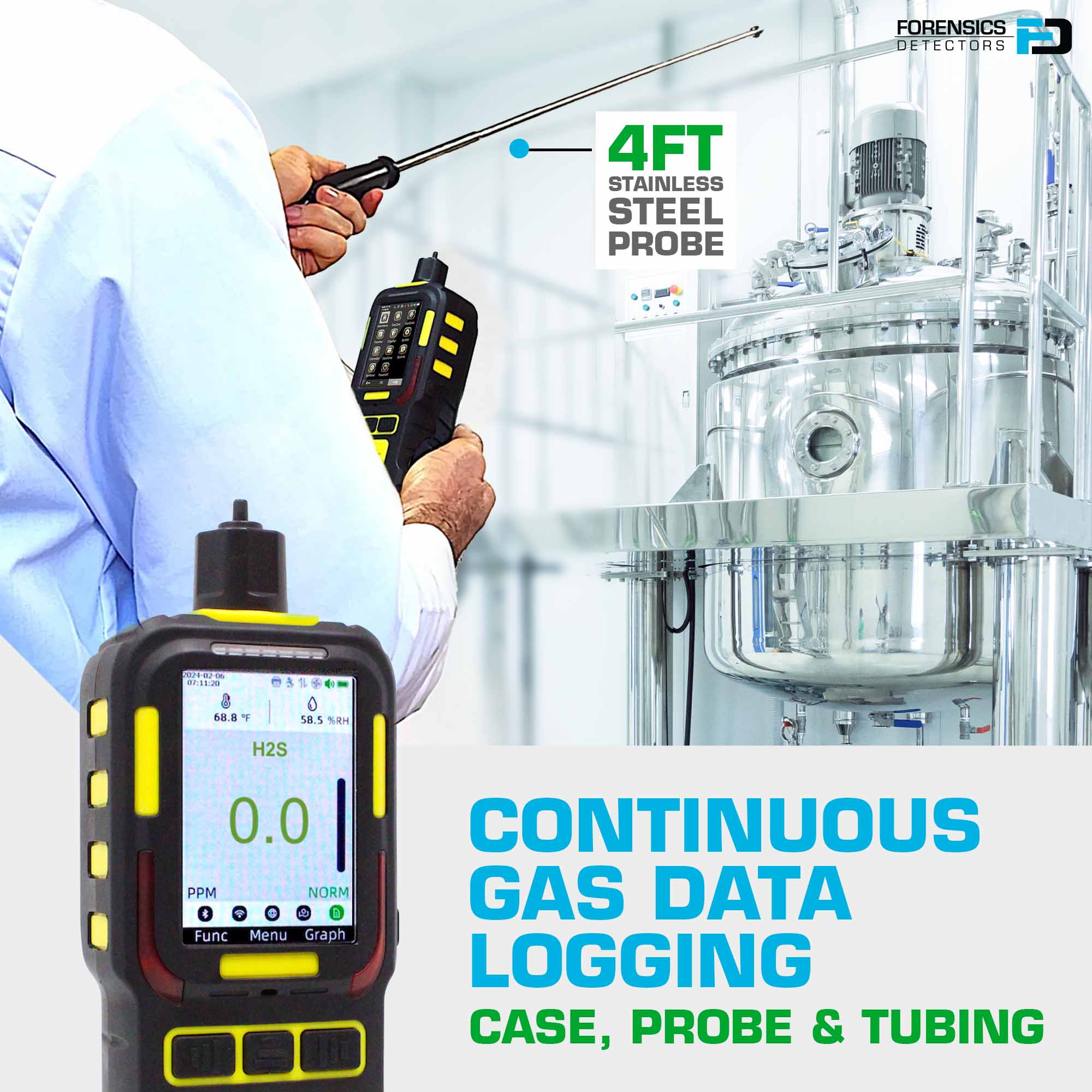

This powerful H2S analyzer has a built-in pump allowing for super-fast detection & response and comes with a 4ft probe that is perfect for sampling gas in indoor or outdoor areas. Customers use it for tracking indoor hydrogen sulfide levels and to help pinpoint hydrogen sulfide gas leaks. The detector is USA NIST traceable and calibrated in Los Angeles. If you require a more basic H2S monitor, we recommend our handheld H2S monitor. Otherwise for those that don't require a data logger function, then a more affordable H2S analyzer with probe is recommended.

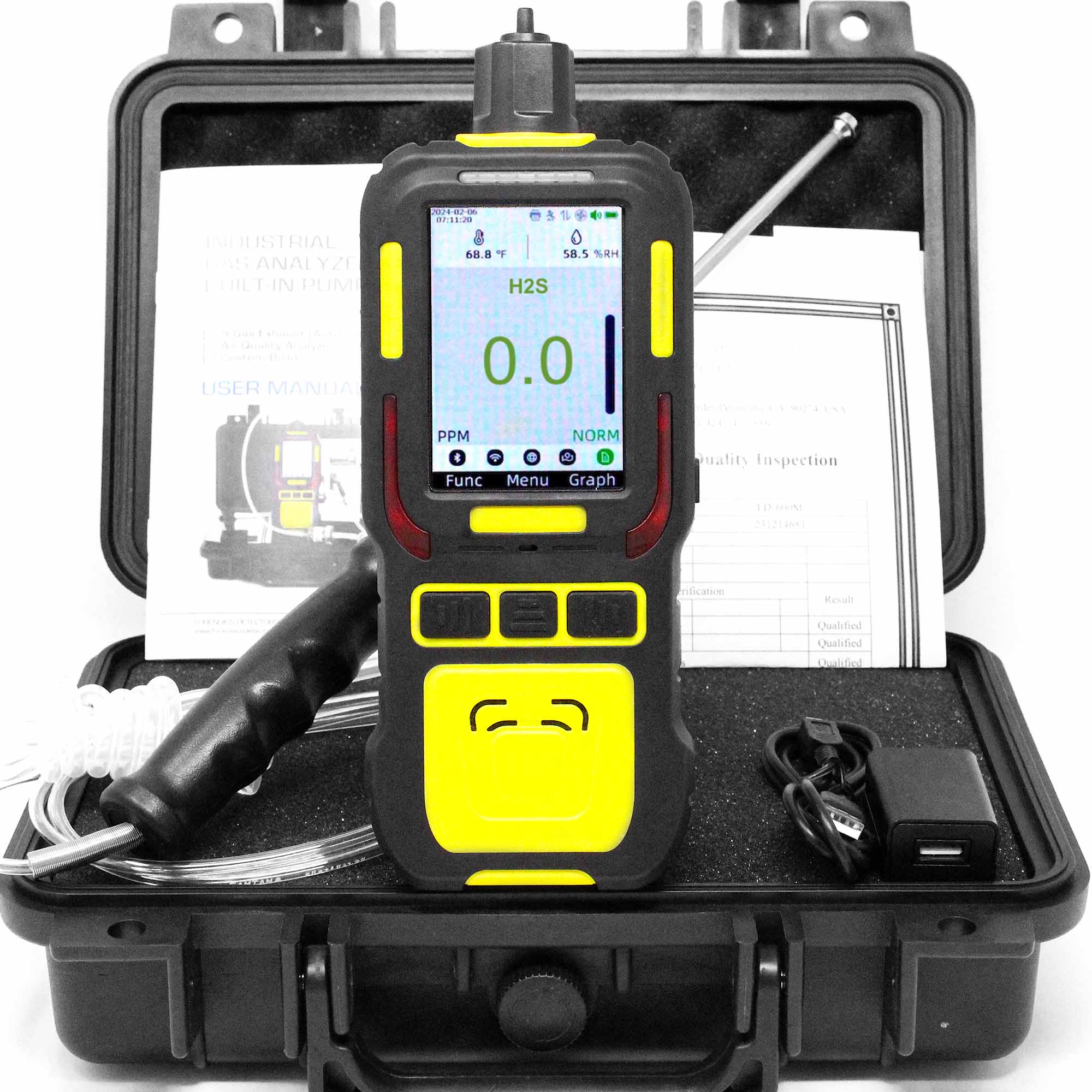

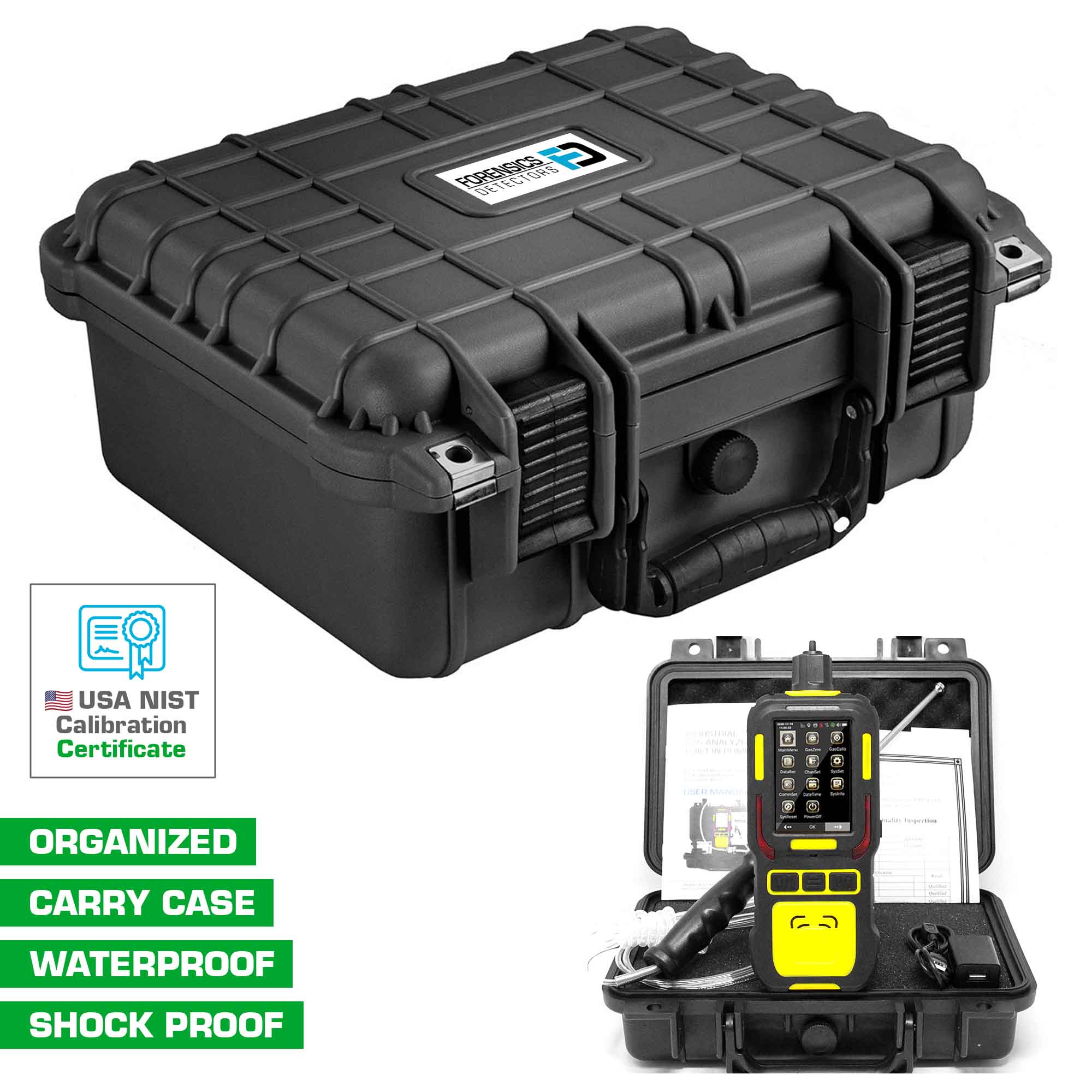

Included: H2S Data Logger Analyzer, English manual, USB charging cable, charger, analyzer case, 4ft telescopic stainless probe, tubing, and USA NIST calibration certificate.
Calibration Kit (sold separately):
Calibration T-piece & Tubing
Calibration Gas (H2S)
Calibration Gas Regulator (C10)
Bump Gas (H2S)
Other Accessories (sold separately):
Gas Detector Stand
Gas Sensor Replacement (H2S)
Calibration Service (sold separately):
Gas Detector Calibration Service
Specifications
Hydrogen Sulfide (H2S) Range: 0 - 100 ppm with 0.1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 to 3 years
Error: <±5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Battery: DC3.7V Li-Ion battery 4000mAh
Charging Time: 4 hours
Operation Time: > 5 hours
Dimension/Weight: 9.09 x 3.43 x 2.36 inches, 800grams
Rating: ATEX certified Ex ib IIC T4 Gb. IP65.
Pump Noise: <60dB
Pump Flow Rate: 0.3 to 0.7 LPM
Inlet Air Barb: 3mm (1/8 inch) outer diameter barb

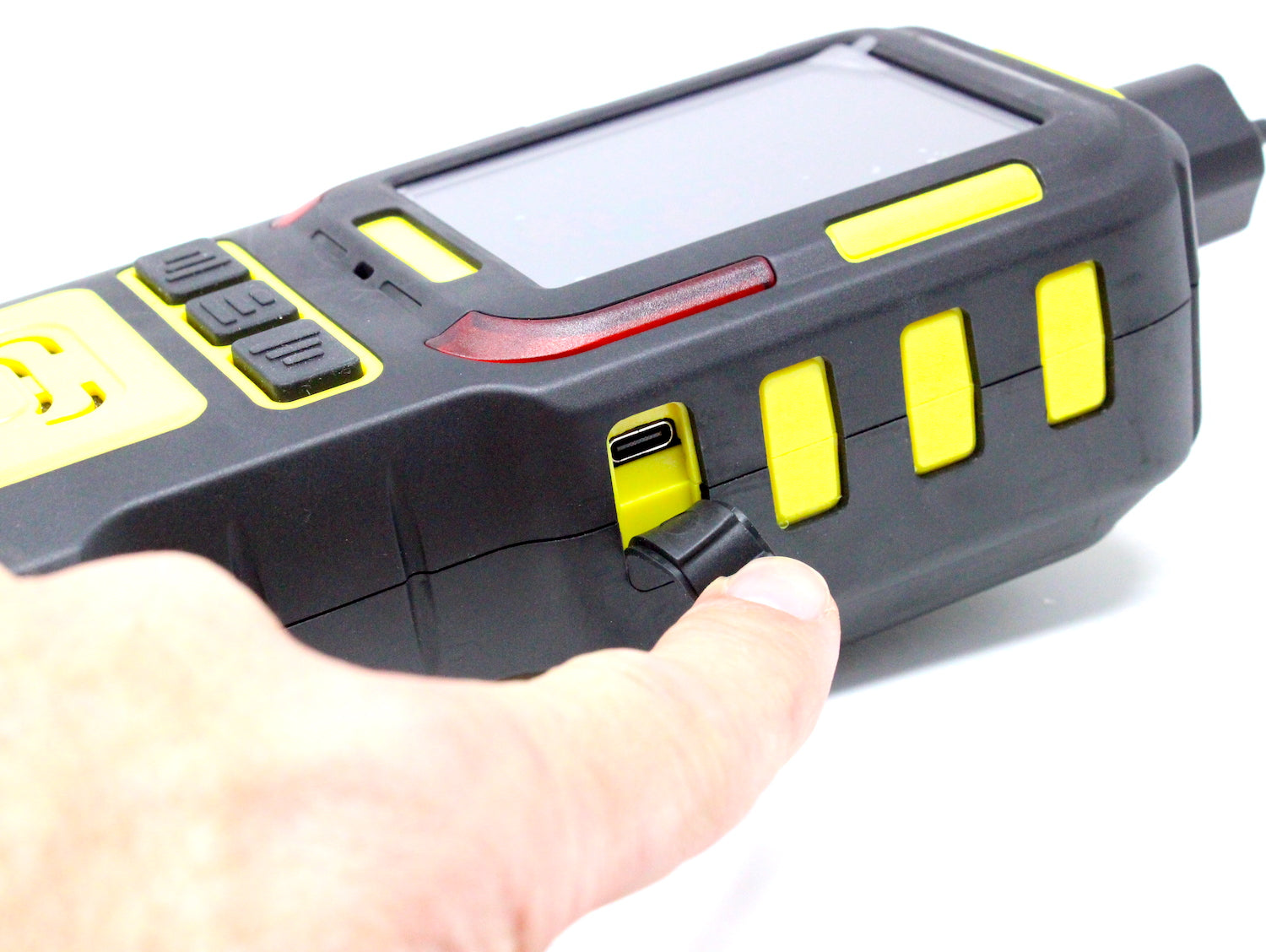

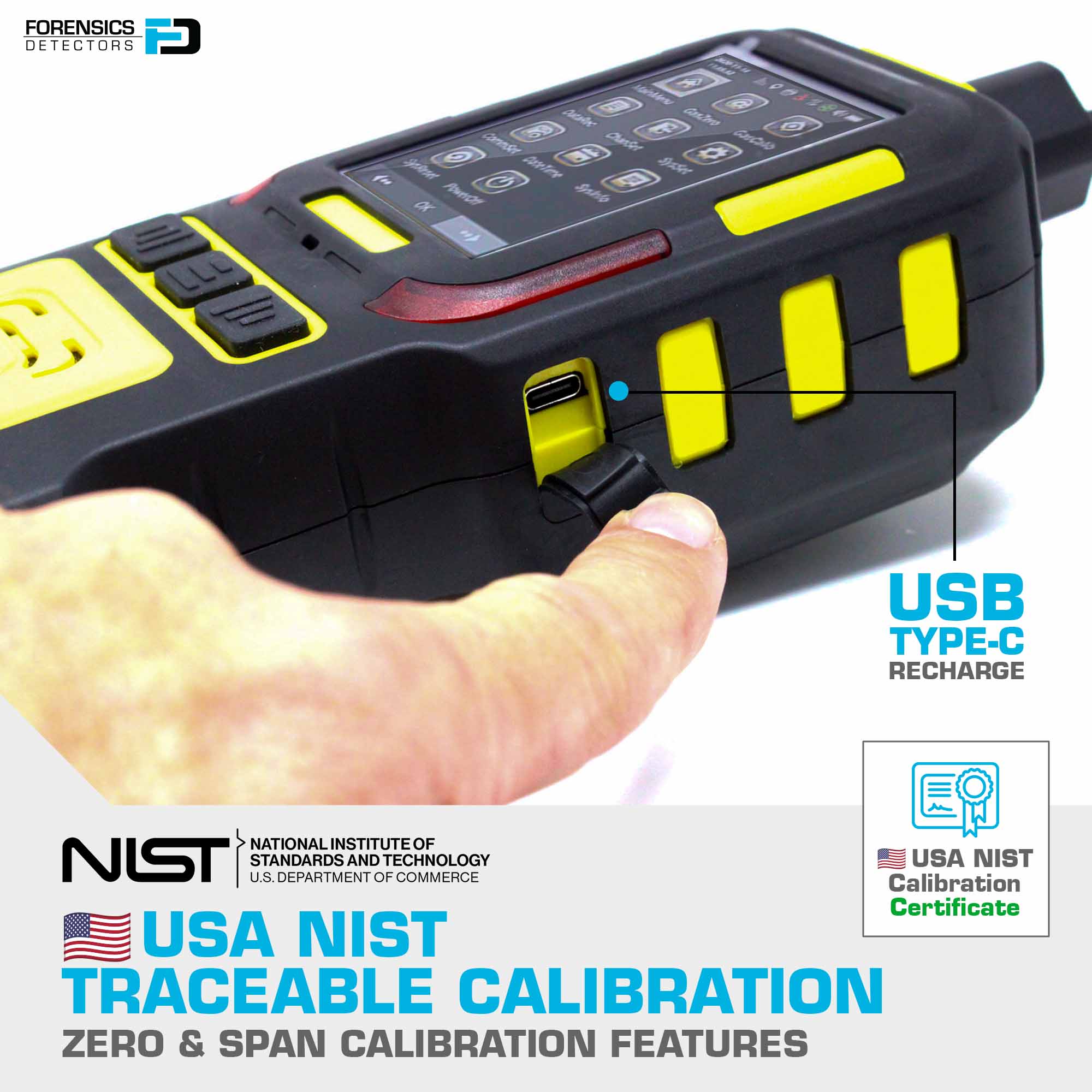

Charger Port: USB Type C (use at least 1A/5V charger)

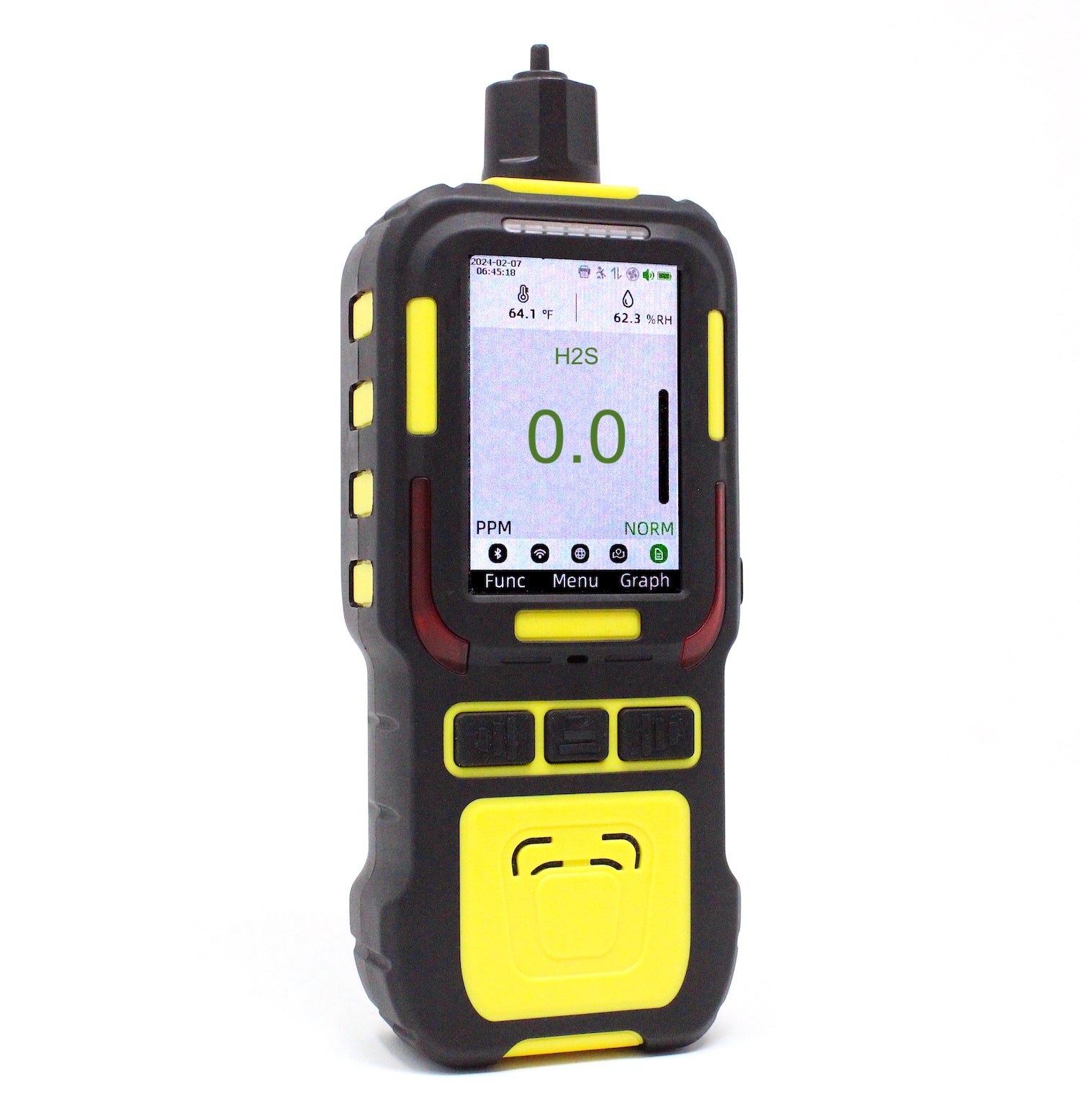

Display: 3.5-inch color HD display
Probe Length: 4ft Telescopic Probe
Recommended Calibration Period: 12 months
Carry Case Weight: 3.1 lb with analyzer & accessories
Carry Case Dimensions: 9 x 7 x 5 inches
Alarm: LED, Buzzer, and Vibration
