Brand: FORENSICS DETECTORS
Model: FD-600-N2
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- 🎆 USES: Used to detect Nitrogen Gas Leaks via oxygen depletion. High-quality electrochemical oxygen sensor.

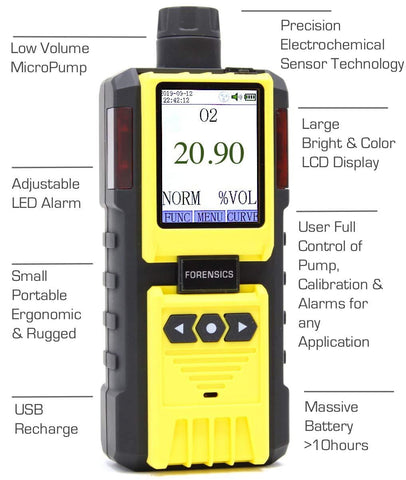

- 🌈 COLOR: Color screen and graph functions allow for easy and intuitive operation.

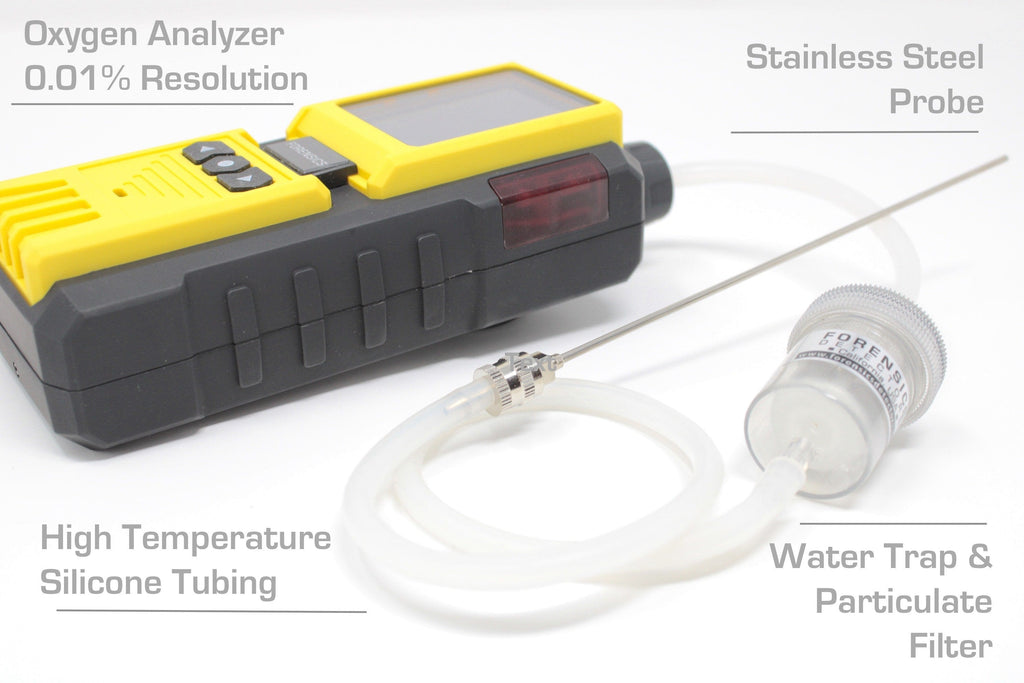

- 📲 DATA LOGGING: USB recharging and real-time data acquisition. Arrives with silicone tubing, a stainless probe, and a filter.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: A Nitrogen Gas Detector is used to detect a leak in Nitrogen by measuring oxygen concentration. When storing nitrogen or trying to find a nitrogen leak, use an Oxygen Analyzer to detect reduced oxygen purity that indicates a nitrogen leak. The FORENSICS nitrogen analyzer (which is actually an oxygen analyzer) is an excellent option for those who want to detect oxygen displacement caused by nitrogen. This nitrogen detector is perfect for checking leaks in nitrogen purge systems, nitrogen containment, nitrogen in a pressurized flush situation, pipe purging, N2 leak analysis, and other applications. The oxygen gas analyzer measures the oxygen content in the weld chamber down to 0.01% (100 ppm). Based on our industrial analyzer platform, the built-in pump is easy to use, light, and very portable. The analyzer has a color screen, large digits, and on-screen real-time graphing. The detector is built using an advanced electrochemical oxygen sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control.

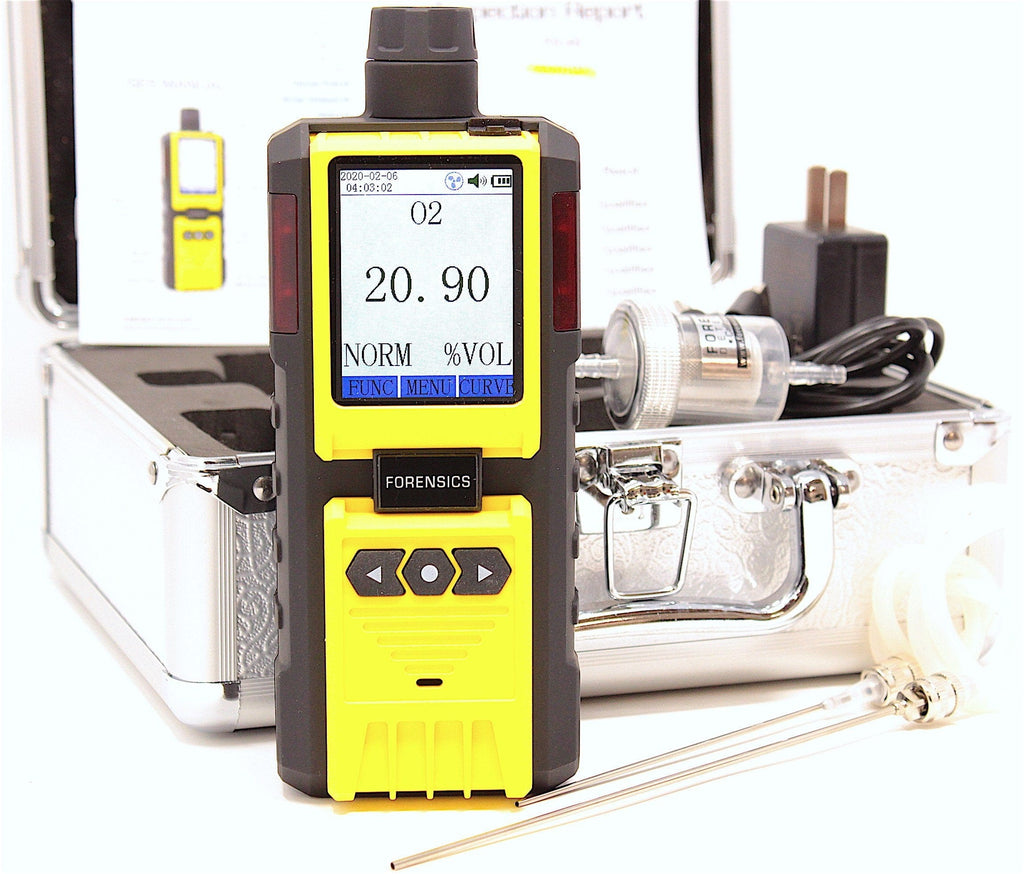

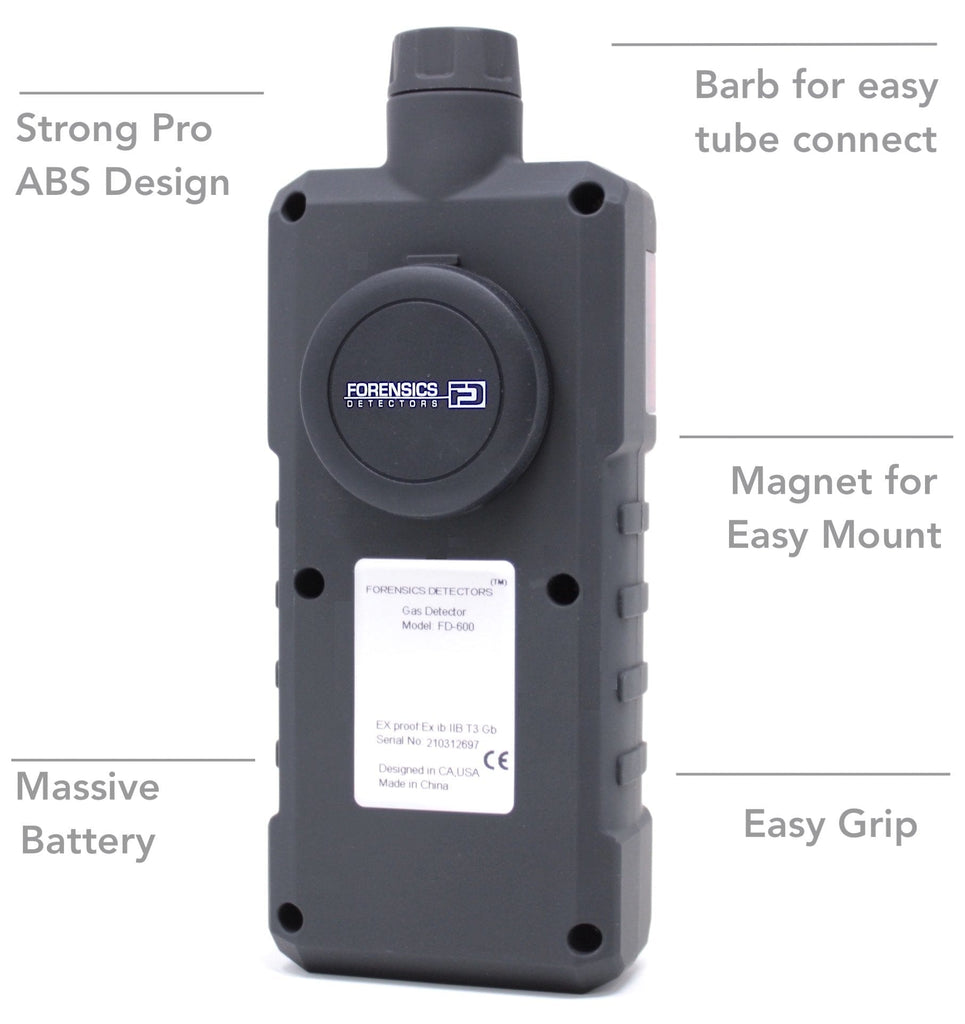

Included: O2 analyzer and magnet back, user manual, certified calibration certificate, USB charging cable, charger, 1 x 3-inch stainless needle probe, and 3 ft silicone tubing.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit Items (needed to calibrate yourself - sold separately):
Calibration T-piece & Tubing
Calibration Gas (N2)
Calibration Gas Regulator (C10)
Bump Gas (N2)
Accessories (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Waterproof Case
Gas Detector Stand
Air Gas Sample Probe
Tubing
Specifications
Oxygen (O2) Detection: 0 - 30% with 0.01% resolution
Gas Sensor: Electrochemical Gas Sensor (Made in the UK 🇬🇧)
Gas Sensor Life: 2 - 3 years
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: High-Definition Color LCD
Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11.0 oz (314 grams)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Alarm: LED Alarm
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
