Brand: FORENSICS DETECTORS
Model: FD-600-HA-O2
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
MAP Video Demo: Click Here
Features:
- 🎆 HEADSPACE ANALYSIS: An affordable oxygen headspace analyzer with a high-quality electrochemical sensor.

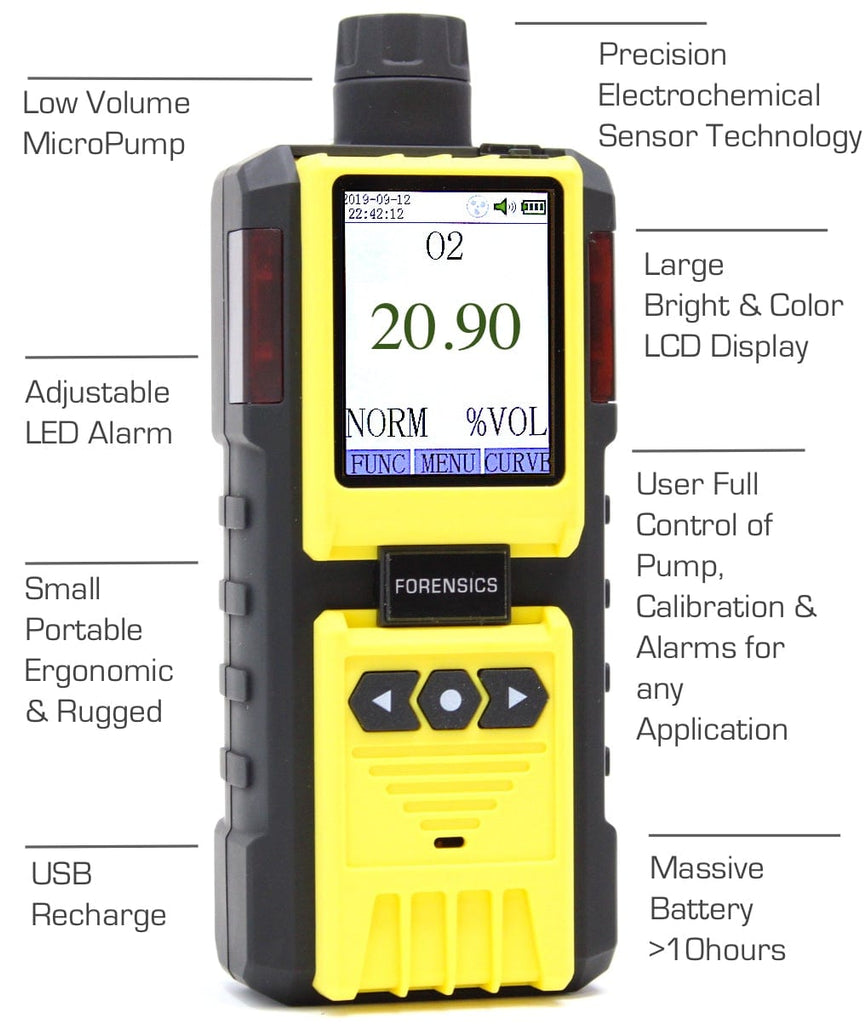

- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
- 📲 PACKAGE: Comes with syringes, filters, Luer lock connectors, and 100 septa.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: You don't need to break the bank for a quality headspace analyzer to measure your modified atmosphere packaged (MAP) products. The FORENSICS oxygen headspace analyzer is an excellent option for those undertaking nitrogen flushes and who must confirm low O2 content within their packaging. To ensure peak product freshness, confirming low oxygen is imperative. Since oxygen is the primary threat to shelf life, best practice dictates verifying its removal with a dedicated oxygen analyzer. This quality control step guarantees an optimal, low-oxygen headspace, effectively halting oxidation and preserving your product’s quality and flavor.

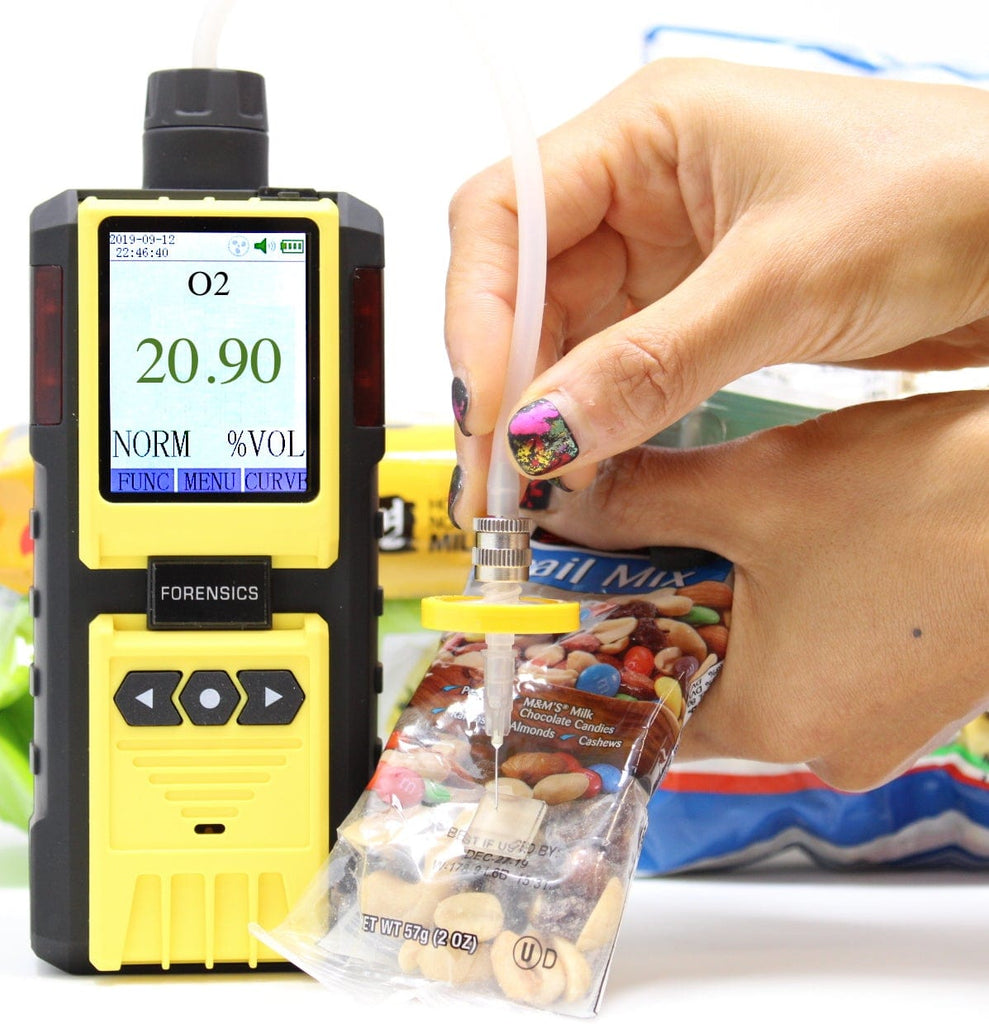

Based on our industrial analyzer platform, this analyzer includes a built-in pump that is easy to use and very portable. A demonstration of the unit on broccoli is presented, which serves as the perfect step-by-step analysis tutorial. Simply insert the needle tip of the probe into the food pack through a septa seal pad. The septa device provides a tight seal and prevents air from leaking into the package through the puncture hole. With full user control, the built-in pump draws in the small or large quantity of sample air required for analysis. The pump can be turned off at any time to sample the right amount of air, as packaging headspace varies from product to product. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is constructed with an advanced electrochemical oxygen sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control. Typical testing takes less than 30 seconds.

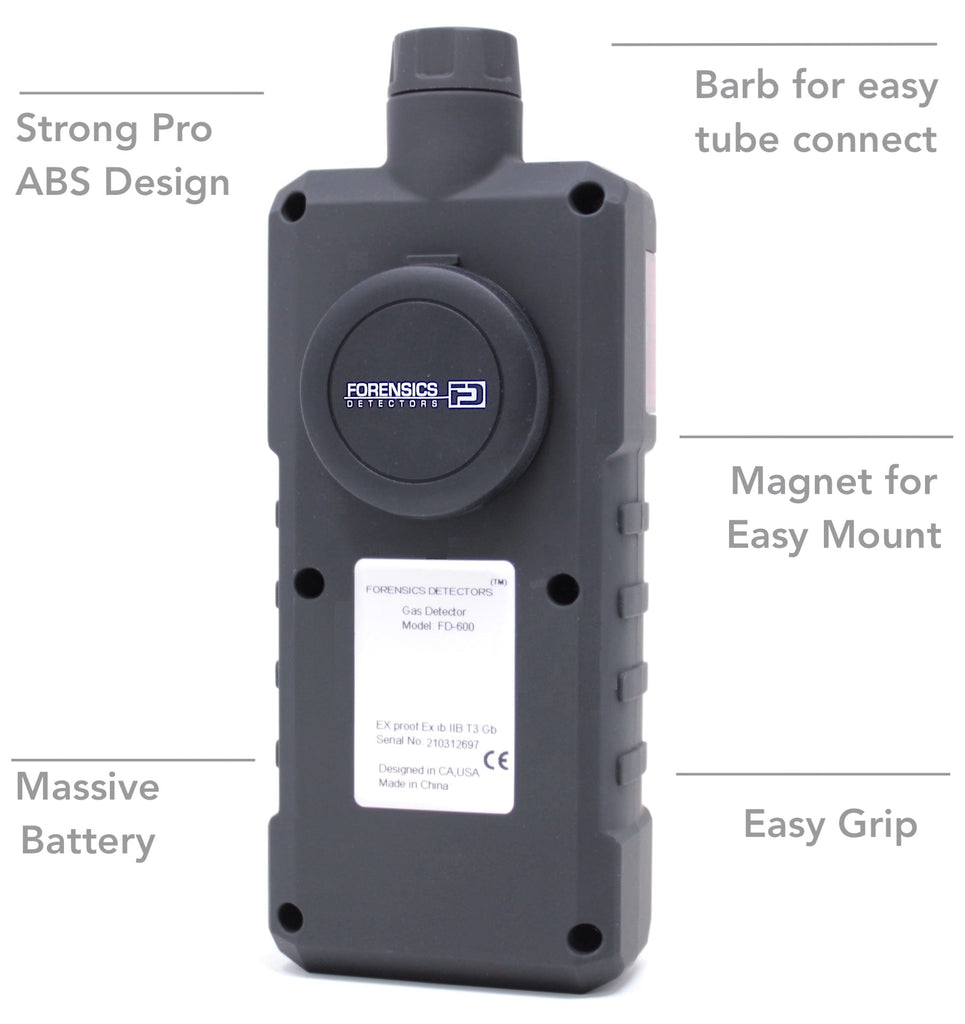

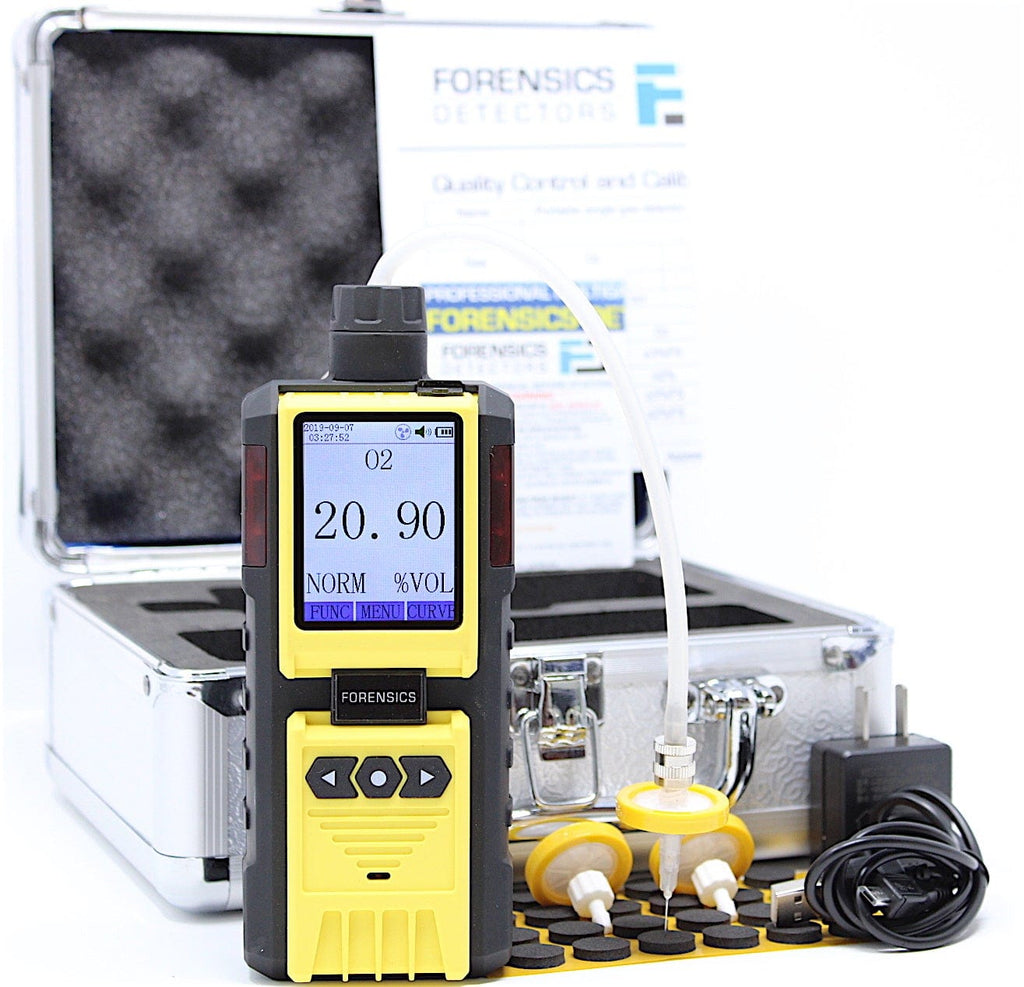

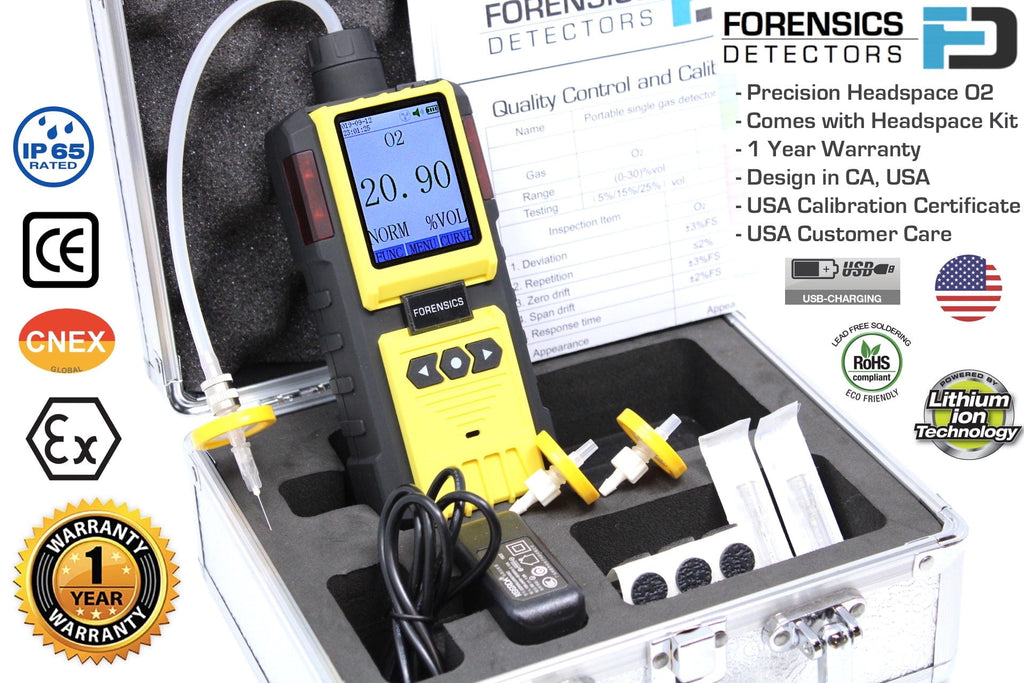

Included: Headspace O2 analyzer and magnet back, user manual, certified calibration certificate, USB charging cable, charger, 2 x needles, 2 x filters, 100 x adhesive septa, and tubing with Luer lock connectors.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit Items (needed to calibrate yourself - sold separately):
Calibration Gas (N2)
Calibration Gas Regulator (C10)
Calibration T-piece & Tubing
Bump Gas (N2)
Accessories (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Waterproof Case
Gas Detector Stand
Headspace Kit, Needles, Filters, Tubing, Septa
Specifications
Oxygen (O2) Detection: 0 - 30% with 0.01% resolution
Gas Sensor: Electrochemical Gas Sensor (Made in the UK 🇬🇧)
Gas Sensor Life: 2 - 3 years
Sampling Type: Pumped (built-in sampling pump)
Pump Rate: 0.3 - 0.5 LPM (300 - 500 cc/min)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: Yes (🛠️ Setup Guide)
Error: ≤ ± 3% F.S.
Response Time: <30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Display Type: High-Definition Color LCD
Battery: DC 3.7V Li-ion battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋PDF)
Protection Category: IP54
Weight: 11 oz (314 g)
Dimensions: 5.9 × 2.6 × 1.8 inches (14.9 × 6.6 × 4.6 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 10 hours
Minimum Required Headspace Volume: 200ml
Pump Rate: 0.1 LPM - 0.3 LPM (100 - 300 cc/min)
Alarm: LED Alarm
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
