Brand: FORENSICS DETECTORS
Model: FD-90A-O2-PUMP
Quick Start Guide: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- ⚛️ ACCURATE: Professional oxygen (O2) gas detector + PUMP (0.5 LPM 500 cc/min), 0 - 30% with 0.1% resolution.
- 🌇 DETECT: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: Professional series O2 detector with pump by FORENSICS. High precision for accurate measurements, robust fieldwork, research, inspections, occupational safety, industrial, and environmental applications. The pump allows for point probe or continuous sampling. Comes factory-calibrated. The detection range of O2 is 0 - 30% within 30 seconds, with an error of less than +/- 5% full scale. Advanced features include temperature detection, alarm recording, alarm setting, backlight, high-resolution LCD, and calibration. Not to be used as a continuous indoor monitor. Use FD-60-O2 for indoor continuous oxygen monitoring. Comes factory-calibrated. We also offer a built-in pump version, with our FD-600-O2-LEAK Oxygen Analyzer | Leak Purge & Weld Monitor.

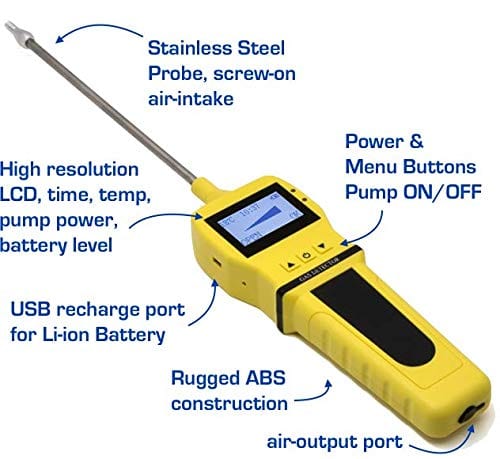

The handheld pump has a gas input from a stainless probe (8.6-inch length). Gas output is a male 3.2 mm tube connector that connects to standard aquarium tubing with a diameter of 3/16 in. The pump has a rechargeable DC 3.0V Li-battery 1500 mAh, charged via a USB connector. The pump LCD shows temperature detection, time, and date with a high-resolution backlight. The power load indicator of the pump resistance is also clearly shown, so the user has insight into the pump load. Ideal for point sampling of toxic gas or remote sampling (can operate up to 50 feet).
Included: Oxygen gas detector, user manual, computer USB charging cable, calibration cover, and certified calibration certificate. The pump unit comes with the pump, stainless probe, 3 ft silicone tubing, USB charging cable, and user manual.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
2. Calibration Guide: Calibrate It Yourself
Calibration Kit Items (needed to calibrate yourself - sold separately):
Calibration Gas (N2)
Calibration Gas Regulator (C10)
Bump Gas (N2)
Tubing
Accessories (sold separately):
Gas Sensor Replacement (O2)
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand

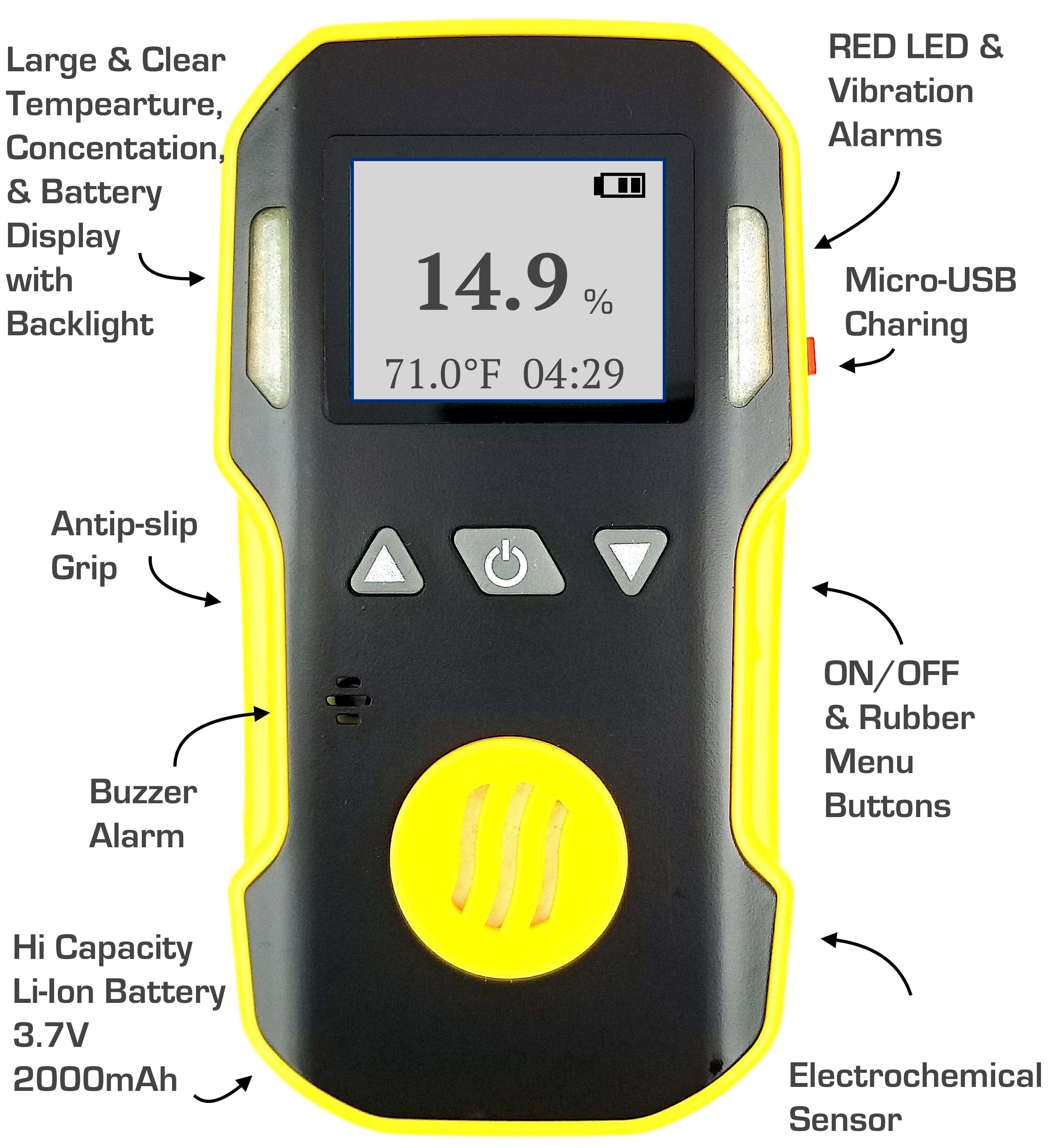

Detector Specifications
Oxygen (O2) Detection: 0 - 30% with 0.1% resolution
Gas Sensor: Electrochemical Gas Sensor (Made in the UK 🇬🇧)
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 sec
Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours
Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
Pump Specifications
Operating Temperature: 0°F - 140°F (-18 to 60°C)
Humidity: < 95% RH non-condensing
Voltage: DC 3.0V Li-battery 1800 mAh
Flow Rate: 0.5 LPM (500 cc/min)
Noise: < 60 dB
Weight: 5 oz / 140 g
Dimensions: 2.6 × 1.2 × 8.9 inches (6.5 × 3.0 × 22.5 cm)
