Brand: FORENSICS DETECTORS
Model: FD-UVO3
YouTube: Software Installation and Data Logging
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- 🌈 DISPLAY: High precision 0.001 ppm (1 ppb) resolution. Range of 0 - 50 ppm.
- 🔬 SUPERIOR: UV absorption 254 nm mercury lamp sensing technology produces the most accurate and precise ozone measurements.
- 📲 COMMS: RS485 to USB enables computer calibration and data logging.
- 💪 EASY: No buttons, just an ON/OFF switch. Comes in a waterproof travel carry case. No extra accessories are needed. NIST ozone-traceable source calibration in Los Angeles, California.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: One of the most advanced UV ozone analyzers on the market, small and easy to use. The ozone analyzer employs UV absorption sensing technology, using a 254 nm UV mercury lamp. Perfect for analytical applications such as research and development, experiments, ambient measurements, emissions, and process control. The ozone analyzer has no buttons, just an ON/OFF switch for easy use. No complicated menus or setup is required. In addition, the device provides full control for advanced users via RS485 Modbus control. The analyzer is encased in a high-quality aluminum housing with a mountable front panel. Outside of yearly calibration to ensure peak performance, the instrument requires no maintenance. Please note that ozone is a unique gas and cannot be calibrated with a calibration gas bottle setup like most gas analyzers. Order your ozone calibration service, which must be performed in our laboratory with special calibrated equipment necessary to perform ozone gas detector calibration. If you require a more basic O3 detector, we recommend our handheld Ozone meter.

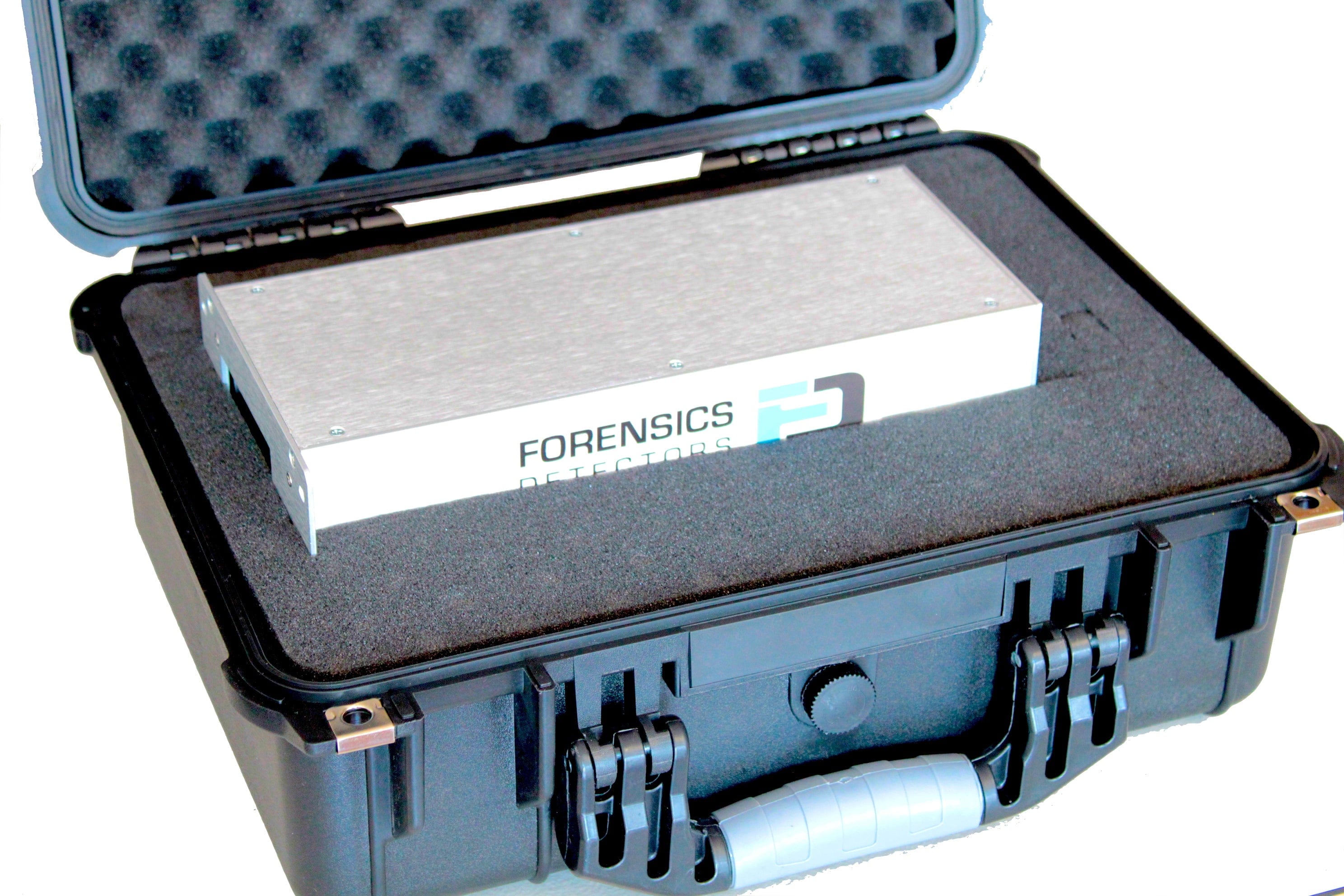

Included: FD-UV03 analyzer, power converter, RS485 to USB cable and connectors, waterproof travel carry case, T-piece, silicone tubing, user manual, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
Calibration Kit:
No ozone calibration gas kits exist for ozone since ozone gas must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and using our ozone bump tester to validate operation via bump testing.
Accessories (DIY sold separately):
Ozone Bump Tester
Specifications
Gas Detection: Ozone (O3)
UV Source: 254 nm mercury lamp
Auto Range: Automatically selects between Ranges A and B
Range A: 0–9.999 ppm, Resolution: 0.001 ppm, Error: ±0.05 ppm
Range B: 10.00–50.00 ppm, Resolution: 0.01 ppm, Error: ±0.2 ppm
Analog Signal Outputs: Digital LCD display, 0–5 V, 4–20 mA, RS-485 Modbus
Error: Range A or B specified error, or 2% of reading, whichever is greater
Response Time: < 60 sec
Sampling Type: Pumped (built-in sampling pump)
Gas Sensor Type: Ultraviolet gas absorption sensor cell
UV Source Life: 8,000 to 12,000 hours
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Calibration Method: Computer-based calibration via RS-485 Modbus connection
Datalogging: Yes | 🛠️ Setup Guide
UV Lamp Warm-Up Time: 10 minutes
Store / Operating Temperature: 32 to 104°F (0 to 40°C)
Store / Operating Humidity: <90%RH

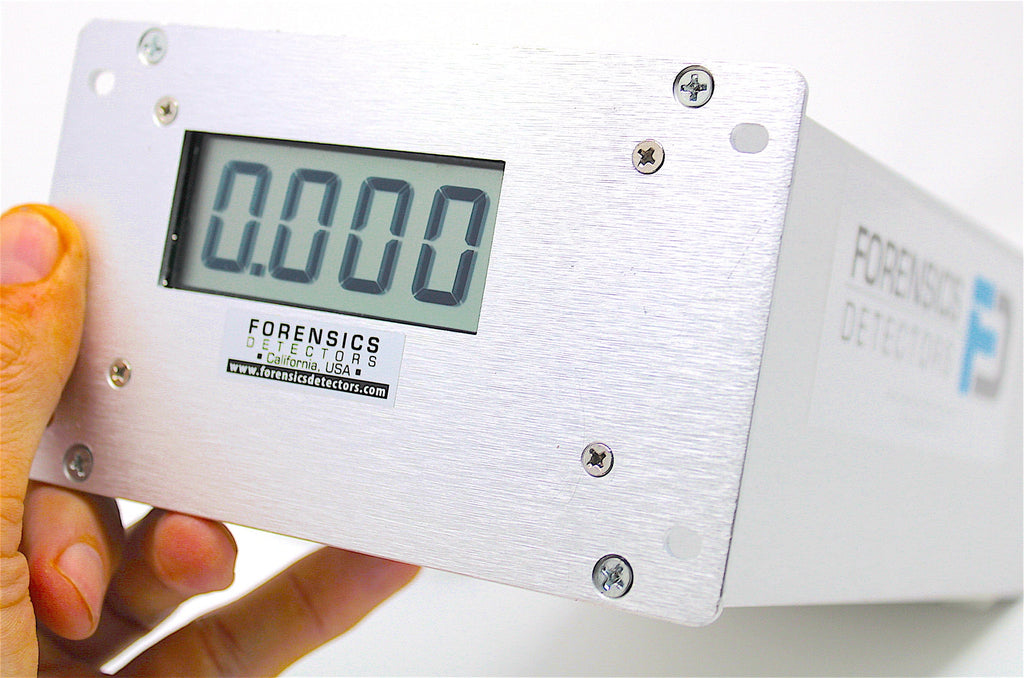

Display: Backlit monochrome LCD
Power Source: 24 V DC at 1 A
Input Flow Rate: Greater than 0.5 L/min

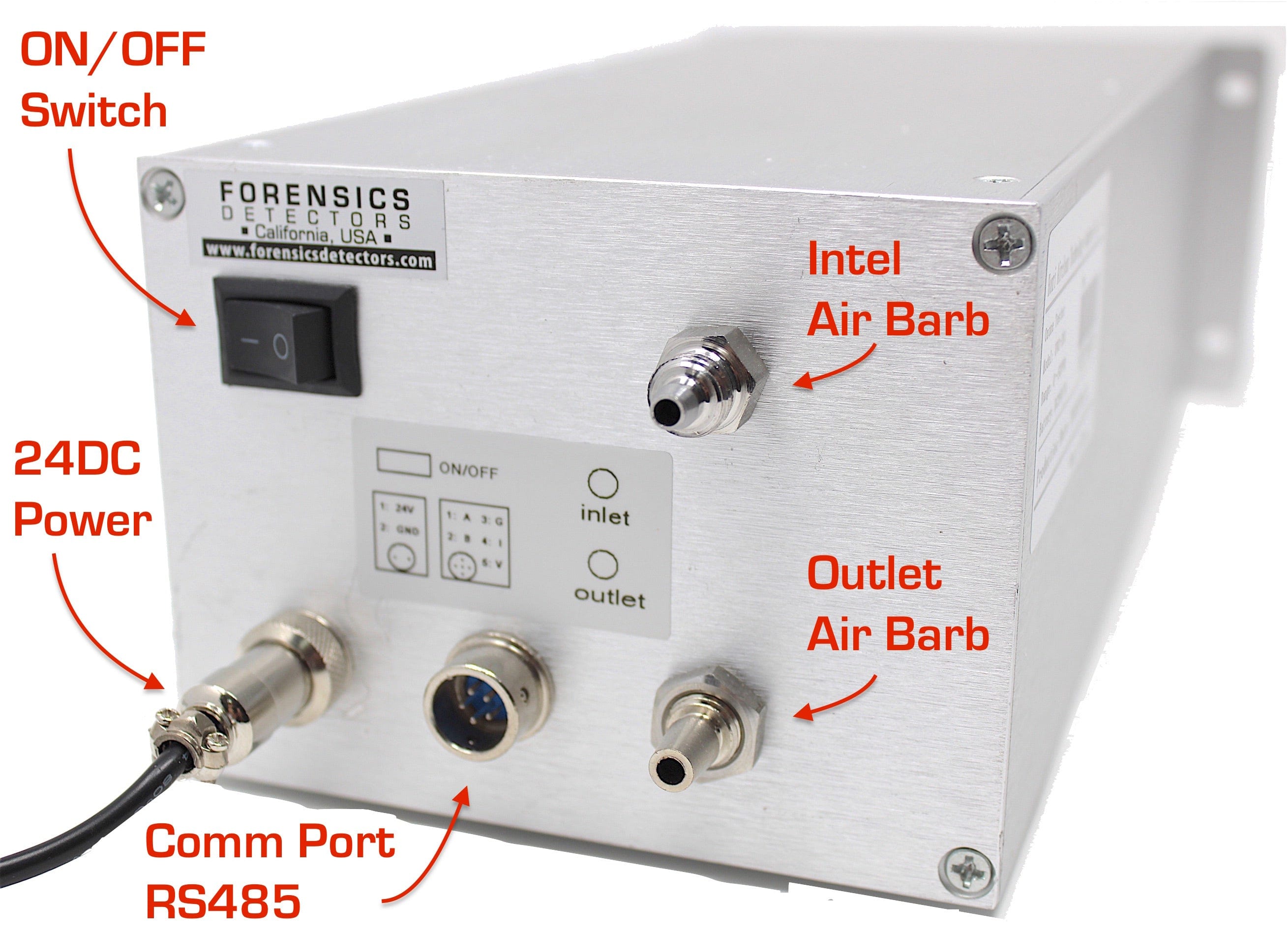

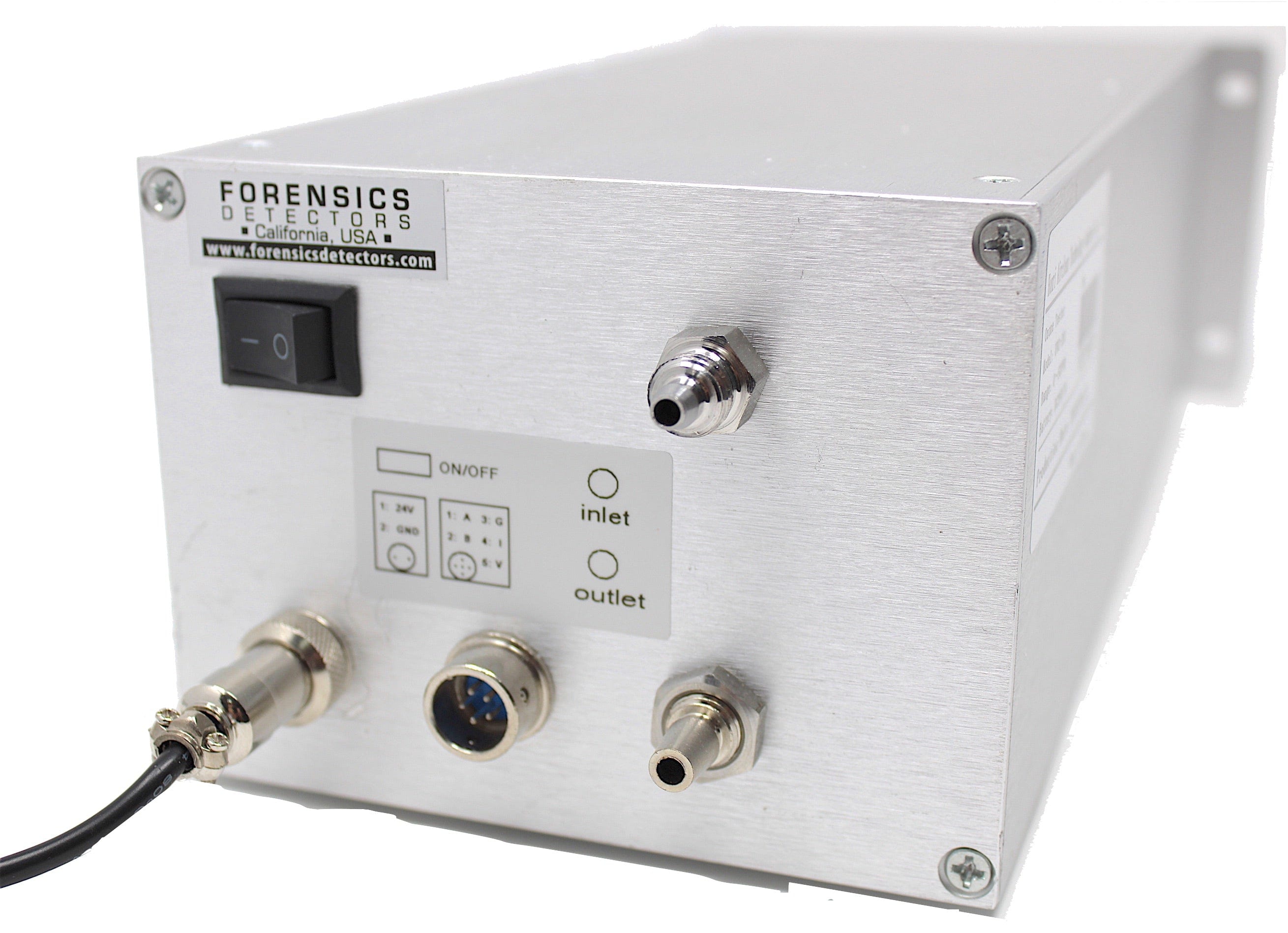

Inlet Air Connector: 1/4-inch barb and 1/2-inch thread
Dimensions: 4.75 × 11.25 × 3.60 inches (12.1 × 28.6 × 9.1 cm)
Housing Material: Aluminum
Weight: 4.7 lbs / 2.0 kg
Warranty: 1 year
Alarm: None
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST-traceable gas source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL-traceable gas source
