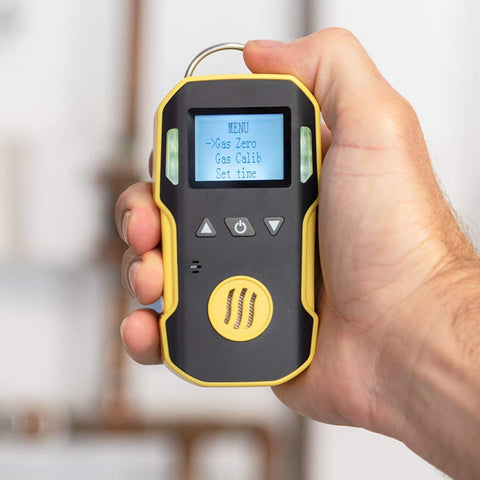

Ozone Detector | USA NIST Calibration

Brand: FORENSICS DETECTORS
Model: FD-90A-O3
YouTube: How to Measure Ozone?
User Manual: Click Here
Blog Article: Click Here

Features:

• ⚛️ DETECT: Professional and accurate OZONE (O3) gas detector, 0 - 20 ppm with 0.1 ppm resolution. Electrochemical sensor. Comes FACTORY-CALIBRATED with NIST traceability. Turn ON and GO.
• 🌷 ACCURATE: Electrochemical cell sensor with accuracy ≤ ± 5% F.S. and response time: < 30 sec. Zero and span calibration options.
• 🎆 ALARMS: Adjustable audio, visual, and vibration alarms. Temperature, battery, and time tracking.

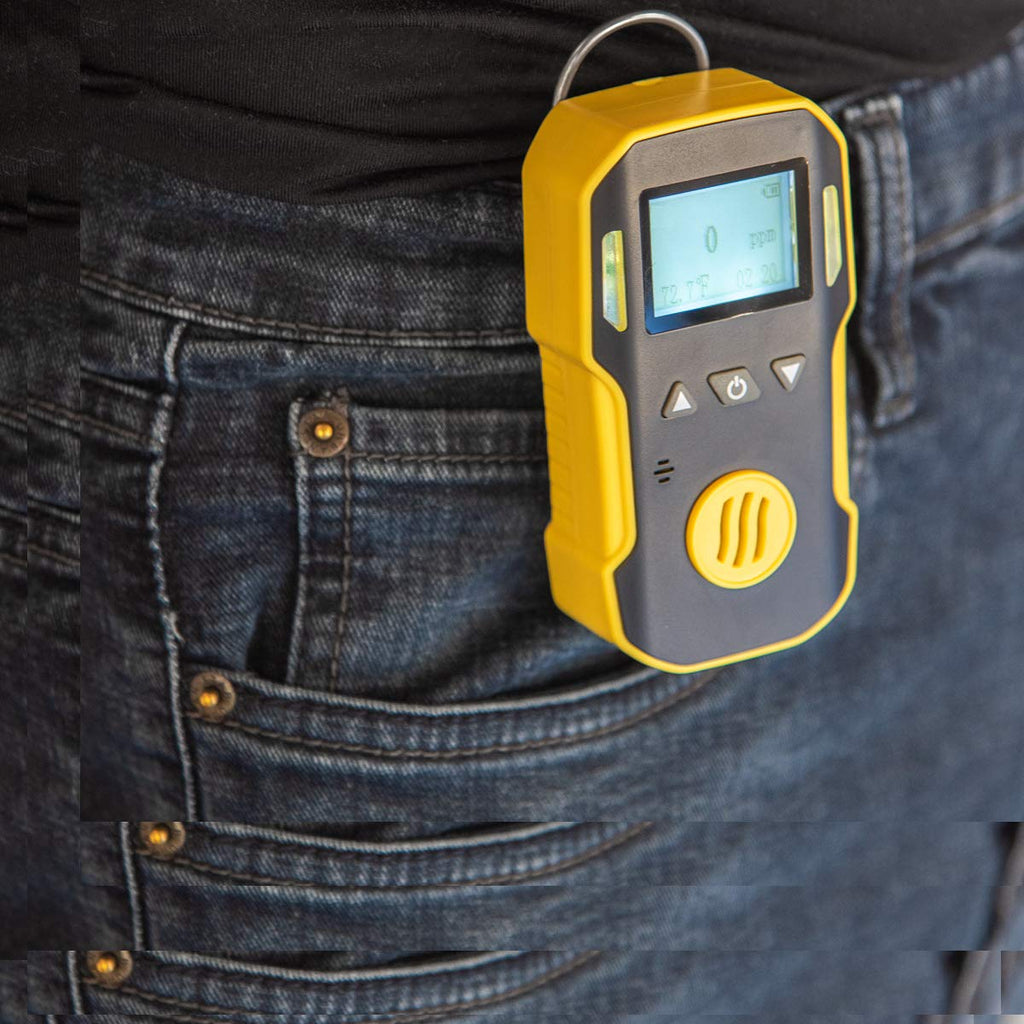

• 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof. Belt clip, charger, cable, and case included.
• 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates with NIST traceability ** Product tested and verified in the USA **

Details: Best in class, professional OZONE (O3) gas detector by FORENSICS has advanced features, a wide range of functions, and the highest quality electrochemical sensor. Comes factory-calibrated. The detection range of O3 is 0 - 20 ppm within 30 seconds at an accuracy < +/- 5% full scale. The detector has a DC 3.7V Li-battery 1500 mAh that allows > 24 hours of continuous use. Advanced features such as temperature detection, alarm recording, alarm setting, time, backlight high-resolution LCD, calibration features, and others are all included. Although ozone gas is used in many applications as a "sanitizing" agent, too much can be harmful. Ozone is a reactive gas and a well-documented air pollutant and irritant. The NIOSH immediately dangerous to life or health (IDLH) ozone level is set to 5 ppm or higher. Please note that ozone is unique gas and cannot be calibrated with a calibration gas bottle setup like most gases. Order your ozone calibration service which must be performed in our laboratory with special NIST calibrated equipment necessary to perform ozone gas detector calibration.

Included: Gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Kit:
No ozone calibration gas kits exist for ozone since ozone gas (NIST traceable calibrated) must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and using our ozone bump tester to validate operation via bump testing.

Accessories (sold separately):
Ozone Bump Tester

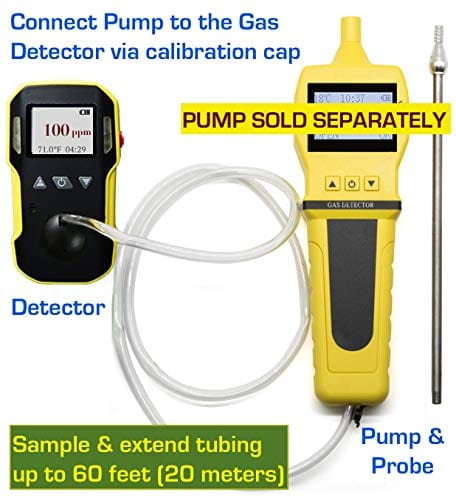

Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (O3)

Calibration Service (sold separately):
Gas Detector Calibration Service

Specifications

Ozone Gas (O3) Detection: 0 - 20 ppm with 0.1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Error: ≤ ± 5% F.S
Response Time: < 30 sec

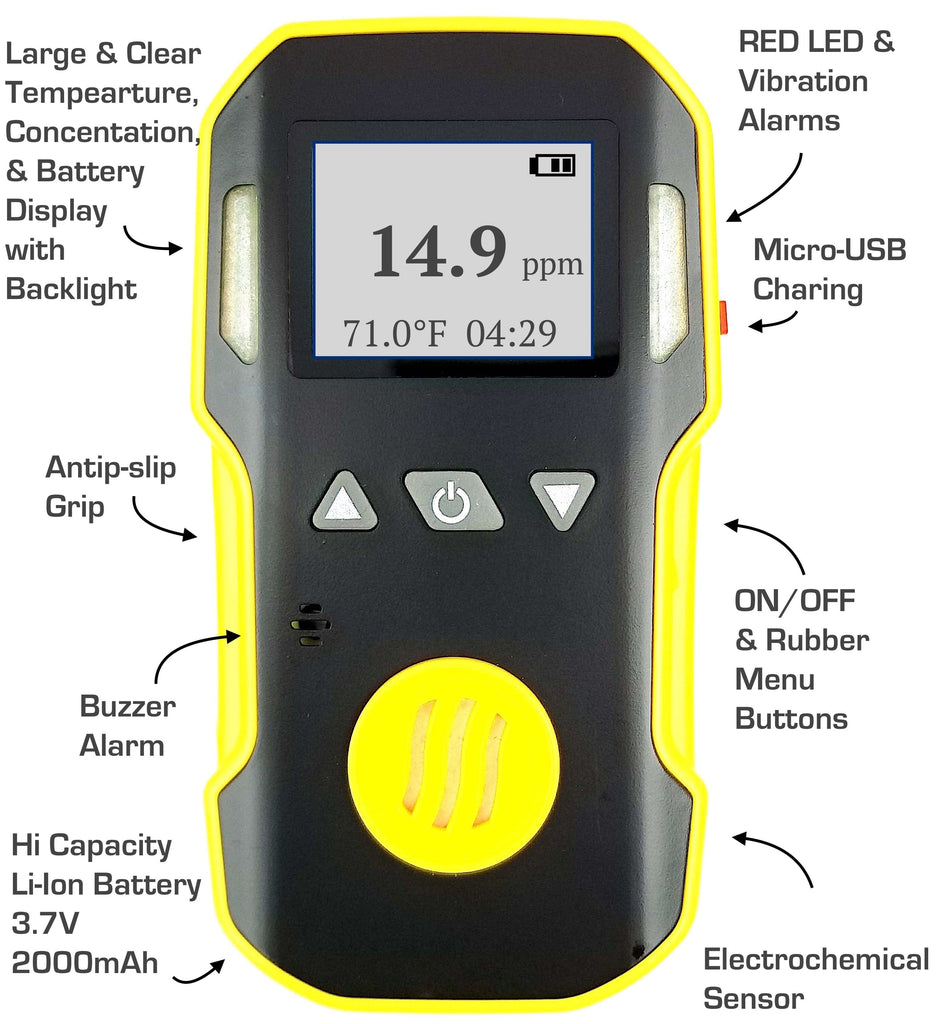

Indicators: LCD indicates the time, concentration, internal temperature, and battery level
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Store / Operating Temp: 0°F - 122°F
Store / Operating Humidity: <95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Protection Category: IP65
Explosion Rating: ATEX certified Ex ib IIB T3 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
