Brand: FORENSICS DETECTORS
Model: FD-600M-O3
Data Logging: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- 📊 GAS DATA LOGGER: Data logging functions with a built-in TF Memory Card (512MB) able to store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec.
- 🎆 DETECT: Ozone analyzer measuring 0-20 ppm with 0.1 ppm resolution.
- 🌈 COLOR DISPLAY: Color screen and graph functions allow for easy and intuitive operation.
- 📲 ALARMS: Adjustable low and high alarms.
- 💪 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-resistant, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.
Details: Looking for a top-quality ozone gas data logger? This is it. It has the advanced features of a high-end ozone detector with graphing and data-logging functionality. The data logging function is built in, which means the unit can run by itself, and the data will be captured by its internal Memory Card (512MB) that can store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec. The internally logged data is then retrieved by connecting a Type-C USB cable to a computer and viewing the logged *.CSV files, just like you would with an external USB drive. Very easy and simple, with no extra software required. The *.CSV file can then be imported into EXCEL to graph and manipulate as required.
If you want it to log data continuously with a long sample rate, then no problem. Just set the sample rate to a high value, plug the unit into cable power so it stays on and keeps charging, and you are good to go for many days of sampling.
This powerful Ozone Analyzer has a built-in pump allowing for super-fast detection & response and comes with a 4ft probe that is perfect for sampling ozone gas. If you require a more basic ozone detector monitor, we recommend our handheld ozone detector. Otherwise, for those who don't require a data logger function, a more affordable Ozone analyzer is recommended. Other ozone detectors are also available.
Ozone analyzers measure ozone concentrations in air, a critical parameter in various applications. In air quality monitoring, they help assess ozone levels and their impact on human health and the environment. Ozone analyzers are also used in water treatment to ensure proper disinfection, and in industrial settings to monitor ozone generation and control processes for safety and efficiency.
Included: Ozone Data Logger Analyzer, User manual, USB charging cable, charger, analyzer case, 4ft telescopic stainless probe, tubing, and certified calibration certificate.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
Calibration Kit:
No ozone calibration gas kits exist for ozone since ozone gas must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and using our ozone bump tester to validate operation via bump testing.
Accessories (needed to calibrate yourself - sold separately):
Ozone Bump Tester
Gas Detector Stand
Gas Sensor Replacement (O3)

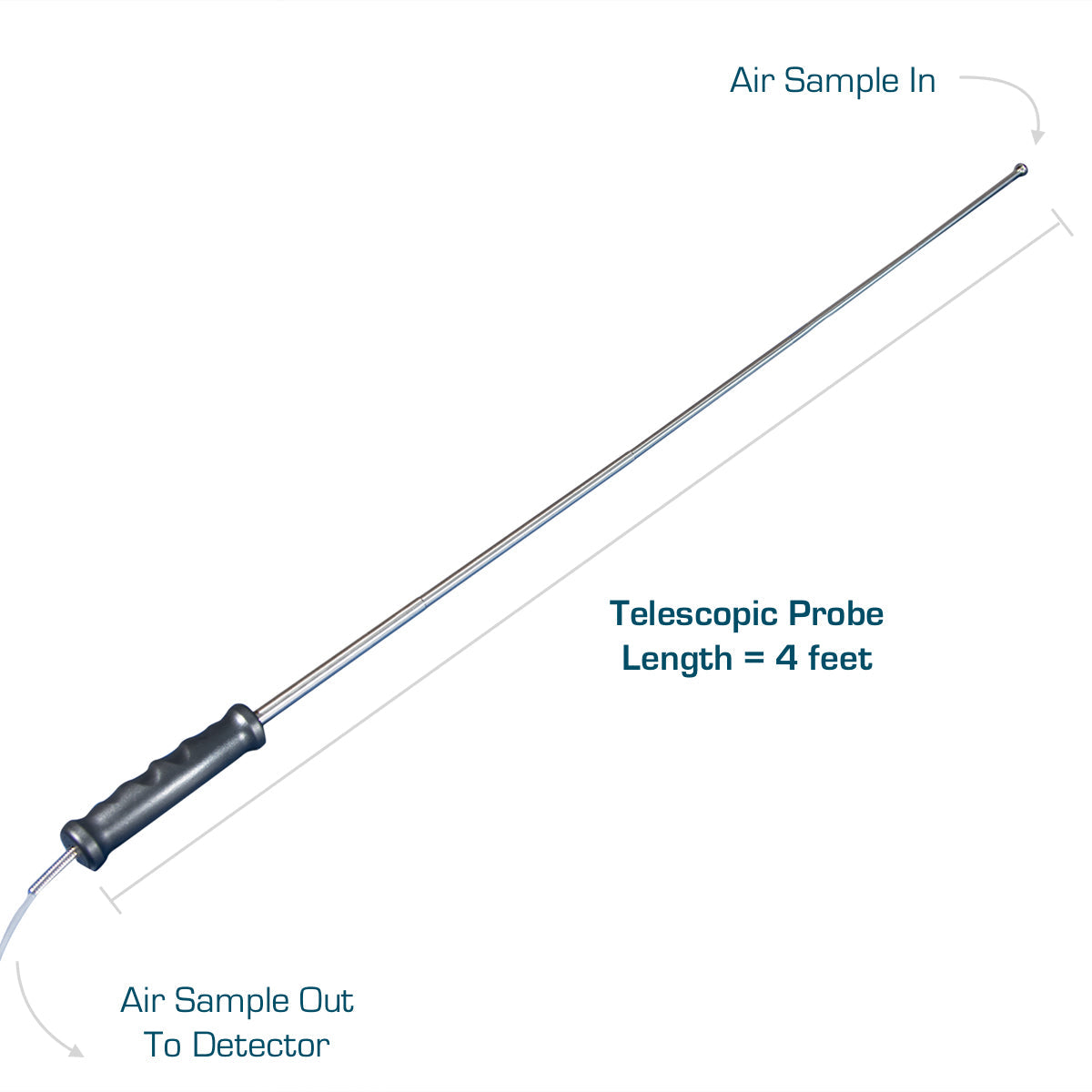

Telescopic Probe
Tubing (3ft)
Specifications
Ozone (O3) Range: 0 - 20 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 to 3 years
Sampling Type: Pumped (built-in sampling pump)
Pump Flow Rate: 0.3 to 0.7 LPM
Pump Noise: < 60 dB
Inlet Air Barb: 3 mm (1/8 inch) outer diameter barb
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: Yes (🛠️ Setup Guide)
Analog Signal Output: No
Error: <±5% F.S.
Response Time: < 30 seconds
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Battery: DC3.7V Li-Ion battery 4000mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Charging Time: 4 hours
Operation Time: > 5 hours
Analyzer Dimensions: 9.1 × 3.4 × 2.4 inches (23 × 9 × 6 cm)
Analyzer Weight: 28.2 oz (800 g)
Housing Material: ABS and rubber

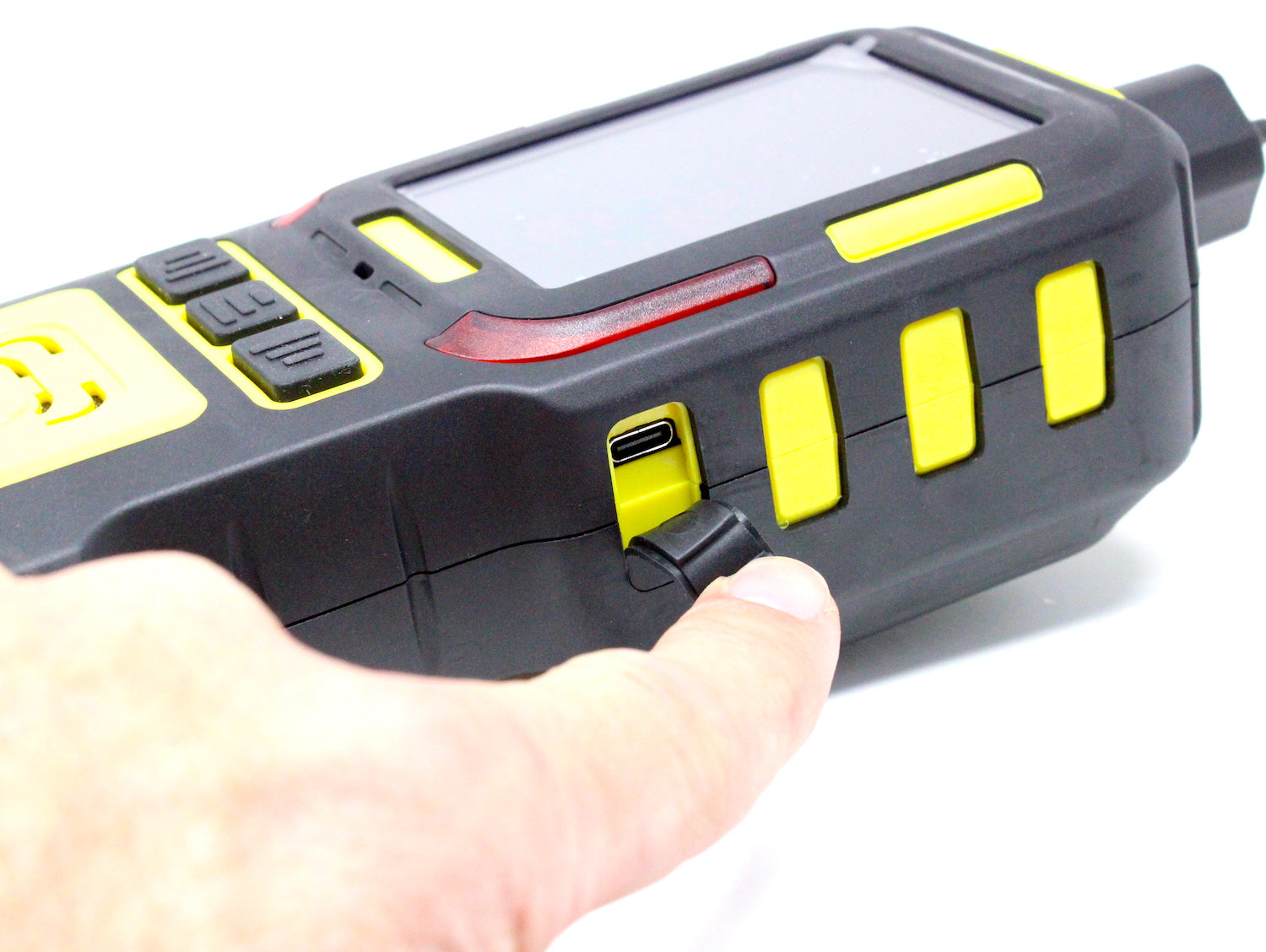

Charger Port: USB Type-C (use at least a 2A/5V charger)

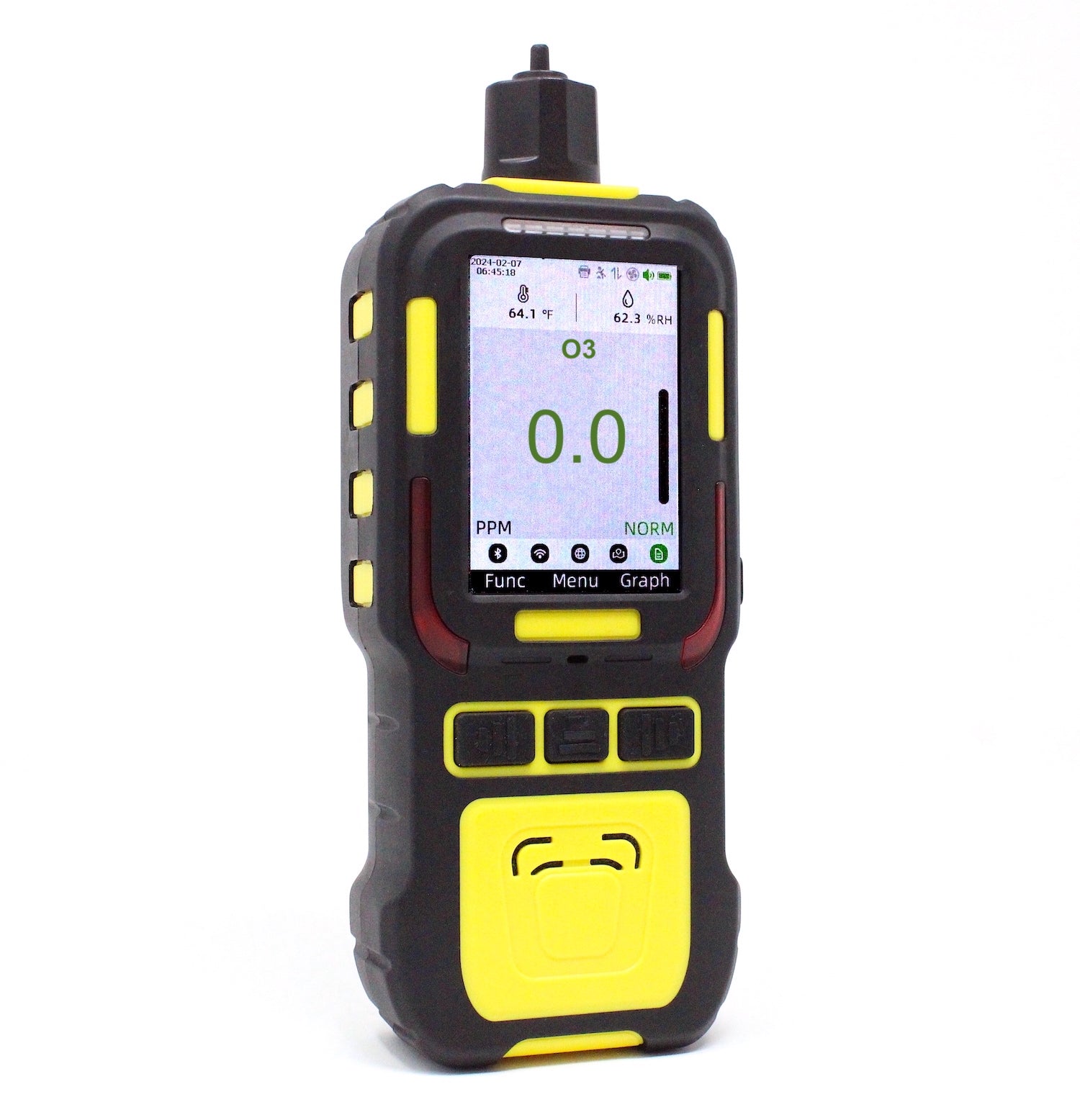

Display: 3.5-inch color HD display
Carry Case Weight: 4.2 lb (1.9 kg) with analyzer & accessories
Carry Case Dimensions: 11.7 x 8.3 x 3.8 inches (30 × 21 × 10 cm)
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
