Brand: FORENSICS DETECTORS
Model: FD-90A-O3-PUMP
Quick Start Guide: Click Here
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- ⚛️ ACCURATE: Ozone (O3) gas detector + PUMP (0.5 LPM, 500 cc/min) to detect 0 - 20 ppm with 0.1 ppm resolution. Electrochemical sensor.

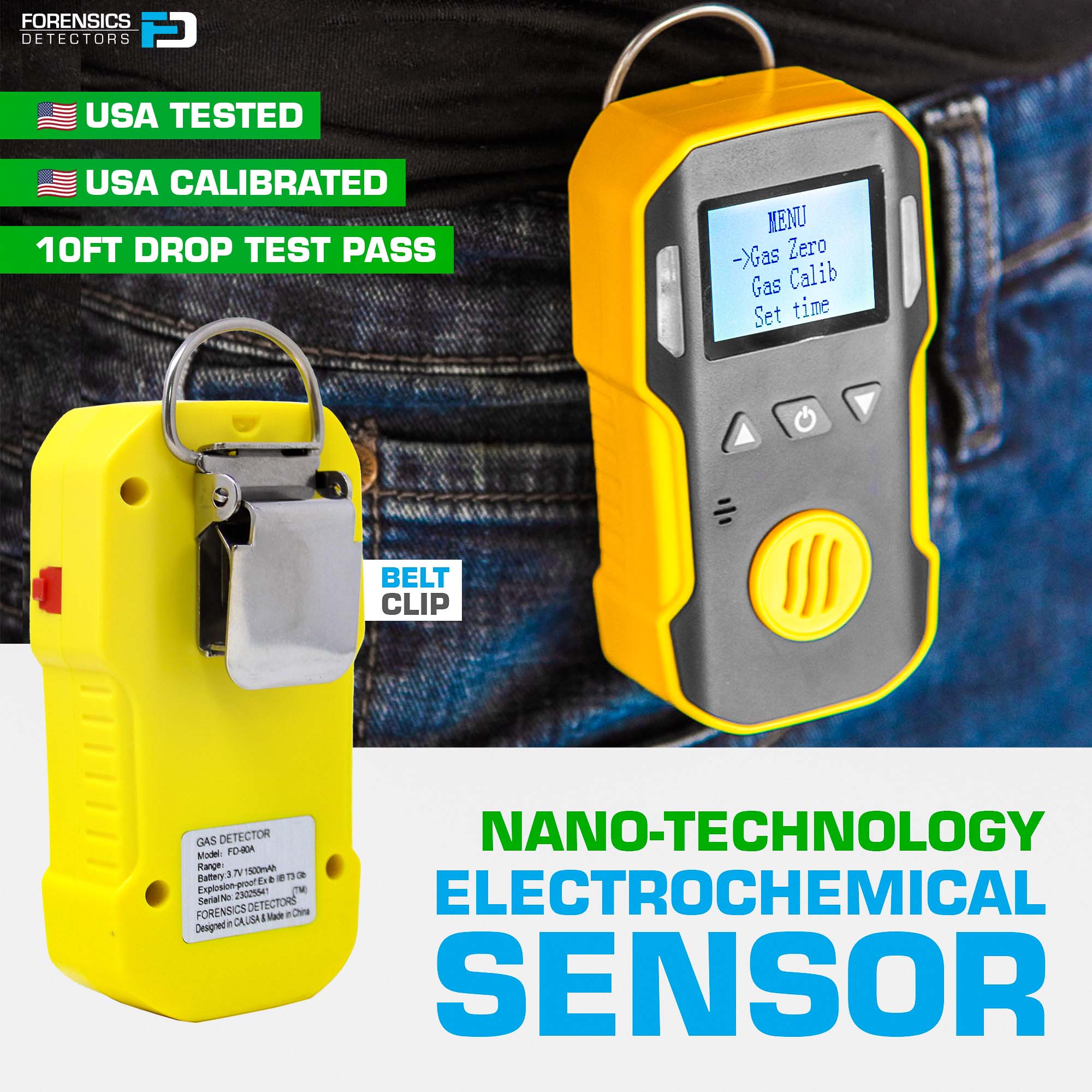

- 🔬DETECT: Electrochemical NANO-GAS sensor.
- 🎆 ALARMS: Adjustable audio, visual, and vibration alarms.
- 💪 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

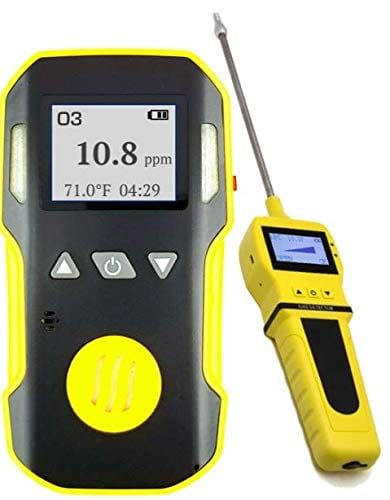

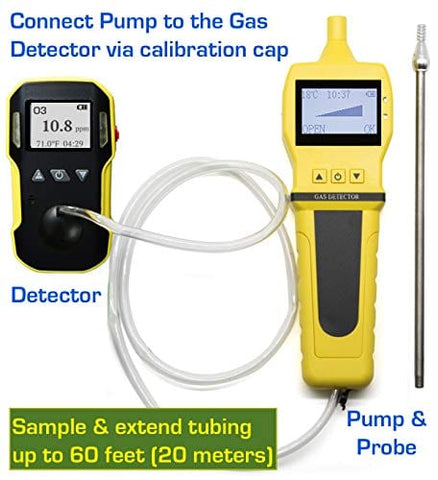

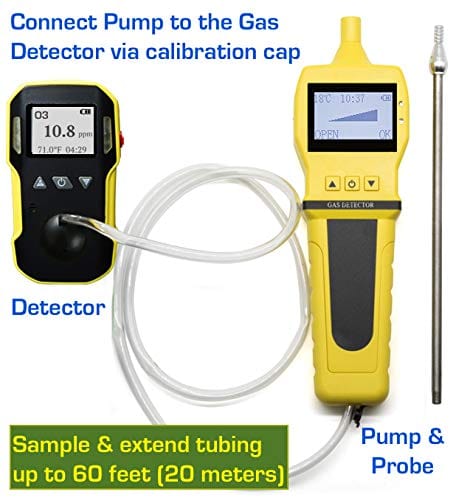

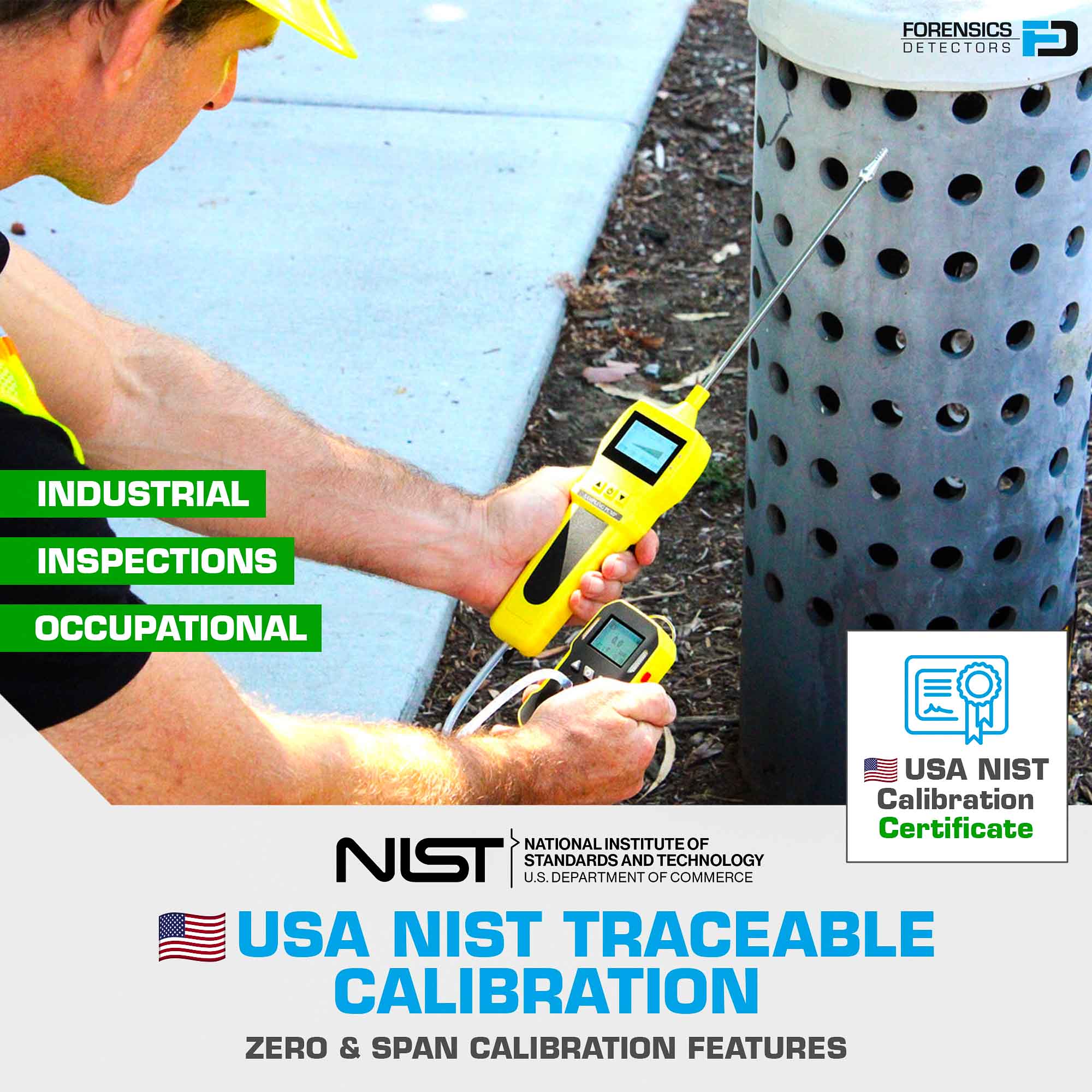

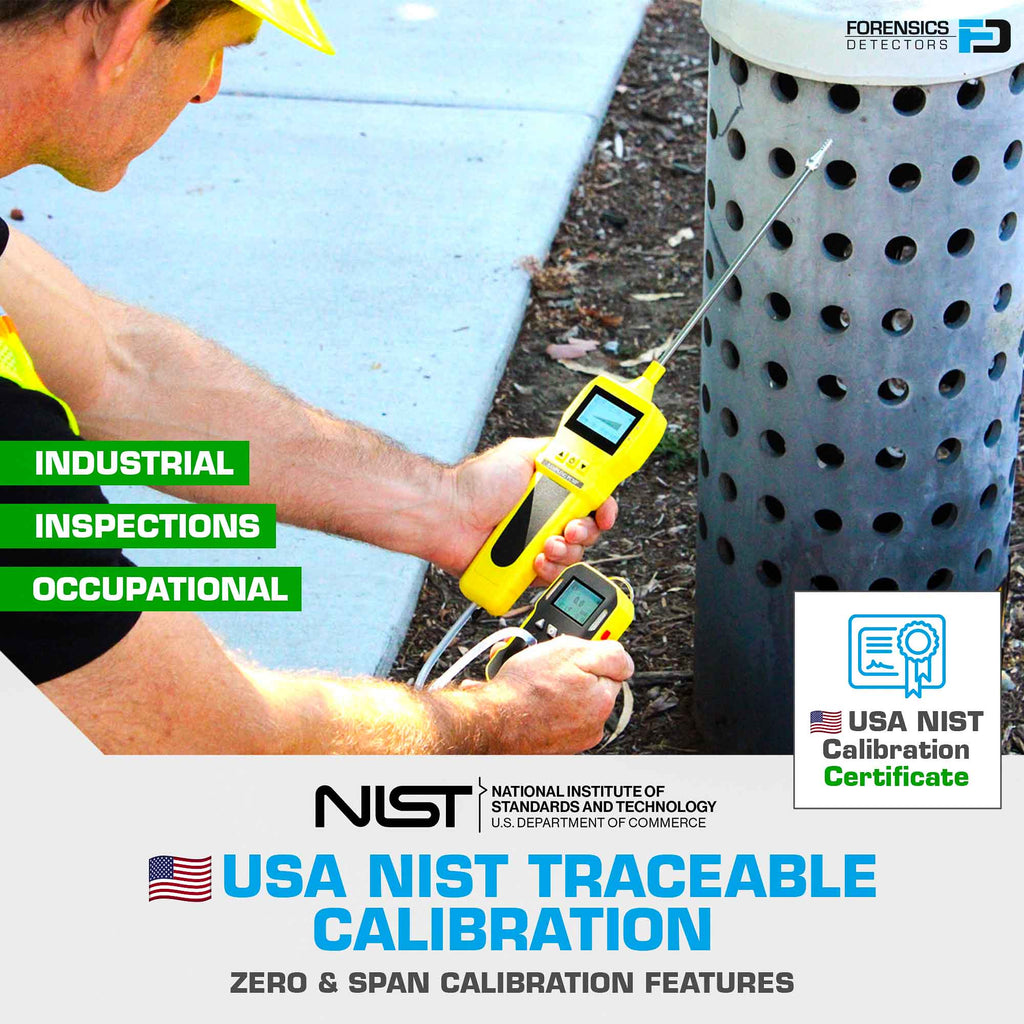

Details: The professional OZONE O3 gas detector + pump (0.5 LPM) by FORENSICS is the best in its class with all advanced features and functions. The detector and pump setup is used to perform point or continuous sampling in remote locations. Be attentive to ozone; it decays quickly, so keep the tubing as short as possible. Also, ozone cannot be calibrated with a gas bottle. Please note that ozone is a unique gas and cannot be calibrated with a calibration gas bottle setup like most gases. Order your ozone calibration service , which must be performed in our laboratory with special calibrated equipment necessary to perform ozone gas detector calibration. We also offer a built-in pump version with our FD-600-O3 OZONE Analyzer. Please note that detecting ozone is not easy. It is a special gas. It degrades; it is heavy and sticky. Review our best practices guide to ozone measurements.

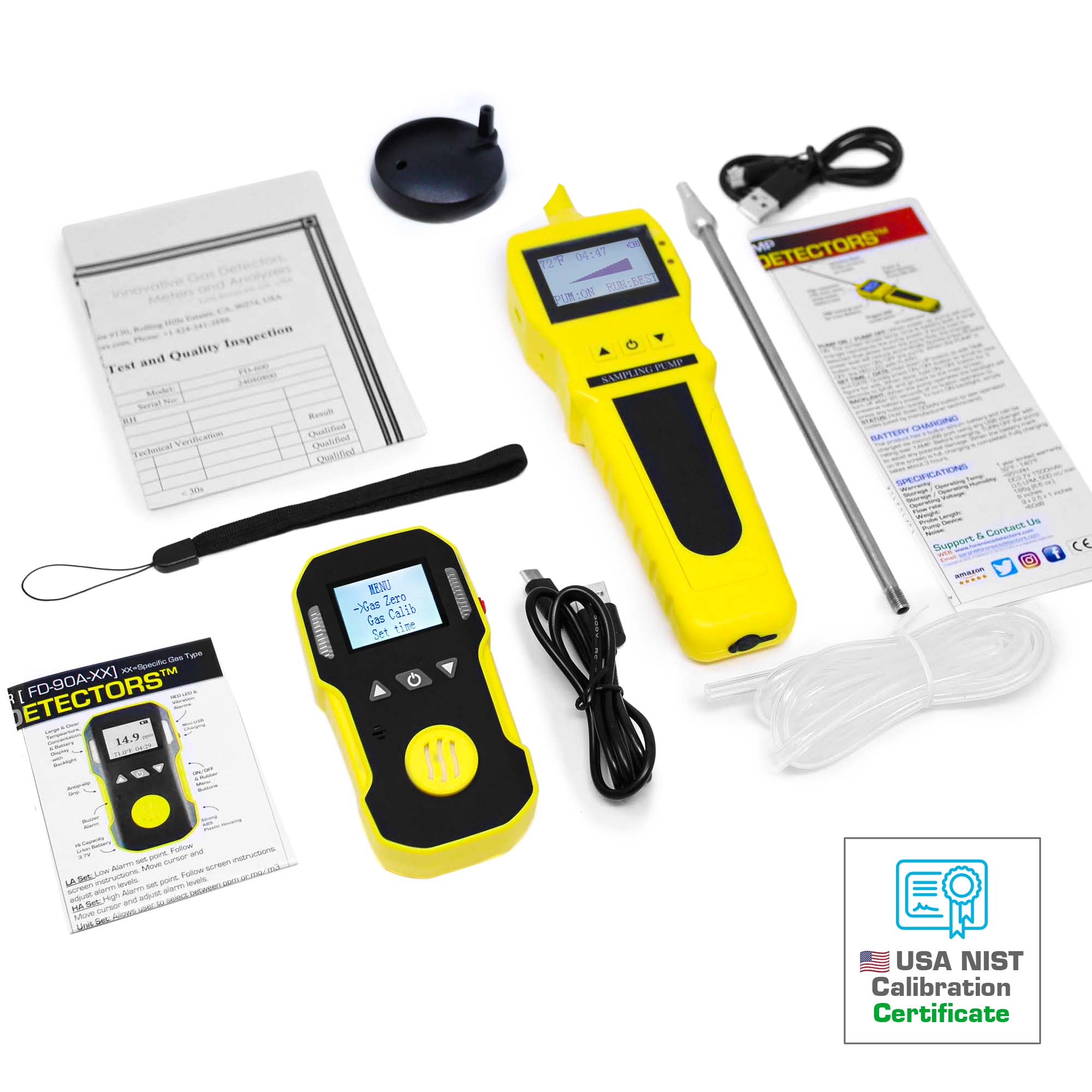

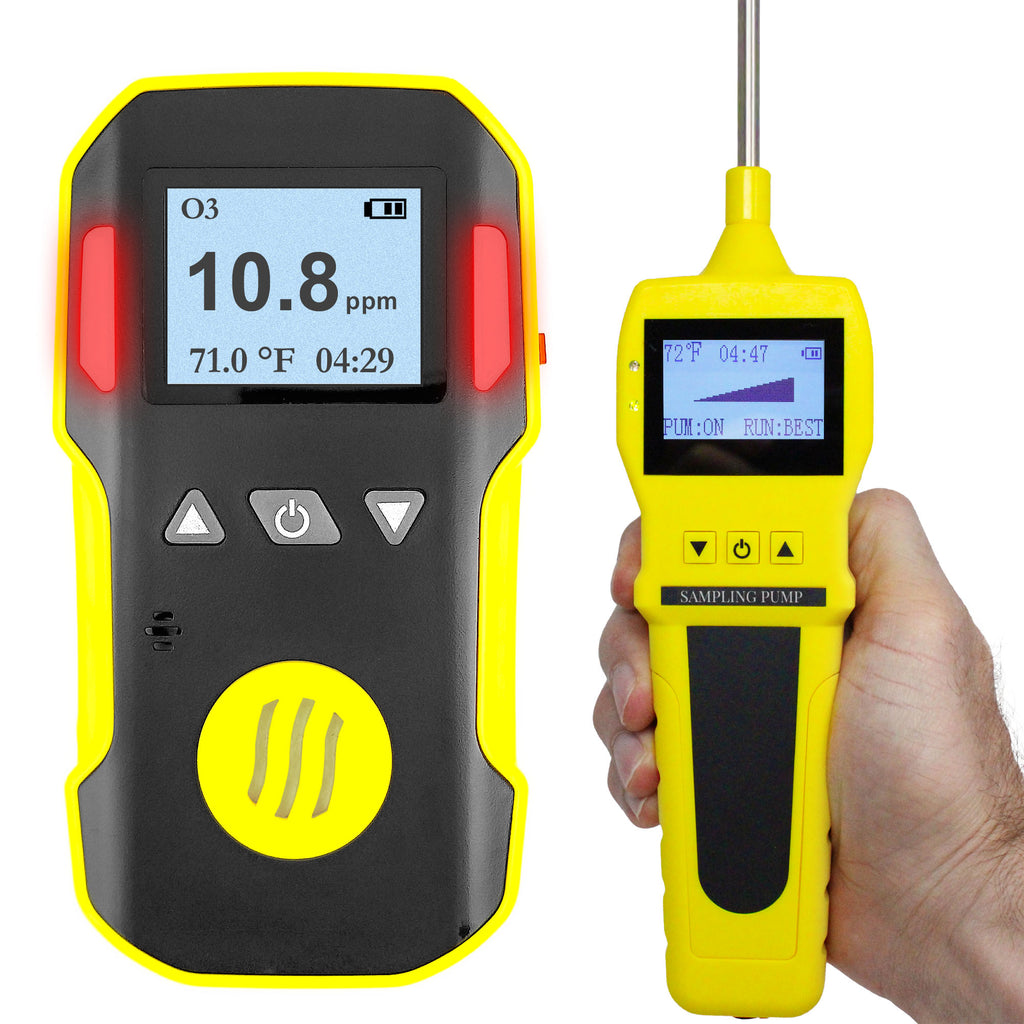

Included: Ozone gas detector, user manual, computer USB charging cable, calibration cover, and certified calibration certificate. The pump unit comes with the pump, stainless probe, 3 ft silicone tubing, USB charging cable, and user manual.
Calibration Options:
1. Professional Calibration: Serviced by Forensics
Calibration Kit:
No ozone calibration gas kits exist for ozone since ozone gas (NIST-traceable calibrated) must be generated in a special lab. We recommend using our calibration service to calibrate your ozone detector and using our ozone bump tester to validate operation via bump testing.
Accessories (sold separately):
Ozone Bump Tester
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (O3)
Detector Specifications
Ozone Gas (O3) Detection: 0 - 20 ppm with 0.1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: < 30 sec

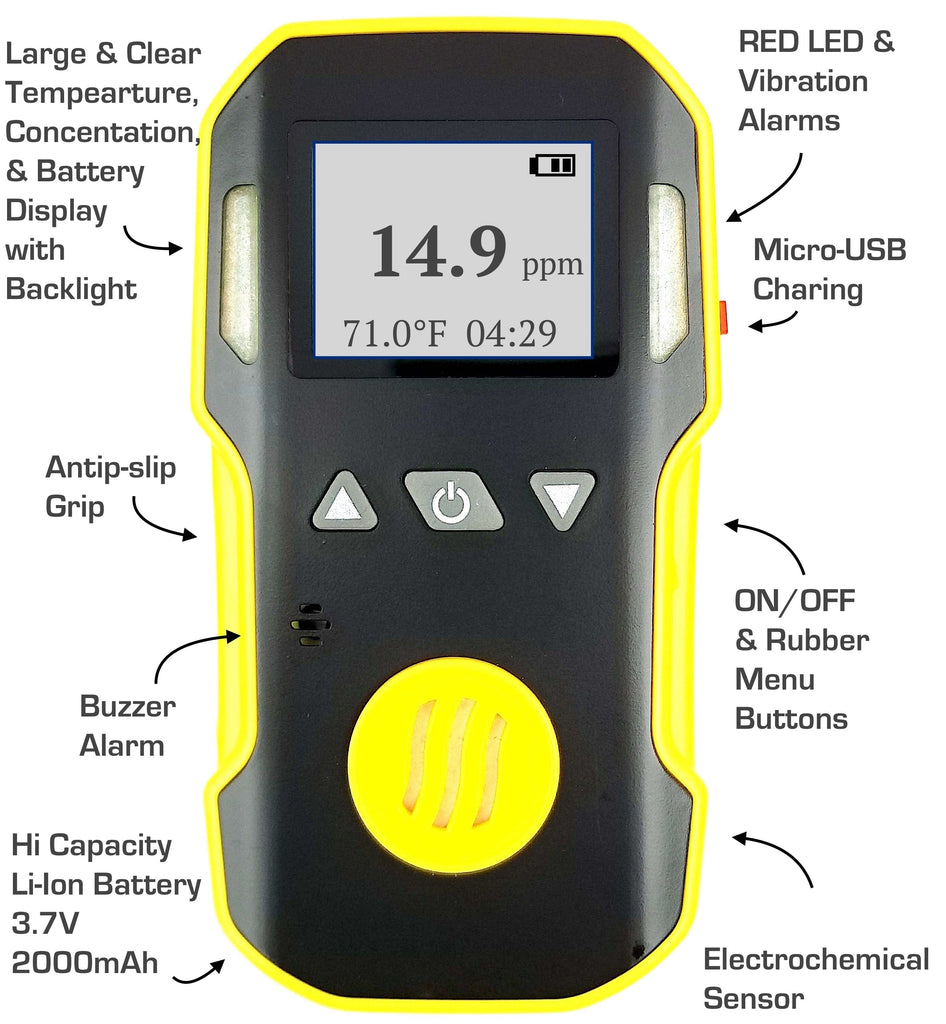

Indicators: LCD indicates the time, concentration, internal electronics temperature tracking, and battery level
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95% RH
Display Type: Backlit monochrome LCD
Battery: DC 3.7V Li-battery 1500 mAh
Explosion-Proof Grade: ATEX certified Ex ia IIC T4 Ga (📋 PDF)
Protection Category: IP54
Weight: 5.0 oz (140 grams)
Dimensions: 4.3 × 2.3 × 1.7 inches (10.9 × 5.8 × 4.3 cm)
Housing Material: ABS Plastic
Charge Time: 3 hours
Operating Time: > 24 hours
Alarm: LED, Buzzer, and Vibration
Audible Buzzer Alarm: ≥ 85 dB @ 1 meter
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
Pump Specifications
Operating Temperature: 0°F - 140°F (-18 to 60°C)
Humidity: < 95% RH non-condensing
Voltage: DC 3.0V Li-battery 1800 mAh
Flow Rate: 0.5 LPM (500 cc/min)
Noise: < 60 dB
Weight: 5 oz / 140 g
Dimensions: 2.6 × 1.2 × 8.9 inches (6.5 × 3.0 × 22.5 cm)
