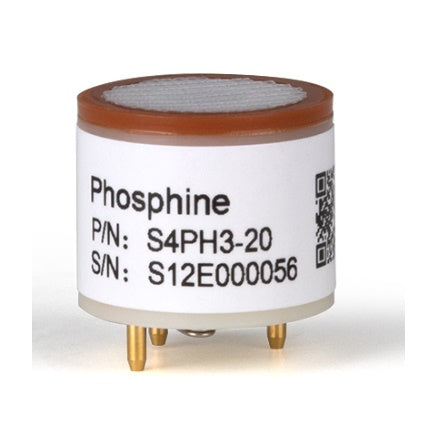

Phosphine Sensor (PH3) | 0 - 20 ppm |

Model: FD-PH3-SENSOR
Datasheet: Click Here PDF
Availability: Usually in stock
Compatible: FD-90A-PH3

Features

• ⚛️ High precision and long life (2 years)
• 🚄 Fast response speed, fast return to zero
• 🔋 Low power consumption, high sensitivity
• 🔬Wide linear range, strong anti-interference ability
• 💪 Excellent repeatability and stability

Description

These are generic PH3 sensors used as the pin-to-pin replacement of the standard 4-series electrochemical sensors. It is used throughout many gas detector brands and is an excellent PH3 gas sensor replacement element.

Our PH3 sensor employs an advanced electrolytic mechanism where phosphine and oxygen interact through precise redox reactions on specialized electrodes. By generating an electrical current directly proportional to the gas concentration, this sophisticated sensor enables accurate measurement of phosphine levels. The current's magnitude provides a quantitative assessment of PH3 presence in various industrial and environmental monitoring applications.

Our phosphine detection technologies play a critical role across diverse industrial and environmental monitoring domains. From manufacturing facilities and animal husbandry to smart municipal infrastructure and environmental protection, PH3 detectors provide comprehensive gas concentration insights. These advanced sensing systems enable precise measurement, early warning mechanisms, and critical monitoring, supporting safety, environmental health, and regulatory compliance in multiple application sectors.

Instructions

• Once replaced and installed in your gas detector or analyzer, please let it sit for 24 hours so the sensor can stabilize to your environment. This step is very important.
• Then undertake the appropriate zero and calibration for your specific gas detector. See your gas detector manufacturer's specific instructions.
• Once calibrated, your gas analyzer will be ready for use.

Specifications

Detection Principle	Electrochemical Three Electrodes
Detection Gas	PH3
Detection Range	0-20 PPM
Maximum Load Concentration	100 PPM
Output Signal	1500±500 nA/PPM
Zero Drift	0~1 PPM
Resolution	0.1 PPM
Response Time	<60s
Bias Voltage	0
Load Resistance	5~30Ω
Working Temperature	-30℃-50℃
Working Humidity	15%RH to 90%RH (no condensation)
Repeatability	<±2% output signal
Long-term Stability	<2% signal/month
Linearity	Regression coefficient R²=0.999
Work Pressure	90 to 110 kPa
Shelf Life	12 months after delivery
Service Life	2 years

Cross-Sensitivity Data

Interfering Gas	Gas Concentration Used (ppm)	Value Displayed (ppm PH3)
CO	500	0
SO2	5	<1
H2S	25	20
H2	1000	<1
NH3	40	0
C2H4	50	<1
