Brand: FORENSICS DETECTORS
Model: FD-4S-FLUE
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- ⚛️ RESIDENTIAL: For residential combustion analysis & ambient air quality, probe, or continuous sampling in confined spaces.

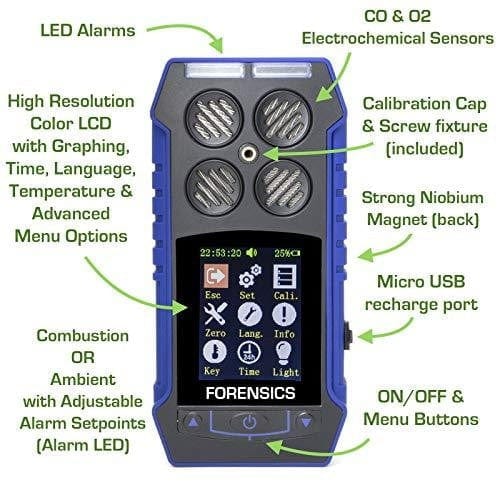

- 🌇 FEATURES: Color screen, graphing, and alarm logging. Includes case, water trap, particle filter, and NOx filter to reduce cross-sensitivity errors.

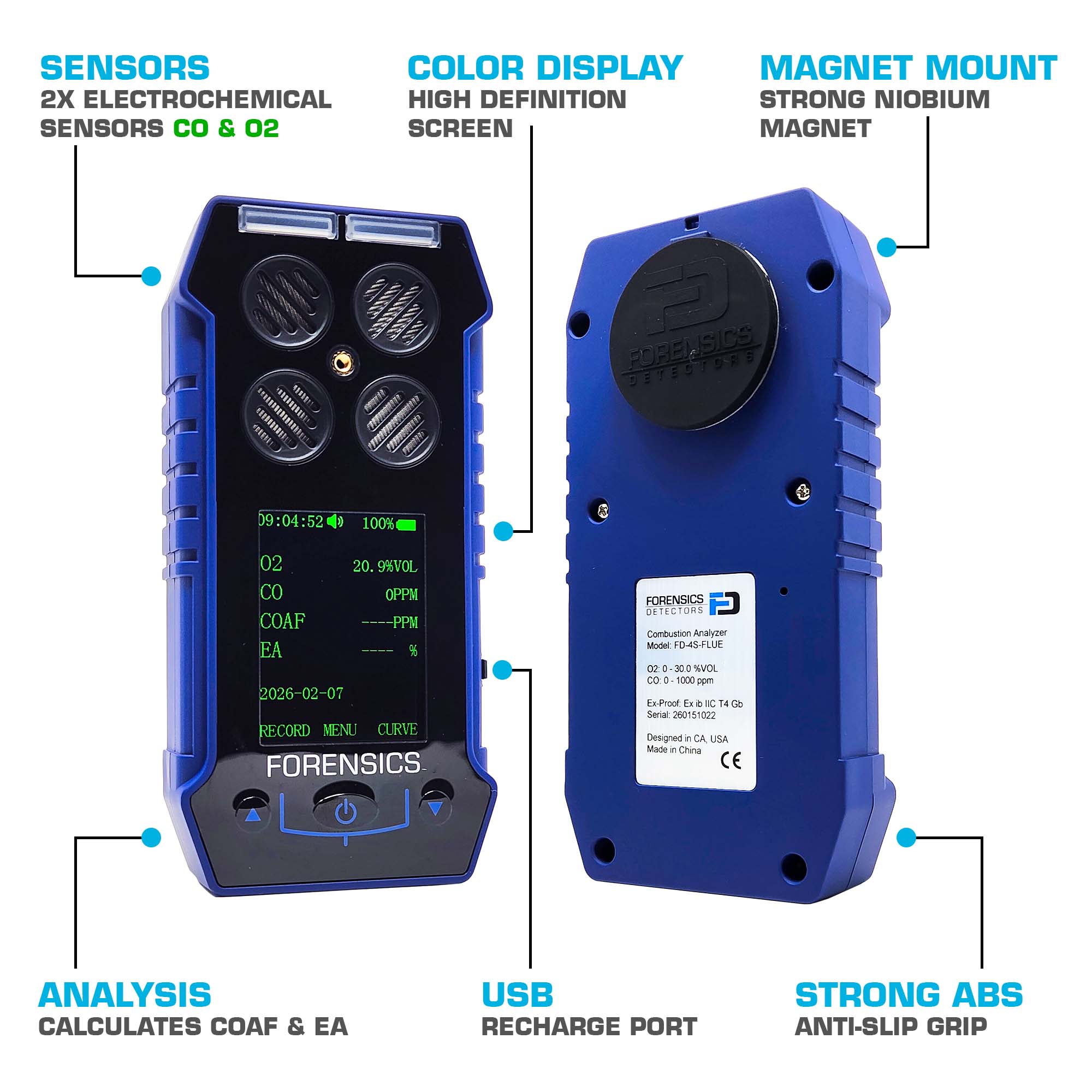

- 🔬 SENSORS: High-quality CO and O2 sensors. Calculates COAF (CO air free) and excess air (EA) for combustion analysis.

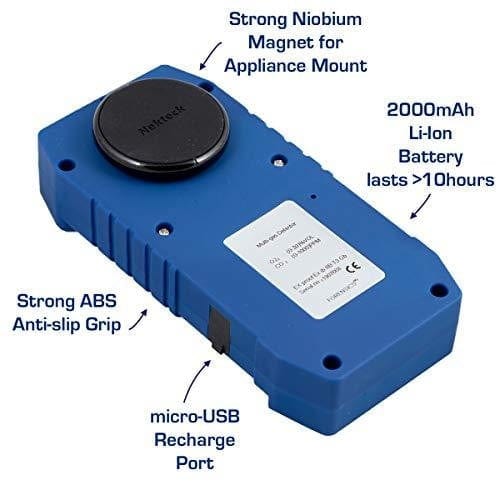

- 💪 STRONG: Robust design with ABS and anti-slip grip rubber. Comes with a strong magnet for appliance mounting.
- 🕵️ TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.

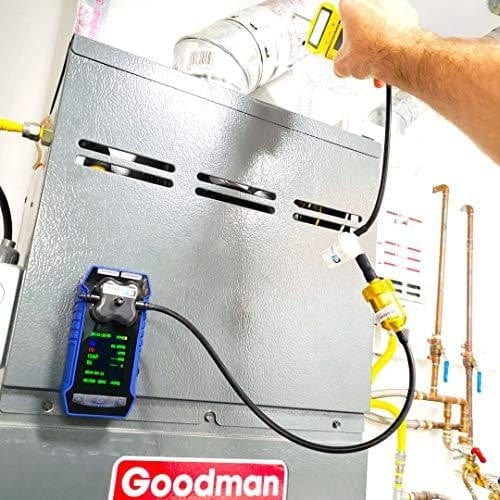

Details: A professional residential combustion analyzer + handheld pump with O2 & CO sensors. 32-bit microprocessor, color screen, real-time graphing, and alarm logging. Ideal for HVAC professionals, contractors, or maintenance engineers for residential boilers, heaters, and furnaces. The display screen shows CO, O2, COAF (CO air-free), and EA (Excess Air). The detector can also be used as (1) an ambient detector for general air quality measurements (2) a spot detector or (3) a combustion and flue gas analyzer. Please note, that this analyzer does NOT detect flue temperature or calculate combustion efficiency and does not detect nor calculate carbon dioxide (CO2). In addition, also note that this unit is not made for automotive exhaust gases since the CO in automotive combustion engines typically exceeds 1000ppm CO and may blow out the CO sensor. For automotive exhaust applications, please see the auto exhaust gas analyzer.

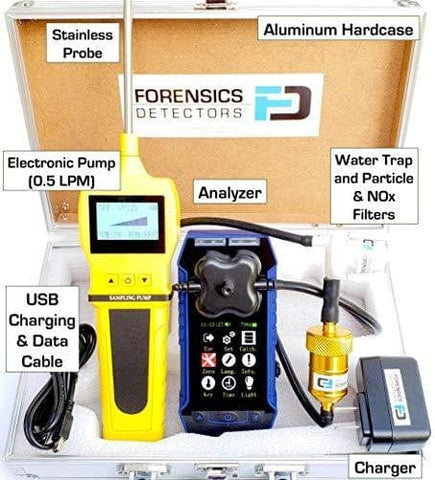

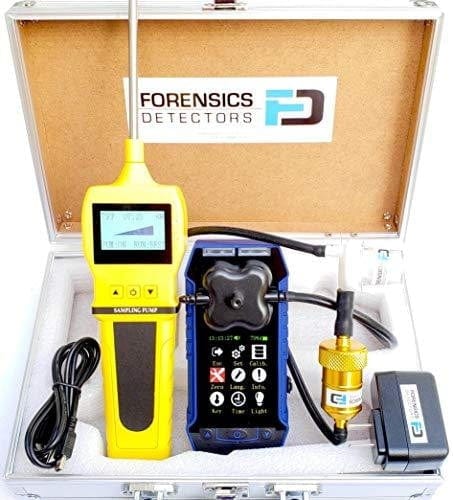

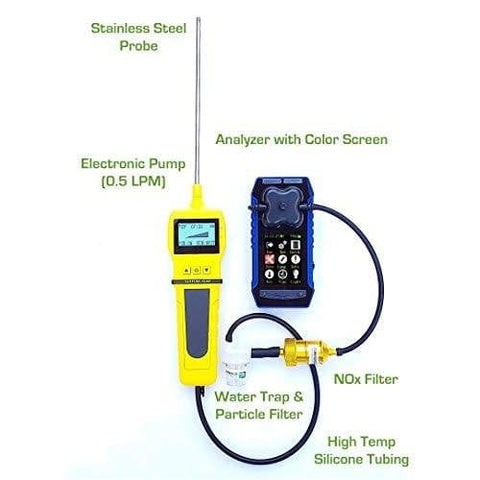

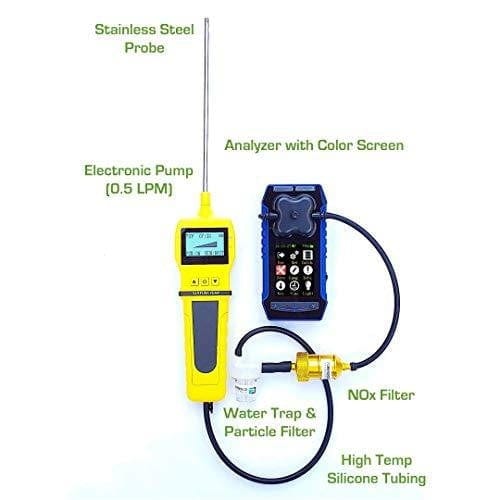

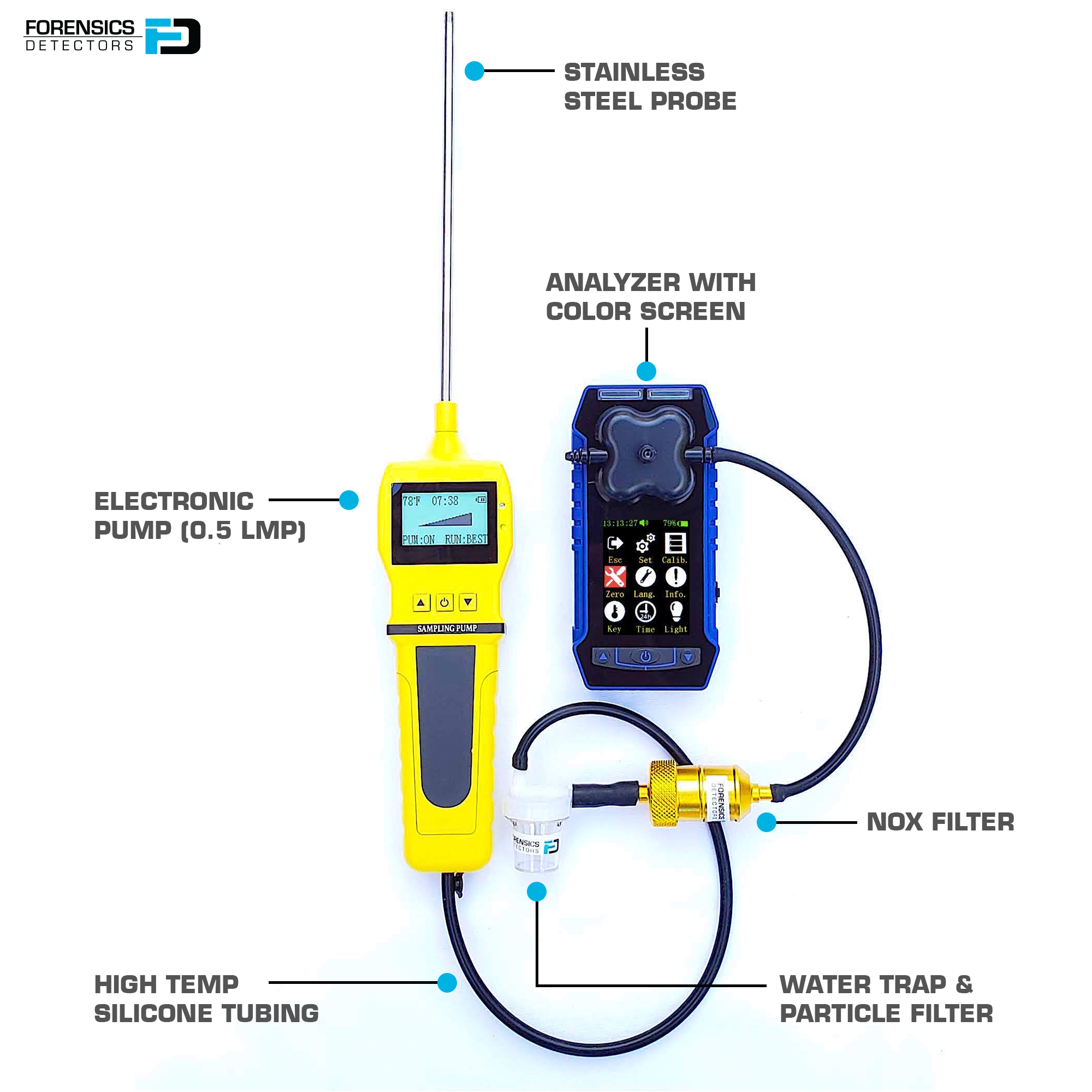

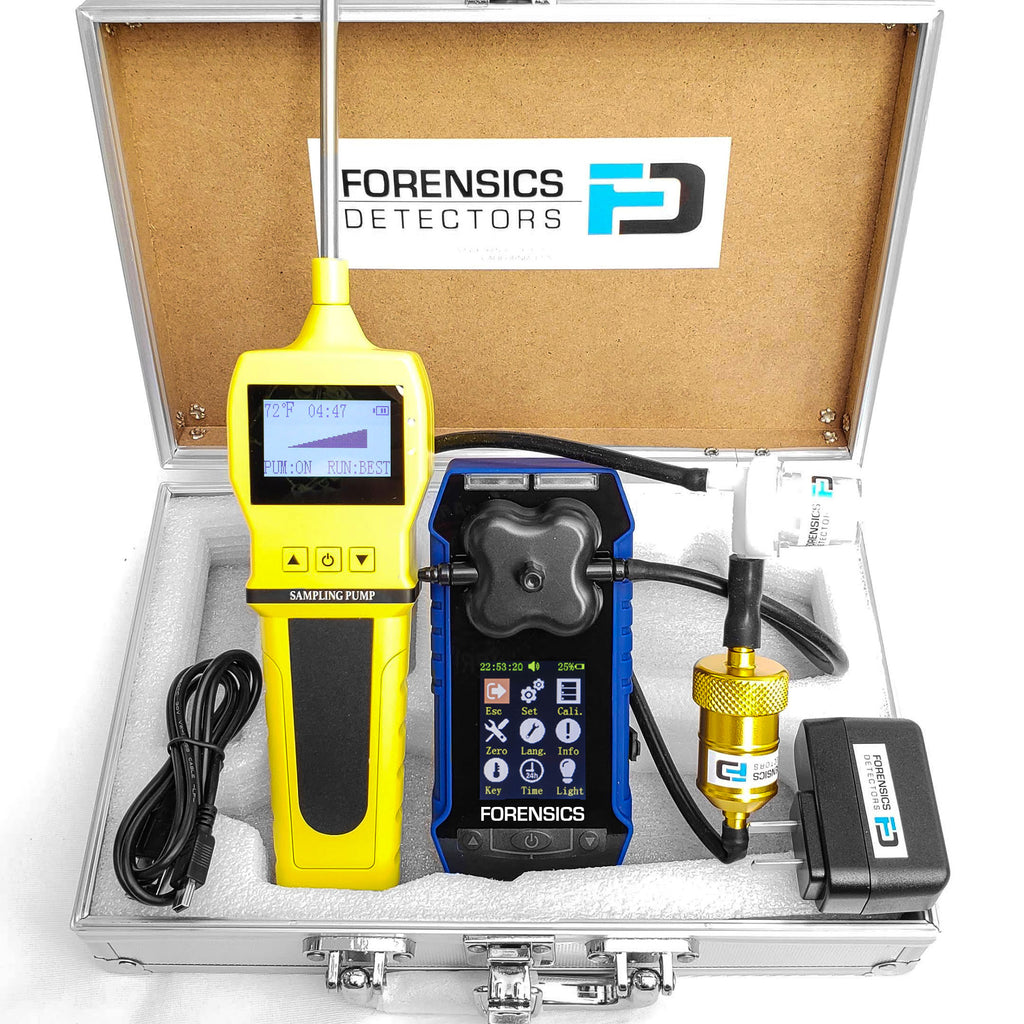

Included: Aluminum case, analyzer containing CO and O2 sensors, niobium magnet for mounting on appliances, electronic pump, stainless probe, hose assembly, 3 feet of high temp silicone tubing, water trap, NOx filter, sensor cap, screw to mount sensor cap to the analyzer, USB charging cable, USB charger, certified calibration certificate, and a user manual.
Calibration Options:
Calibration Service by Forensics Detectors
Calibration Tutorial (DIY)
Calibration Kit (DIY sold separately):
Calibration Gas (Combustion Gas)
Calibration Gas Regulator (C10)
Tubing
Bump Gas (sold separately):
Bump Gas (CO)
Bump Gas (N2)
Accessories and Parts (sold separately):
Gas Sensor Replacement (CO)
Gas Sensor Replacement (O2)
Gas Detector Waterproof Case
Gas Detector Stand
Detector Specifications
Oxygen (O2) Detection: 0 - 30% with 0.1% resolution
Carbon Monoxide (CO) Detection: 0 - 999 ppm with 1 ppm resolution
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Sampling Type: Diffusive (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Datalogging: Yes | 🛠️ Setup Guide
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: ≤ 30 sec
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: <95%RH
Display: High-Definition Color LCD
Battery: DC 3.7V Li-ion battery, 2000 mAhLi-ion
Explosion-Proof Grade: ATEX certified Ex II 2 G Ex ib IIC T4 Gb (📋 PDF)
Protection Category: IP54
Weight: 8.6 oz (246 grams)
Dimensions: 5.7 × 2.7 × 1.1 inches (14.5 × 6.9 × 2.8 cm)
Housing Material: ABS Plastic
Charge Time: 4 hours
Operating Time: > 24 hours
Alarm: LED
Recommended USB Power Supply: 5V / 1A minimum (USB-A)
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source

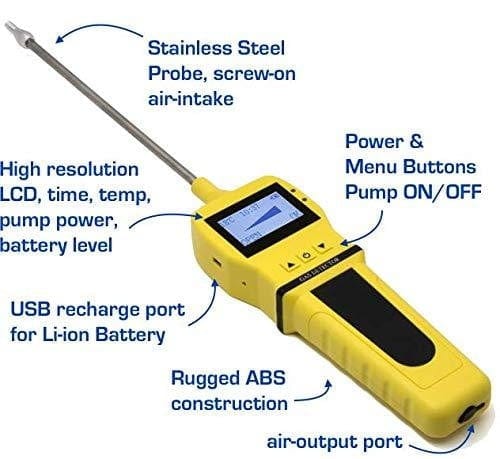

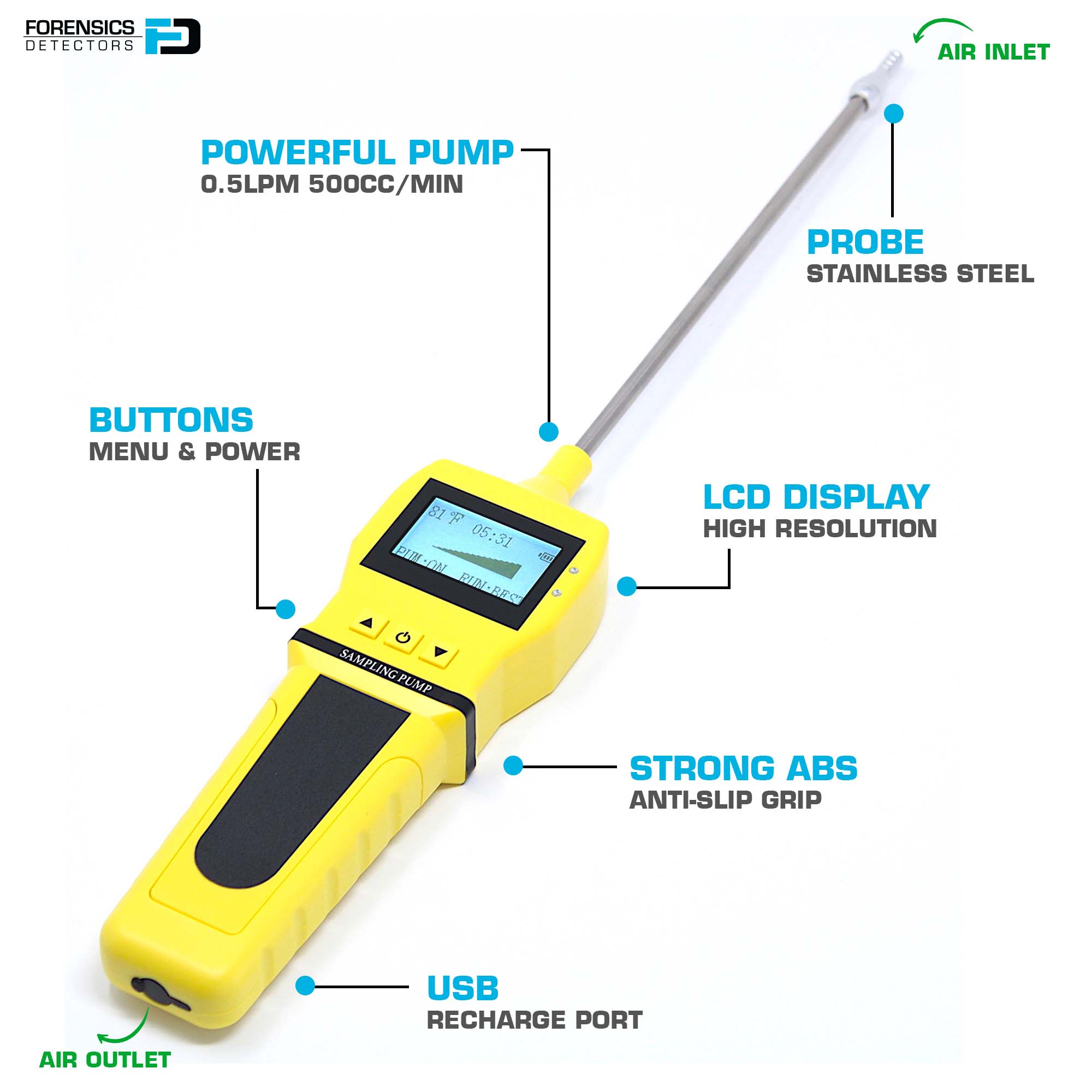

Pump-Probe Specifications
Battery: Rechargeable DC 3.0V Li-battery 1800 mAh charged via USB connector
Temperature: 32 to 140°F (0 to 60°C)
Max Probe Flue Gas Exposure Temperature: 400°F for 3-minute periods
Humidity: < 95% RH non-condensing
Voltage: DC 3.0V Li-battery 1800 mAh
Flow Rate: 0.5 LPM
Noise: <60 dB
Weight: 4.9 oz (140 g)
Dimensions: 2.6 × 1.2 × 8.9 inches (6.6 × 3.0 × 22.6 cm)
