Brand: FORENSICS DETECTORS
Model: FD-91-YELLOW
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- ⚛️ ACCURATE: Sensor made in Japan and calibrated to methane.
- 💪 SHOCK: ABS housing can withstand a 10 ft drop.
- 🌈 DISPLAY: Large, color LCD screen with temperature.
- 🌋 USES: For inspectors, technicians, and engineers.
- 🕵️ TRUSTWORTHY: ** 1-year limited warranty ** 5-year sensor life **

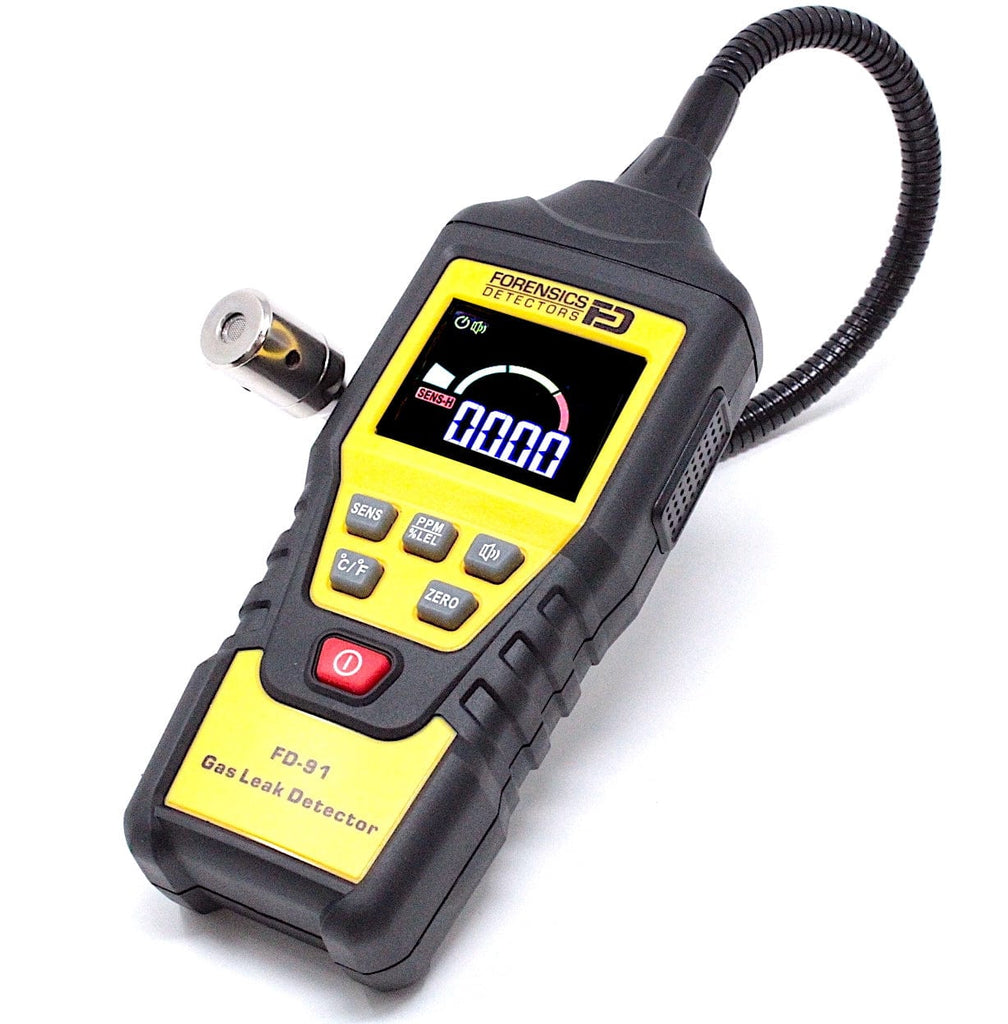

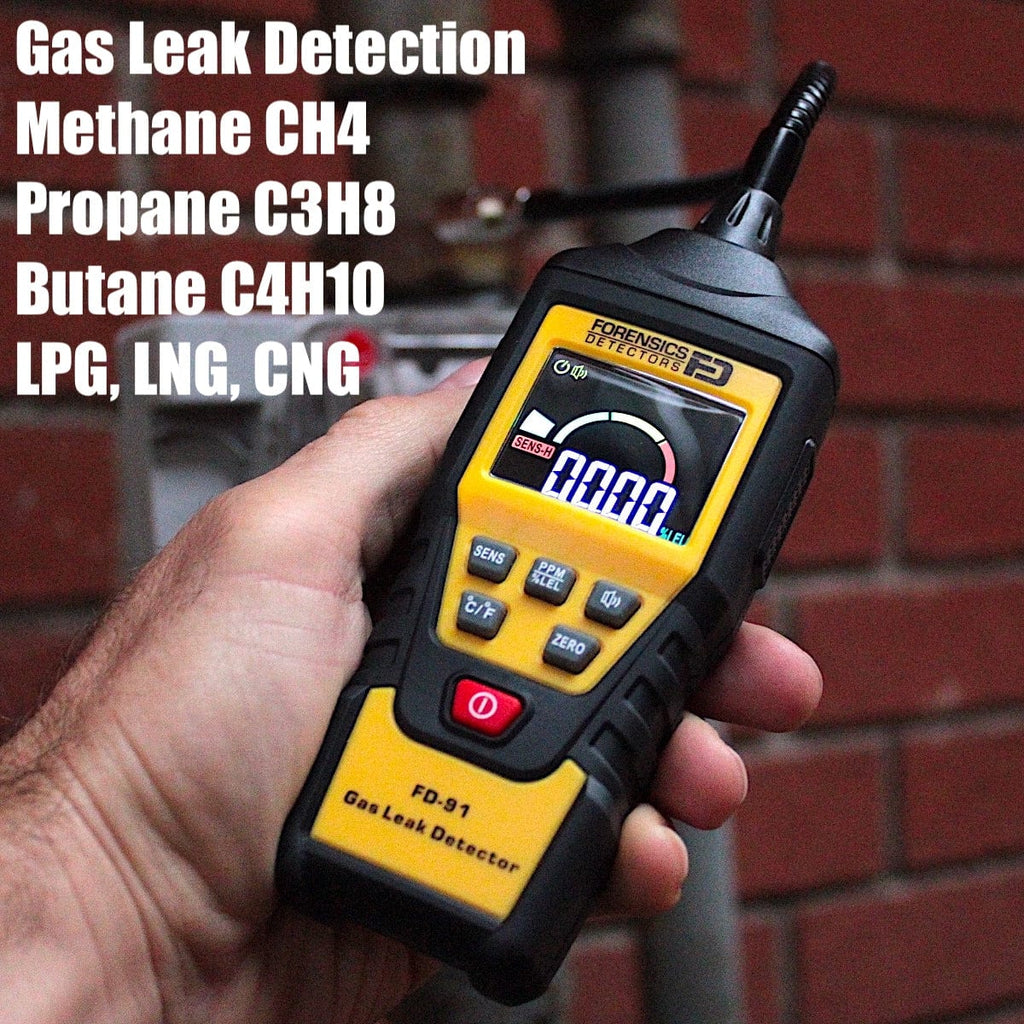

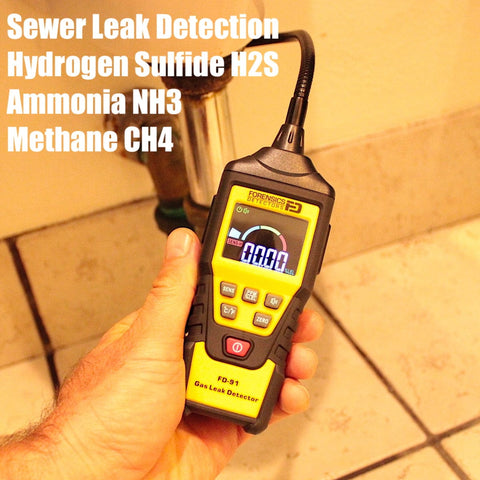

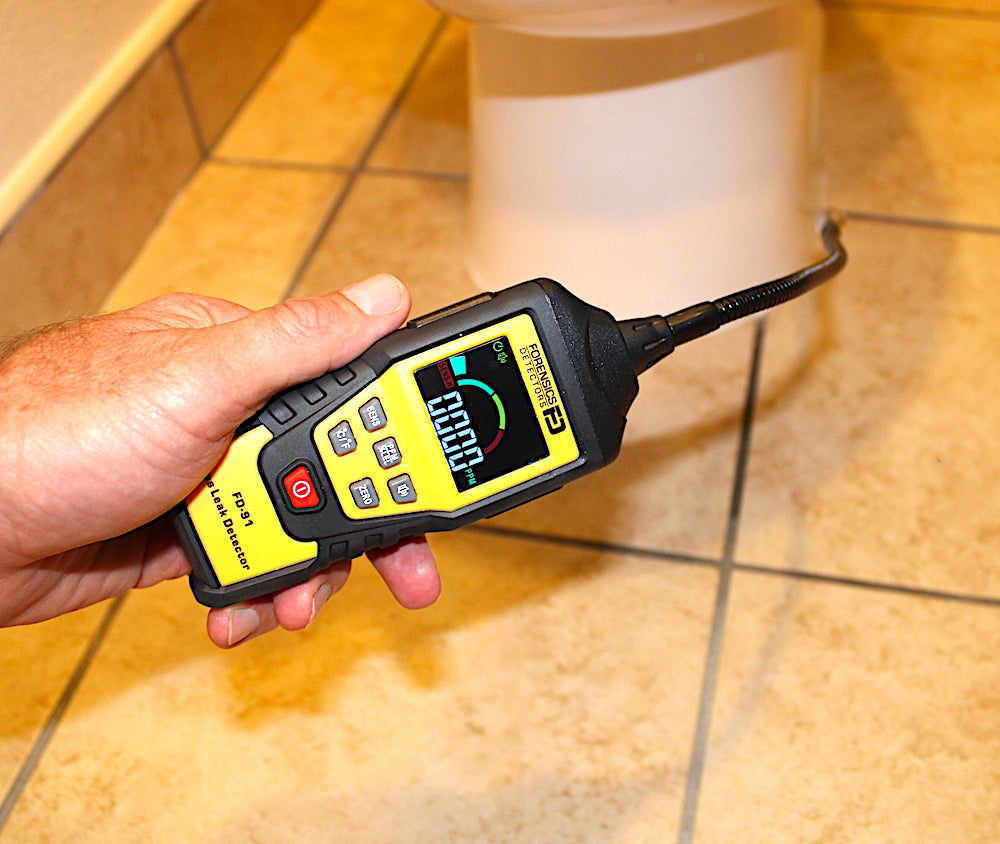

Details: A sewer gas and natural gas leak detector constructed with a premium Japanese FIGARO gas sensor. This detector is very robust and can withstand a 10 ft drop. This detector features an advanced microprocessor, a high-resolution LCD for a clear display, and advanced alarm functions with adjustable light, sound, and vibration. Applications include home use to find sewer smell and gas leaks or industrial use for inspectors, utility workers, refinery workers, maintenance engineers, technicians, and many others who wish to monitor combustible gas leaks. This detector is used in waterworks, underground storage tanks, oil rigs, tanks, and silos in the maritime industry. For personal protection from combustible gases, we recommend FD-90A-EX, and for a pump, we recommend FD-600-EX.
Included: Gas leak detector, user manual, and 3 x AAA batteries.
Accessories (sold separately):
Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (EX) (email us)
Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, butanol vapor, diesel vapor, ethanol vapor, gasoline, hexane, hydrogen, methane, methanol, naphtha, natural gas, paint thinners, petrol vapor, propane, solvents, turpentine, toluene, and hundreds of other combustible gases.
Specifications
Combustible Detection (methane calibration): 0 - 9999 ppm or 0.00-20.00% LEL
Gas Sensor Type: Semiconducting Metal Oxide
Gas Sensor Life: > 5 years
Sampling Method: Diffusive (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Datalogging: No
Analog Signal Output: No
Error: ≤ ± 5% F.S.
Response Time: ≤ 30 sec
Store / Operating Temp: 0 to 122°F (−18 to 50°C)
Store / Operating Humidity: 10% - 90% RH
Display Type: Color LCD
Battery: 3 x AAA 1.5V batteries
Battery Operation: > 10 hours
Explosion-Proof Grade: None (Ordinary Locations Only)
Visible and audible alarm point: 500 ppm
Auto Off: after 10 minutes
Alarm: Buzzer, LED
Weight: 11 oz (312 g)
Dimensions: 6 × 2.4 × 1.2 inches (15.2 × 6.1 × 3.0 cm)
Housing Material: ABS Plastic
Gooseneck Length: 10 in
