Brand: FORENSICS DETECTORS
Model: FD-60-VAPE
User Manual (PDF): EN | DE | FR | ES | IT |
Insights: Read the Expert Guide
Features:
- š INDUSTRIAL: Most sensitive vape, weed, smoke, particulate, aerosol, and dust detector that includes laser technology for PM1.0, PM2.5, and PM10 particulate/dust detection to detect all particles in regular cigarette smoke, e-cigarette smoke, weed smoke, and vaping.
- š DETERRENT: Industrial-looking, large-screen vape detector to detect and discourage vaping in prohibited indoor spaces and areas.
- š USES: Schools, restrooms, higher education, K-12, businesses, hospitality toilets, bathrooms, and confined spaces to detect the slightest vape or aerosol particles. One unit per 500 sq ft.

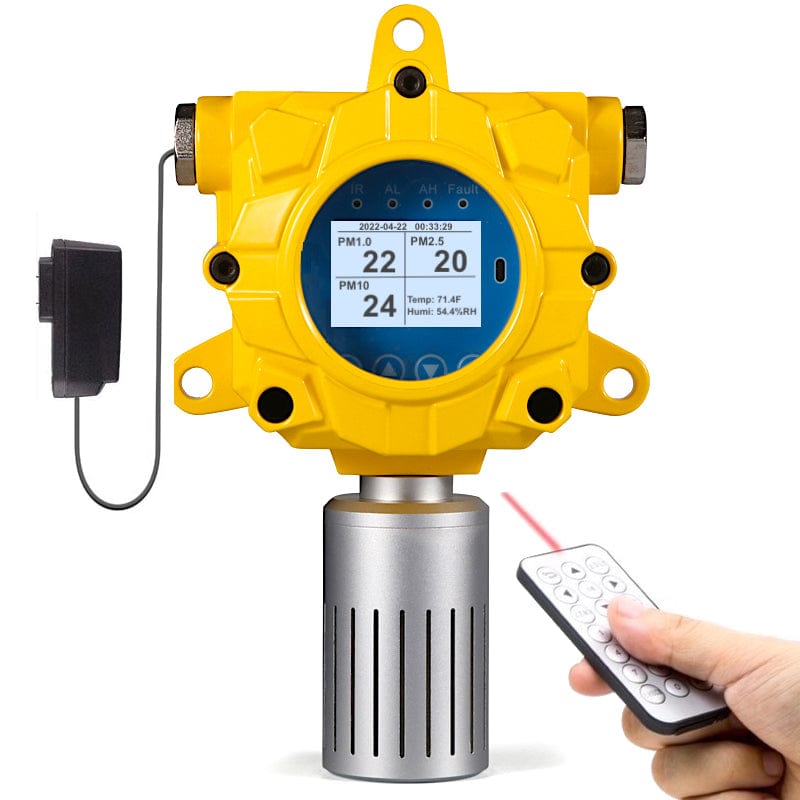

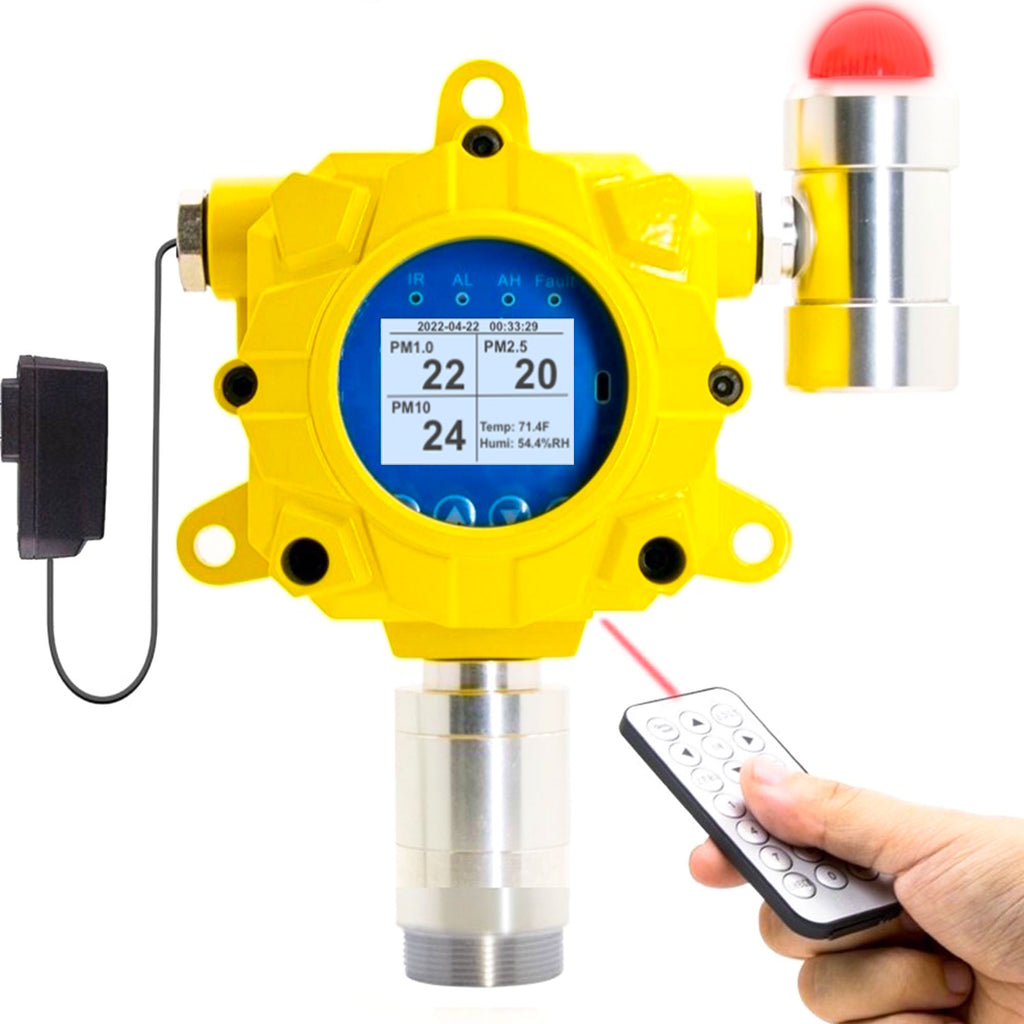

- š FEATURES:Ā Large LED alarm and buzzer. Adjustable audio and visual.Ā Ā Remote control.Ā RS485 MODBUS OutputĀ andĀ Analog Output (4-20 mA)Ā for remote sensing and data logging.
- šŖ ROBUST: Vandalism-resistant. DetersĀ "would-be" offenders.Ā Water-resistant and tamper-proof.Ā
- šµļø TRUSTWORTHY: 1-year limited warranty. Arrives with a signed and dated calibration certificate.Ā Ā

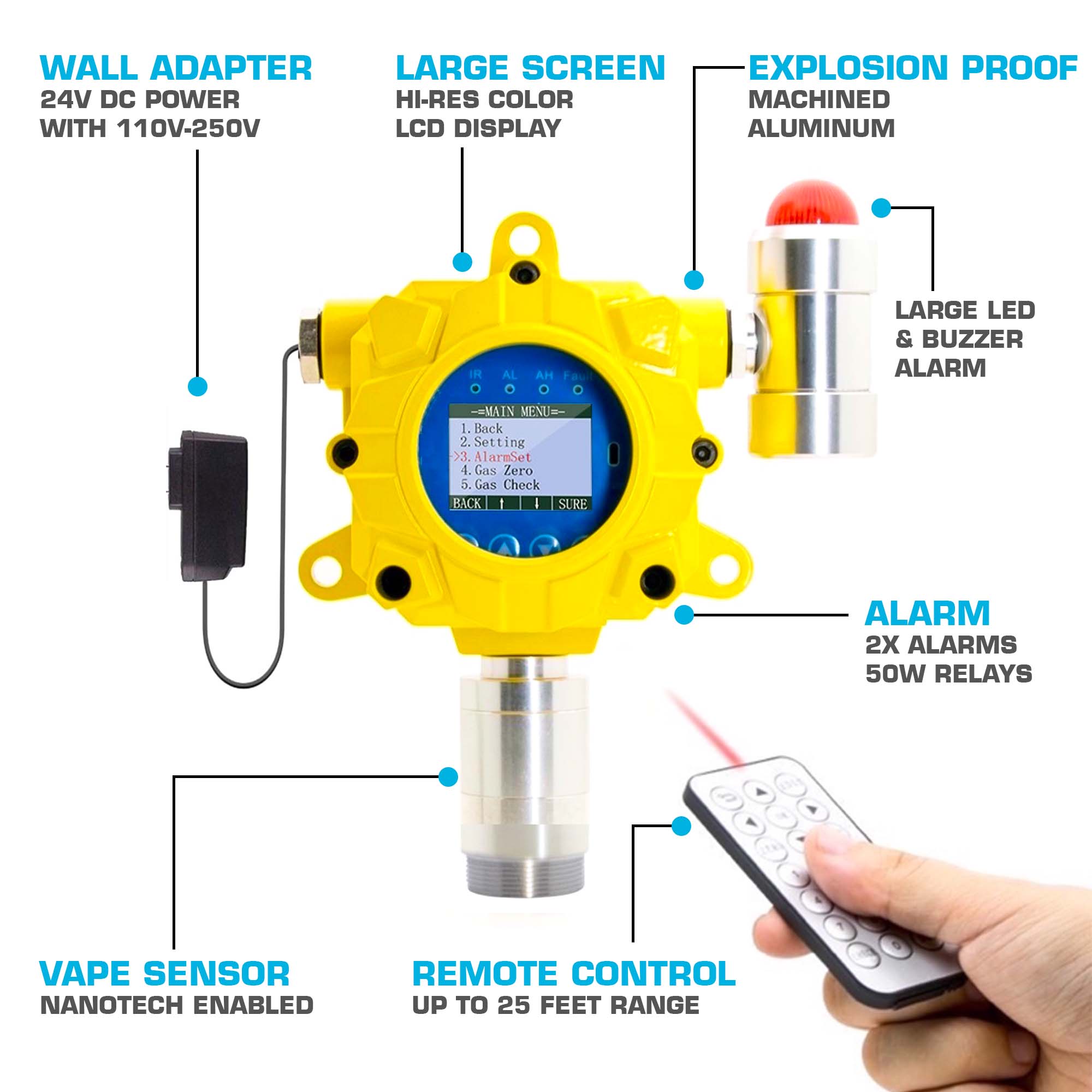

Details:Ā This is a heavy-duty, industrial-type vape detector that can take a beating and can withstand tampering, prying, meddling, or any intrusive behavior. It's the most robust vape detector on the market and the only unit with a strong, die-cast aluminum housing that's tamper-resistant. The unit also demands respect for its industrial design and build, which helps deter "would-be" offenders. The vape detector employs laser scattering sensor technology to detect the slightest airborne particle. This technology is very stable and eliminates false positives. This is the only vape detector that can detect particles from 1 micron all the way up to 10 microns, making it extremely sensitive to vape smoke.Ā TheĀ vape detector can be configured to alarm at various thresholds depending on the ventilation and indoor air quality situation and room size. The unit has 2 alarm relays that can be wiredĀ for remote alarming purposes.Ā Specifically designed with a large digital readout screen so "would-be" offenders can be deterred from undertaking prohibited acts. This unit was designed with use-case considerations in schools, K-12, restrooms, businesses, hospitality toilets, bathrooms, and confined spaces. We also offer handheld vape detectors for spot-checking.

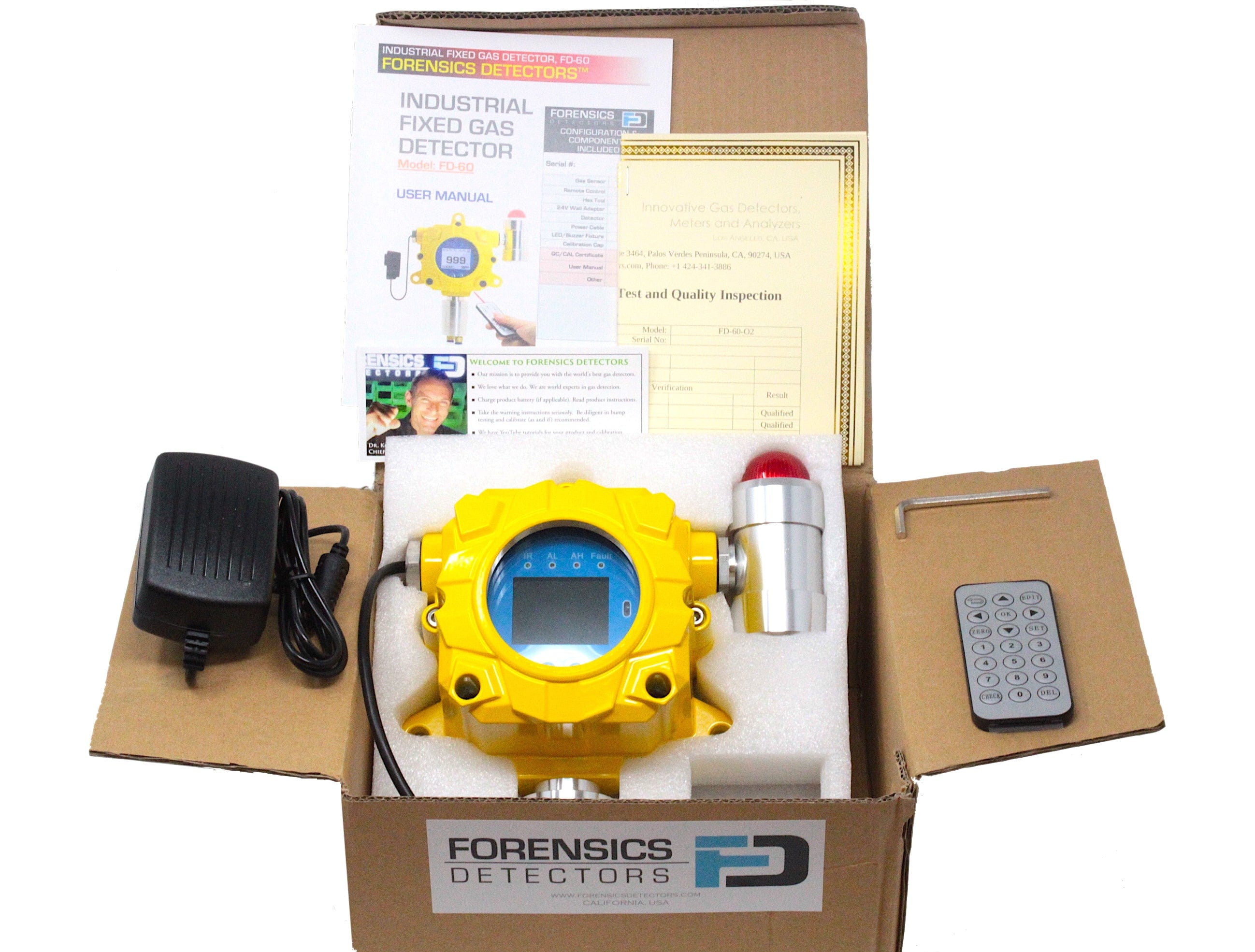

Included: Comes with the vape detector, user manual, remote control with battery, hex key to remove the cover, 24V power adapter to plug to 110V outlet, and wiring.Ā
Specifications
Gas Sensor Type:Ā Laser Scattering Particulate Matter Sensor
Gas Sensor Life: >10 years
Range: 0-6,000 µg/m3
Sampling Method: Natural diffusion (no pump)
Operating Pressure: 1.0 bar nominal (range: 0.8 to 1.2 bar)
Recommended Calibration Period: 12 months
Digital Output Datalogging: RS485 MODBUS (š ļø Setup Guide)
Analog Signal Output: 4 - 20 mA (ā¶ļø Demo Video)
Error: ⤠± 5% F.S.
Response Time: <60 seconds
Alarm: LED & Buzzer
Audible Buzzer Alarm: ā„ 85 dB @ 1 meter
Store / Operating Temp: 0 to 122°F (ā18 to 50°C)
Store / Operating Humidity:Ā <95% RH
Explosion-Proof Grade: ATEX certified Ex d ā
”C T6 Gb (š PDF)
Protection Category: IP65
Power Supply: DC 24V ±15% (100ā240V AC, 50/60 Hz)
Max Power Consumption: 20 W (LED ON and Buzzer ON)
Electrical Output: 2 x relay contacts, max power 50 W per relay

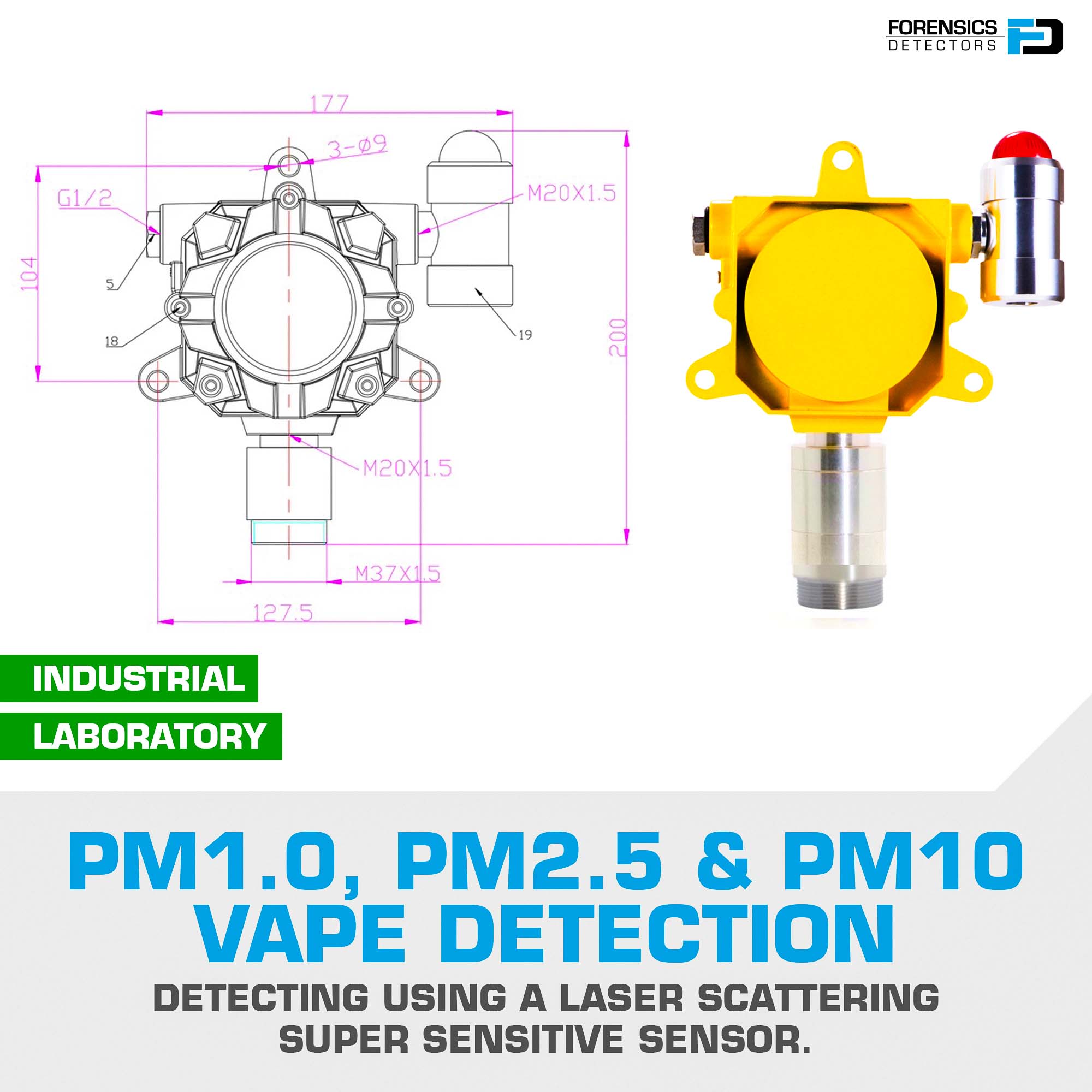

Dimensions: 7.9 Ć 7.1 Ć 3.5 inches (20 Ć 18 Ć 9 cm)Ā
Weight:Ā 3 lbs (1.4 kg)
Threads: G1/2 male proof hose pipe, thread size M20 x 1.5 mm
Housing Material: Die-cast aluminum alloy
Calibration Location (USA): Los Angeles, California, USA
Calibration Standard (USA): USA NIST Traceable Gas Source
Calibration Location (Europe): Athens, Greece
Calibration Standard (Europe): European NPL Traceable Gas Source
